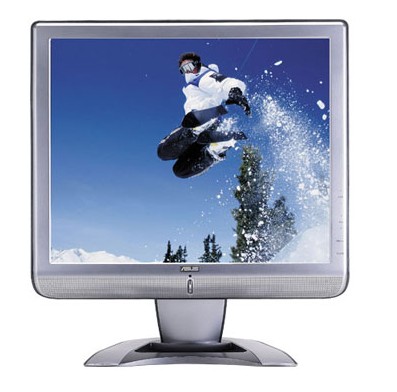

PM17Ts LCD Display
Model PM17Ts LCD DisplayPart no. PM17TS
23 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourSilver
- Panel mounting interface75 x 75 mm
- Power consumption (typical)36 W
- Width (without stand)390 mm
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Silver
- Panel mounting interface
- 75 x 75 mm
- Power consumption (typical)
- 36 W
- Width (without stand)
- 390 mm
- Brand
- ASUS
- Category
- Monitor
- Model
- PM17Ts LCD Display
- Part number
- PM17TS
- Also known as
- ASUS PM17Ts LCD Display computer monitor 43.2 cm (17") 1280 x 1024 pixels Silver
Specifications
23 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Touchscreen | No |
| Display brightness (typical) | 400 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 600:1 |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 130° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 |
| Horizontal scan range | 31 - 80 kHz |
| Vertical scan range | 56 - 76 Hz |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 24-pins DVI-D 15-pins D-Sub 3.5mm RCA R/L |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 75 x 75 mm |
| Tilt angle range | 20 - -5° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 36 W |
| Power consumption (standby) | 3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 390 mm |
| Depth (without stand) | 176 mm |
| Height (without stand) | 414 mm |
| Weight (without stand) | 4.4 kg |
Other features
| Specification | Value |
|---|---|
| Certification | TCO03, Energy Star, UL, cUL, TUV-GS, CB, FCC, CCC, BSMI, Gost-R, C-Tick |
