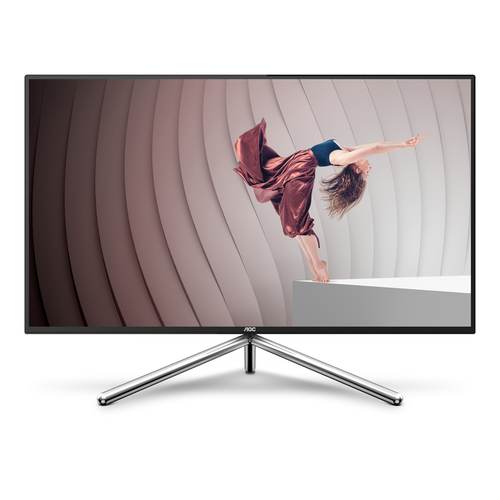

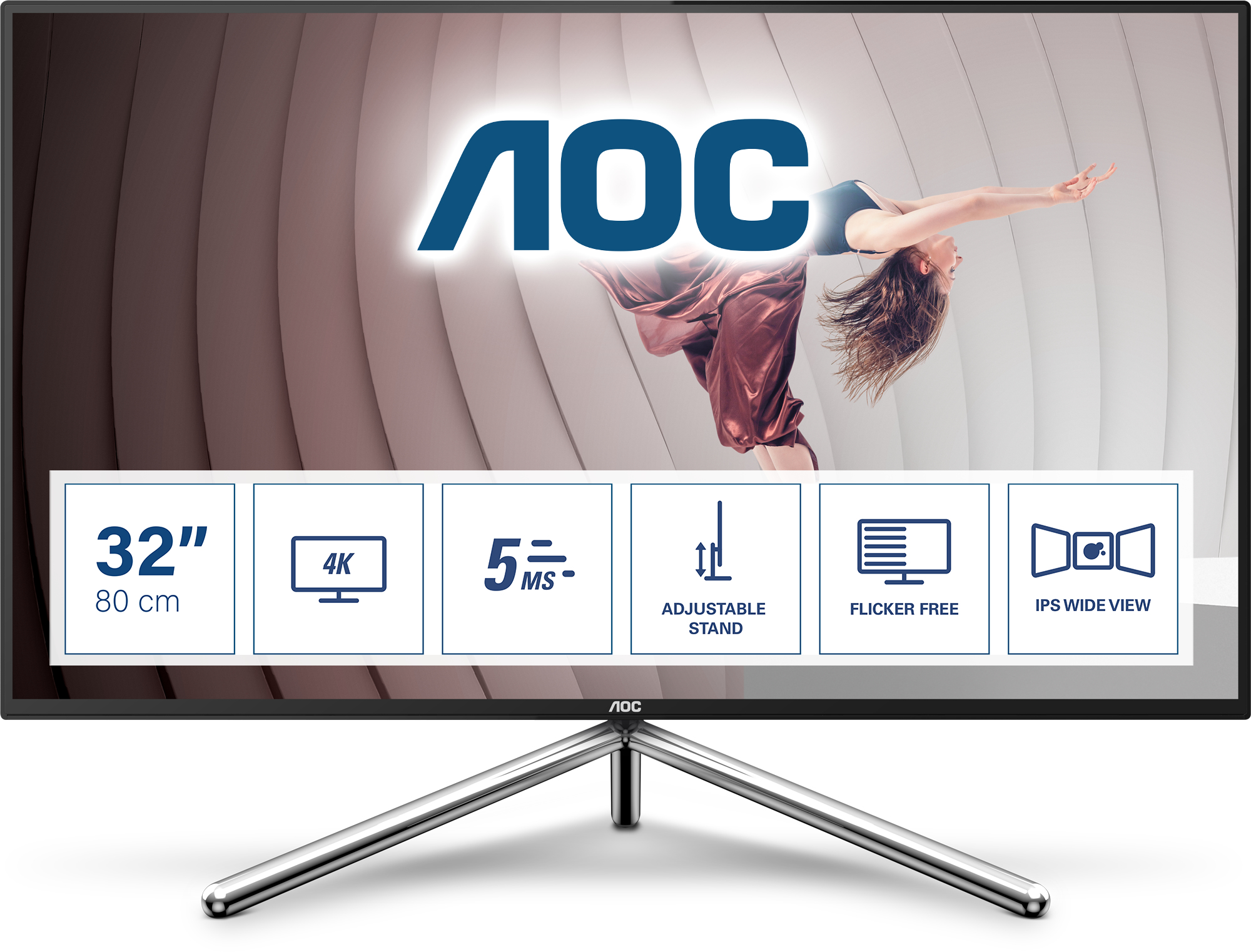

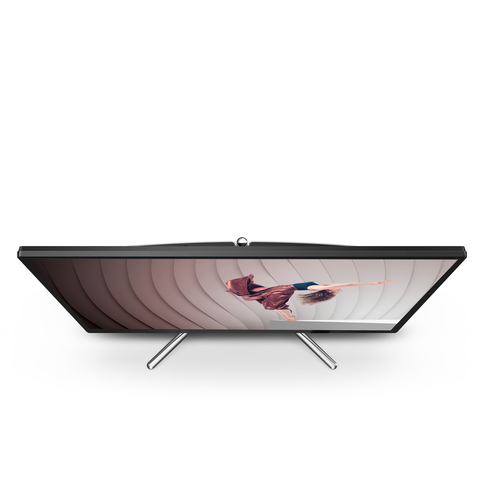

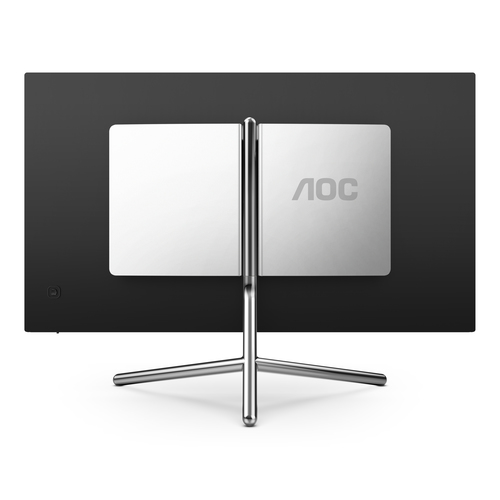

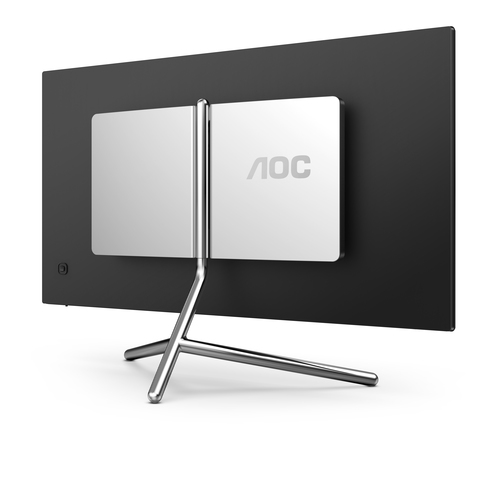

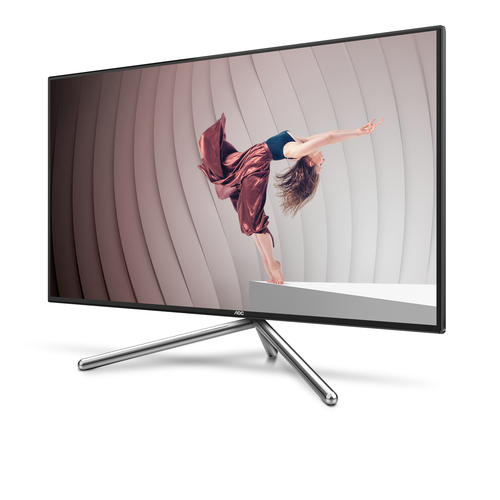

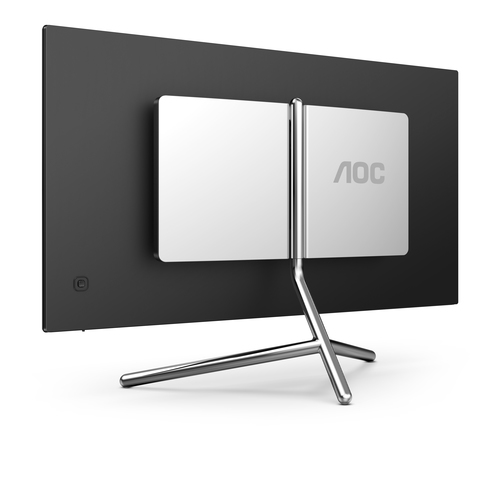

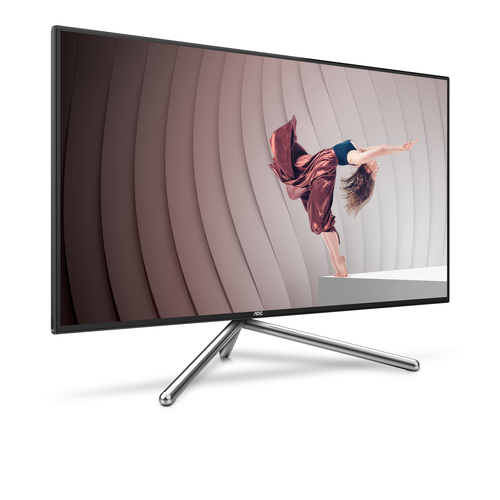

U32U1 computer monitor

80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD LED Black

Model U32U1EAN 4038986116749

128 specifications Checked today

Display80 cm (31.5")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: AOC
Category: Monitor
Model: U32U1
Part number: U32U1
EAN / UPC: 4038986116749
Also known as: AOC U32U1 computer monitor 80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD LED Black

Specifications

128 specifications in 14 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	600 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Supported graphics resolutions	3840 x 2160
Supported video modes	2160p
Contrast ratio (typical)	1300:1
Contrast ratio (dynamic)	50000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.1815 x 0.1815 mm
Horizontal scan range	30 - 160 kHz
Vertical scan range	23 - 60 Hz
Viewable size, horizontal	69.7 cm
Viewable size, vertical	41.4 cm
Digital horizontal frequency	30 - 160 kHz
Digital vertical frequency	23 - 60 Hz
Display diagonal (metric)	80 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 600
Surface hardness	3H
Colour depth	8 bit
Colour gamut standard	Adobe RGB, NTSC, sRGB
sRGB coverage (typical)	135%
NTSC coverage (typical)	96%
Adobe RGB coverage	100%
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
Fast charging	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Frameless design	Yes
Front bezel colour	Black
Detachable stand	No
Feet colour	Silver

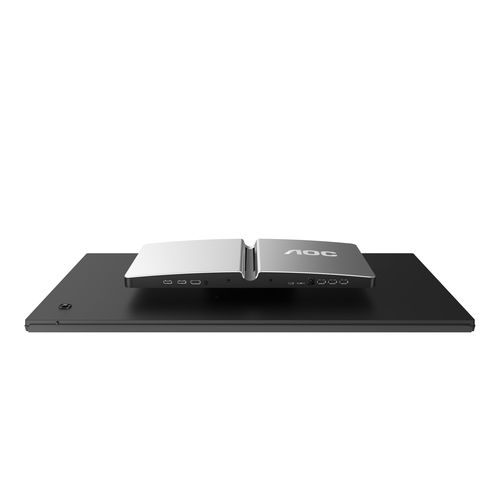

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-C
Number of upstream ports	1
USB Type-A downstream ports quantity	3
USB Type-C downstream ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
DVI port	No
HDMI	Yes
HDMI ports quantity	2
HDMI version	1.4/2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Audio input	Yes
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	12 cm
Pivot	Yes
Swivelling	Yes
Swivel angle range	-32 - 32°
Tilt adjustment	Yes
Tilt angle range	-3.5 - 18.5°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Number of OSD languages	16

Power

Specification	Value
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	55 kWh
Energy consumption (HDR) per 1000 hours	80 kWh
Power consumption (typical)	60 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External
Energy efficiency scale	A to G
External power adapter	No

Weight & dimensions

Specification	Value
Width (with stand)	718.1 mm
Depth (with stand)	276.7 mm
Height (with stand)	633.4 mm
Weight (with stand)	10.3 kg
Width (without stand)	718.1 mm
Depth (without stand)	75.1 mm
Height (without stand)	414.2 mm

Packaging data

Specification	Value
Package width	820 mm
Package depth	360 mm
Package height	640 mm
Package weight	14.4 kg
USB cable length	1.8 m

Packaging content

Specification	Value
Cables included	HDMI, DisplayPort
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m

Sustainability

Specification	Value
Doesn't contain	Mercury

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Textured
Bezel thickness type	Frameless
Compliance certificates	CE
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	50000 h
Light effects	No
Certification	WEEE,CB,TUV-Bauart-Mark,ISO 9241-307,EAC,FCC,Microsoft WHQL
Warranty period	3 year(s)

Recycling data

Specification	Value
Overall recyclability rate	100%
Packaging recyclability rate	100%

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
