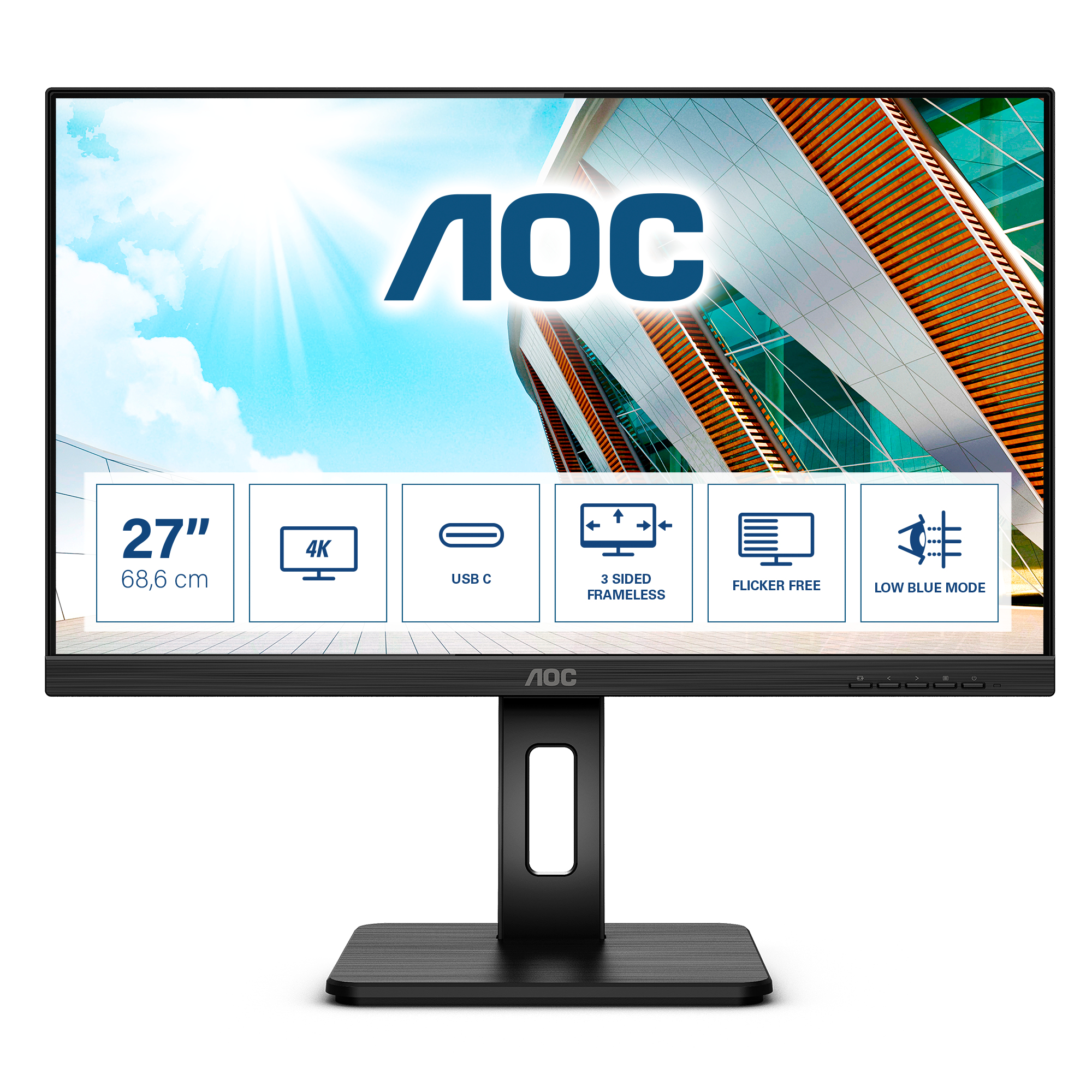

U27P2CA computer monitor

68.6 cm (27") 3840 x 2160 pixels 4K Ultra HD LED Black

Model U27P2CAEAN 4038986189859

135 specifications Checked today

Display68.6 cm (27")
Resolution3840 x 2160 pixels
Energy classF
ColourBlack
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 3840 x 2160 pixels
Energy class: F
Colour: Black
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: AOC
Category: Monitor
Model: U27P2CA
Part number: U27P2CA
EAN / UPC: 4038986189859
Also known as: AOC U27P2CA computer monitor 68.6 cm (27") 3840 x 2160 pixels 4K Ultra HD LED Black

Specifications

135 specifications in 16 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	4K Ultra HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	350 cd/m²
Response time	4 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	3840 x 2160
Supported video modes	2160p
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	50000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Pixel pitch	0.1554 x 0.1554 mm
Pixel density	1638 ppi
Horizontal scan range	30 - 140 kHz
Viewable size, horizontal	59.7 cm
Viewable size, vertical	33.6 cm
Display diagonal (metric)	68.6 cm
Surface hardness	3H
Colour depth	10 bit
Colour gamut standard	sRGB
sRGB coverage (typical)	112%
Adobe RGB coverage	81%
Display scanning frequency	HDMI 2.0/DP 1.2: 30-140 KHz (H), HDMI 2.0/DP 1.2: 23 - 75 Hz (V)

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Fast charging	Yes
VESA Adaptive Sync support	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Frameless design	Yes
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Number of USB Type-C upstream ports quantity	1
USB Type-A downstream ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	65 W
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.2
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Built-in KVM switch	Yes
Mobile High-Definition Link (MHL)	No

Network

Specification	Value
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Swivelling	Yes
Swivel angle range	-180 - 180°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Portuguese, Russian, Swedish
Number of OSD languages	16

Power

Specification	Value
Energy efficiency class (SDR)	F
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	25 kWh
Energy consumption (HDR) per 1000 hours	50 kWh
Power consumption (typical)	37 W
Power consumption (standby)	0.5 W
Power consumption (max)	75 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	613.6 mm
Depth (with stand)	200.1 mm
Height (with stand)	544.5 mm
Weight (with stand)	7.1 kg
Width (without stand)	613.6 mm
Depth (without stand)	51.1 mm
Height (without stand)	369.5 mm
Weight (without stand)	5.1 kg

Packaging data

Specification	Value
Package width	690 mm
Package depth	160 mm
Package height	595 mm
Package weight	9.6 kg
Package type	Box

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, HDMI, DisplayPort
Audio cable length	1.8 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, TCO
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
Compatibility	VESA-P2
Exterior finish type	Textured
Bezel thickness type	Frameless
Compliance certificates	WEEE
Heavy metals free	Hg (mercury)
Ethernet LAN (RJ-45) ports	0
Light effects	No
Certification	WEEE,REACH compliant,RoHs compliant,Microsoft WHQL
Warranty period	3 year(s)

Technical details

Specification	Value
Native refresh rate	60 Hz

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
