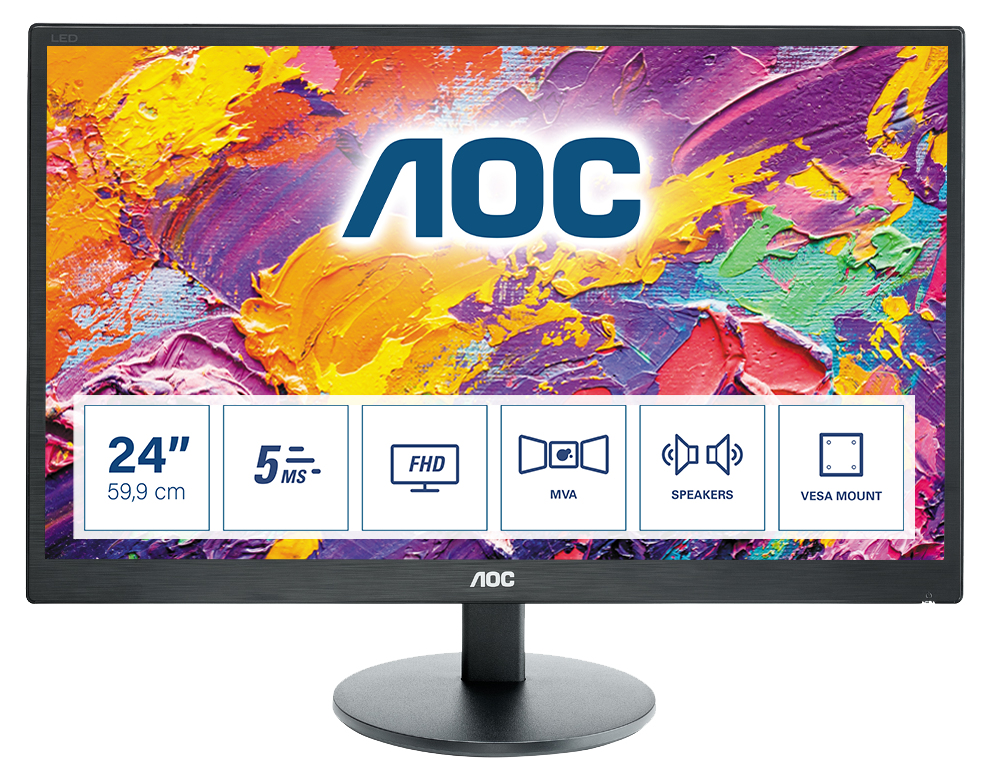

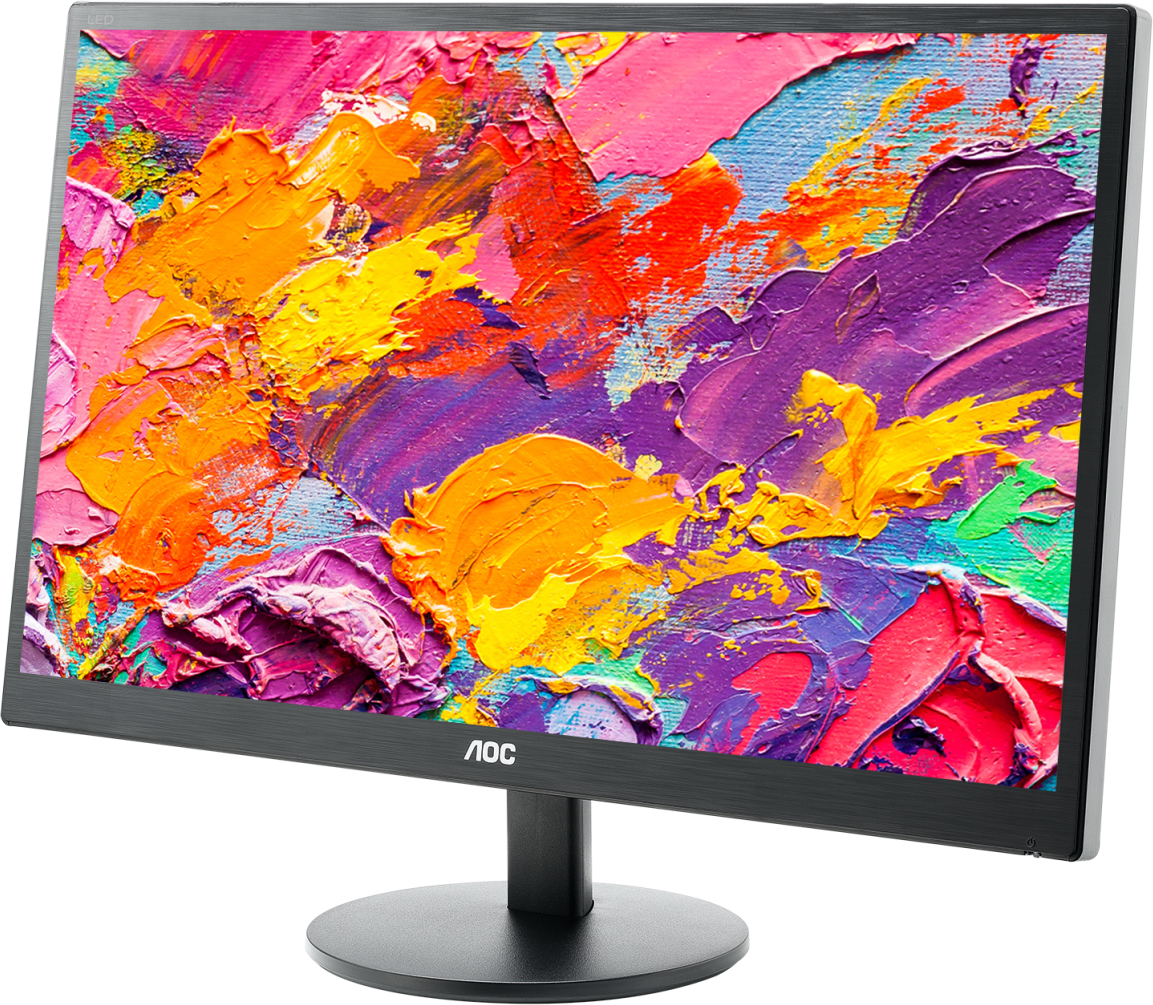

M2470SWH computer monitor

59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Black

Model M2470SWHEAN 4038986144995

110 specifications Checked today

Overview

Brand: AOC
Category: Monitor
Model: M2470SWH
Part numbers: M2470SWH, M2470SWH-AE
EAN / UPC: 4038986144995, 5715063195123, 7227489860144
Also known as: AOC M2470SWH computer monitor 59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Black

110 specifications in 14 groups

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	MVA
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	50000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.2715 x 0.2715 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	52.1 cm
Viewable size, vertical	29.3 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	50 - 76 Hz
Display diagonal (metric)	59.944 cm
Surface hardness	3H
3D	No
Pixel frequency	165 MHz

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Specification	Value
Built-in USB hub	No
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI	Yes
HDMI ports quantity	2
HDMI version	1.4
DisplayPorts quantity	0
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes
AC (power) in	Yes
Mobile High-Definition Link (MHL)	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	No
Swivelling	No
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Number of OSD languages	16
Plug and Play	Yes

Specification	Value
Energy efficiency class (SDR)	E
Energy consumption (SDR) per 1000 hours	20 kWh
Power consumption (typical)	17.96 W
Power consumption (standby)	0.37 W
Power consumption (off)	0.19 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G
External power adapter	No

Specification	Value
Sustainability certificates	TCO
Doesn't contain	Mercury

Specification	Value
TV tuner integrated	No
Exterior finish type	Textured
Bezel thickness type	Normal
Compliance certificates	CE
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	50000 h
Light effects	No
Certification	WEEE,RoHs compliant,CB,TUV-GS-Mark,EAC,FCC,Microsoft WHQL
Warranty period	3 year(s)
