E970SWN/96 computer monitor

47 cm (18.5") 1366 x 768 pixels Black

Model E970SWN/96

55 specifications Checked today

Display47 cm (18.5")
Resolution1366 x 768 pixels
Energy classE
ColourBlack
Built-in USB hubNo
VESA mountingYes

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Energy class: E
Colour: Black
Built-in USB hub: No
VESA mounting: Yes

Brand: AOC
Category: Monitor
Model: E970SWN/96
Part number: E970SWN/96
Also known as: AOC E970SWN/96 computer monitor 47 cm (18.5") 1366 x 768 pixels Black

Specifications

55 specifications in 10 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Panel type	TN
LED backlight	Yes
Backlight type	W-LED
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Contrast ratio (typical)	700:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	90°
Viewing angle, vertical	65°
Display number of colours	16.7 million colours
Pixel pitch	0.3 x 0.3 mm
Viewable size, horizontal	41 cm
Viewable size, vertical	23 cm
Display diagonal (metric)	46.99 cm
Surface hardness	3H

Design

Specification	Value
Product colour	Black
Front bezel colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No

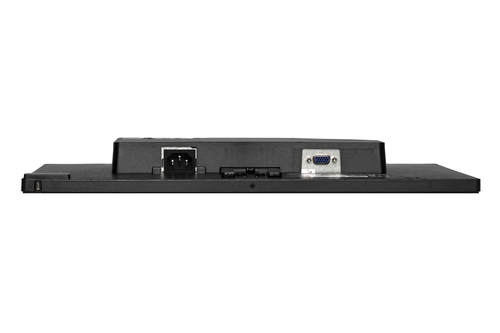

VGA (D-Sub) ports quantity	1

Ergonomics

Specification	Value

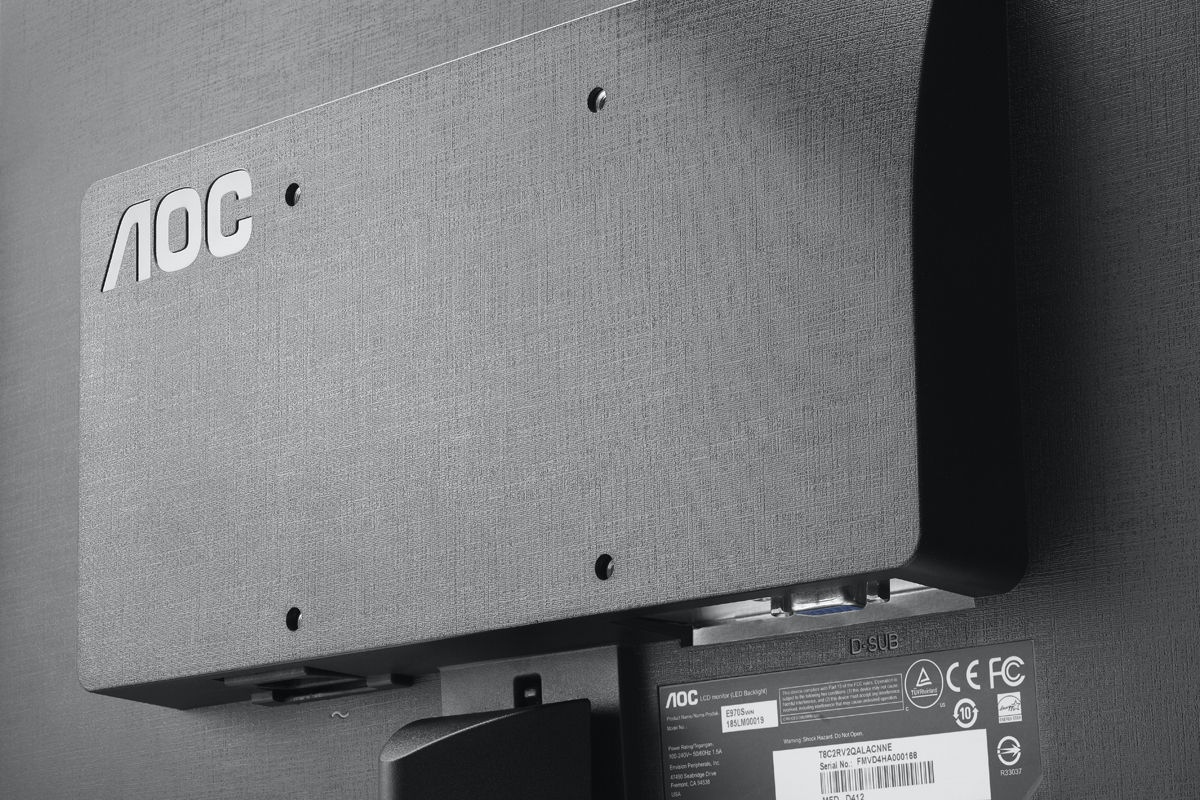

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Pivot	No
Tilt adjustment	Yes
Tilt angle range	-5 - 15°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian

Power

Specification	Value
Energy efficiency class (SDR)	E
Power consumption (typical)	10.52 W
Power consumption (standby)	0.14 W
Power consumption (off)	0.08 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal

Weight & dimensions

Specification	Value
Width (with stand)	437.4 mm
Depth (with stand)	271.6 mm
Height (with stand)	47.7 mm
Weight (with stand)	2.15 kg

Packaging data

Specification	Value
Package width	490 mm
Package depth	345 mm
Package height	102 mm
Package weight	2.8 kg
VGA cable length	1.8 m

Packaging content

Specification	Value
Cables included	AC
Power cable length	1.2 m

Sustainability

Specification	Value
Doesn't contain	Mercury

Other features

Specification	Value
Bezel thickness type	Normal
Compliance certificates	CE
Mean time between failures (MTBF)	50000 h
Certification	WEEE,RoHs compliant,CB,TUV-Bauart-Mark,TUV-GS-Mark,EAC,FCC,Microsoft WHQL
Warranty period	3 year(s)
