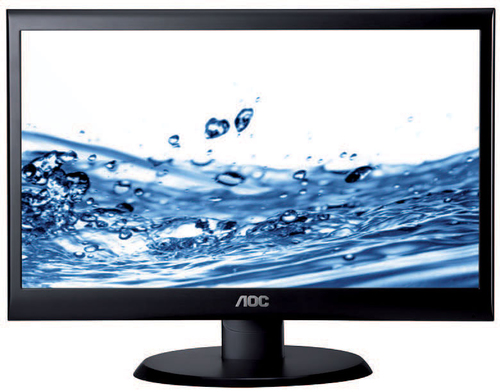

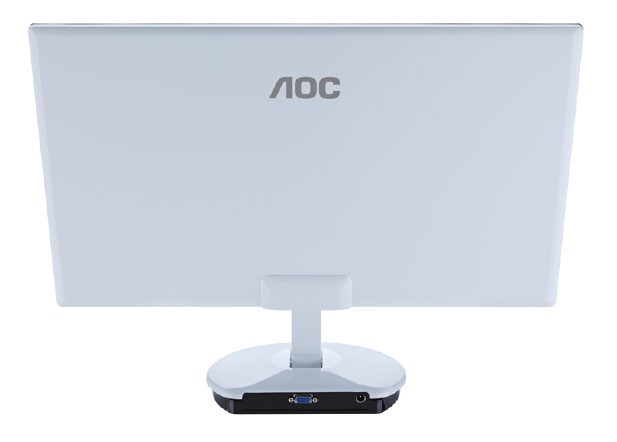

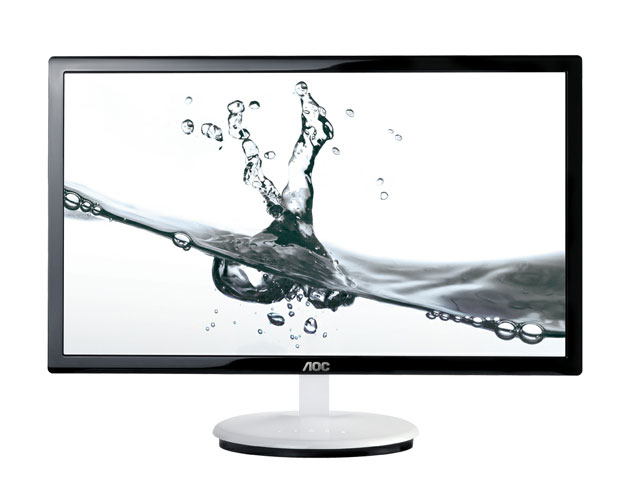

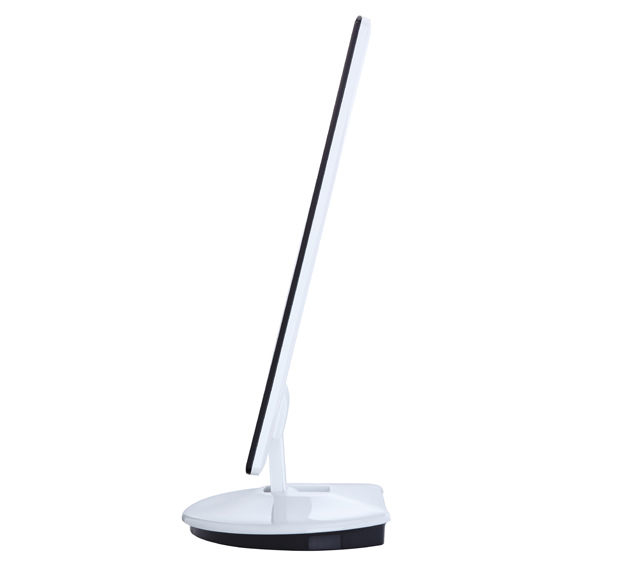

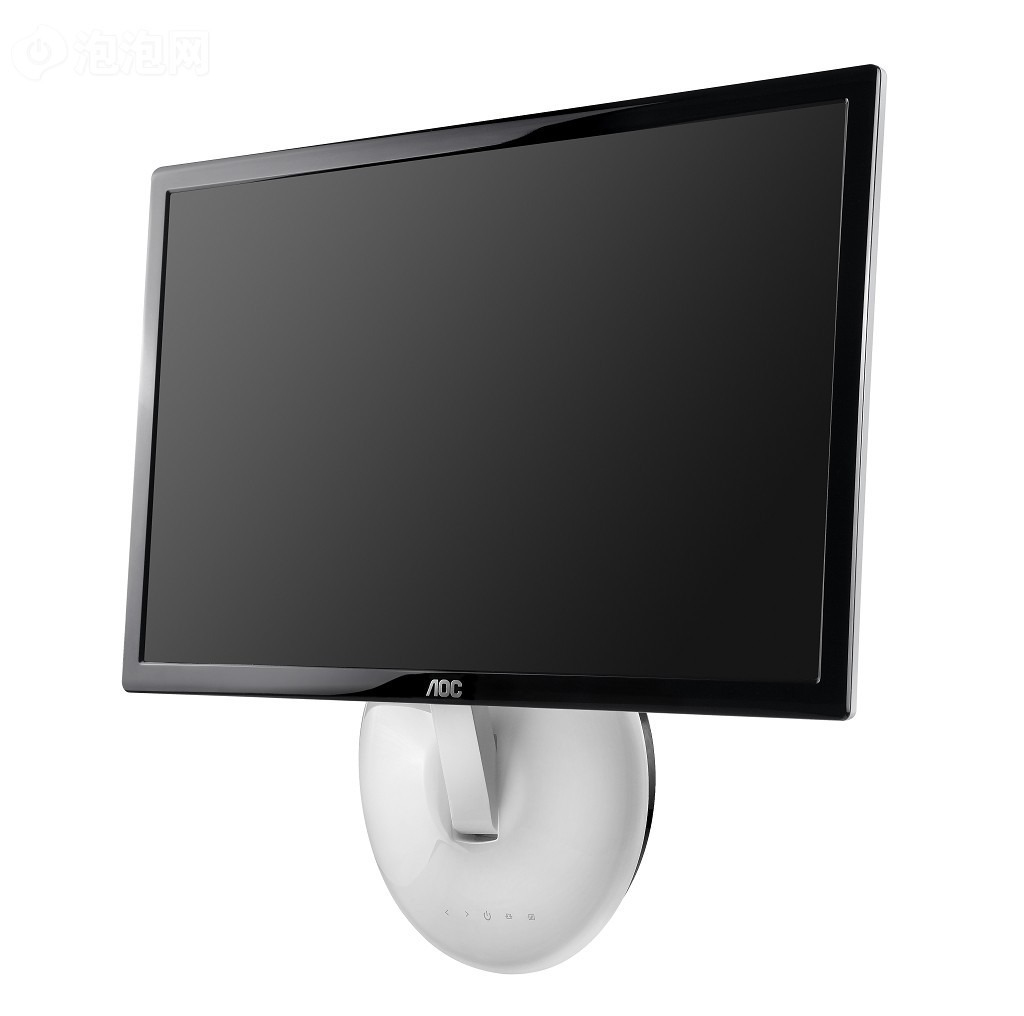

AOC e943Swn computer monitor

AOC e943Swn computer monitor

47 cm (18.5") 1366 x 768 pixels HD

Model e943SwnPart no. E943SWNEAN 4038986191722

77 specifications Checked 3 days ago

Display47 cm (18.5")
Resolution1366 x 768 pixels
Windows operating systems supportedYes
Built-in speaker(s)No
USB Type-A downstream ports quantity0
Power consumption (typical)18 W

See all specifications

Overview

Display: 47 cm (18.5")
Resolution: 1366 x 768 pixels
Windows operating systems supported: Yes
Built-in speaker(s): No
USB Type-A downstream ports quantity: 0
Power consumption (typical): 18 W

Brand: AOC
Category: Monitor
Model: e943Swn
Part number: E943SWN
EAN / UPC: 4038986191722
Also known as: AOC e943Swn computer monitor 47 cm (18.5") 1366 x 768 pixels HD

Specifications

77 specifications in 12 groups

Display

Specification	Value
Display diagonal	47 cm (18.5")
Display resolution	1366 x 768 pixels
Native aspect ratio	16:9
Touchscreen	No
HD type	HD
Display brightness (typical)	200 cd/m²
Response time	5 ms
Display surface	No
Supported graphics resolutions	720 x 400, 832 x 624, 1024 x 768 (XGA), 1360 x 768 (WXGA), 1366 x 768, 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	16:9
Contrast ratio (dynamic)	50000000:1
Display number of colours	16.78 million colours
Pixel pitch	0.3 x 0.3 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	55 - 75 Hz
Viewable size, horizontal	41 cm
Viewable size, vertical	23 cm
3D	No
Pixel frequency	90 MHz
Separate H/V sync	Yes

Performance

Specification	Value
Windows operating systems supported	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	0
DVI-I ports quantity	0
HDMI ports quantity	0
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
Headphone outputs	0
HDCP	No
Composite video in	0
Composite video out	0
SCART ports quantity	0
Digital audio optical out	0
Common interface (CI)	No
Common interface Plus (CI+)	No
Component video (YPbPr/YCbCr) in	0
Component video (YPbPr/YCbCr) out	0
Firewire (IEEE 1394) ports	0
RS-232 ports	0
RS-485 ports	0
S-Video inputs quantity	0
Thunderbolt ports quantity	0

Network

Specification	Value
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Cable lock slot	No
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 18°
On Screen Display (OSD)	Yes
Number of OSD languages	14
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	18 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 3658 m

Weight & dimensions

Specification	Value
Width (without stand)	447.2 mm
Depth (without stand)	182.4 mm
Height (without stand)	350.9 mm
Weight (without stand)	2.12 kg

Packaging data

Specification	Value
Package width	500 mm
Package depth	117 mm
Package height	472 mm
Package weight	3.63 kg

Other features

Specification	Value
TV tuner integrated	No
Ethernet LAN (RJ-45) ports	0
Certification	cCAus, FCC, CE, CCC, TUV-Bauart, TUV-S, EPA5.0, RoHS
Supplied AC adapter type	AC

Thin Client

Specification	Value
Thin client installed	No
