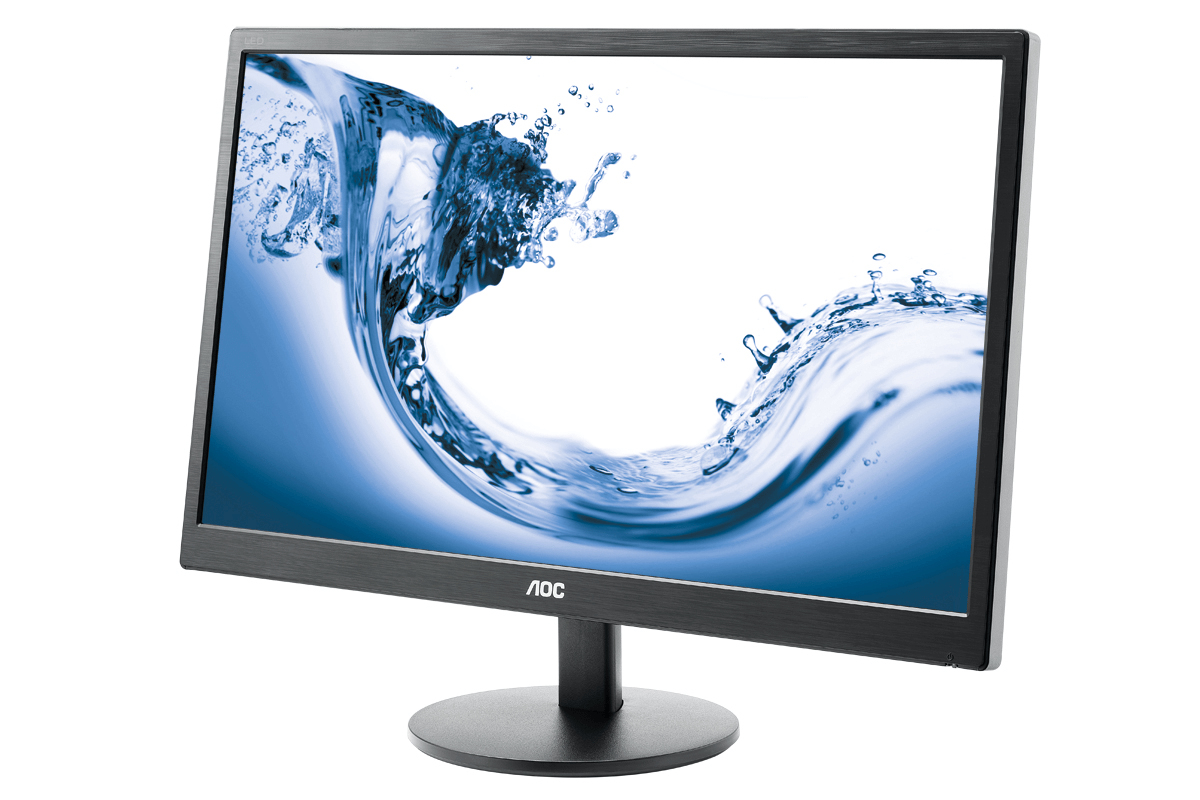

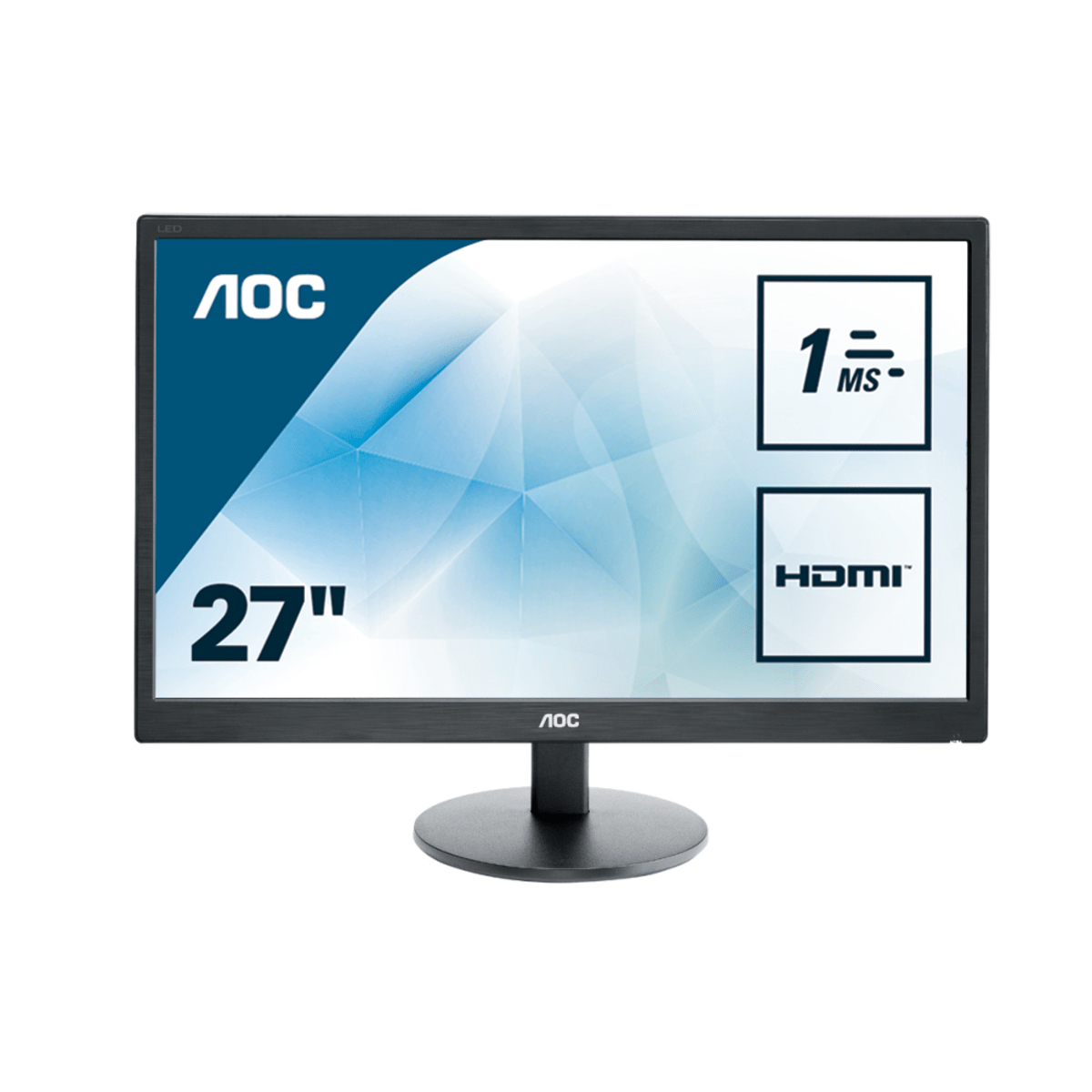

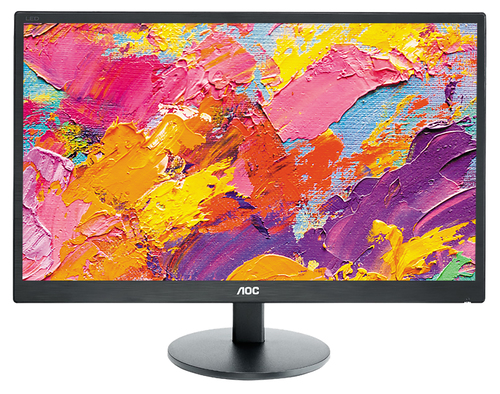

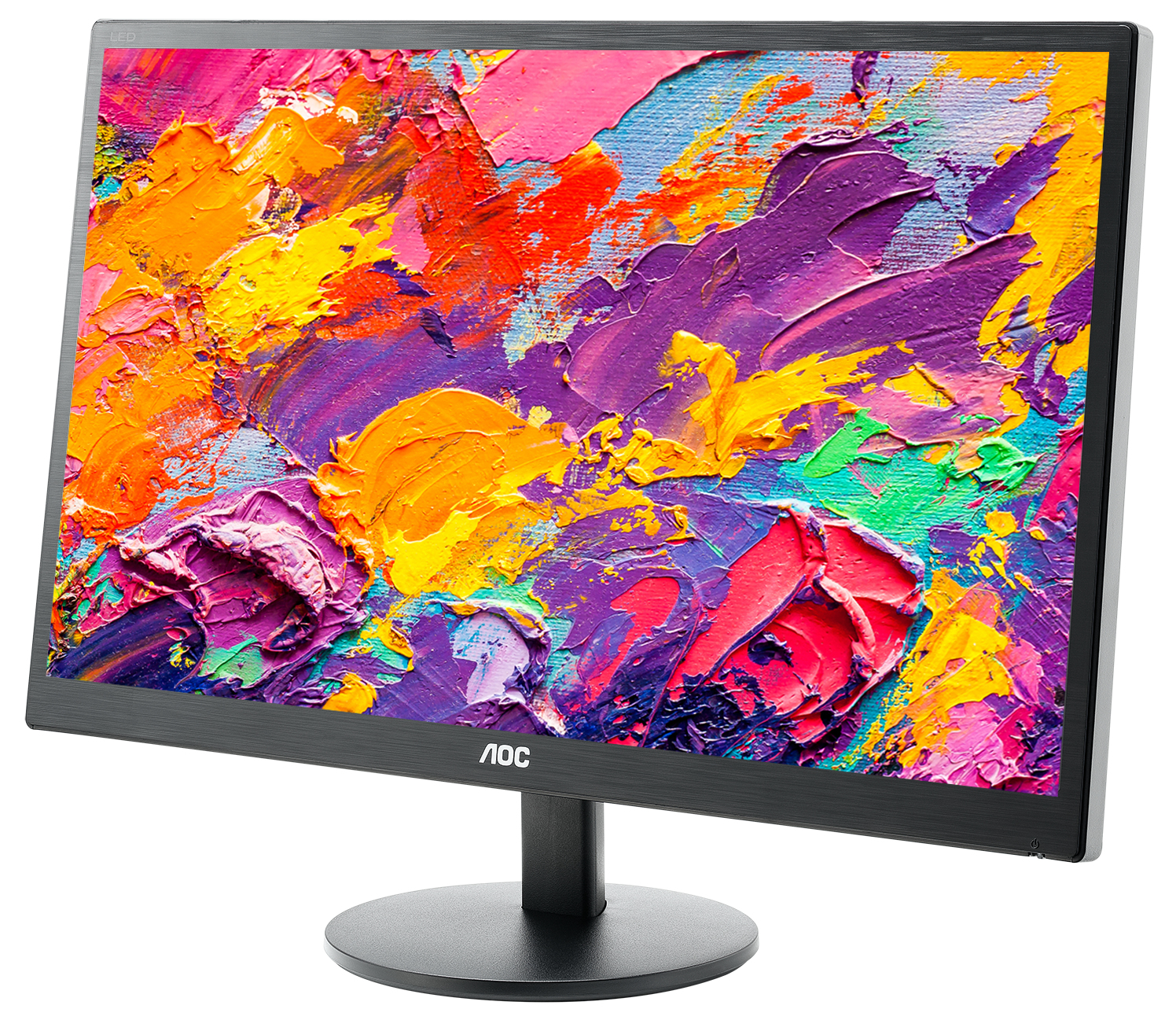

AOC 70 Series E2770SH computer monitor

70 Series E2770SH computer monitor

68.6 cm (27") 1920 x 1080 pixels Full HD LED Black

Model E2770SHEAN 718929118835

97 specifications Checked today

Display68.6 cm (27")
Resolution1920 x 1080 pixels
Energy classB
ColourBlack
Built-in speaker(s)Yes
Market positioningHome

See all specifications

Overview

Display: 68.6 cm (27")
Resolution: 1920 x 1080 pixels
Energy class: B
Colour: Black
Built-in speaker(s): Yes
Market positioning: Home

Brand: AOC
Category: Monitor
Model: E2770SH
Part number: E2770SH
EAN / UPC: 718929118835, 4038986183949, 4038986185349, 5054629887059
Also known as: AOC 70 Series E2770SH computer monitor 68.6 cm (27") 1920 x 1080 pixels Full HD LED Black

Specifications

97 specifications in 13 groups

Display

Specification	Value
Display diagonal	68.6 cm (27")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	300 cd/m²
Response time	1 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.311 x 0.311 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	59.8 cm
Viewable size, vertical	33.6 cm
Pixel frequency	148.5 MHz

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	0
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Card reader integrated	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Tilt adjustment	Yes
Tilt angle range	-5 - 15°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Number of OSD languages	16
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	33 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A+++ to D
Annual energy consumption	49 kWh
External power adapter	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 3658 m
Non-operating altitude	3658 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	642.4 mm
Depth (with stand)	241.9 mm
Height (with stand)	449.3 mm
Weight (with stand)	4.8 kg
Width (without stand)	642.4 mm
Depth (without stand)	100.2 mm
Height (without stand)	449.3 mm

Packaging data

Specification	Value
Package width	730 mm
Package depth	145 mm
Package height	500 mm
Package weight	6.8 kg
Package type	Box
DVI cable length	1.8 m
VGA cable length	1.8 m
Warranty card	Yes

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, Audio (3.5mm), HDMI, VGA
Audio cable length	1.8 m
HDMI cable length	1.5 m
Power cable length	1.2 m

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Other features

Specification	Value
Bezel thickness type	Normal
Compliance certificates	RoHS
Energy efficiency class (legacy scale)	B
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	50000 h
Certification	ISO

Recycling data

Specification	Value
Packaging recyclability rate	100%
