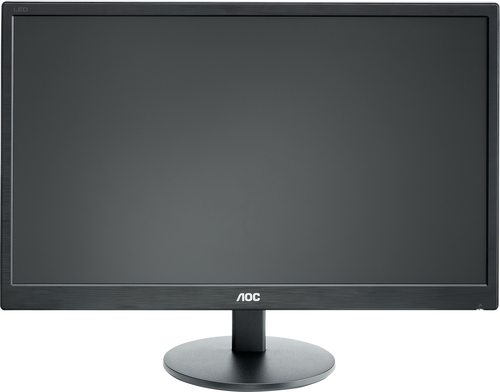

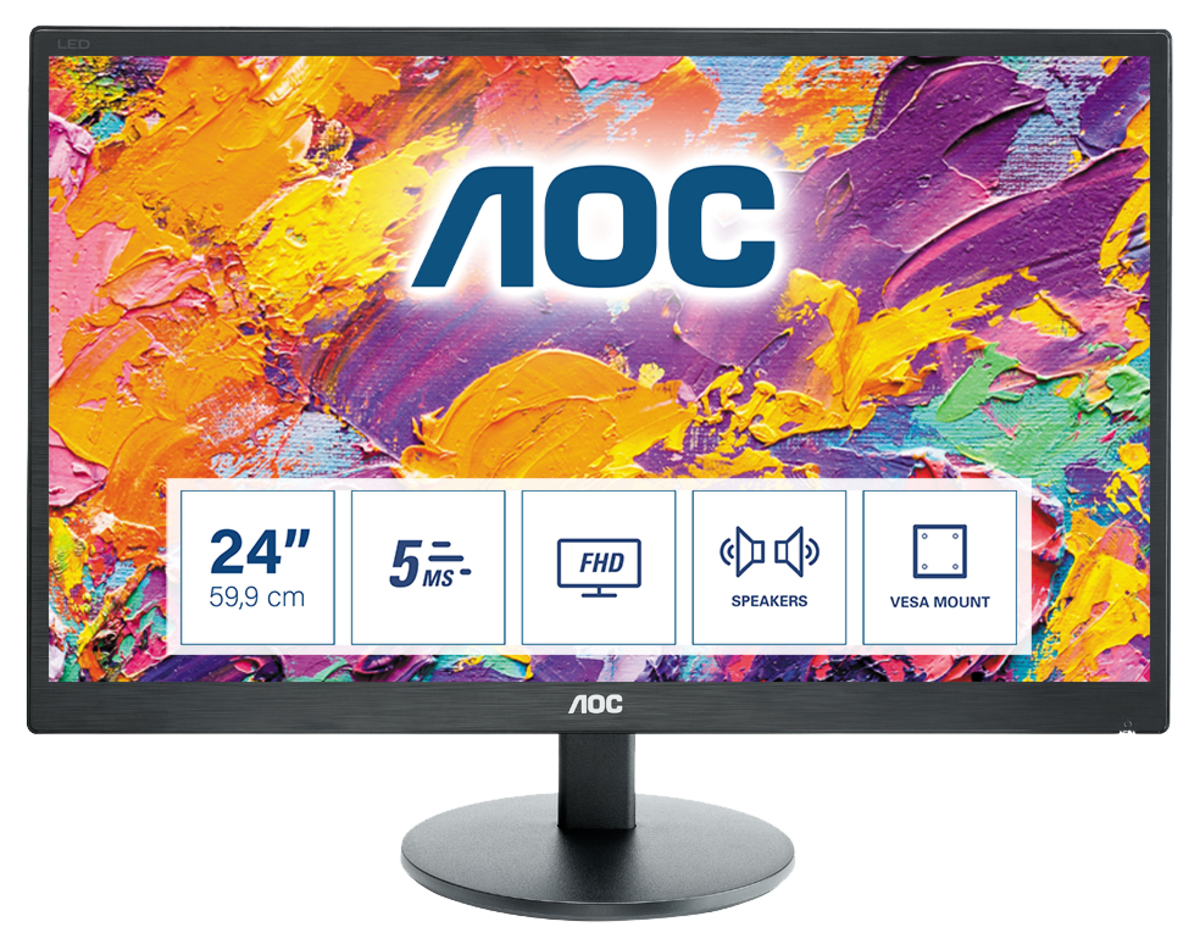

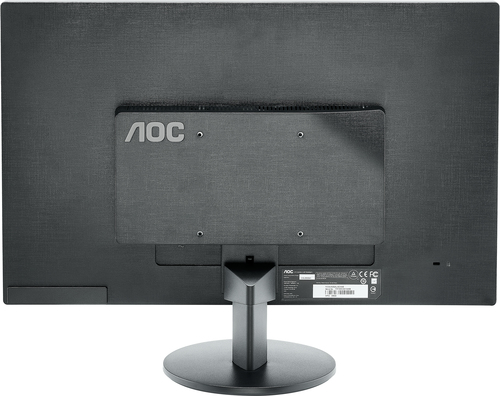

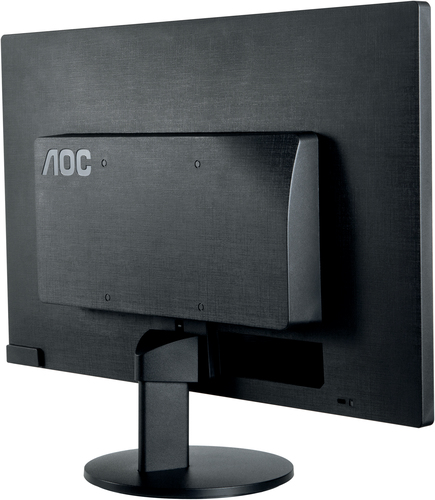

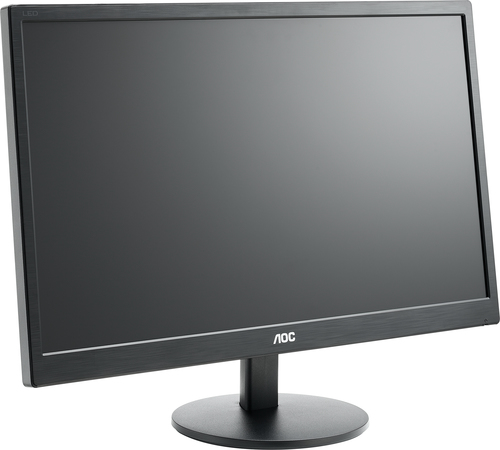

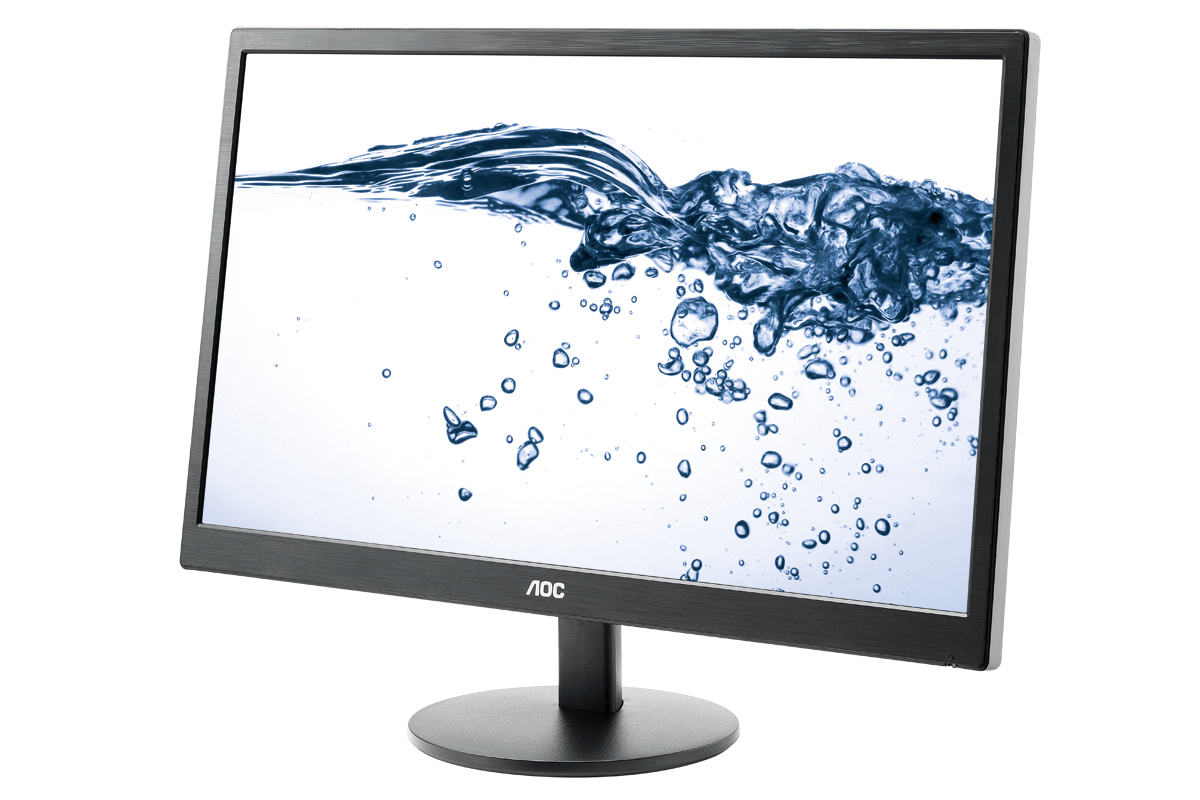

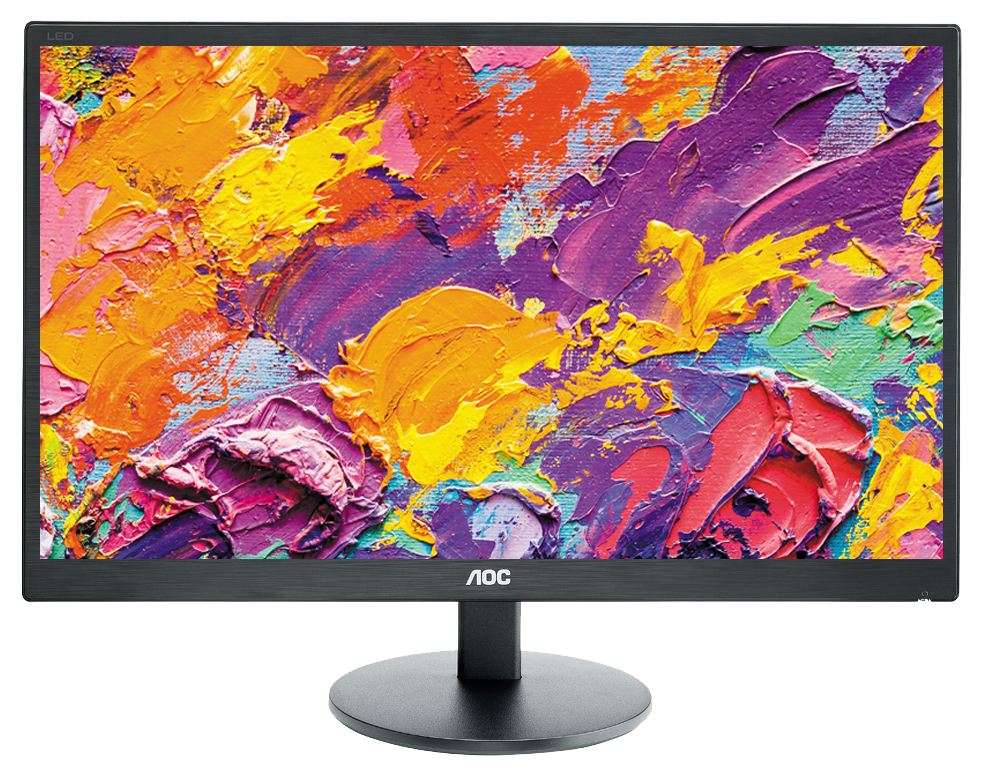

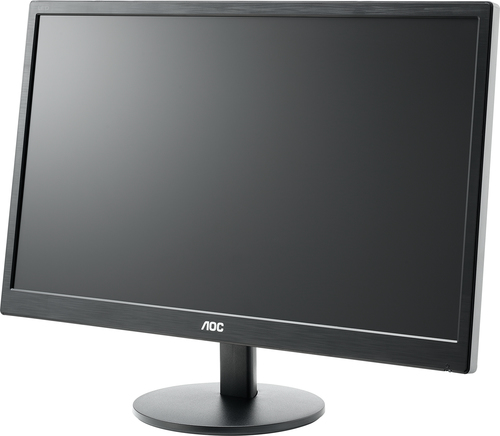

70 Series E2470SWDA computer monitor
61 cm (24") 1920 x 1080 pixels Full HD LED Black
Model E2470SWDAEAN 8978467417407
97 specifications Checked today
- Display61 cm (24")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
- Market positioningBusiness
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Market positioning
- Business
- Brand
- AOC
- Category
- Monitor
- Model
- E2470SWDA
- Part number
- E2470SWDA
- EAN / UPC
- 8978467417407, 000657849090, 4038986143820, 5054484541653 +4 more
- Also known as
- AOC 70 Series E2470SWDA computer monitor 61 cm (24") 1920 x 1080 pixels Full HD LED Black
Specifications
97 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TN |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 100000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2715 x 0.2715 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 52.1 cm |
| Viewable size, vertical | 29.3 cm |
| Digital horizontal frequency | 30 - 160 kHz |
| Digital vertical frequency | 50 - 146 Hz |
| 3D | No |
| Pixel frequency | 148.5 MHz |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 0 |
| DisplayPorts quantity | 0 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| Height adjustment | No |
| Pivot | No |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 25° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| Number of OSD languages | 16 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 17.96 W |
| Power consumption (standby) | 0.37 W |
| Power consumption (off) | 0.19 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 93% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 551.4 mm |
| Depth (with stand) | 221 mm |
| Height (with stand) | 400.4 mm |
| Weight (with stand) | 3.51 kg |
| Width (without stand) | 551.4 mm |
| Depth (without stand) | 78.2 mm |
| Height (without stand) | 396.9 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 620 mm |
| Package depth | 127 mm |
| Package height | 435 mm |
| Package weight | 5.14 kg |
| Package type | Box |
| DVI cable length | 1.5 m |
| VGA cable length | 1.2 m |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, Audio (3.5mm), DVI, VGA |
| Audio cable length | 1.5 m |
| Power cable length | 1.2 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Bezel thickness type | Normal |
| Compliance certificates | RoHS |
| Heavy metals free | Hg (mercury) |
| Mean time between failures (MTBF) | 50000 h |
| Certification | GOST |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
