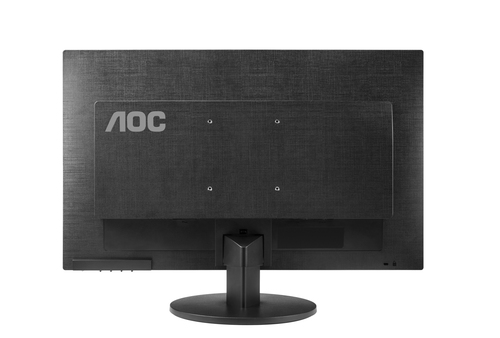

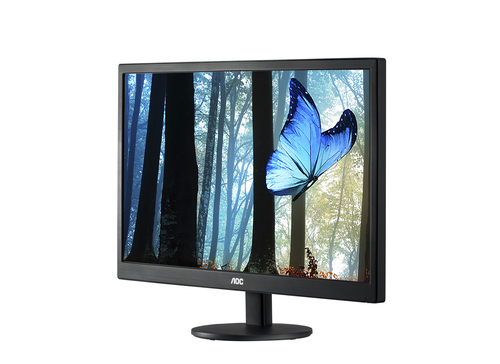

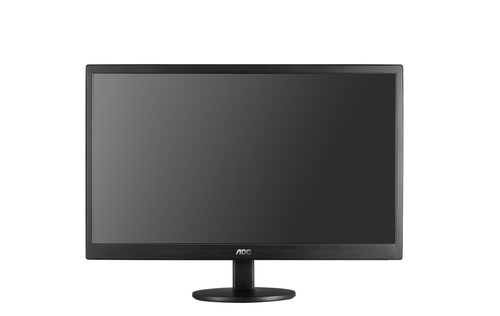

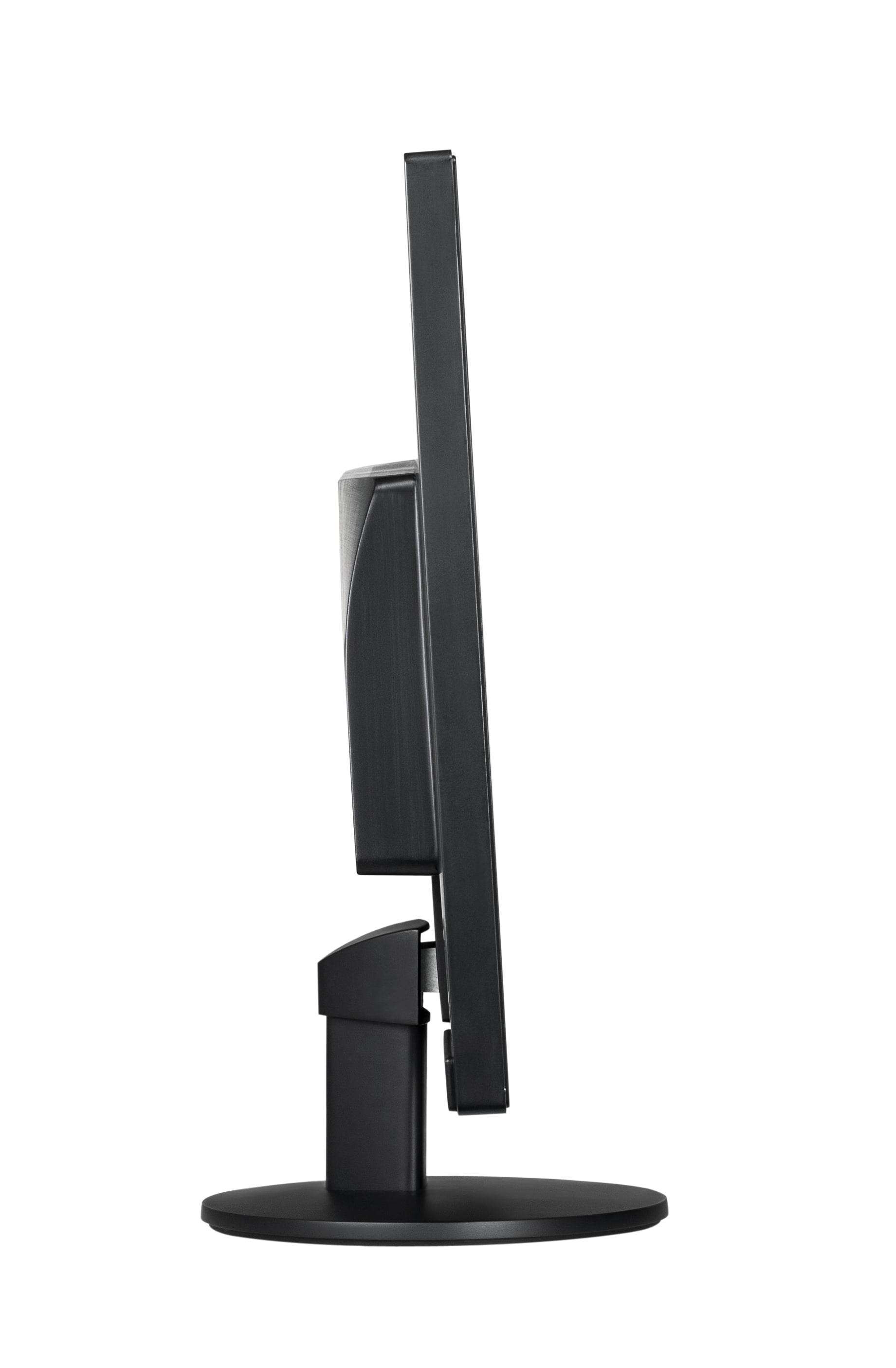

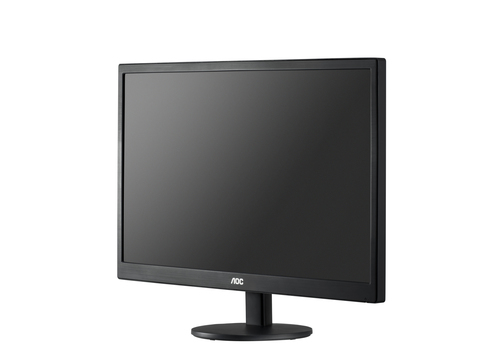

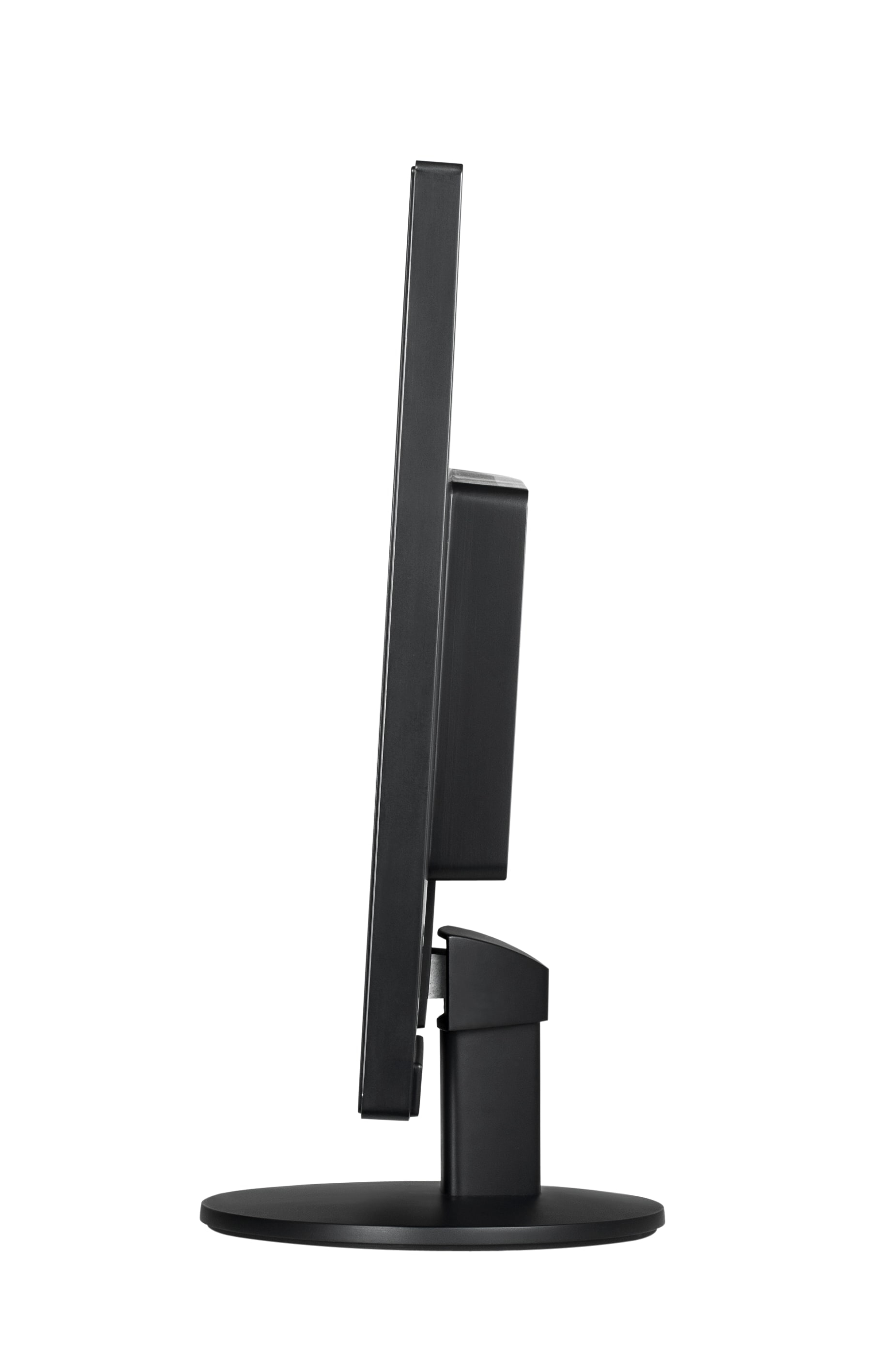

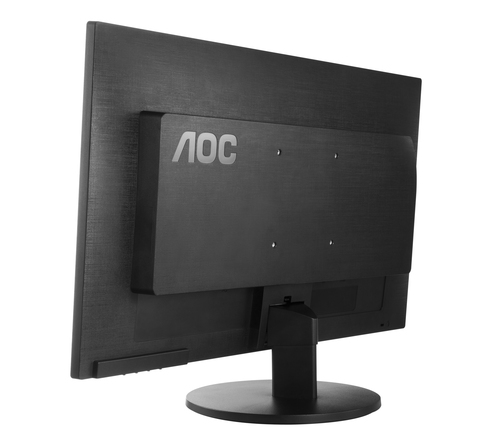

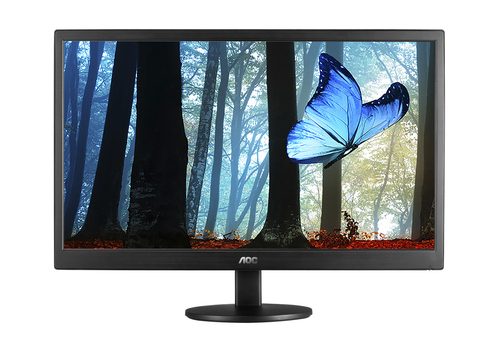

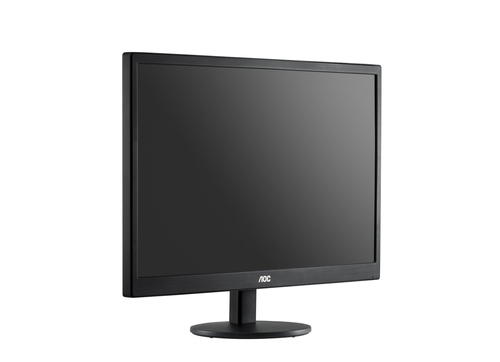

AOC E2470SWD computer monitor

E2470SWD computer monitor

59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Black

Model E2470SWD

84 specifications Checked today

Display59.9 cm (23.6")
Resolution1920 x 1080 pixels
ColourBlack
NVIDIA G-SYNCNo
Market positioningHome
VESA mountingYes

See all specifications

Overview

Display: 59.9 cm (23.6")
Resolution: 1920 x 1080 pixels
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Home
VESA mounting: Yes

Brand: AOC
Category: Monitor
Model: E2470SWD
Part number: E2470SWD
Also known as: AOC E2470SWD computer monitor 59.9 cm (23.6") 1920 x 1080 pixels Full HD LED Black

Specifications

84 specifications in 13 groups

Display

Specification	Value
Display diagonal	59.9 cm (23.6")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.2715 x 0.2715 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	52.1 cm
Viewable size, vertical	29.3 cm
Colour depth	8 bit
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
HDCP	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	No
Pivot	No
Swivelling	Yes
Tilt adjustment	Yes
Tilt angle range	-3.5 - 21.5°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Number of OSD languages	16
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	27 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.19 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Storage relative humidity (H-H)	15 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	564 mm
Depth (with stand)	115 mm
Height (with stand)	407 mm
Weight (with stand)	3.41 kg
Width (without stand)	564 mm

Packaging data

Specification	Value
Package width	620 mm
Package depth	127 mm
Package height	435 mm
Package weight	5.09 kg
Package type	Box
VGA cable length	1.8 m

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, VGA

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Compliance certificates	RoHS
Heavy metals free	Hg (mercury), Pb (lead)
Certification	CE, FCC, TUV
