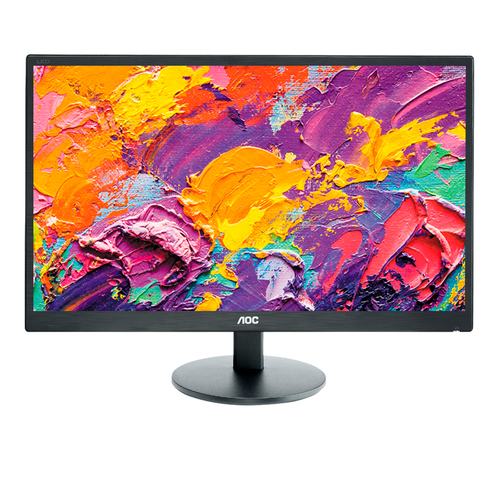

70 Series E2270SWDN computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black

Model E2270SWDNEAN 8032791148489

111 specifications Checked today

Overview

Brand: AOC
Category: Monitor
Model: E2270SWDN
Part number: E2270SWDN
EAN / UPC: 8032791148489, 718929108317, 4038986125697, 4058829163204 +2 more
Also known as: AOC 70 Series E2270SWDN computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black

111 specifications in 16 groups

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	TN
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	200 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	700:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	90°
Viewing angle, vertical	65°
Display number of colours	16.7 million colours
Pixel pitch	0.248 x 0.248 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	50 - 76 Hz
Display diagonal (metric)	54.61 cm
Surface hardness	3H
3D	No
Pixel frequency	108 MHz

Specification	Value
NVIDIA G-SYNC	No
Flicker-free technology	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
Wi-Fi	No
Ethernet LAN	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	No
Tilt adjustment	Yes
Tilt angle range	-5 - 15°
Picture-in-Picture	No
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Number of OSD languages	18
Plug and Play	Yes

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	15.4 kWh
Power consumption (typical)	18.19 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
Doesn't contain	Mercury

Specification	Value
On/off switch	Yes
Built-in subwoofer	No
TV tuner integrated	No
Miracast	No
Exterior finish type	Textured
Bezel thickness type	Normal
Compliance certificates	CE
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	50000 h
Light effects	No
Certification	WEEE,RoHs compliant,CB,TUV-GS-Mark,EAC,FCC,Microsoft WHQL
Warranty period	3 year(s)
