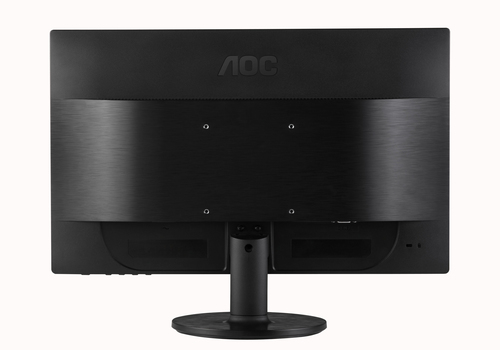

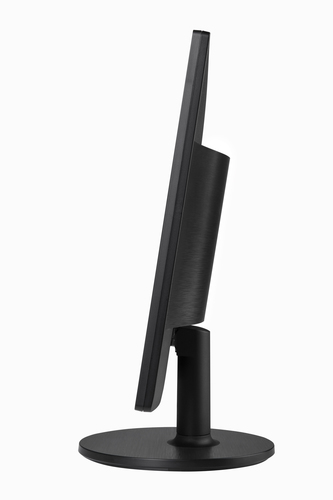

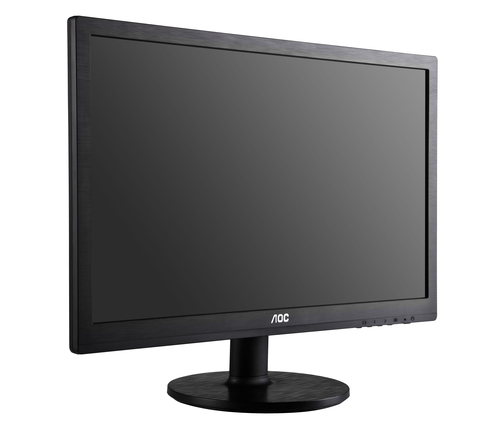

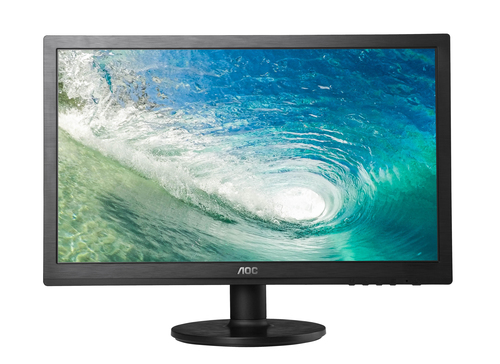

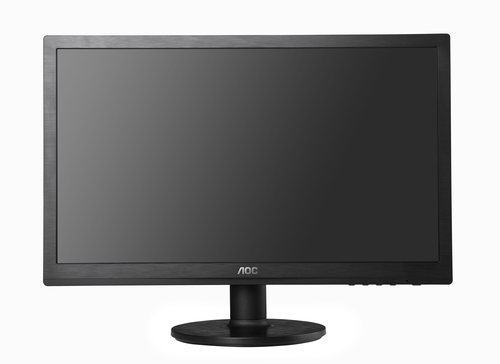

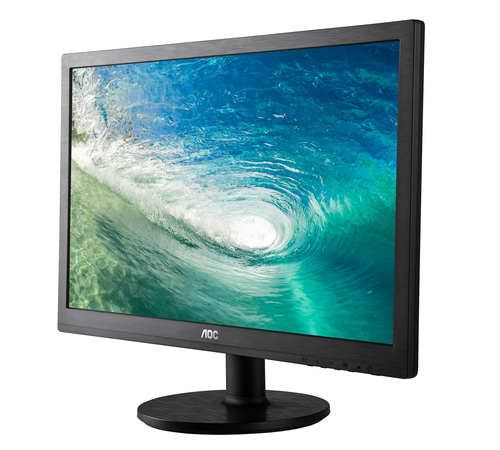

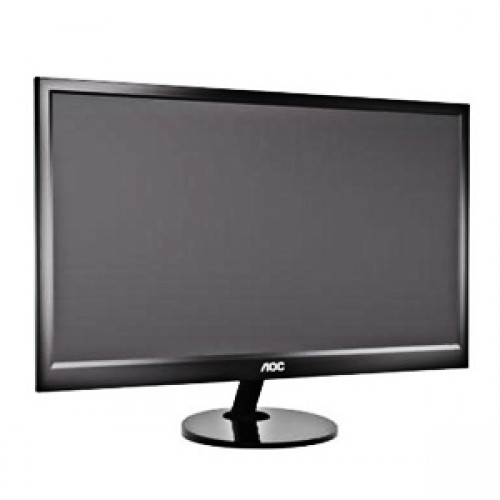

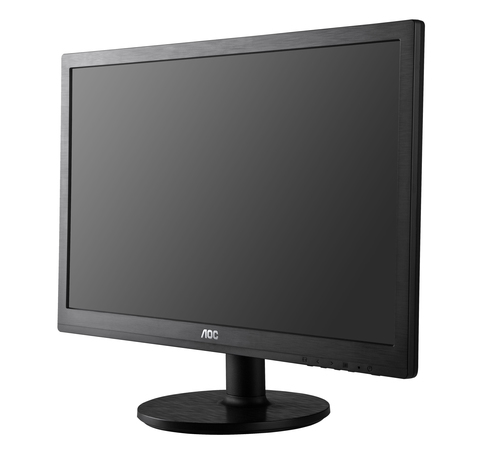

AOC 60 Series E2260SWDN computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

Model E2260SWDNEAN 088020684783

83 specifications Checked 4 days ago

Overview

Brand: AOC
Category: Monitor
Model: E2260SWDN
Part number: E2260SWDN
EAN / UPC: 088020684783, 685417047888, 4717385941328, 6854170478886
Also known as: AOC 60 Series E2260SWDN computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

83 specifications in 13 groups

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	200 cd/m²
Response time	5 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1280 x 960, 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
Aspect ratio	16:9
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	90°
Viewing angle, vertical	60°
Display number of colours	16.78 million colours
Pixel pitch	248 x 248 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	55 - 75 Hz
Viewable size, horizontal	47.8 cm
Viewable size, vertical	26.9 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	50 - 75 Hz
Colour depth	8 bit
3D	No

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Tilt adjustment	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Number of OSD languages	16
Plug and Play	Yes

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Specification	Value
Sustainability certificates	ENERGY STAR
