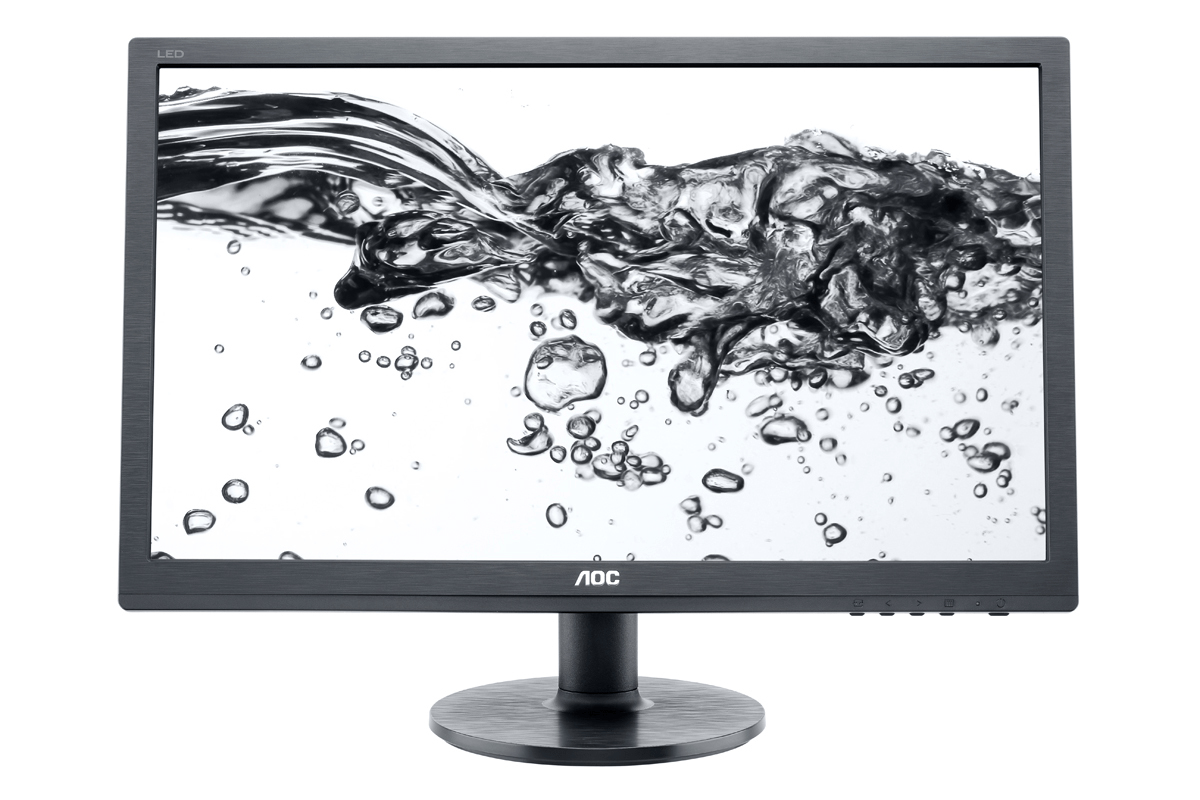

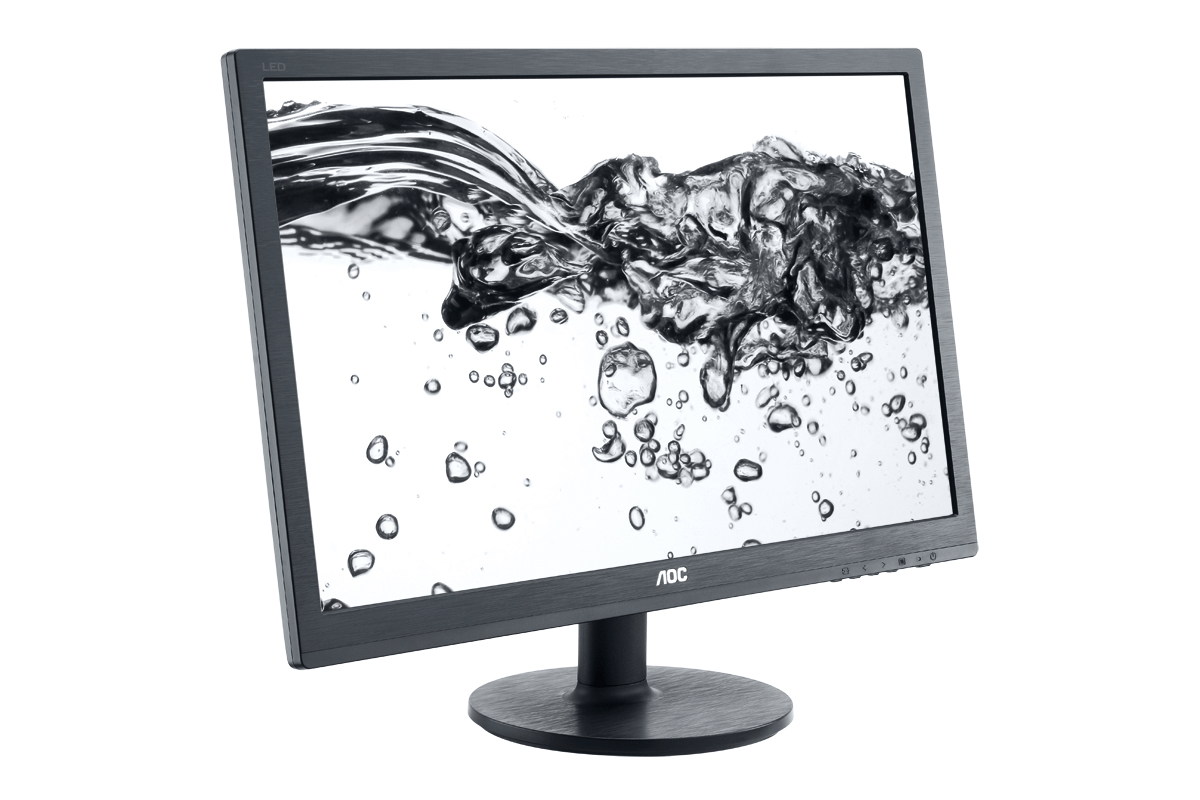

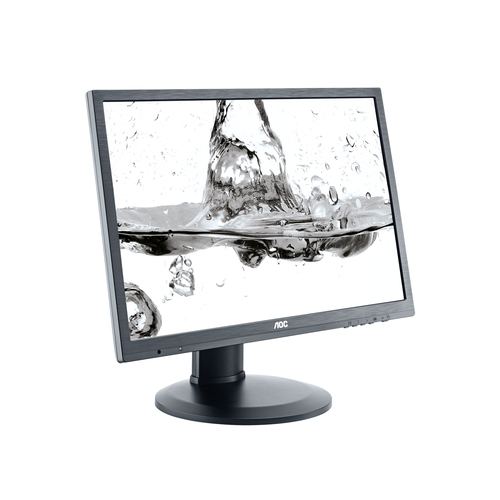

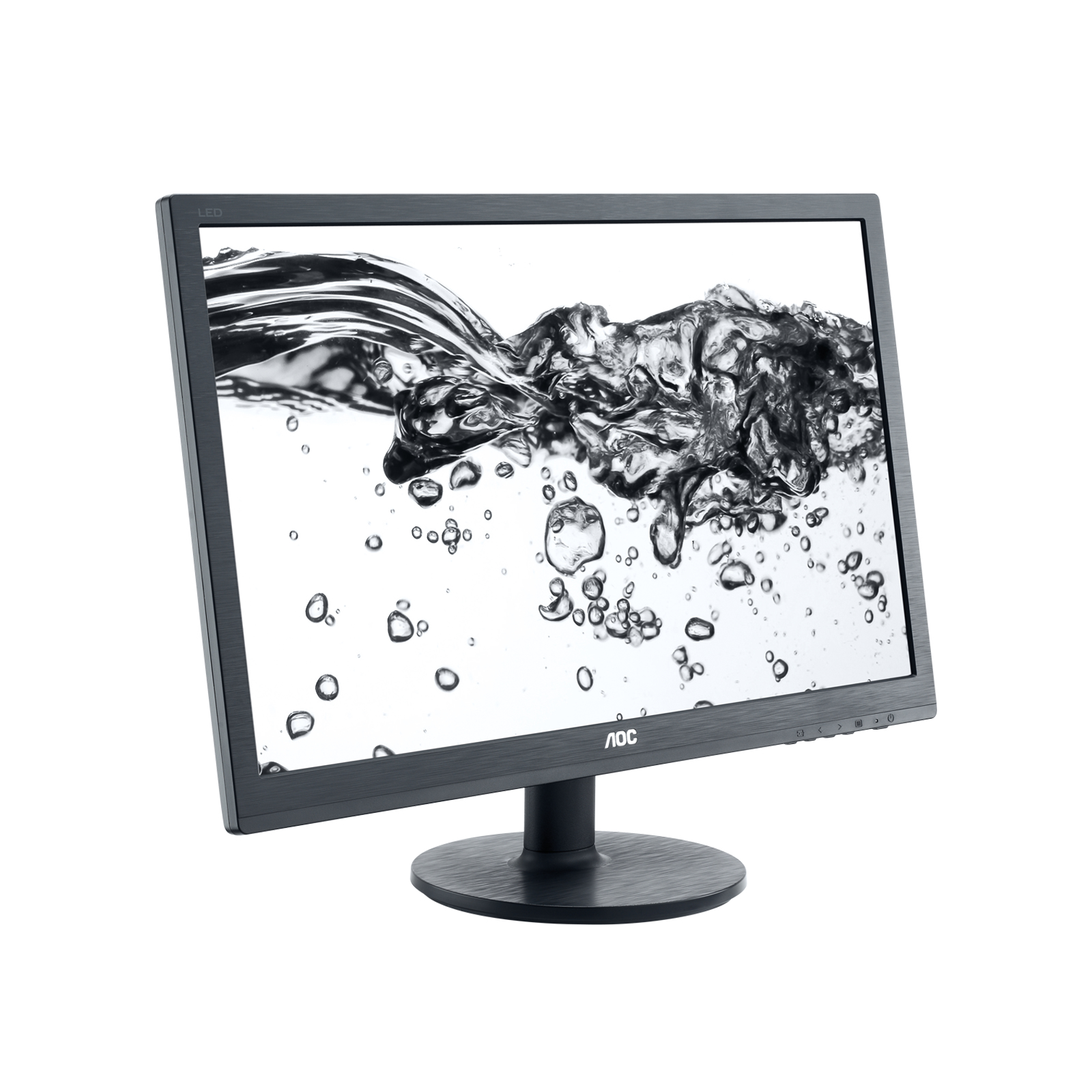

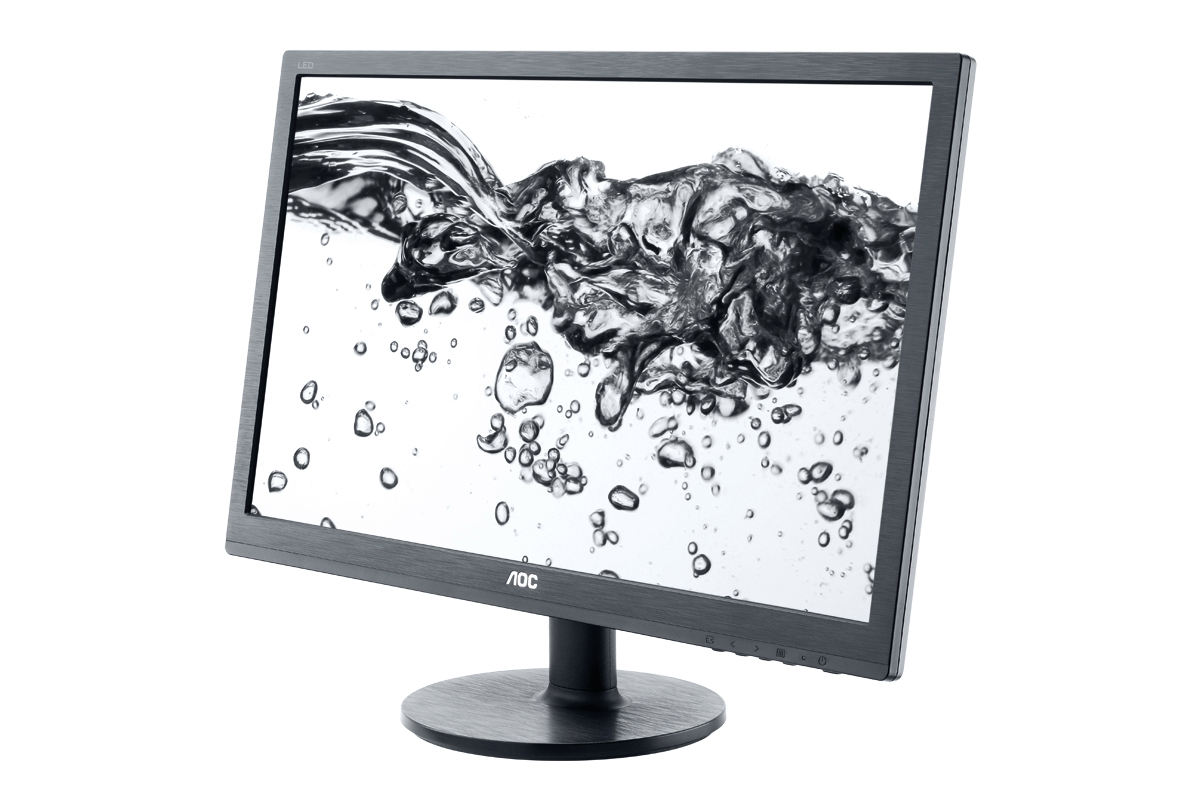

AOC 60 Series e2260Shu computer monitor

AOC 60 Series e2260Shu computer monitor

55.9 cm (22") 1680 x 1050 pixels Black

Model e2260ShuPart no. E2260SHUEAN 4038986121743

74 specifications Checked 4 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Windows operating systems supportedYes
BluetoothNo
Power consumption (typical)16.36 W

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Windows operating systems supported: Yes
Bluetooth: No
Power consumption (typical): 16.36 W

Brand: AOC
Category: Monitor
Model: e2260Shu
Part number: E2260SHU
EAN / UPC: 4038986121743
Also known as: AOC 60 Series e2260Shu computer monitor 55.9 cm (22") 1680 x 1050 pixels Black

Specifications

74 specifications in 15 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	282 x 282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	55 - 75 Hz
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
3D	No
Pixel frequency	146 MHz

Performance

Specification	Value
Windows operating systems supported	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Built-in camera	No

Design

Specification	Value
Product colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	2.0
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	0
HDCP	Yes
Composite video in	0
SCART ports quantity	0
Component video (YPbPr/YCbCr) in	0
S-Video inputs quantity	0

Network

Specification	Value
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Tilt angle range	-5 - 15°
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	16.36 W
Power consumption (standby)	0.42 W
Power consumption (off)	0.23 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	No

Operational conditions

Specification	Value
Operating temperature (T-T)	20 - 80 °C
Operating relative humidity (H-H)	5 - 40%

Weight & dimensions

Specification	Value
Weight (with stand)	3.73 kg

Packaging data

Specification	Value
Package weight	5.07 kg
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), DVI, USB, VGA
Quick start guide	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	TCO

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Placement supported	Horizontal
Safety	RoHS
Mean time between failures (MTBF)	50000 h
Ethernet LAN (RJ-45) ports	0
Compliance industry standards	TCO 5.0
Certification	ISO 9241-307
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
