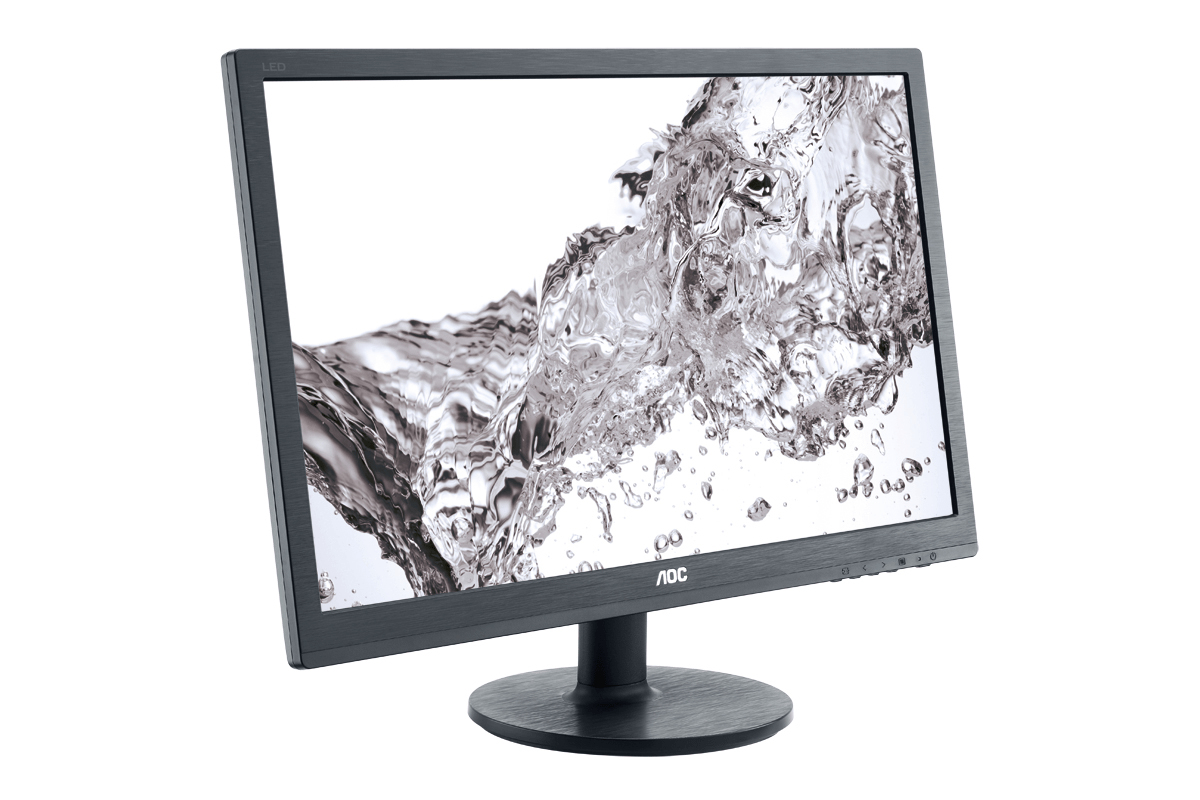

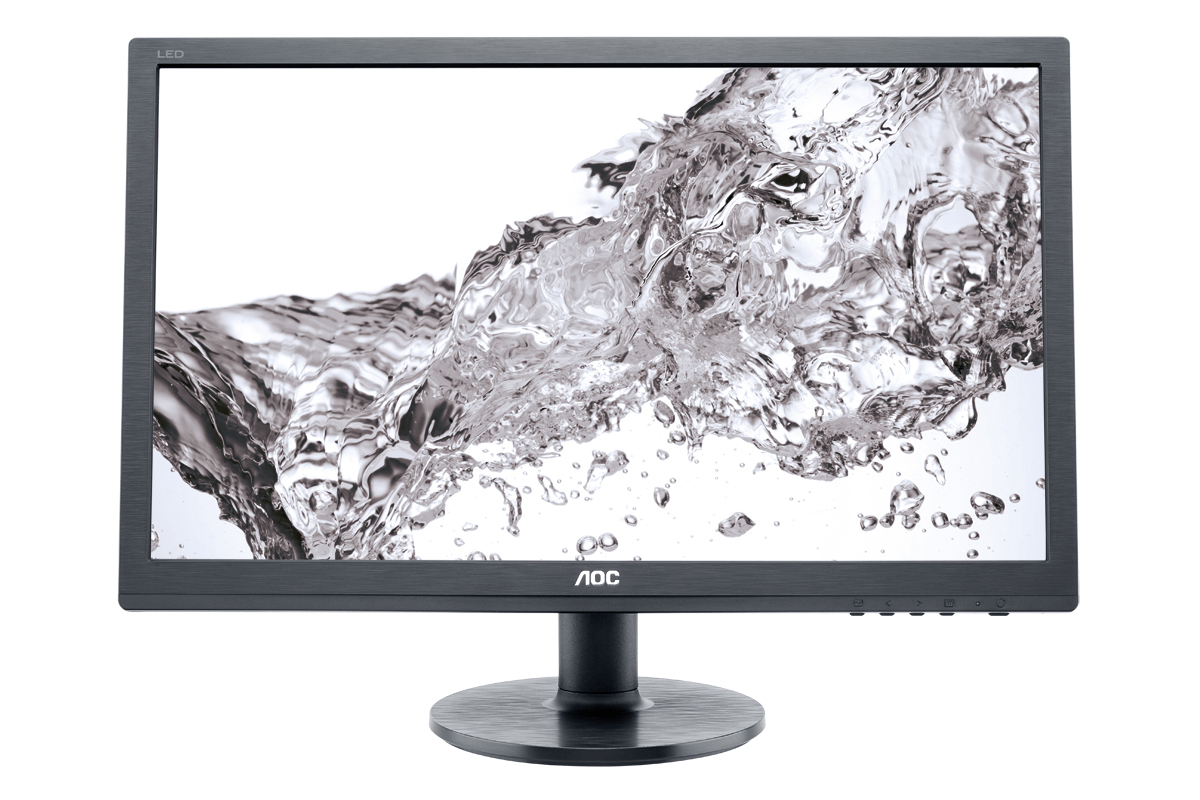

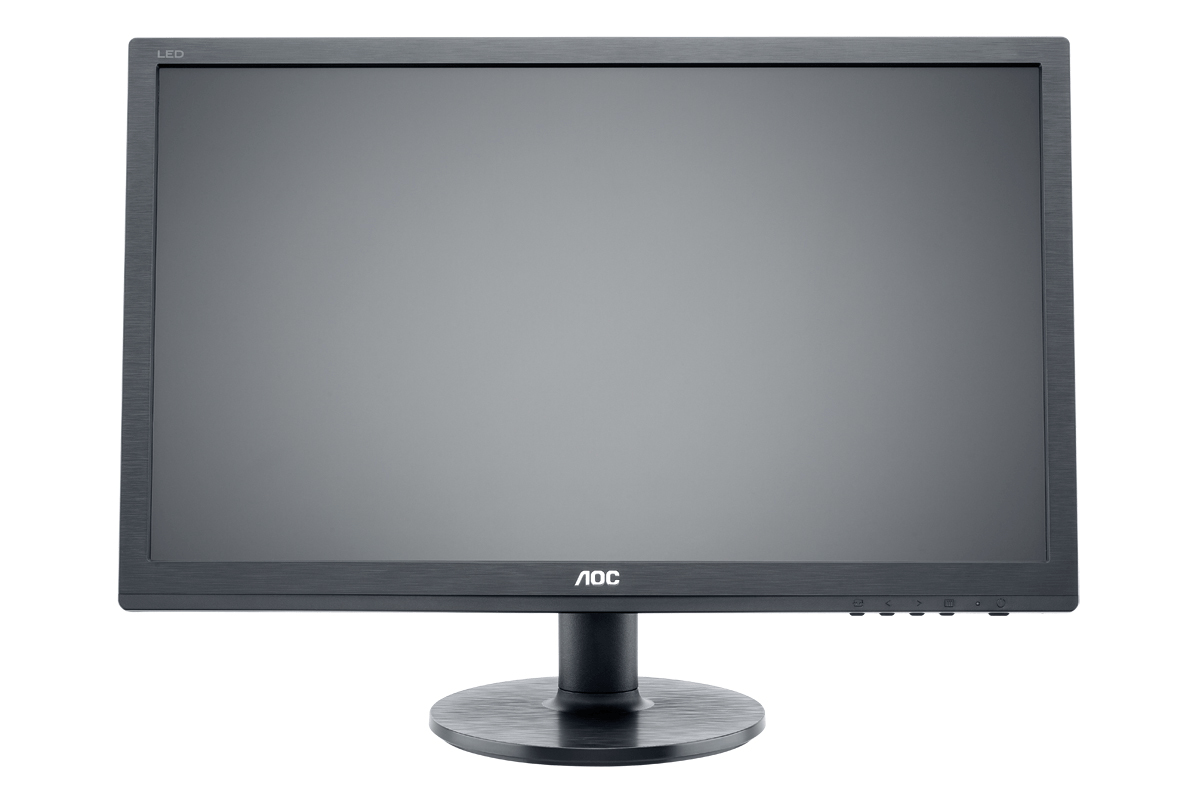

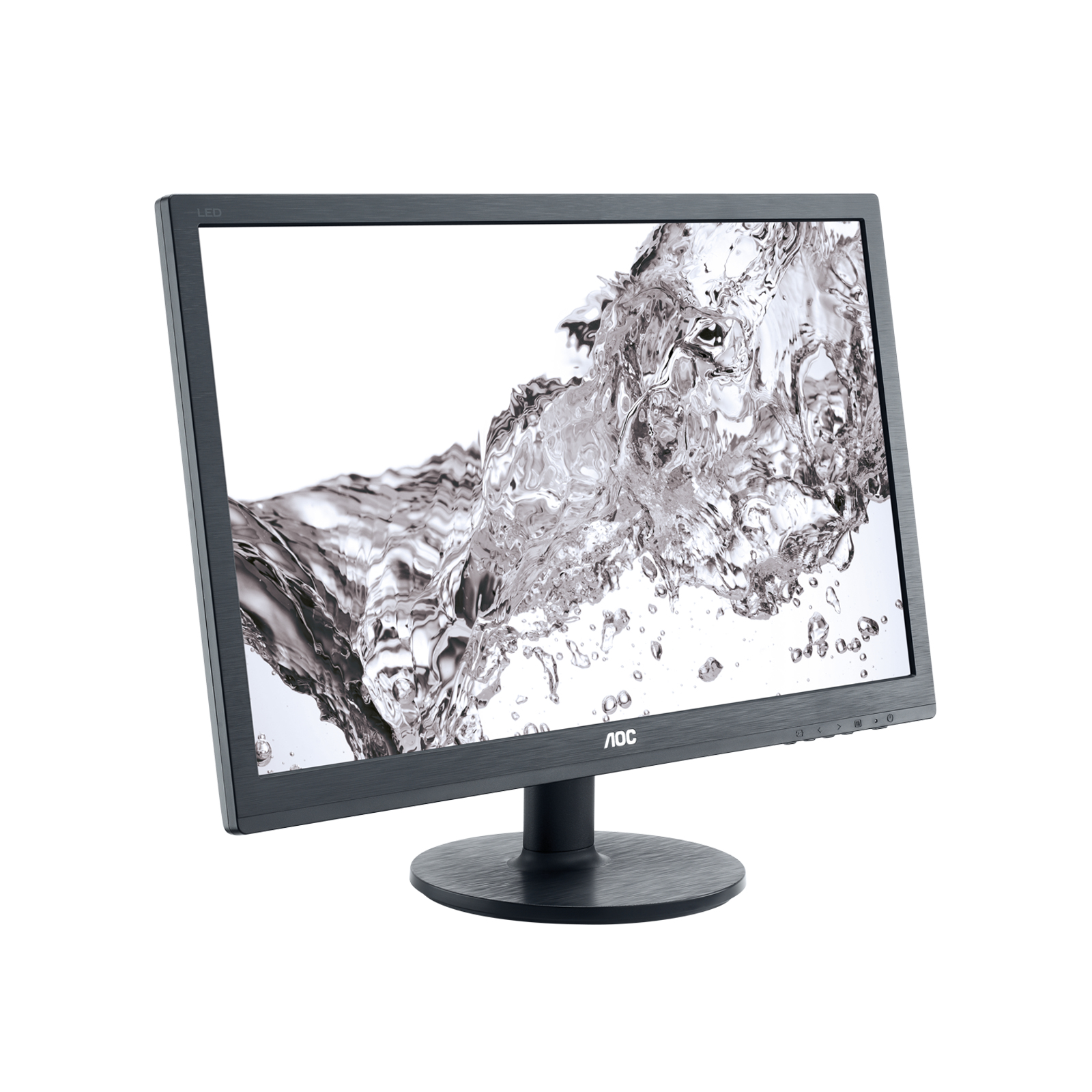

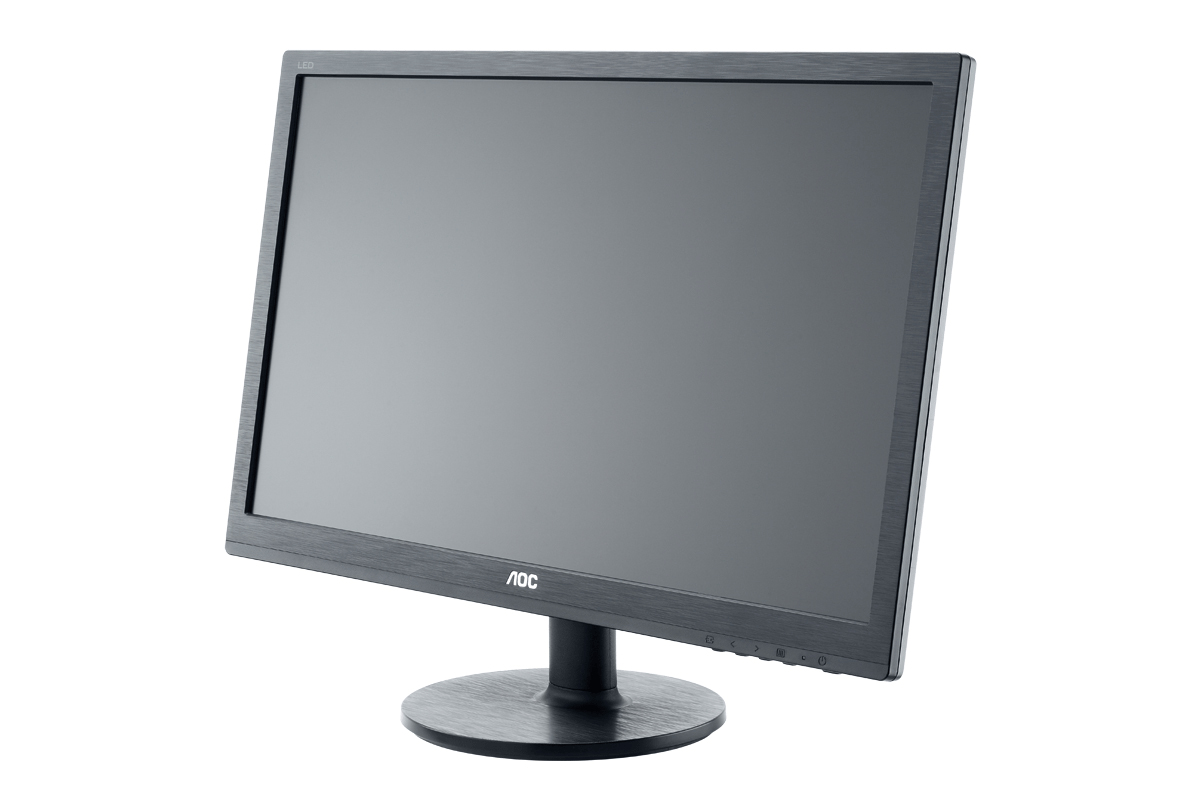

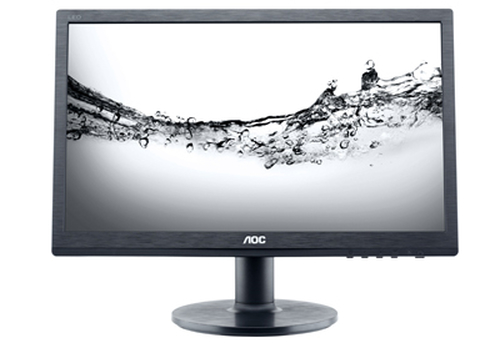

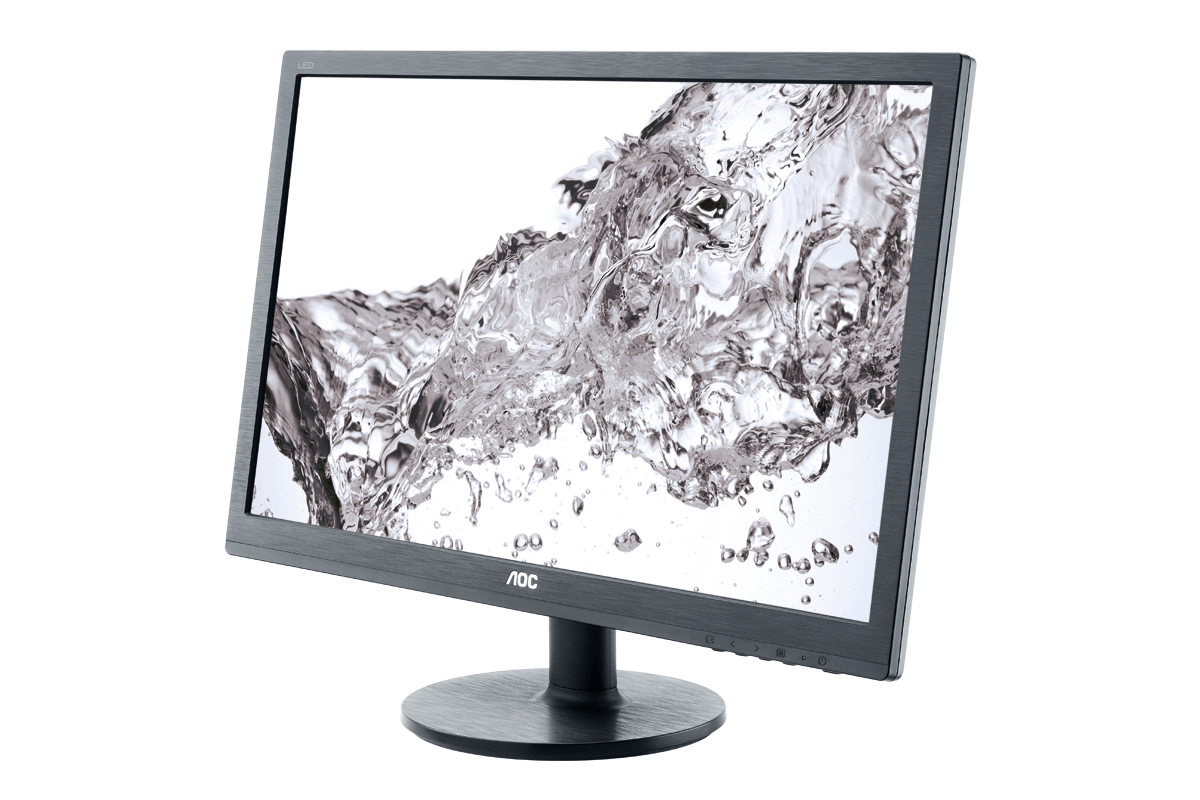

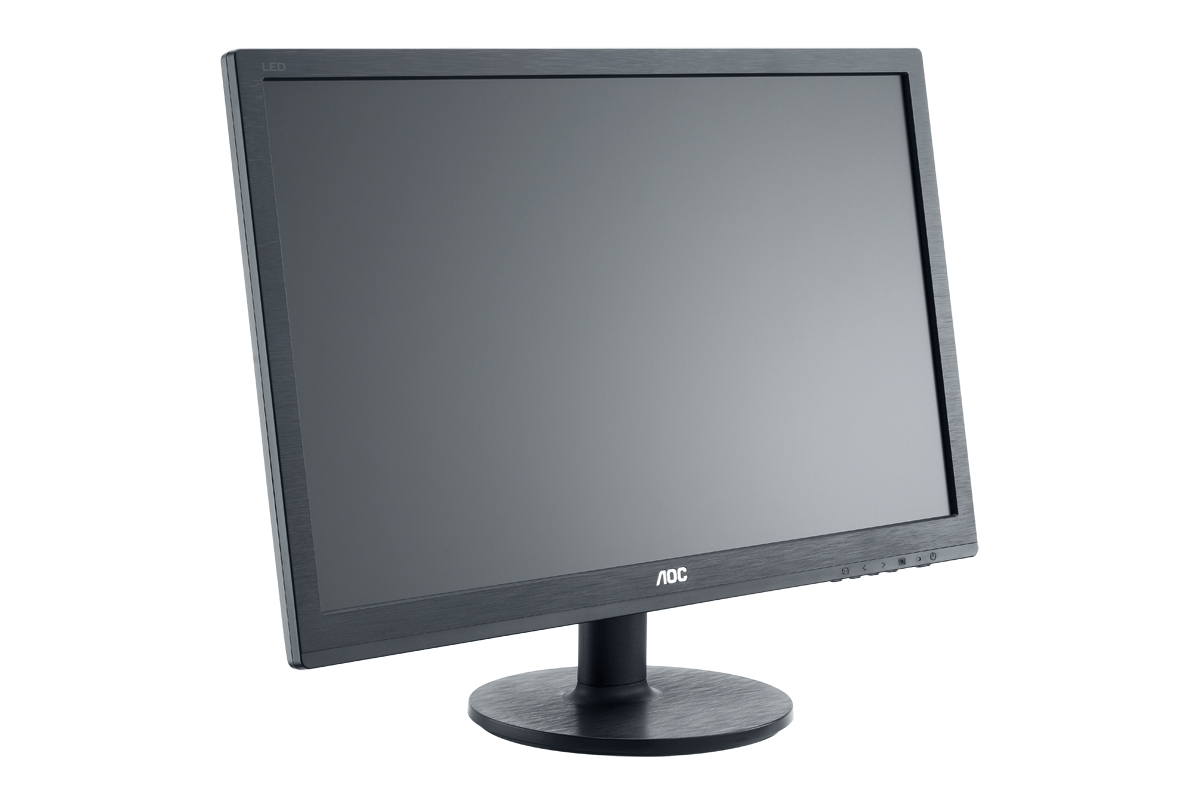

AOC 60 Series E2260SD computer monitor

AOC 60 Series E2260SD computer monitor

55.9 cm (22") 1680 x 1050 pixels Black

Model E2260SDEAN 685417060788

66 specifications Checked 3 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in cameraNo
USB Type-A downstream ports quantity0
VESA mountingYes

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in camera: No
USB Type-A downstream ports quantity: 0
VESA mounting: Yes

Brand: AOC
Category: Monitor
Model: E2260SD
Part number: E2260SD
EAN / UPC: 685417060788, 4038986122290, 6854170607880
Also known as: AOC 60 Series E2260SD computer monitor 55.9 cm (22") 1680 x 1050 pixels Black

Specifications

66 specifications in 12 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Touchscreen	No
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	282 x 282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	55 - 75 Hz
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
3D	No

Multimedia

Specification	Value
Built-in camera	No

Design

Specification	Value
Product colour	Black

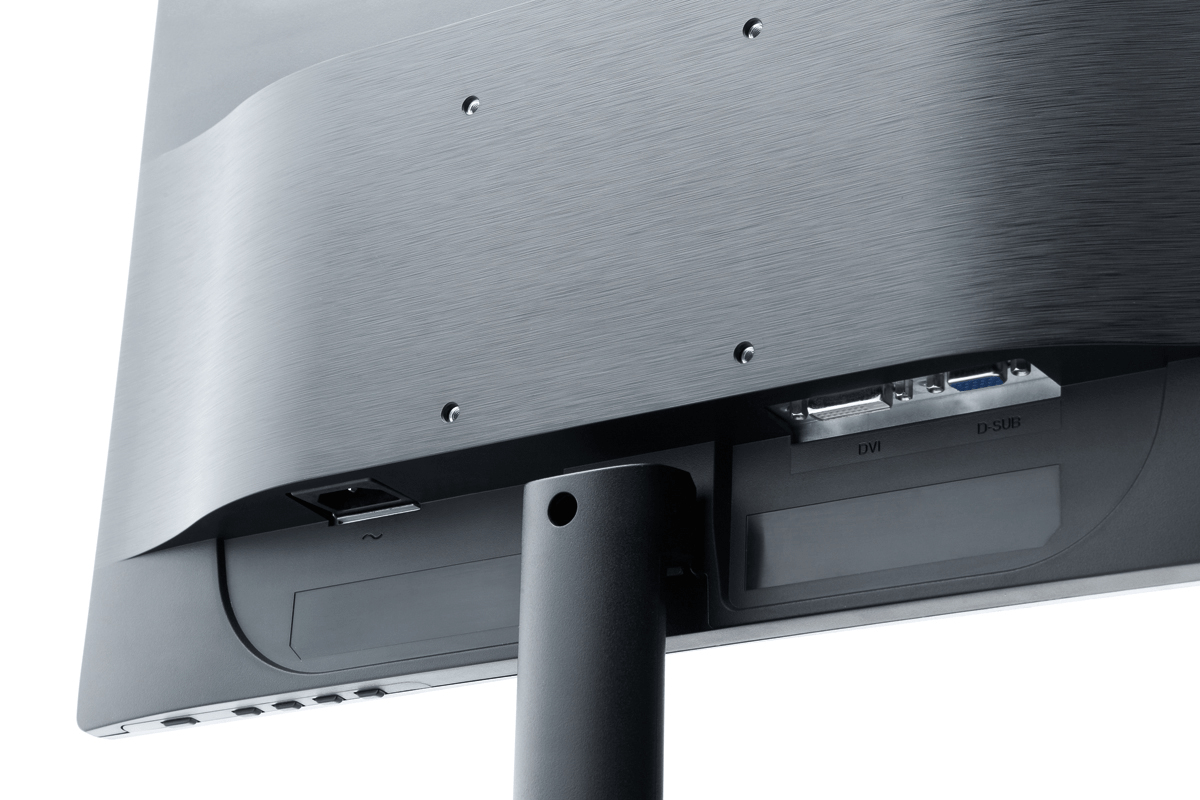

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
DVI-I ports quantity	0
HDMI ports quantity	0
AC (power) in	Yes

Ergonomics

Specification	Value

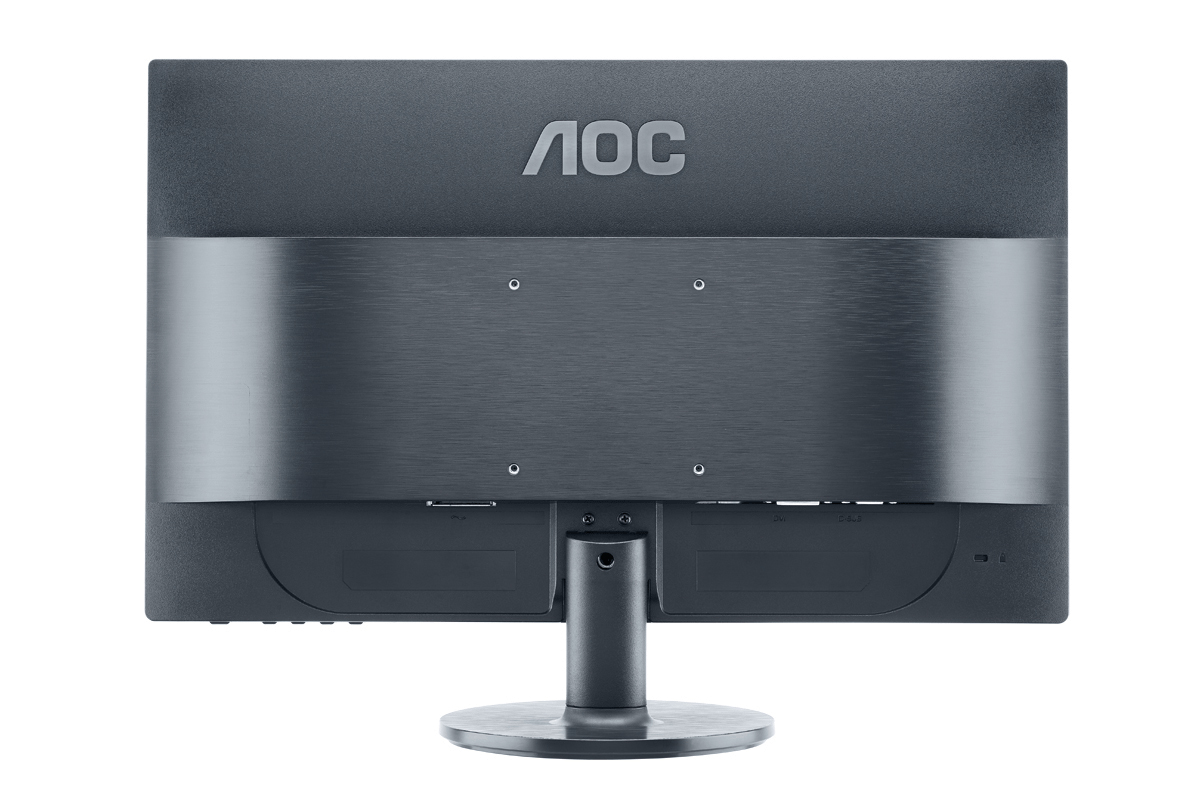

VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	No
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-5 - 22°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	15.5 W
Power consumption (standby)	0.4 W
Power consumption (off)	0.34 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Weight (with stand)	3.73 kg
Width (without stand)	507.8 mm
Depth (without stand)	219.3 mm
Height (without stand)	408.3 mm
Weight (without stand)	3.73 kg

Packaging data

Specification	Value
Package width	561 mm
Package depth	121 mm
Package height	464 mm
Package weight	5.07 kg

Sustainability

Specification	Value
Sustainability certificates	TCO

Other features

Specification	Value
TV tuner integrated	No
Mean time between failures (MTBF)	50000 h
Certification	ISO 9241-307
Supplied AC adapter type	LCD

Thin Client

Specification	Value
Thin client installed	No
