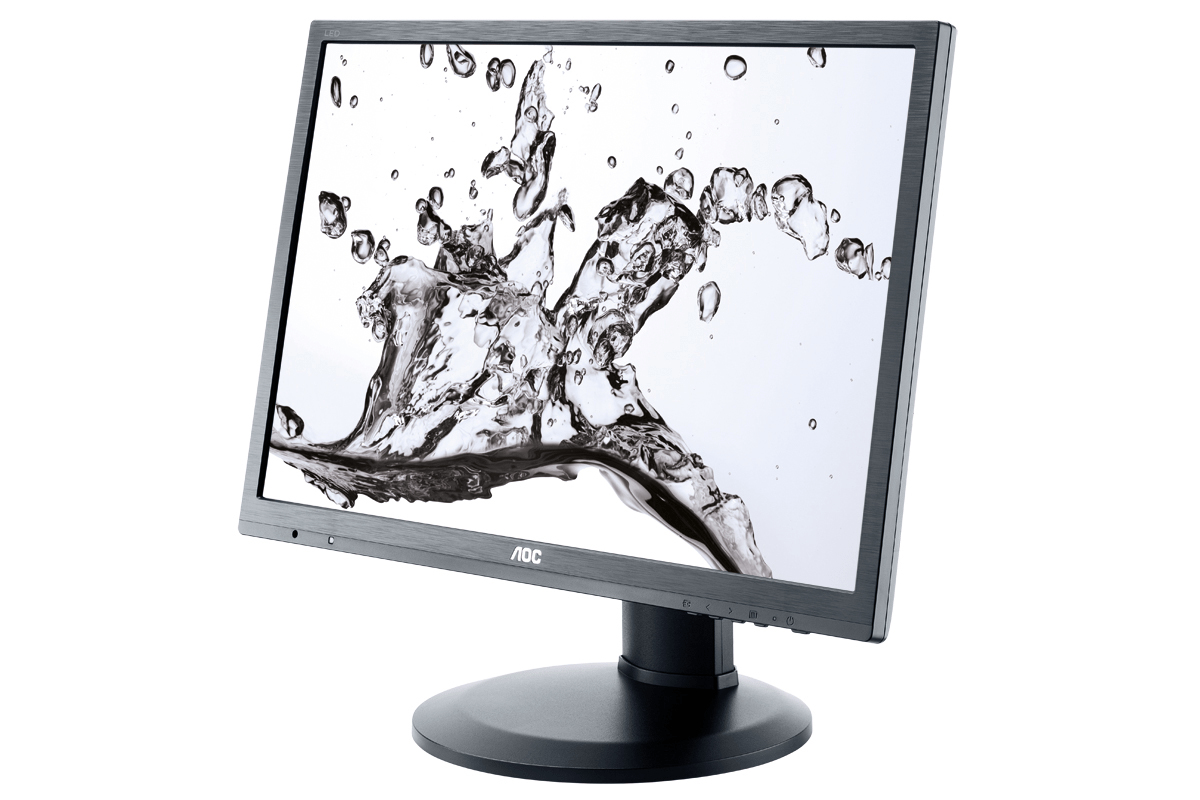

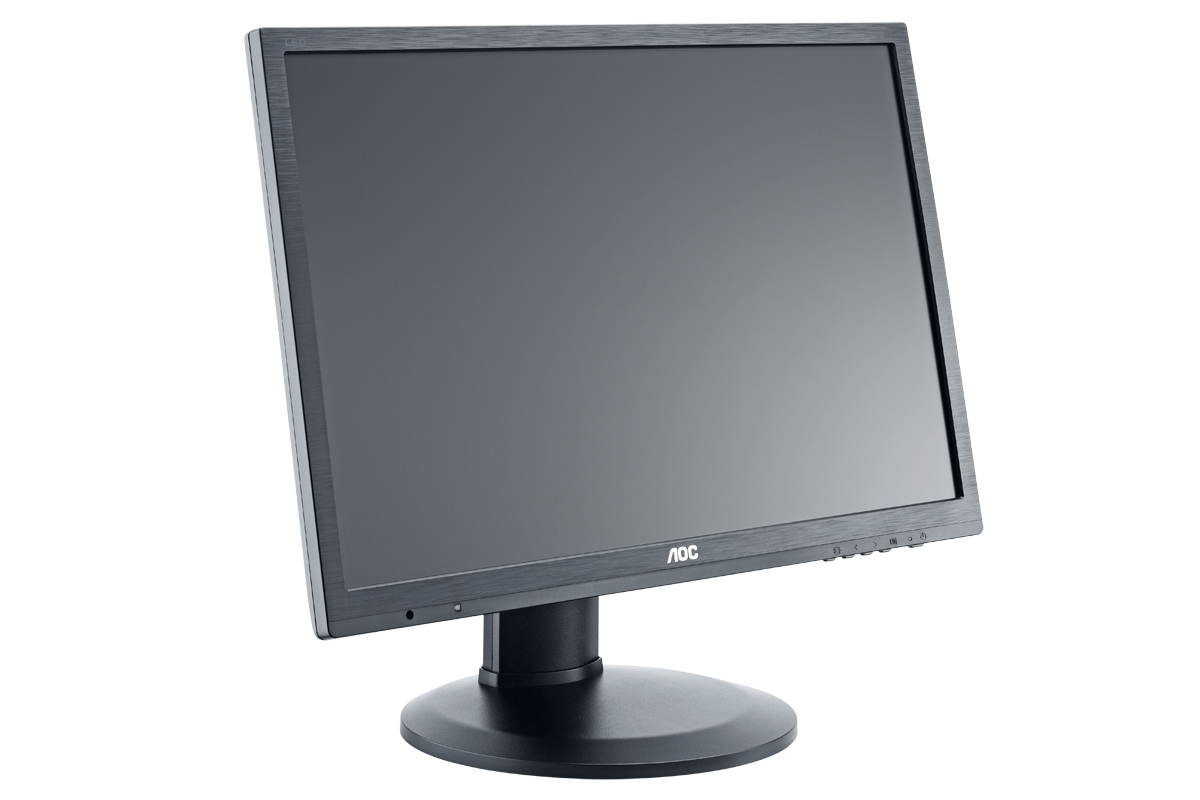

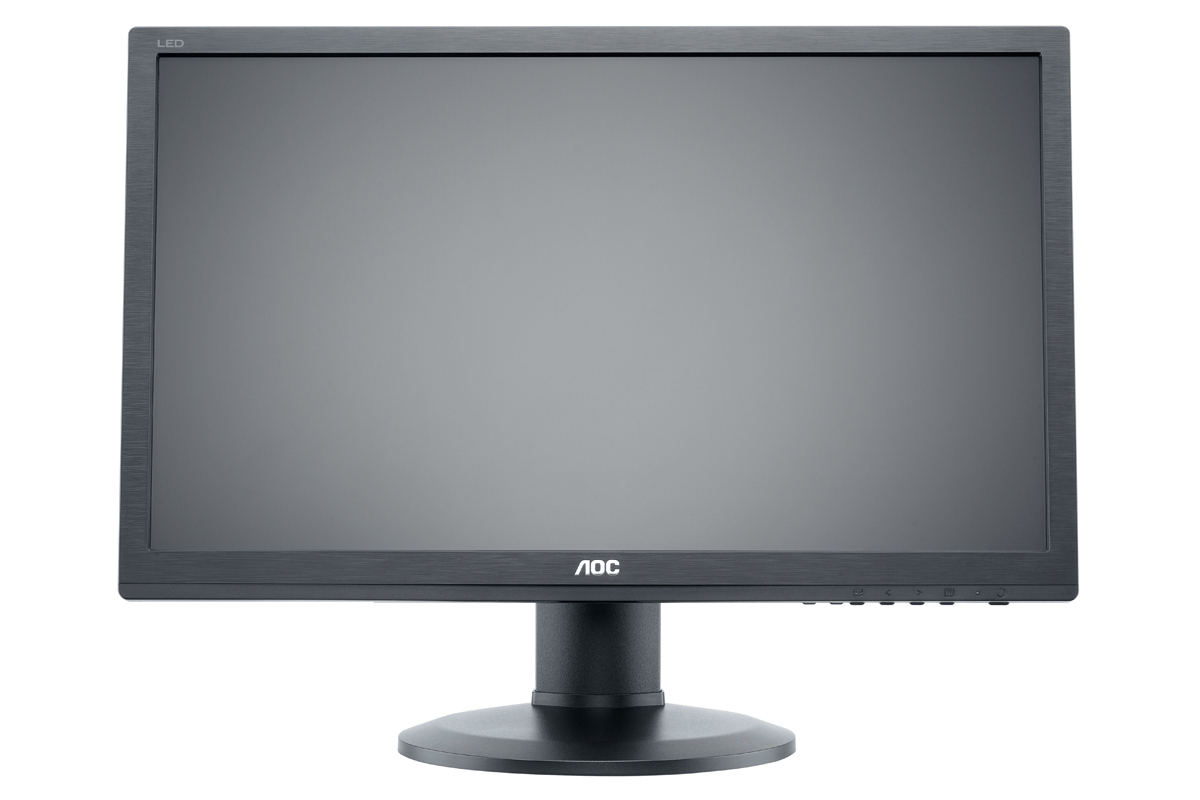

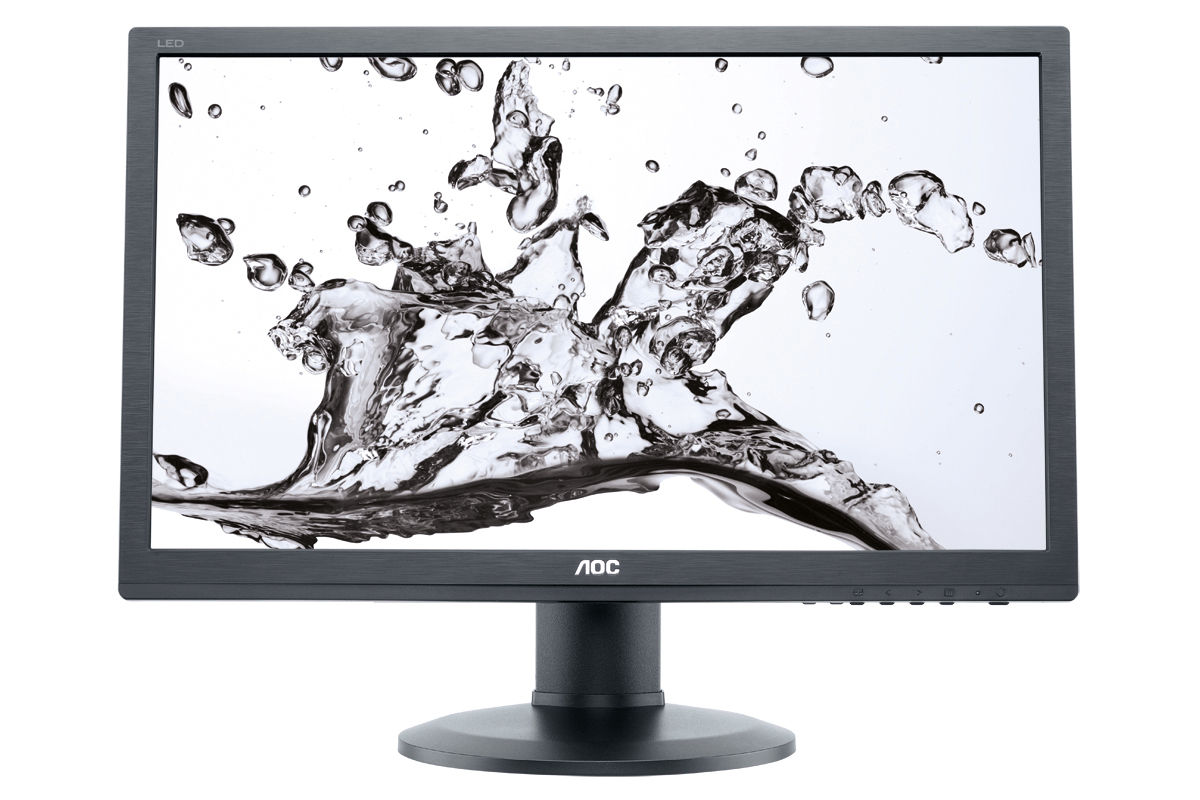

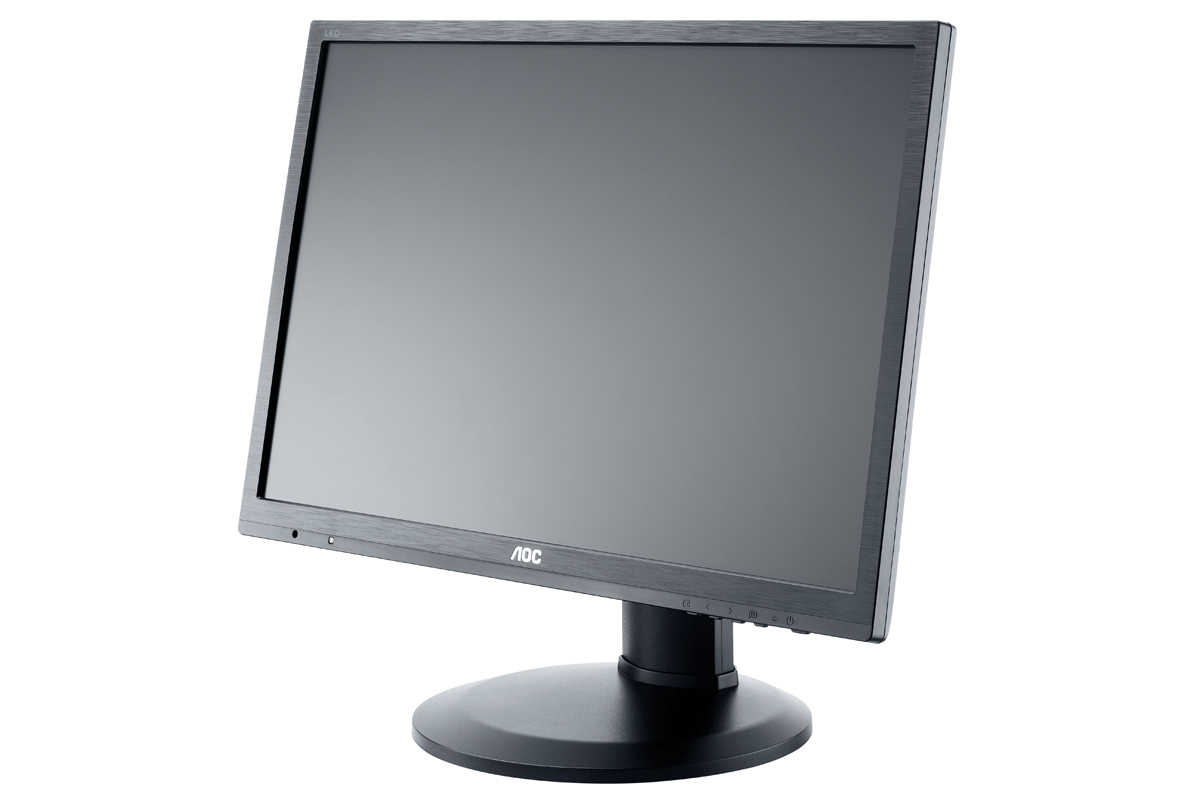

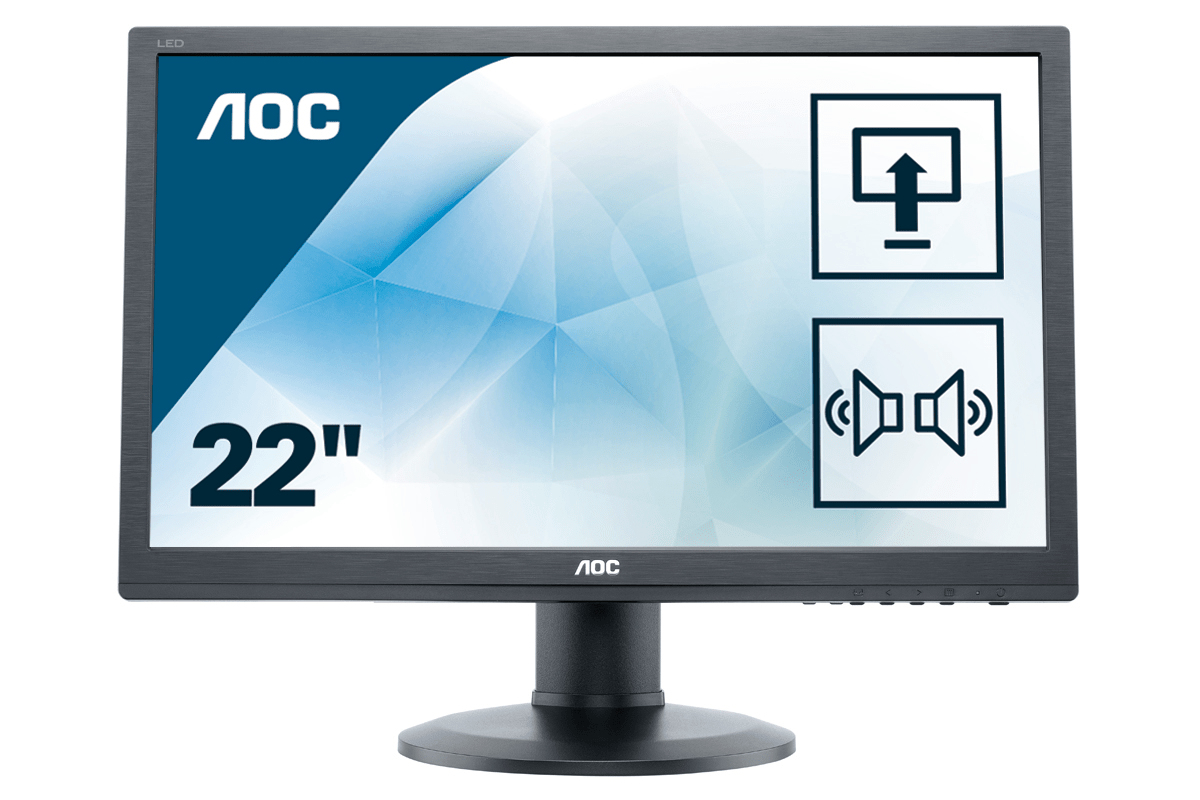

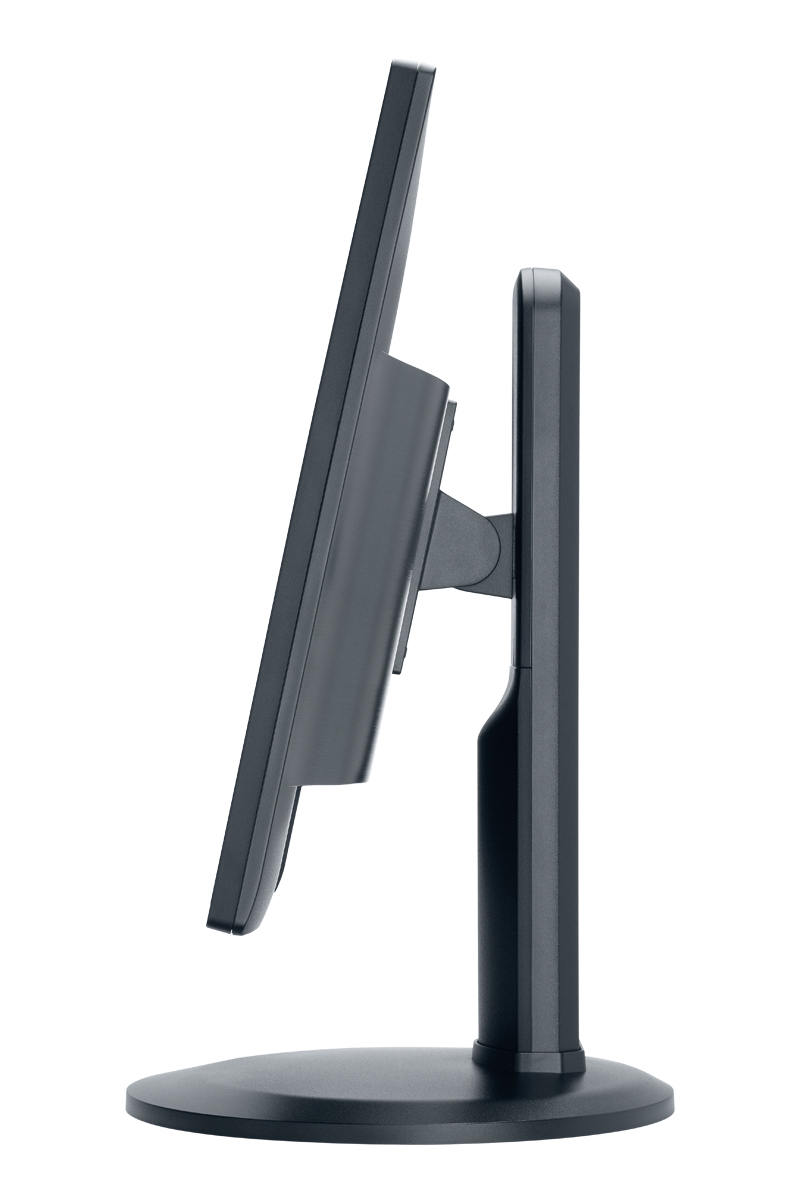

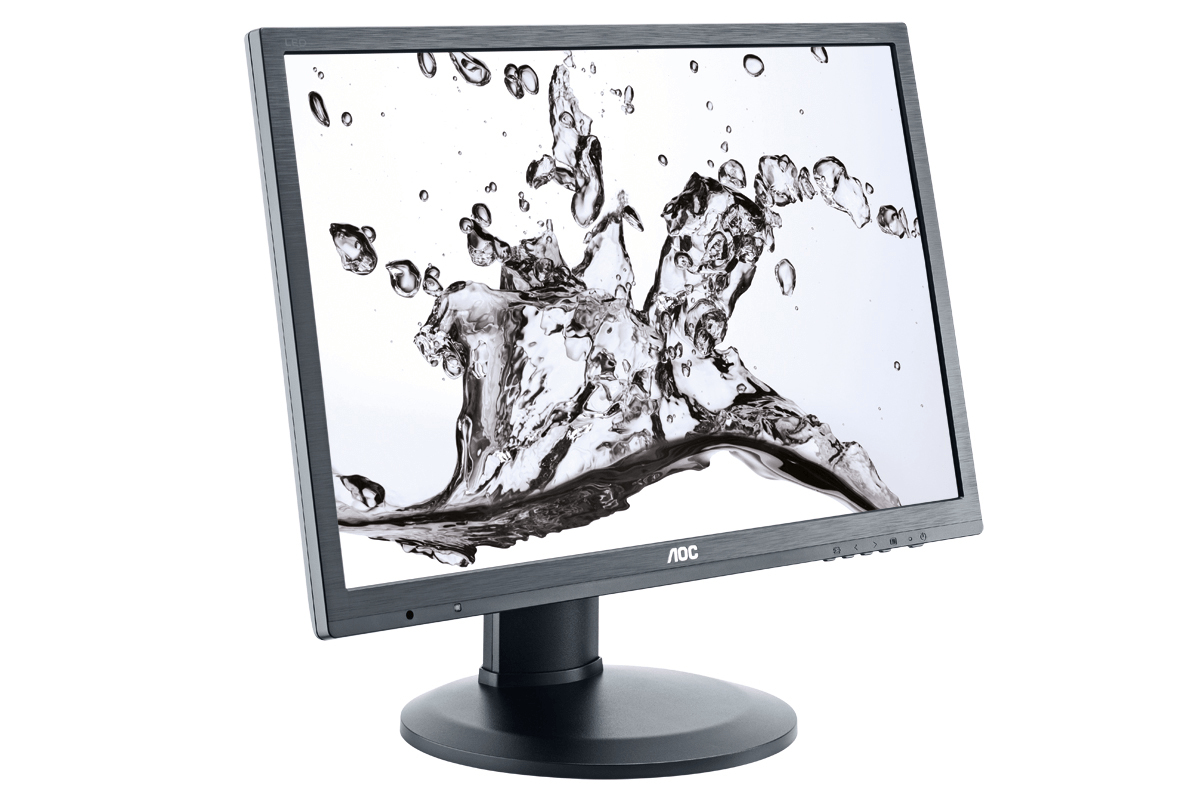

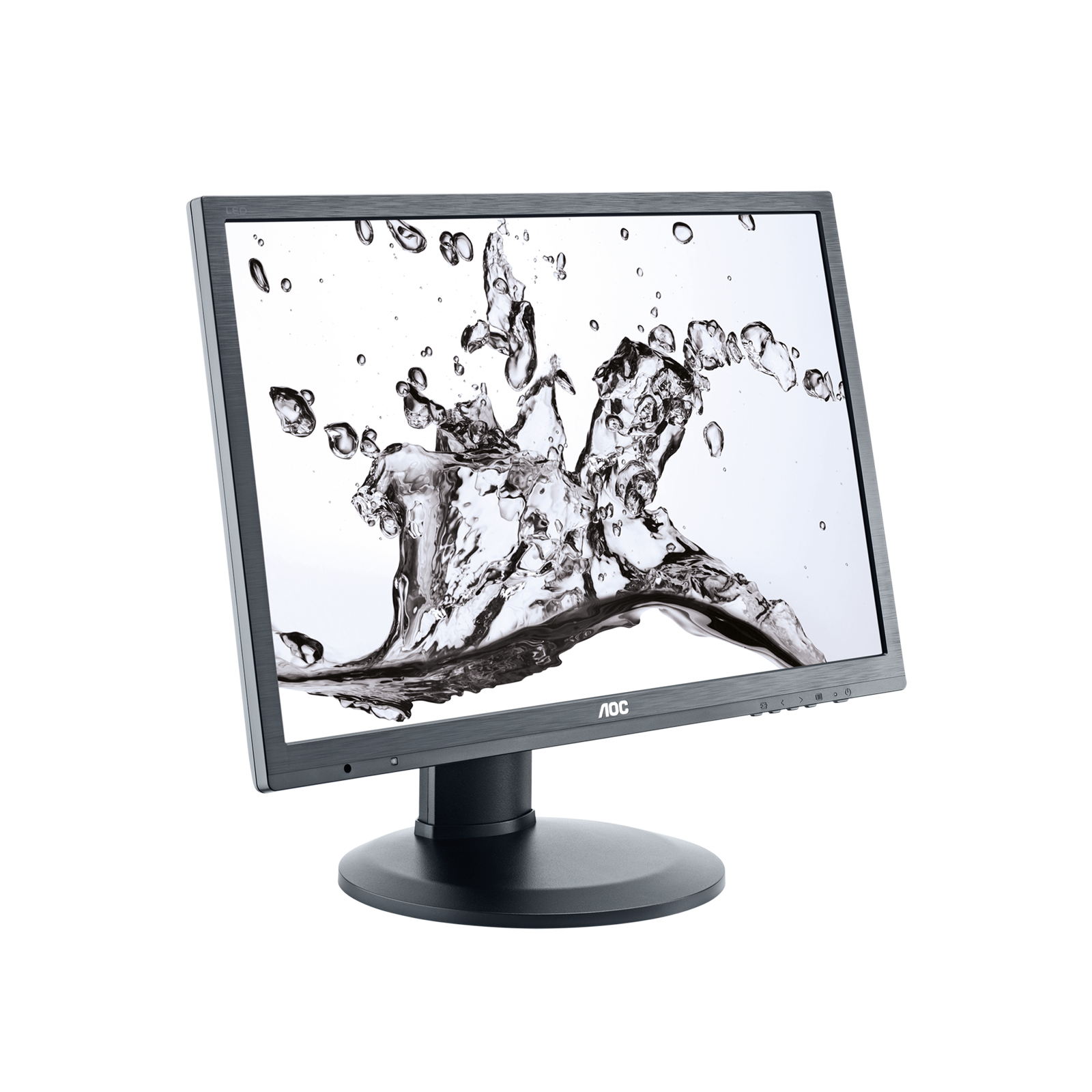

60 Series E2260PWDA computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
Model E2260PWDAEAN 4038986121804
71 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- ColourBlack
- Built-in speaker(s)Yes
- Market positioningBusiness
- USB Type-A downstream ports quantity0
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- Built-in speaker(s)
- Yes
- Market positioning
- Business
- USB Type-A downstream ports quantity
- 0
- Brand
- AOC
- Category
- Monitor
- Model
- E2260PWDA
- Part number
- E2260PWDA
- EAN / UPC
- 4038986121804, 4038986121897, 5054484722410, 5054533722415
- Also known as
- AOC 60 Series E2260PWDA computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD Black
Specifications
71 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TN |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 248 x 248 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 55 - 75 Hz |
| Viewable size, horizontal | 47.8 cm |
| Viewable size, vertical | 26.9 cm |
| Viewable size diagonal | 54.6 cm |
| 3D | No |
| Pixel frequency | 148.5 MHz |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 1 |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| HDCP | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Pivot | Yes |
| Pivot angle | 90 |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 15° |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 18.26 W |
| Power consumption (standby) | 0.34 W |
| Power consumption (off) | 0.16 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight (with stand) | 2.7 kg |
| Width (without stand) | 511 mm |
| Depth (without stand) | 60.4 mm |
| Height (without stand) | 312.4 mm |
| Weight (without stand) | 2.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 6.49 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DVI, VGA, Power |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Gold, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Mean time between failures (MTBF) | 50000 h |
| Certification | ISO |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
