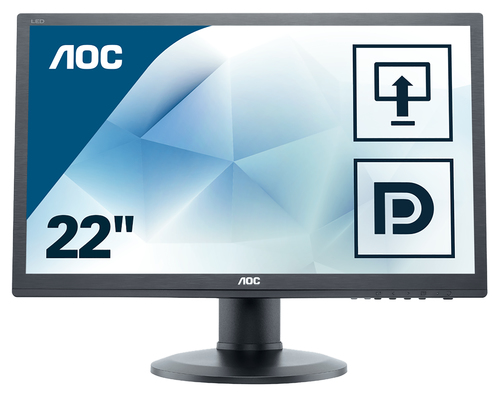

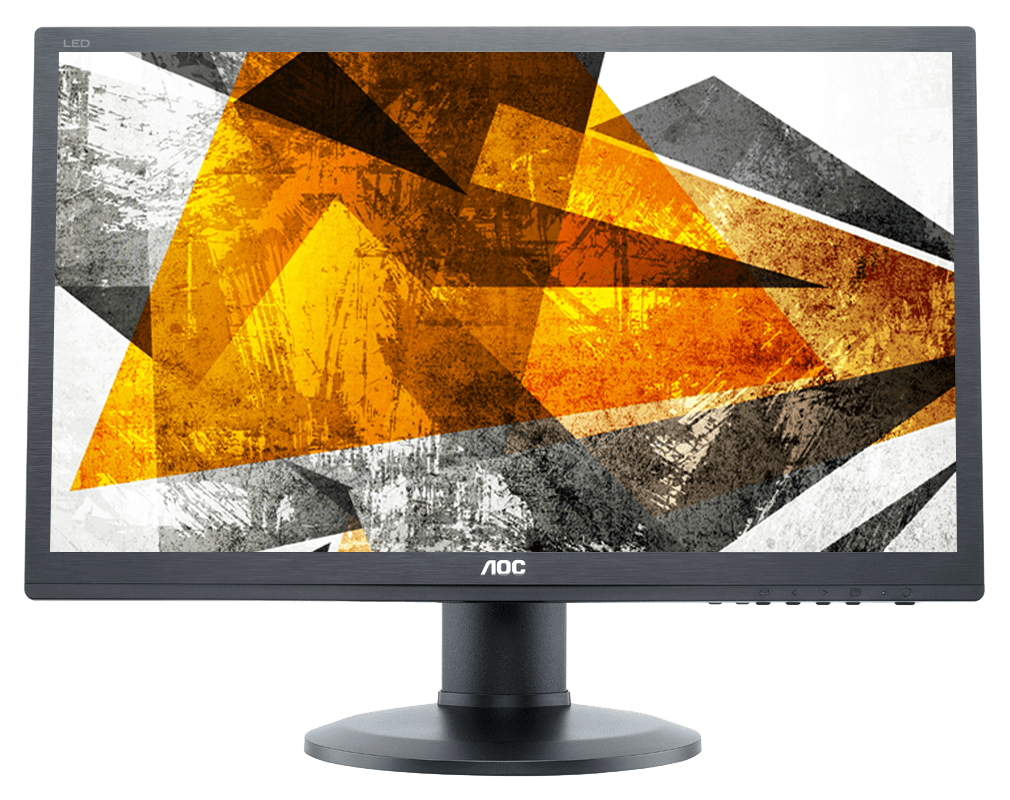

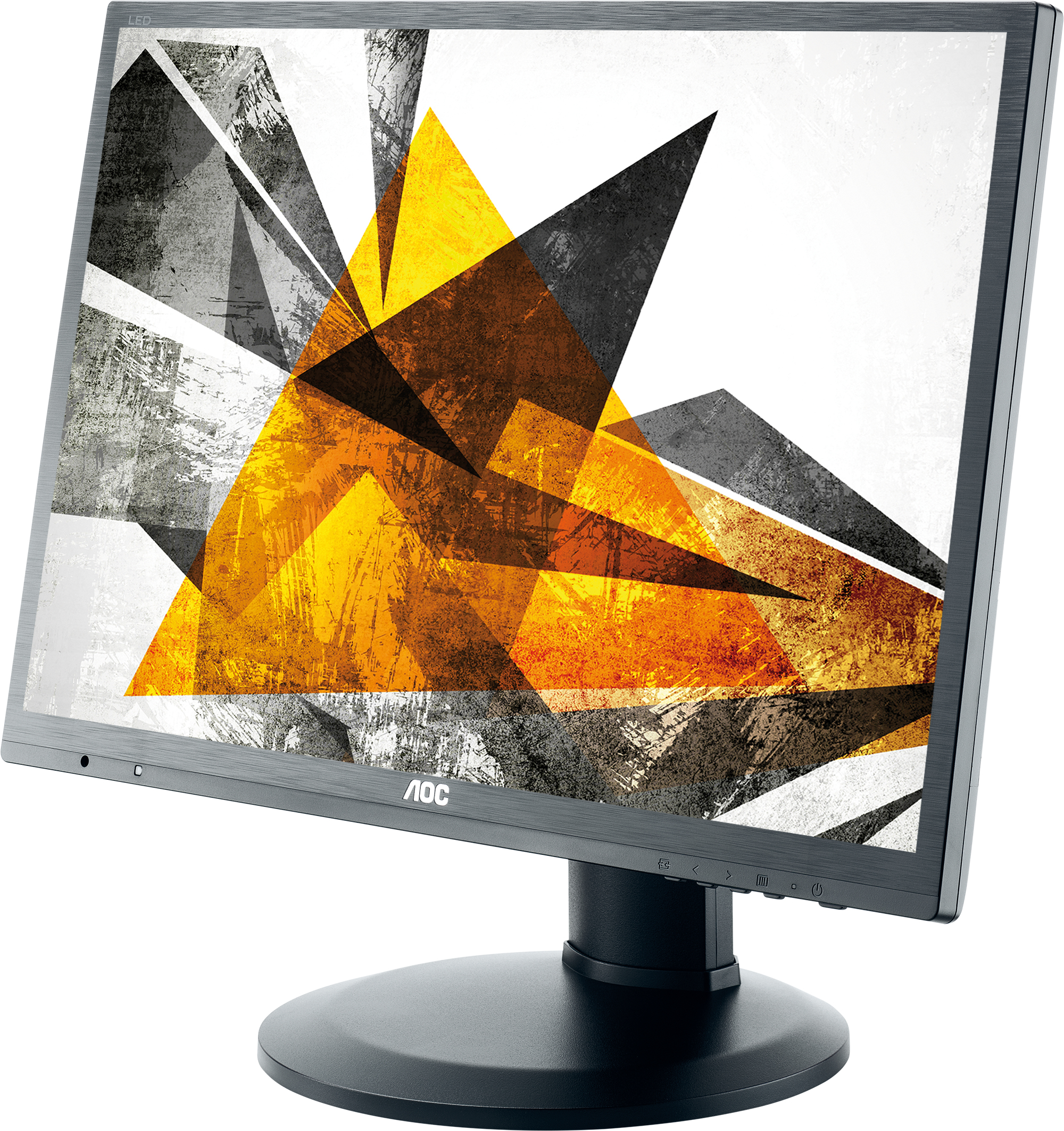

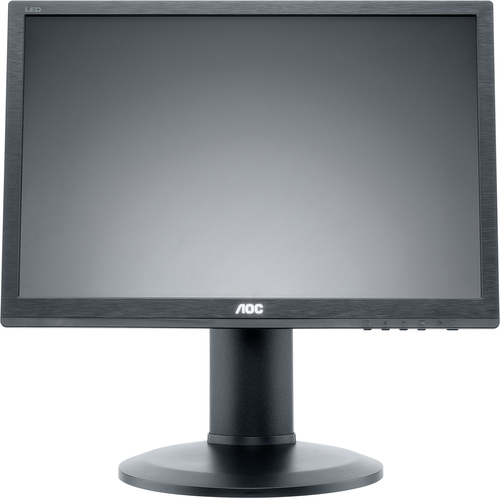

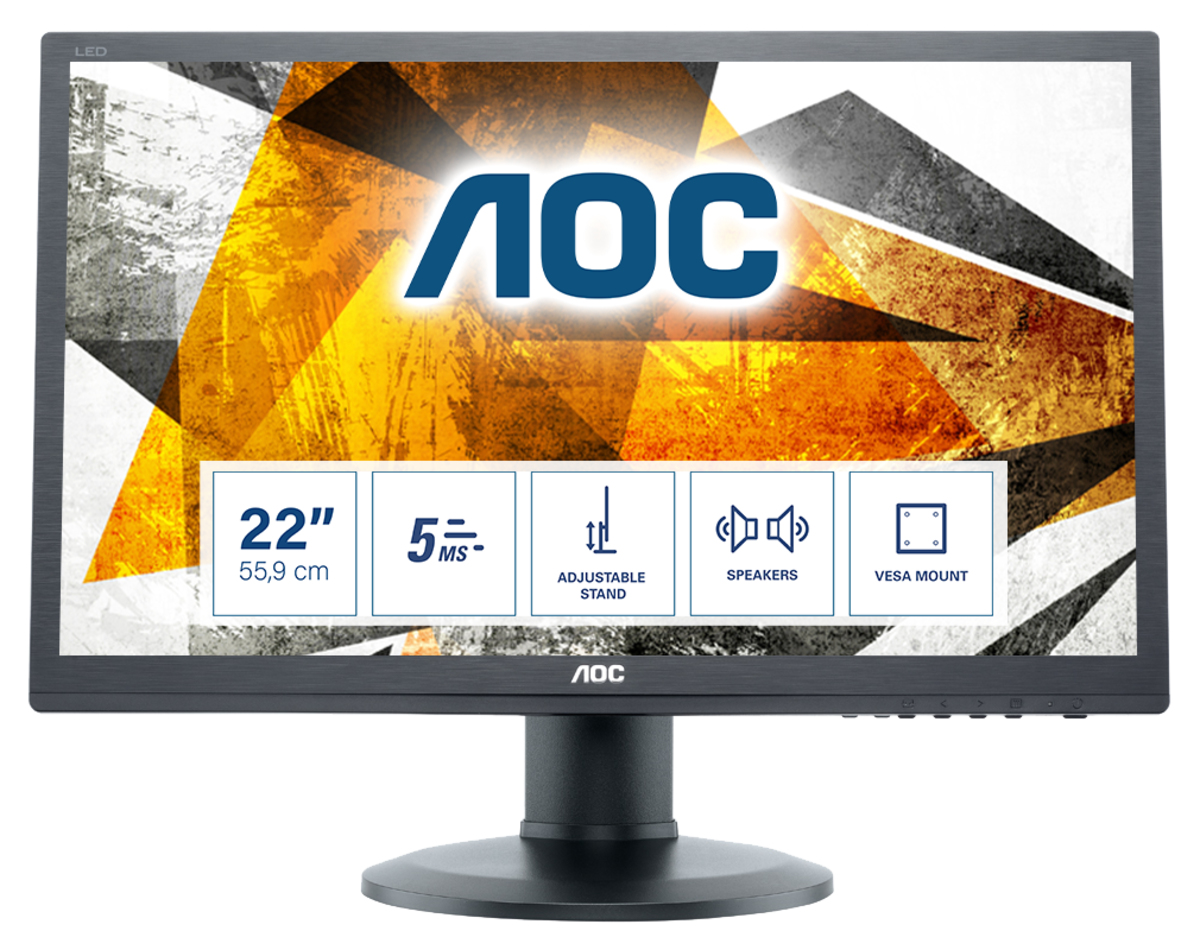

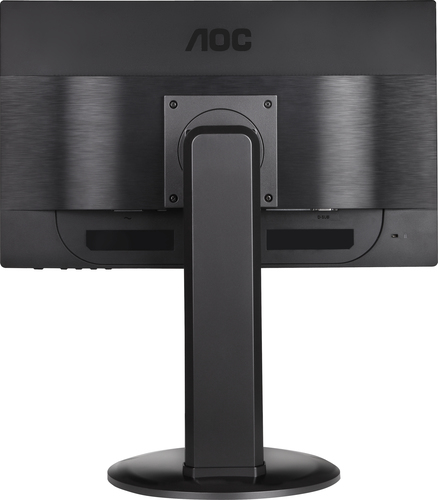

60 Series E2260PQ/BK computer monitor
55.9 cm (22") 1680 x 1050 pixels WSXGA+ LED Black
Model E2260PQ/BKEAN 4038986124508
106 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- Energy classE
- ColourBlack
- Built-in speaker(s)Yes
- Market positioningBusiness
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Energy class
- E
- Colour
- Black
- Built-in speaker(s)
- Yes
- Market positioning
- Business
- Brand
- AOC
- Category
- Monitor
- Model
- E2260PQ/BK
- Part number
- E2260PQ/BK
- EAN / UPC
- 4038986124508, 4038986124775
- Also known as
- AOC 60 Series E2260PQ/BK computer monitor 55.9 cm (22") 1680 x 1050 pixels WSXGA+ LED Black
Specifications
106 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| HD type | WSXGA+ |
| Panel type | TN |
| Backlight type | W-LED |
| Display brightness (peak) | 250 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Response time | 2 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.282 x 0.282 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 50 - 76 Hz |
| 3D | No |
| Pixel frequency | 146 MHz |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.1 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
| HDCP | Yes |
| AC (power) in | Yes |
Ergonomics
| Specification | Value |
|---|---|

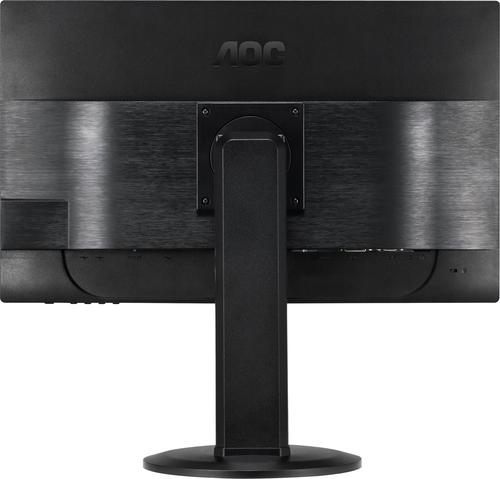

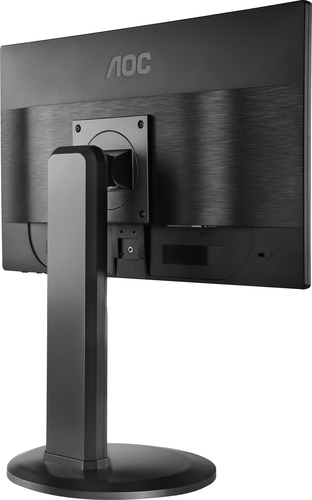

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |

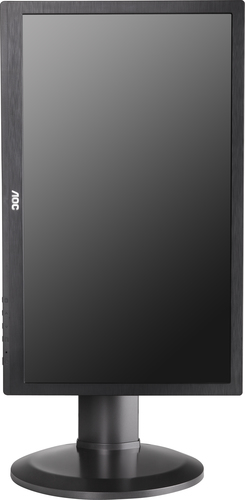

| Pivot | Yes |
| Swivelling | Yes |
| Swivel angle range | -165 - 165° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| Number of OSD languages | 16 |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (off) | 0.12 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| External power adapter | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 93% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 507.8 mm |
| Depth (with stand) | 127 mm |
| Height (with stand) | 244.6 mm |
| Weight (with stand) | 5.65 kg |
| Width (without stand) | 507.8 mm |
| Depth (without stand) | 127 mm |
| Height (without stand) | 499.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 652 mm |
| Package depth | 177 mm |
| Package height | 413 mm |
| Package weight | 7.22 kg |
| Package type | Box |
| DVI cable length | 1.8 m |
| VGA cable length | 1.8 m |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, Audio (3.5mm), DVI, DisplayPort, VGA |
| Audio cable length | 1.8 m |
| DisplayPort cable length | 1.8 m |
| Power cable length | 1.8 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Bezel thickness type | Normal |
| Compliance certificates | RoHS |
| Heavy metals free | Hg (mercury) |
| Mean time between failures (MTBF) | 50000 h |
| Certification | GOST |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
