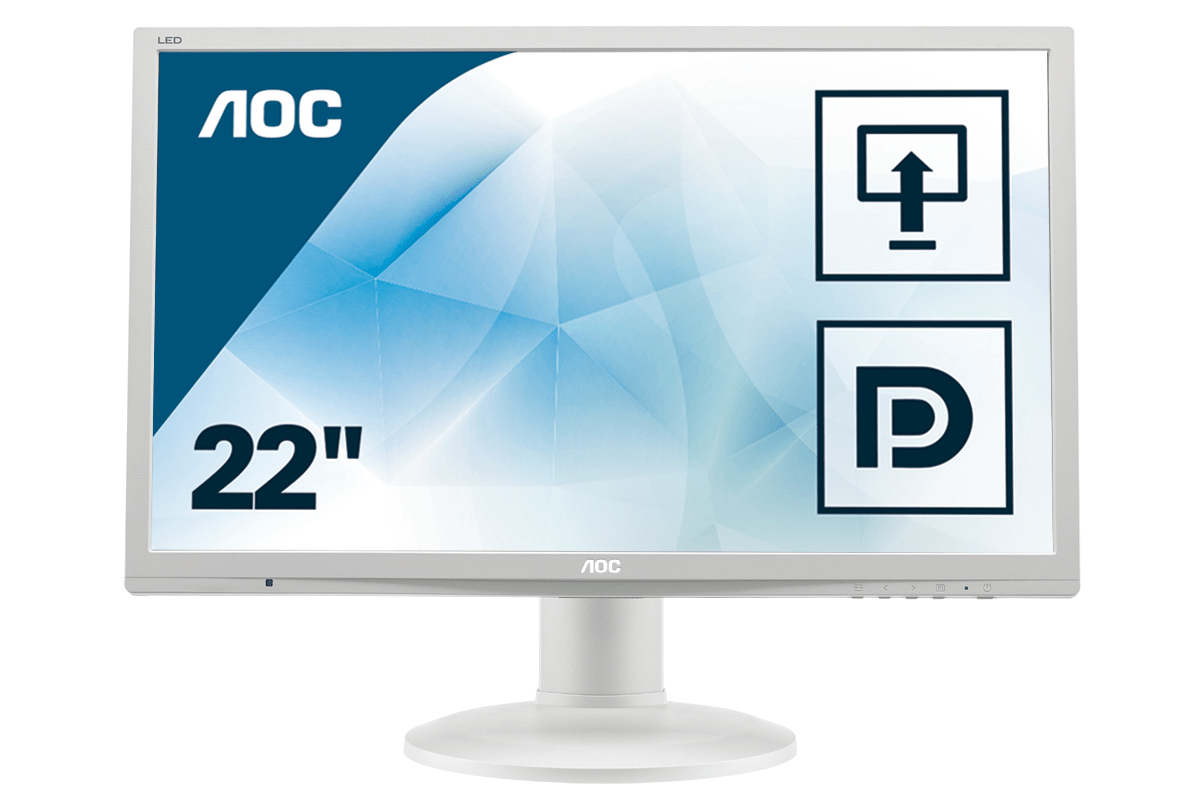

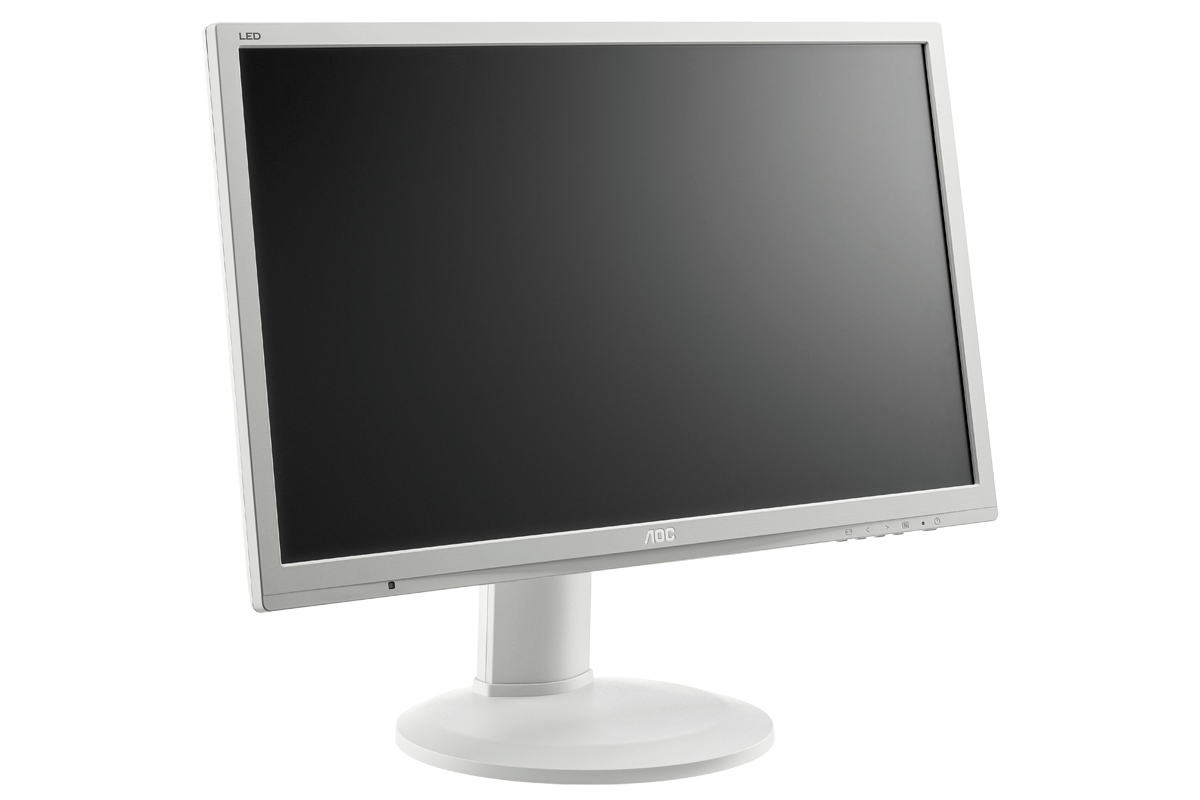

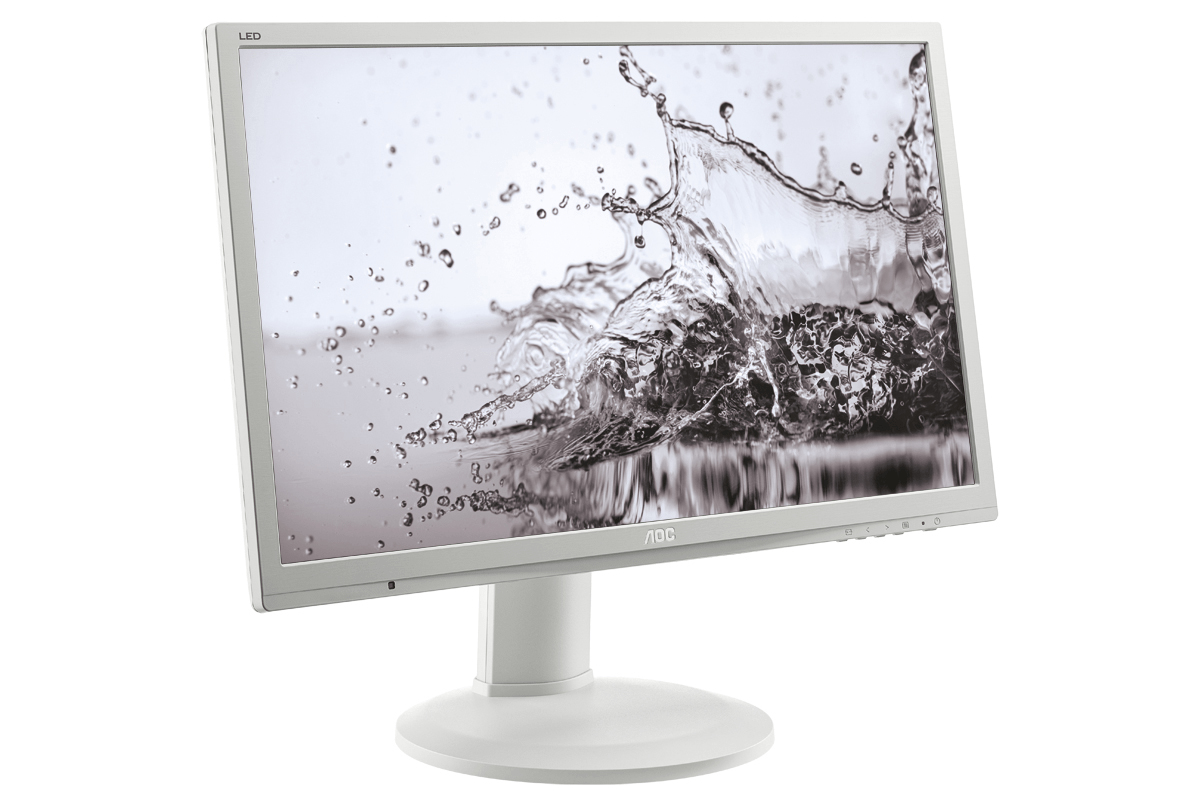

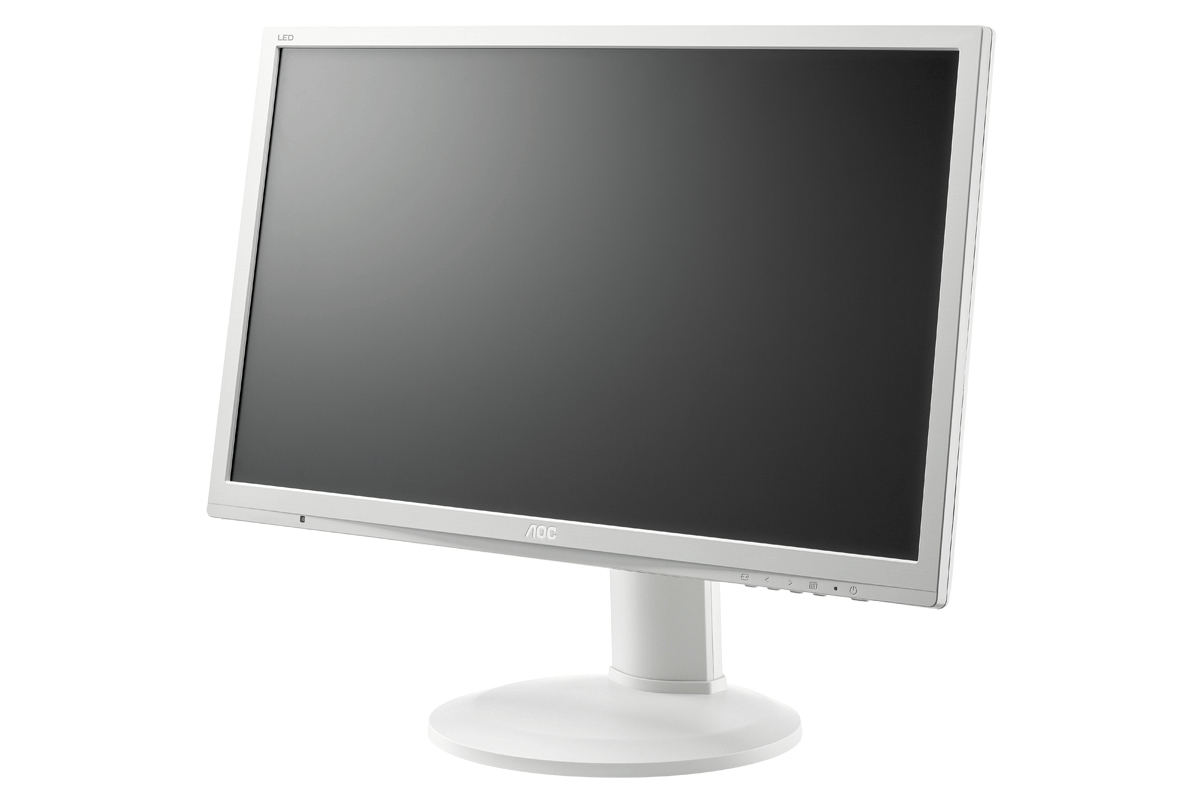

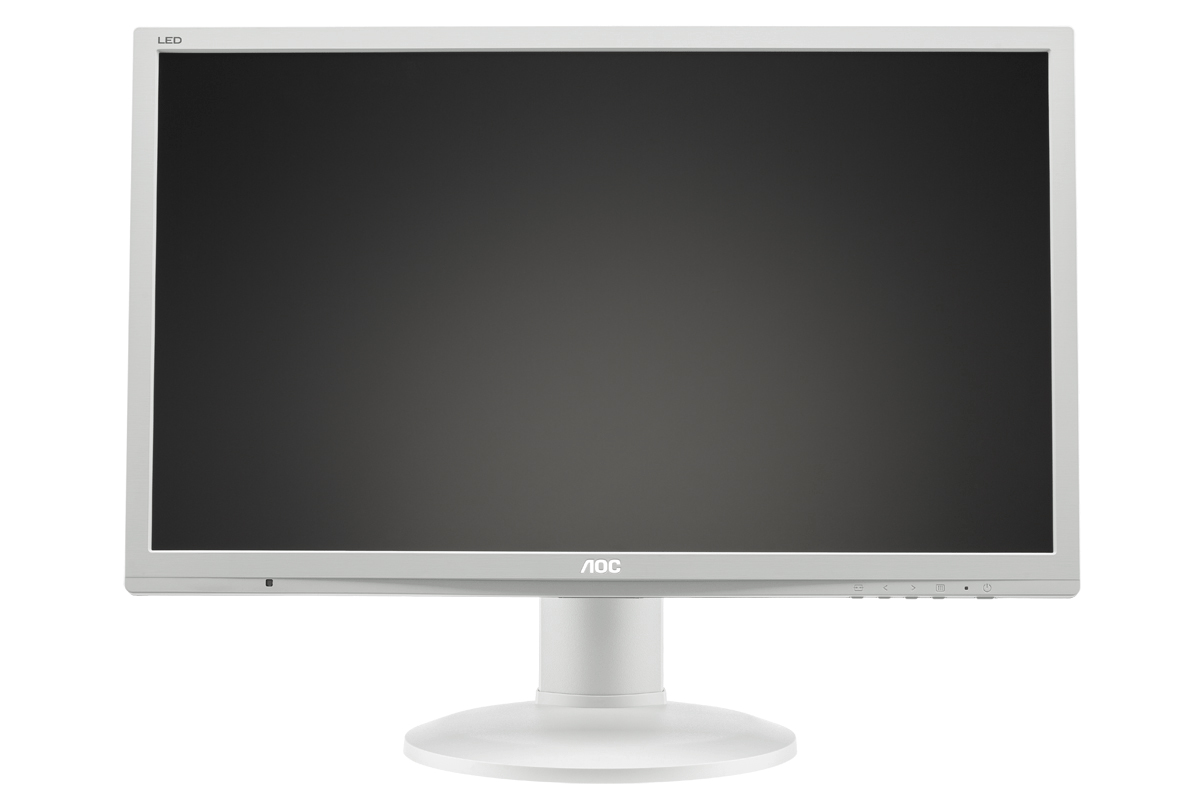

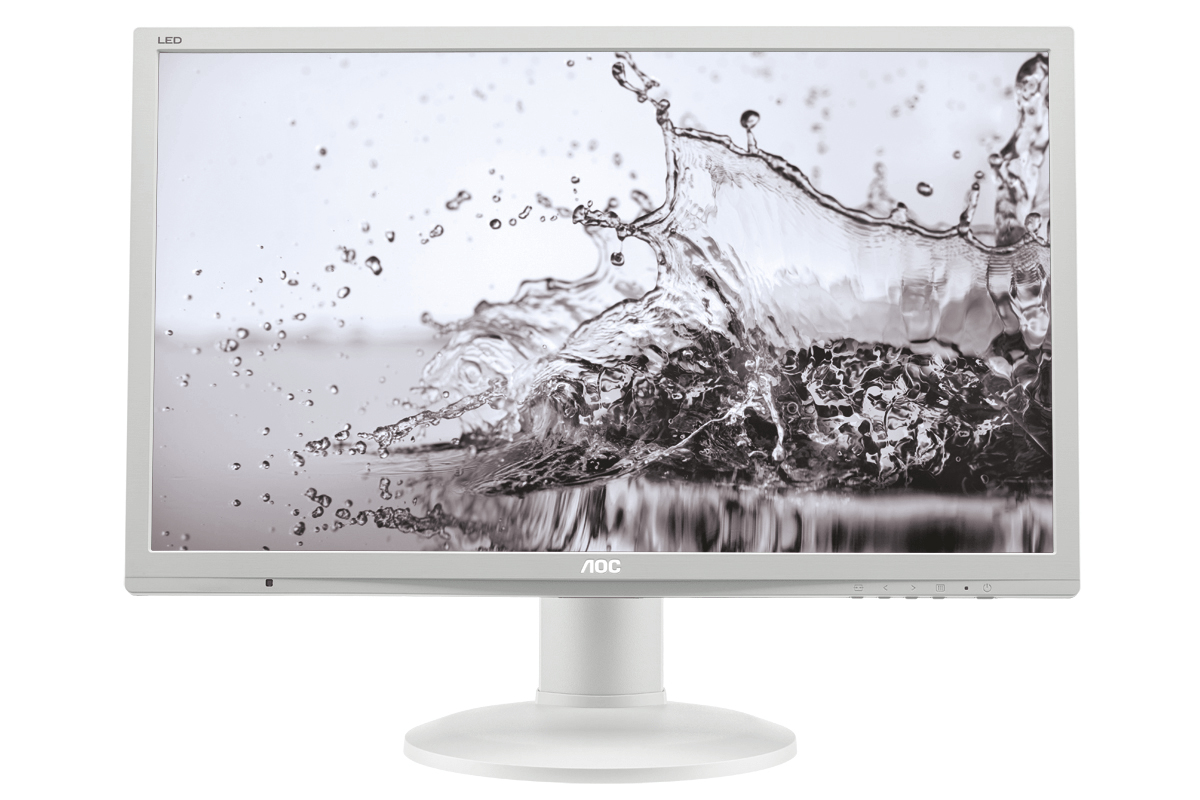

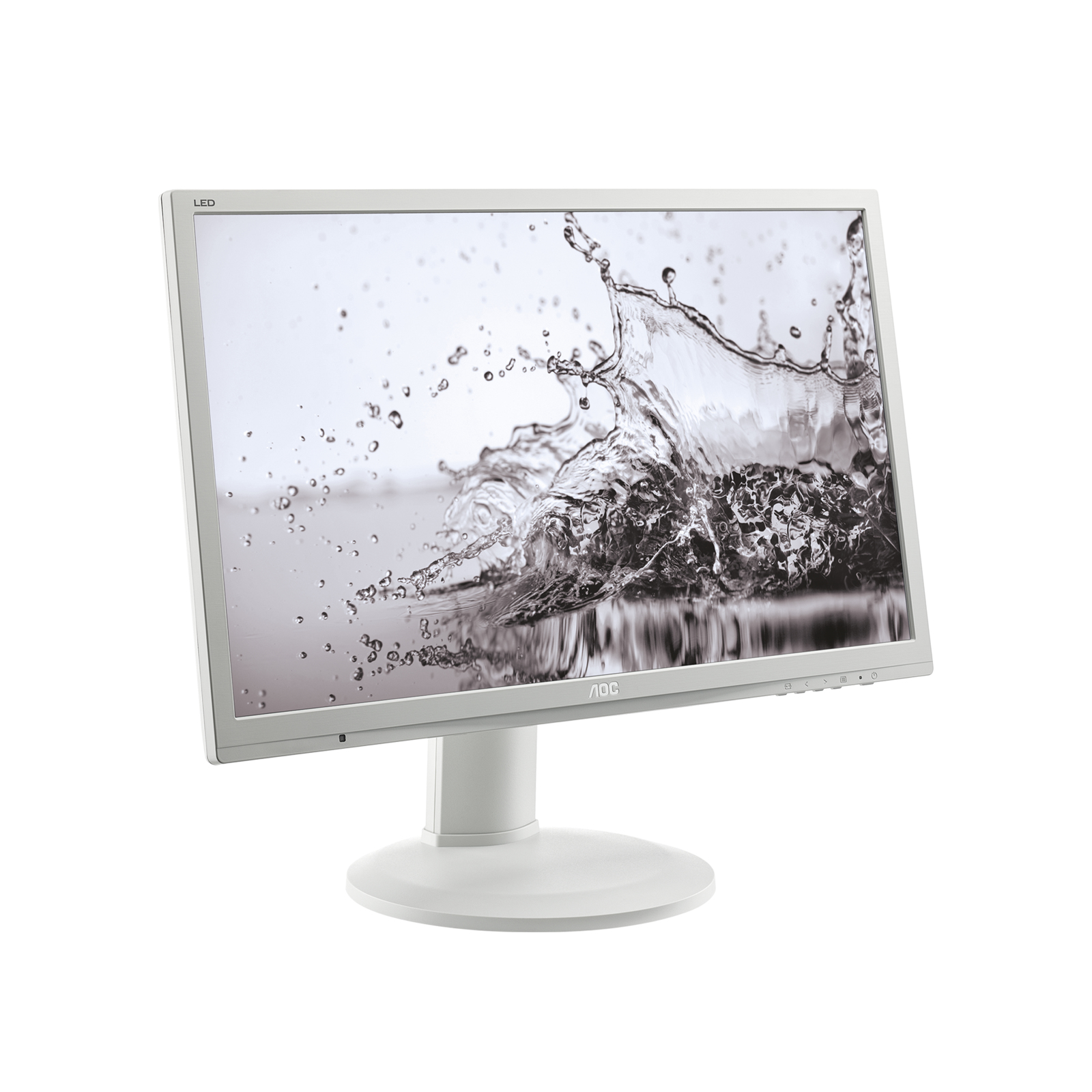

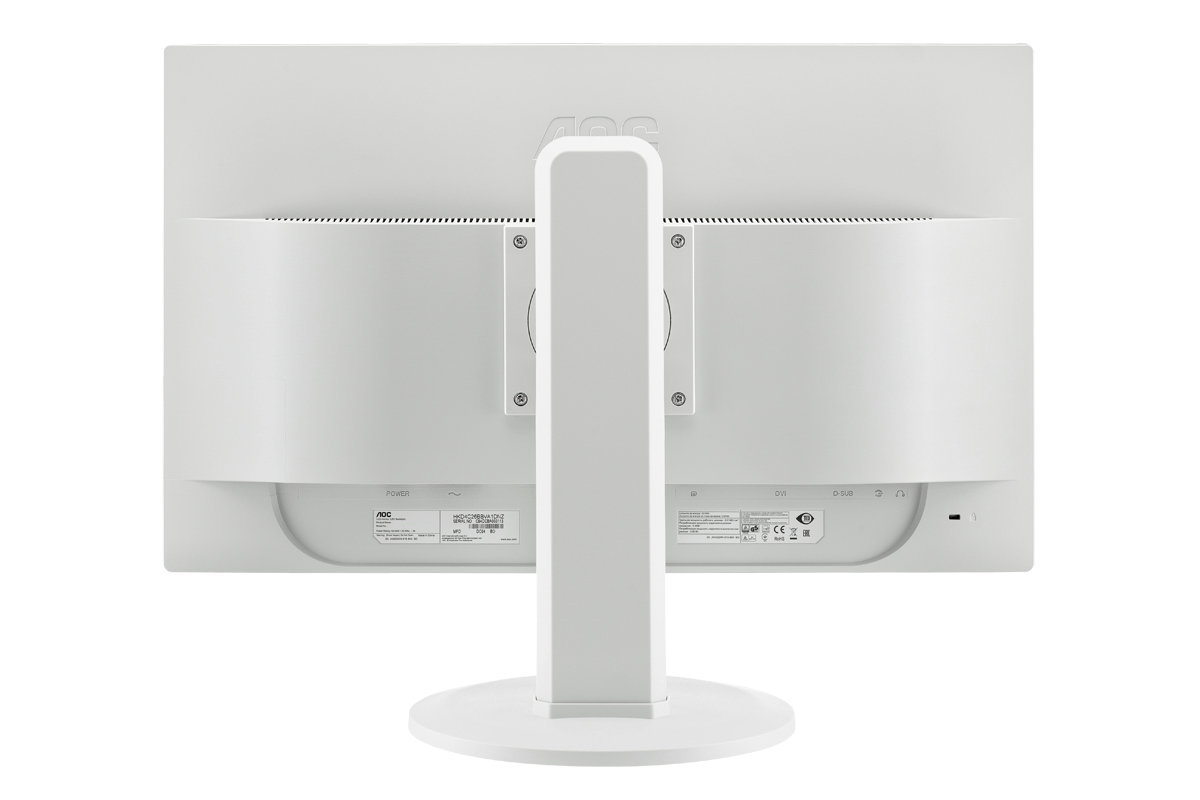

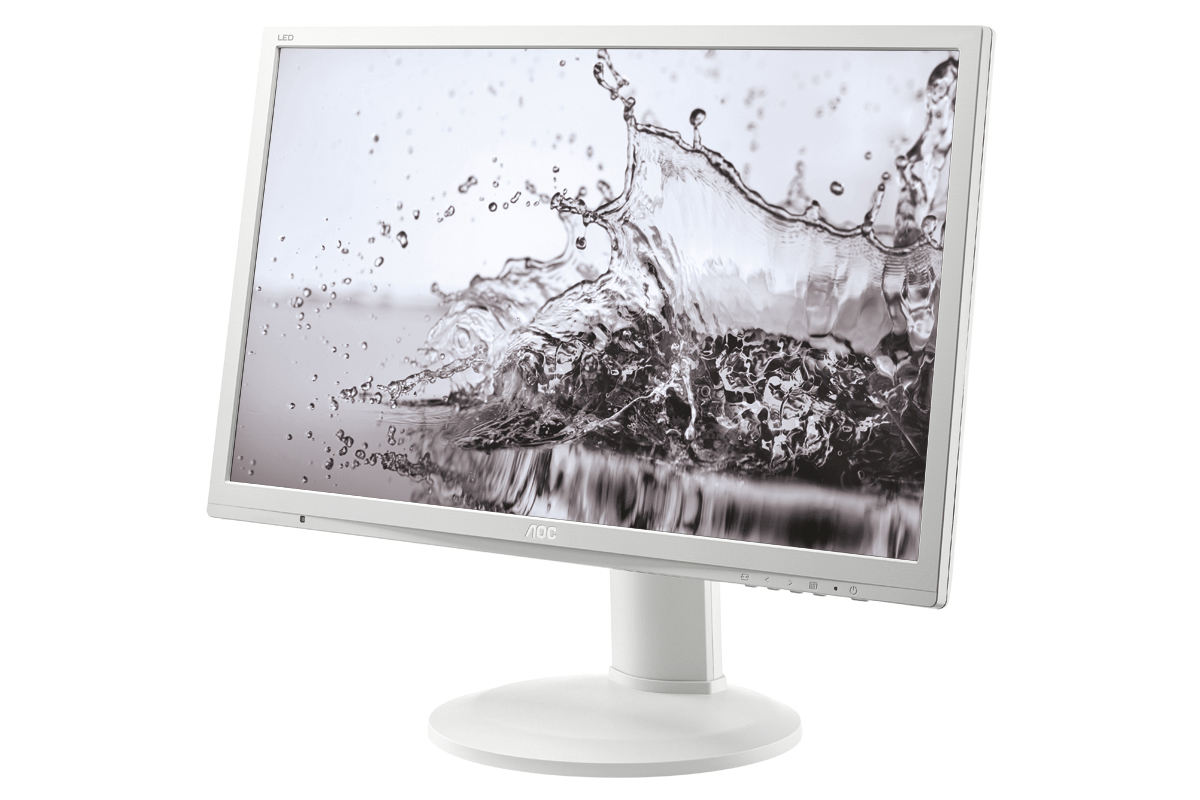

60 Series E2260PQ computer monitor
55.9 cm (22") 1680 x 1050 pixels LED White
Model E2260PQ
85 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- Energy classE
- ColourWhite
- Built-in speaker(s)Yes
- Market positioningBusiness
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Energy class
- E
- Colour
- White
- Built-in speaker(s)
- Yes
- Market positioning
- Business
- Brand
- AOC
- Category
- Monitor
- Model
- E2260PQ
- Part number
- E2260PQ
- Also known as
- AOC 60 Series E2260PQ computer monitor 55.9 cm (22") 1680 x 1050 pixels LED White
Specifications
85 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | No |
| Panel type | TN |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 2 ms |
| Supported graphics resolutions | 1680 x 1050 (WSXGA+) |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 50000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 282 x 282 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 47.4 cm |
| Viewable size, vertical | 29.6 cm |
| Digital horizontal frequency | 30 - 83 kHz |
| Digital vertical frequency | 50 - 76 Hz |
| 3D | No |
| Pixel frequency | 146 MHz |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
Ports & interfaces
| Specification | Value |
|---|---|
| USB Type-A downstream ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| HDCP | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Pivot | Yes |
| Swivelling | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 22° |
| On Screen Display (OSD) | Yes |
| Plug and Play | Yes |
| LED indicators | Power |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 18 kWh |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (off) | 0.12 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| External power adapter | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 507.8 mm |
| Depth (with stand) | 244.6 mm |
| Height (with stand) | 408.3 mm |
| Weight (with stand) | 5.65 kg |
| Width (without stand) | 507.8 mm |
| Depth (without stand) | 127 mm |
| Height (without stand) | 499.7 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 652 mm |
| Package depth | 413 mm |
| Package height | 177 mm |
| Package weight | 7.22 kg |
| User Guide on CD-ROM | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), DVI, VGA |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Mean time between failures (MTBF) | 50000 h |
| Certification | FCC |
| Supplied AC adapter type | LED |
Thin Client
| Specification | Value |
|---|---|
| Thin client installed | No |
