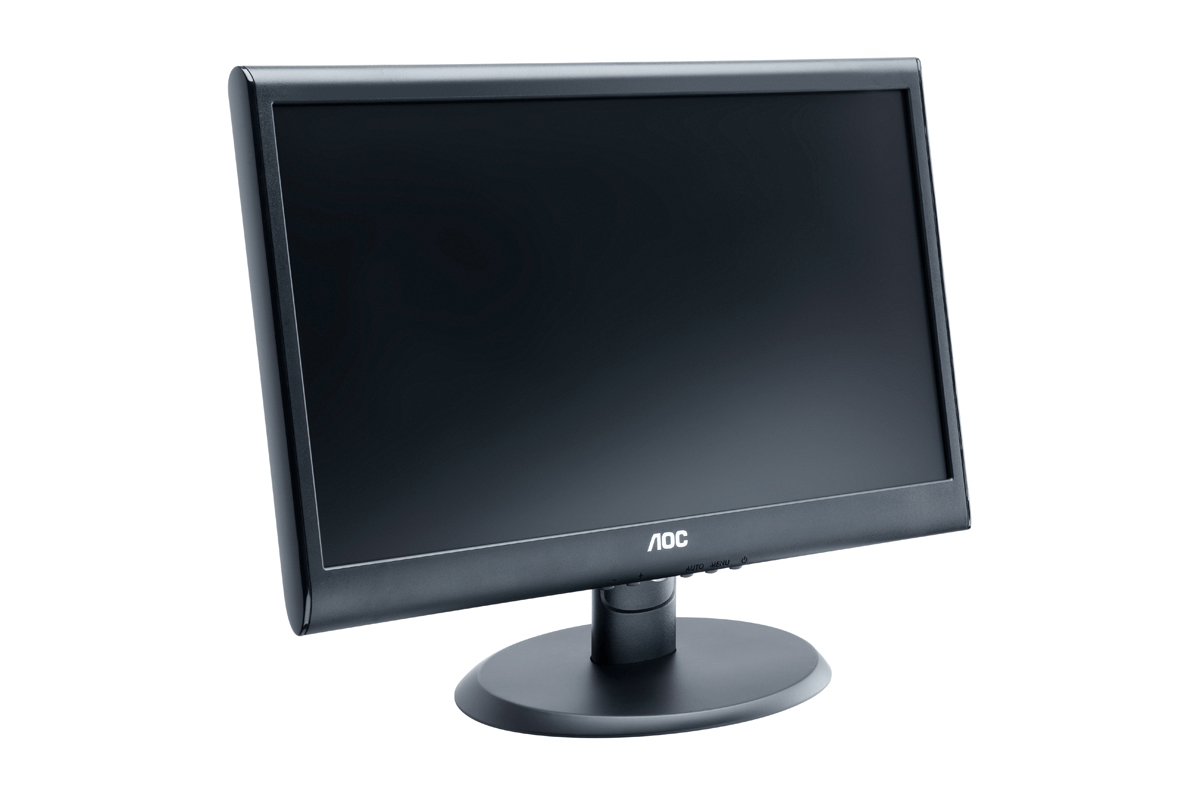

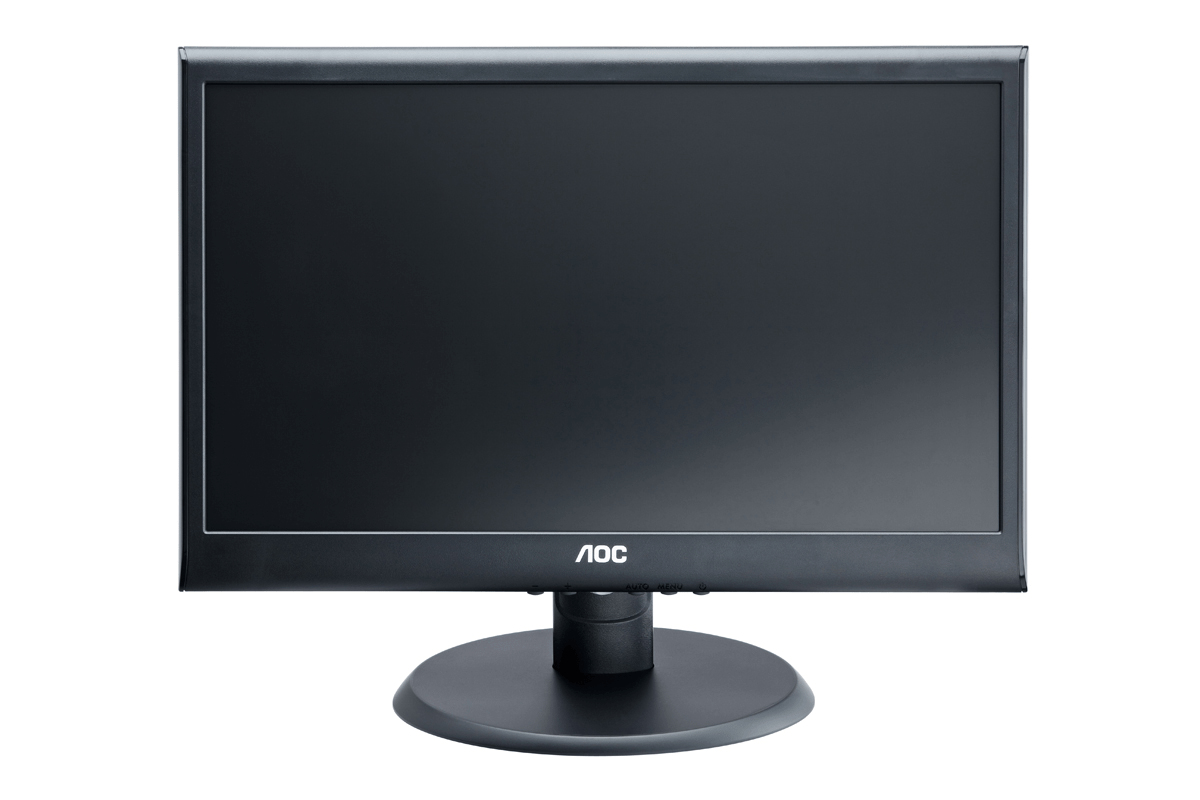

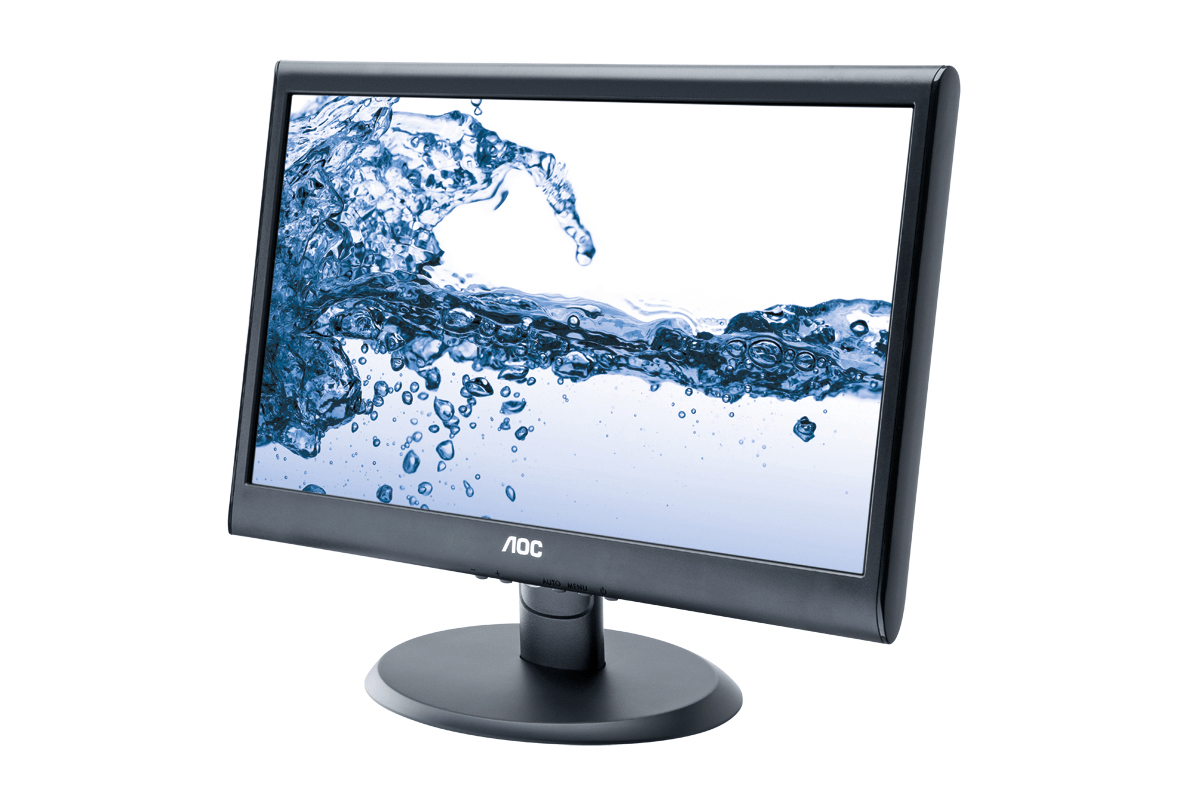

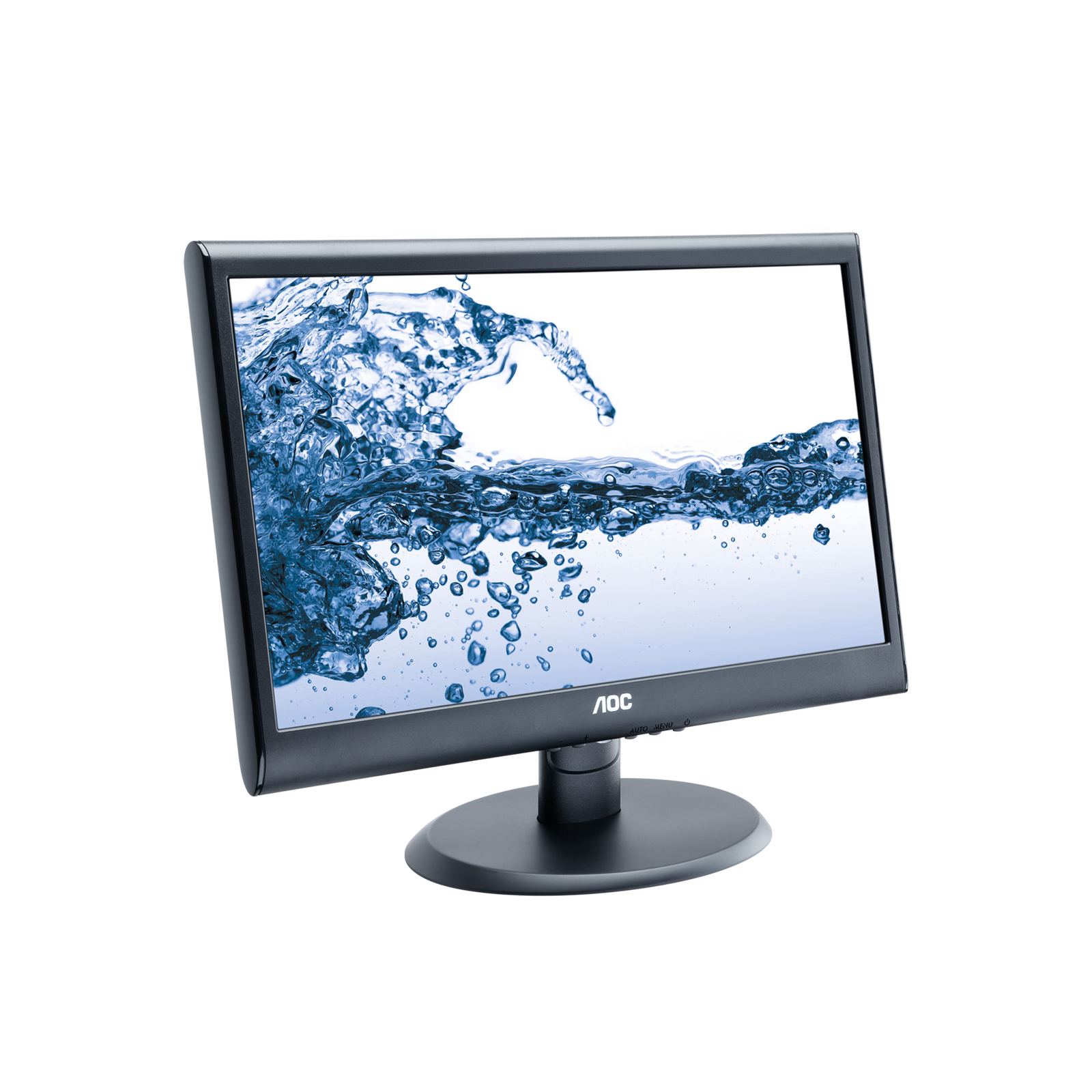

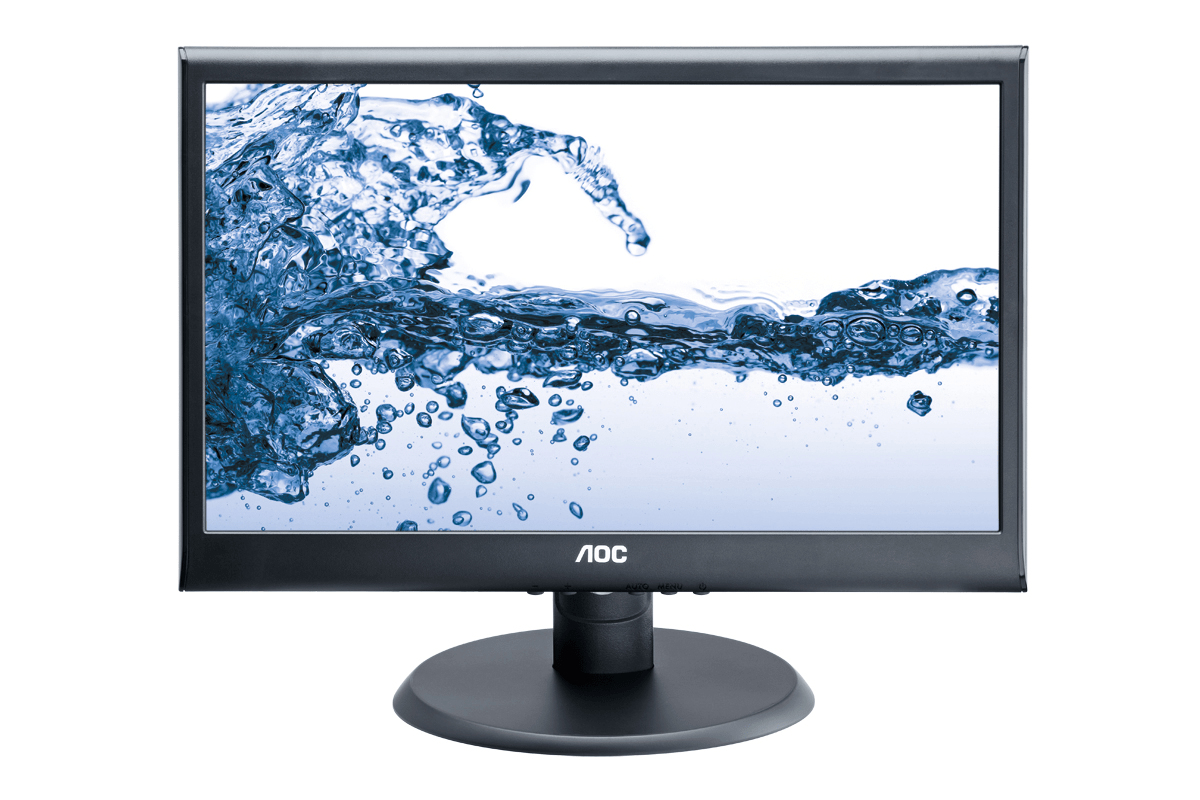

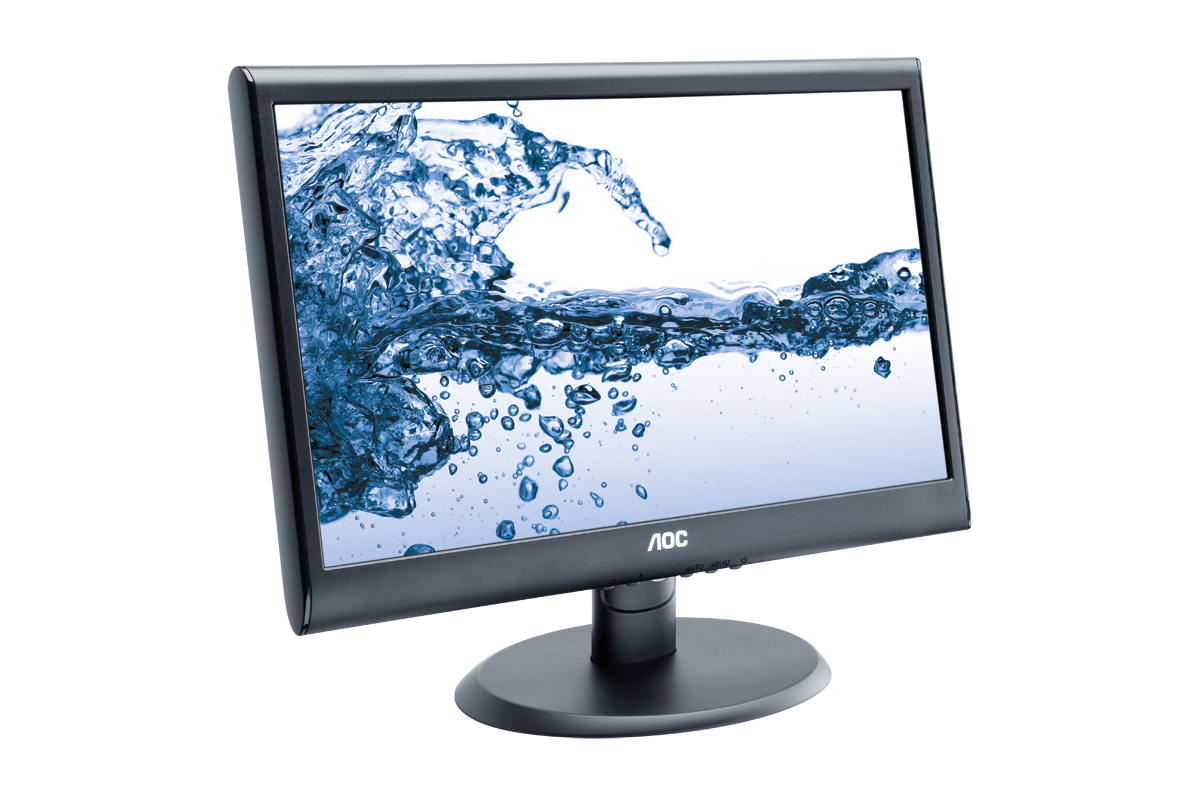

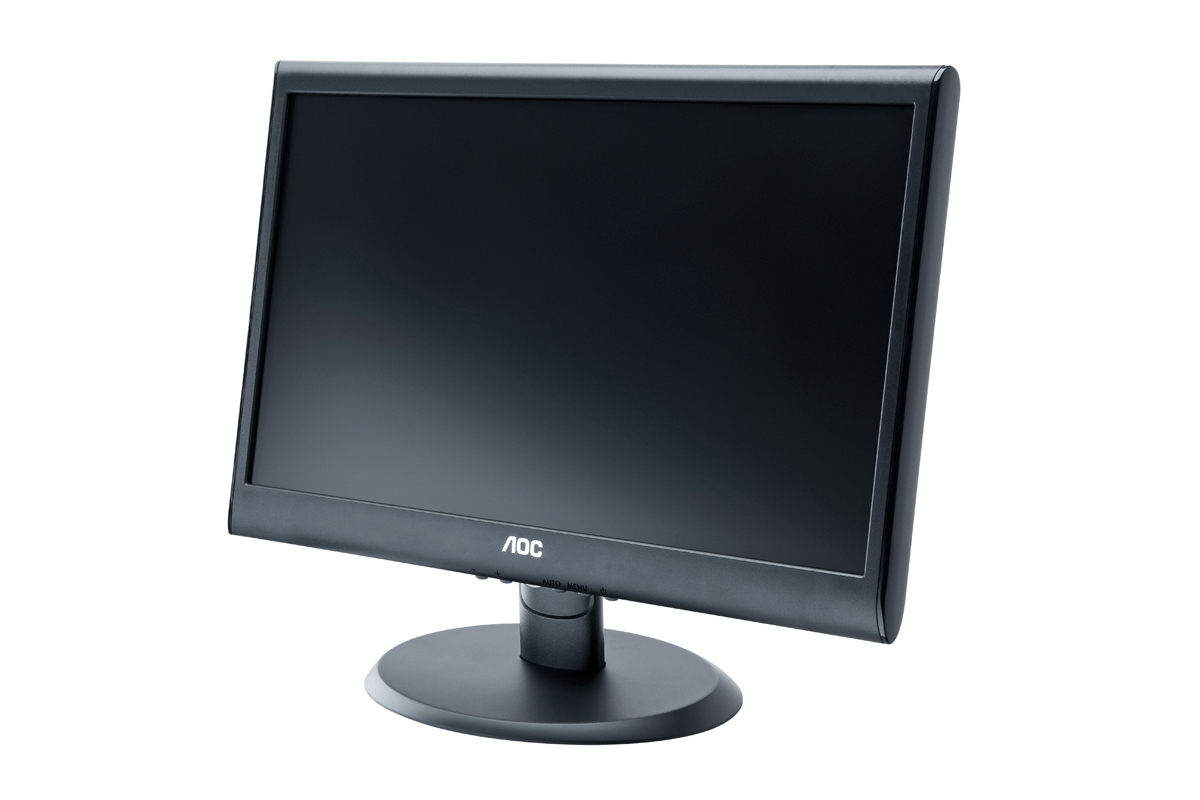

AOC E2250SD computer monitor

AOC E2250SD computer monitor

55.9 cm (22") 1680 x 1050 pixels LED Black

Model E2250SDEAN 4038986124553

74 specifications Checked 2 days ago

Display55.9 cm (22")
Resolution1680 x 1050 pixels
ColourBlack
Built-in speaker(s)No
USB Type-A downstream ports quantity0
VESA mountingYes

See all specifications

Overview

Display: 55.9 cm (22")
Resolution: 1680 x 1050 pixels
Colour: Black
Built-in speaker(s): No
USB Type-A downstream ports quantity: 0
VESA mounting: Yes

Brand: AOC
Category: Monitor
Model: E2250SD
Part number: E2250SD
EAN / UPC: 4038986124553, 5052916333401, 5054484615576
Also known as: AOC E2250SD computer monitor 55.9 cm (22") 1680 x 1050 pixels LED Black

Specifications

74 specifications in 12 groups

Display

Specification	Value
Display diagonal	55.9 cm (22")
Display resolution	1680 x 1050 pixels
Native aspect ratio	16:10
Display technology	LED
Touchscreen	No
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Supported graphics resolutions	1680 x 1050 (WSXGA+)
Aspect ratio	16:10
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	282 x 282 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	47.4 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 83 kHz
Digital vertical frequency	50 - 76 Hz
3D	Yes
Pixel frequency	165 MHz

Multimedia

Specification	Value
Built-in speaker(s)	No

Design

Specification	Value
Product colour	Black

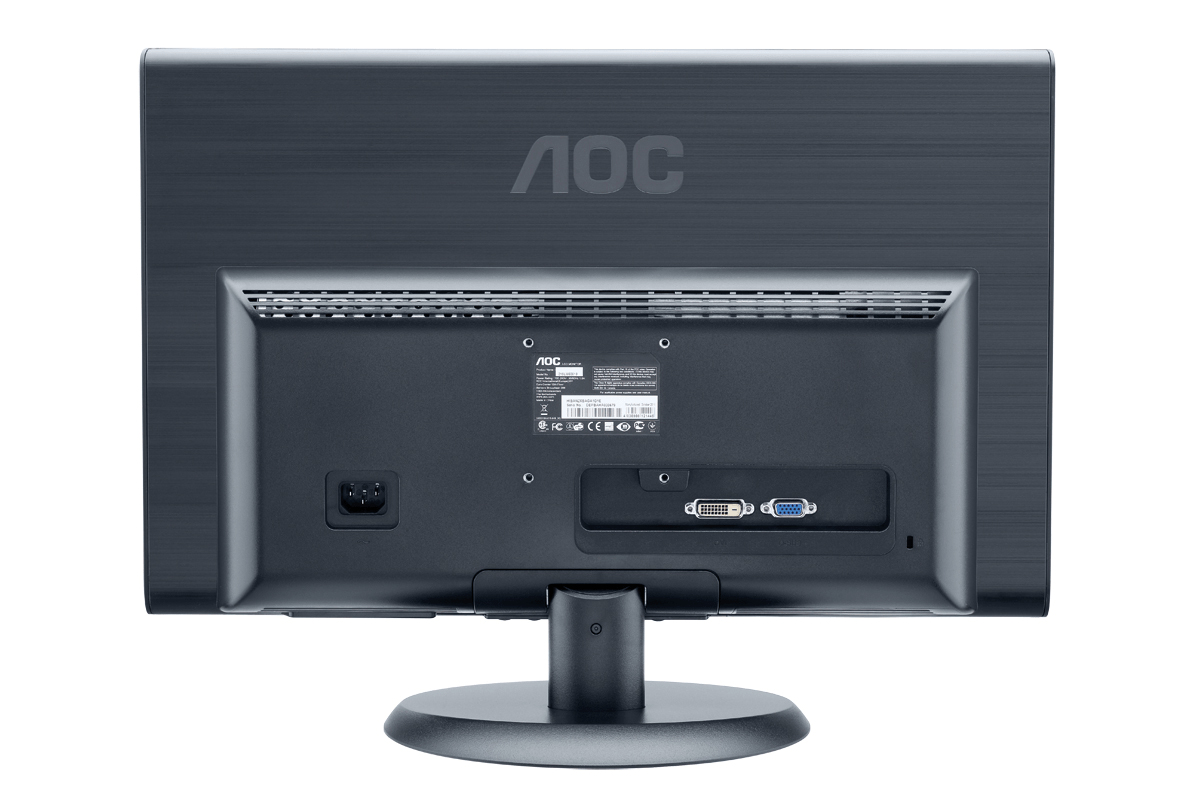

Ports & interfaces

Specification	Value
USB Type-A downstream ports quantity	0
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI ports quantity	0
HDCP	Yes
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	75 x 75 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	No
Swivelling	No

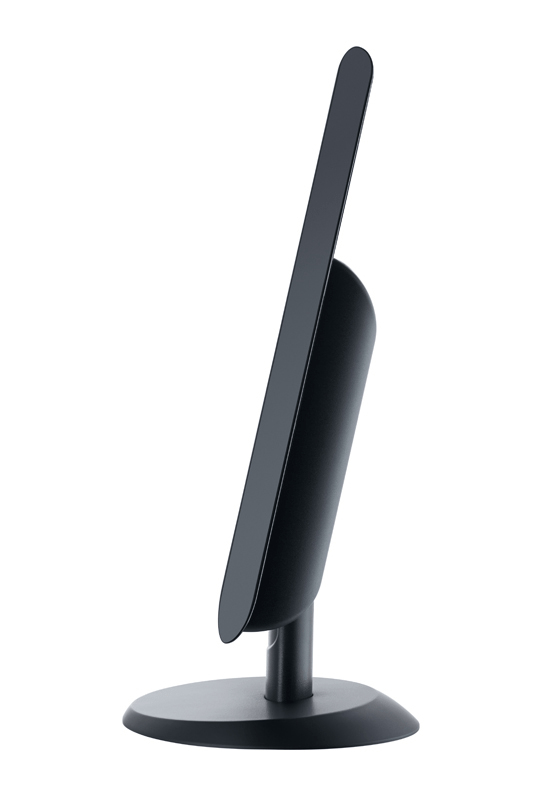

Tilt adjustment	Yes
Tilt angle range	-4 - 17°
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Power consumption (typical)	18 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	No

Weight & dimensions

Specification	Value
Width (with stand)	508.7 mm
Depth (with stand)	190 mm
Height (with stand)	408.5 mm
Weight (with stand)	3.76 kg
Width (without stand)	508.7 mm
Depth (without stand)	47.7 mm
Height (without stand)	350.3 mm

Packaging data

Specification	Value
Package width	562 mm
Package depth	109 mm
Package height	420 mm
Package weight	4.62 kg
User Guide on CD-ROM	Yes

Packaging content

Specification	Value
Cables included	AC, DVI, VGA

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Compliance certificates	RoHS
Mean time between failures (MTBF)	50000 h
Certification	GOST
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No
