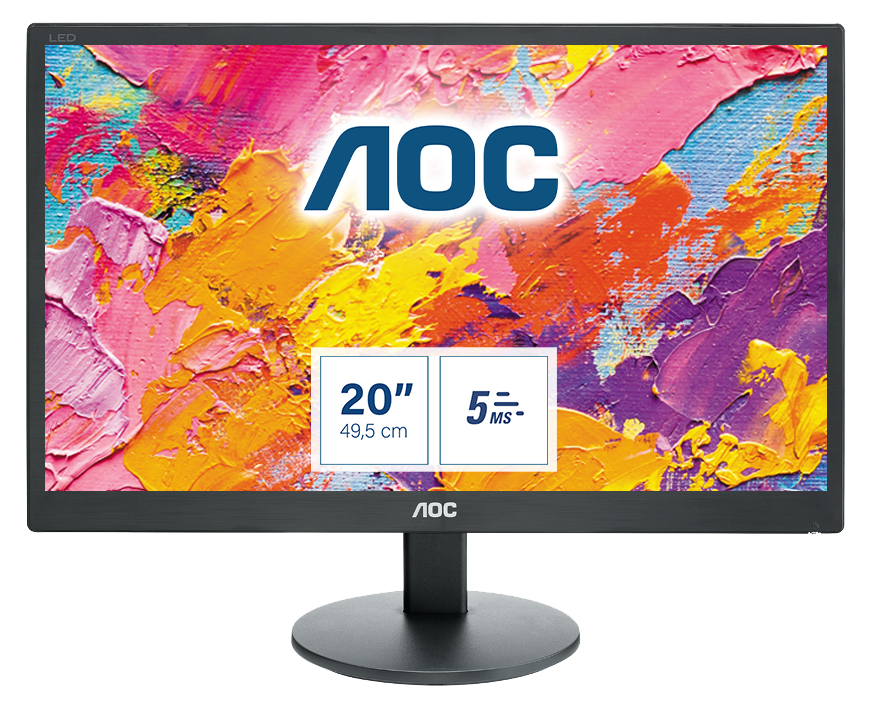

70 Series E2070SWN computer monitor

49.5 cm (19.5") 1600 x 900 pixels HD+ LED Black

Model E2070SWNEAN 8978467393497

107 specifications Checked today

Display49.5 cm (19.5")
Resolution1600 x 900 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Market positioningHome

See all specifications

Overview

Display: 49.5 cm (19.5")
Resolution: 1600 x 900 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Home

Brand: AOC
Category: Monitor
Model: E2070SWN
Part number: E2070SWN
EAN / UPC: 8978467393497, 2273724111965, 4038986103886, 5054484511595 +3 more
Also known as: AOC 70 Series E2070SWN computer monitor 49.5 cm (19.5") 1600 x 900 pixels HD+ LED Black

Specifications

107 specifications in 15 groups

Display

Specification	Value
Display diagonal	49.5 cm (19.5")
Display resolution	1600 x 900 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	HD+
Panel type	TN
LED backlight	Yes
Backlight type	W-LED
Display brightness (peak)	200 cd/m²
Display brightness (typical)	200 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1600 x 900
Aspect ratio	16:9
Contrast ratio (typical)	600:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	90°
Viewing angle, vertical	50°
Display number of colours	16.7 million colours
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	43.4 cm
Viewable size, vertical	26.3 cm
Viewable size diagonal	49.5 cm
Digital horizontal frequency	30 - 83 kHz
Display diagonal (metric)	49.53 cm
Surface hardness	3H
3D	No
Pixel frequency	140 MHz

Performance

Specification	Value
NVIDIA G-SYNC	No

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Front bezel colour	Black
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI ports quantity	0
DisplayPorts quantity	0
HDCP	No
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	No
Tilt adjustment	Yes
Tilt angle range	-3 - 10°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Number of OSD languages	16
Plug and Play	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	13.4 kWh
Power consumption (typical)	14.54 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G
External power adapter	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 3658 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	464.6 mm
Depth (with stand)	176 mm
Height (with stand)	346.3 mm
Weight (with stand)	2.27 kg
Width (without stand)	464.6 mm
Depth (without stand)	48.9 mm
Height (without stand)	280.2 mm

Packaging data

Specification	Value
Package width	519 mm
Package depth	107 mm
Package height	361 mm
Package weight	3.21 kg
Package type	Box
VGA cable length	1.2 m

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC
Power cable length	1.2 m

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
Doesn't contain	Mercury

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Textured
Bezel thickness type	Normal
Compliance certificates	CE
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	50000 h
Light effects	No
Certification	WEEE,RoHs compliant,CB,TUV-GS-Mark,EAC,FCC,Microsoft WHQL
Warranty period	3 year(s)

Recycling data

Specification	Value
Packaging recyclability rate	100%

Technical details

Specification	Value
Native refresh rate	60 Hz

Energy efficiency

ENERGY STAR certified

Displays · model 195LM00003 · certified Mar 10, 2020 · United States, Japan, Canada, Taiwan

Measurement	Value
On-mode power	10.16 W
Sleep-mode power	0.27 W
Off-mode power	0.22 W
