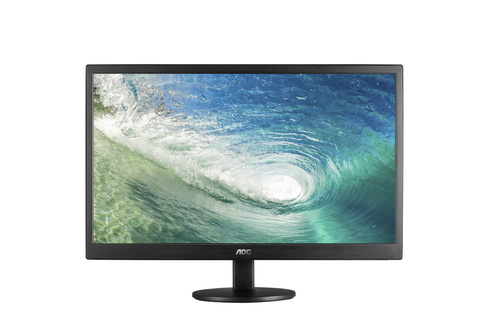

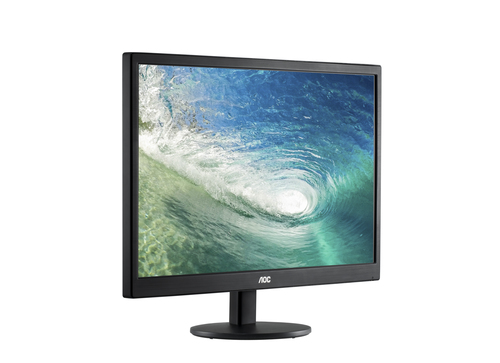

70 Series E2070SWHN computer monitor
50.8 cm (20") 1600 x 900 pixels HD+ LCD Black
Model E2070SWHN
86 specifications Checked today
- Display50.8 cm (20")
- Resolution1600 x 900 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningHome
- VESA mountingYes
Overview
- Display
- 50.8 cm (20")
- Resolution
- 1600 x 900 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Home
- VESA mounting
- Yes
- Brand
- AOC
- Category
- Monitor
- Model
- E2070SWHN
- Part number
- E2070SWHN
- Also known as
- AOC 70 Series E2070SWHN computer monitor 50.8 cm (20") 1600 x 900 pixels HD+ LCD Black
Specifications
86 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 50.8 cm (20") |
| Display resolution | 1600 x 900 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | HD+ |
| Panel type | TN |
| Backlight type | W-LED |
| Display brightness (typical) | 200 cd/m² |
| Response time | 5 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1600 x 900 |
| Aspect ratio | 16:9 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 65° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.27 x 0.27 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 43.4 cm |
| Viewable size, vertical | 26.3 cm |
| Colour depth | 8 bit |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | Black |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Audio input | No |
| Headphone out | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -3 - 10° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| Number of OSD languages | 16 |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 93% |
| Operating altitude | 0 - 3658 m |
| Non-operating altitude | 3658 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 464.6 mm |
| Depth (with stand) | 156 mm |
| Height (with stand) | 346.3 mm |
| Weight (with stand) | 2.3 kg |
| Width (without stand) | 464.6 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 519 mm |
| Package depth | 107 mm |
| Package height | 361 mm |
| Package weight | 3.2 kg |
| VGA cable length | 1.8 m |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, VGA |
| Power cable length | 1.2 m |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Bezel thickness type | Normal |
| Compliance certificates | RoHS |
| Heavy metals free | Hg (mercury), Pb (lead) |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
Energy efficiency
ENERGY STAR certified
Displays · model 195LM00003 · certified Mar 10, 2020 · United States, Japan, Canada, Taiwan
| Measurement | Value |
|---|---|
| On-mode power | 10.16 W |
| Sleep-mode power | 0.27 W |
| Off-mode power | 0.22 W |
