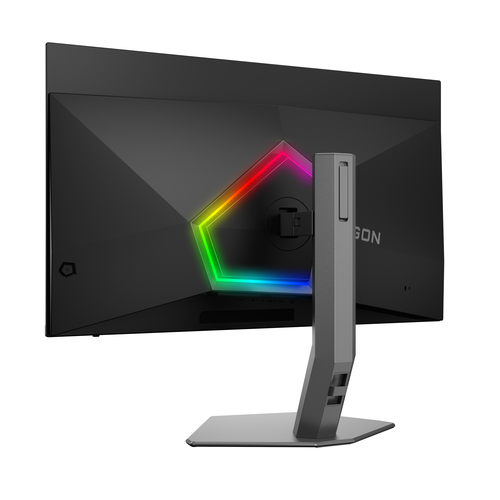

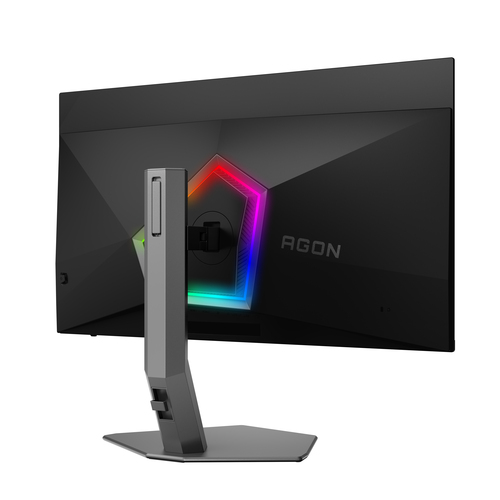

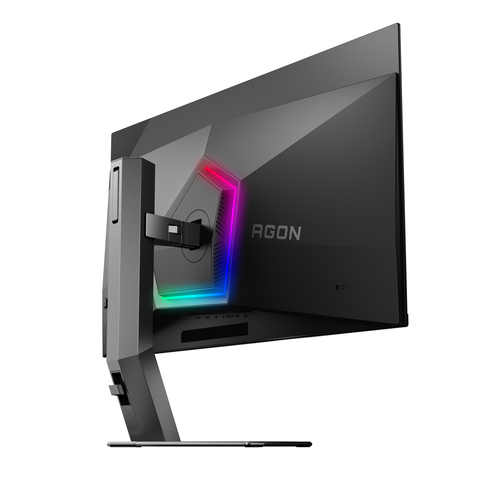

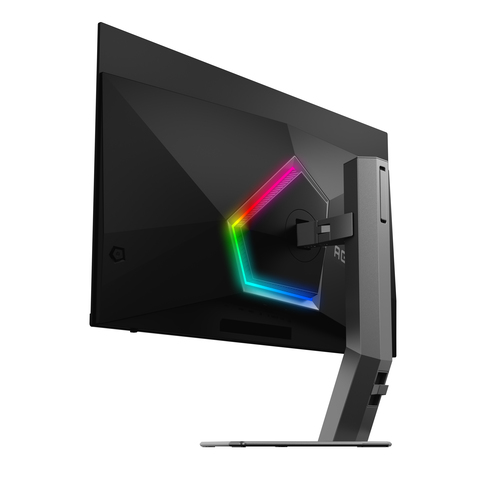

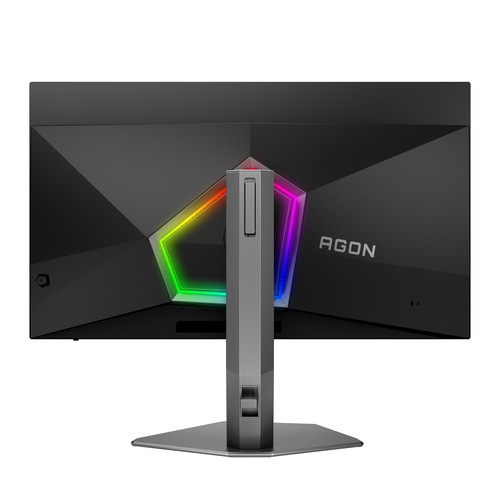

AGON PRO AG326UD/75 computer monitor

80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD QD-OLED Black

Model AG326UD/75

119 specifications Checked today

Display80 cm (31.5")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack
NVIDIA G-SYNCYes
Market positioningGaming

See all specifications

Overview

Display: 80 cm (31.5")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black
NVIDIA G-SYNC: Yes
Market positioning: Gaming

Brand: AOC
Category: Monitor
Model: AG326UD/75
Part number: AG326UD/75
Also known as: AOC AGON PRO AG326UD/75 computer monitor 80 cm (31.5") 3840 x 2160 pixels 4K Ultra HD QD-OLED Black

Specifications

119 specifications in 13 groups

Display

Specification	Value
Display diagonal	80 cm (31.5")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	QD-OLED
Touchscreen	No
HD type	4K Ultra HD
Panel type	OLED
Display brightness (typical)	1000 cd/m²
Response time	0.03 ms
Response time measurement type	GTG (Gray to Gray)
Anti-glare screen	Yes
Screen shape	Flat
Contrast ratio (typical)	150000:1
Contrast ratio (dynamic)	80000000:1
Maximum refresh rate	165 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.073 billion colours
Pixel pitch	0.1814 x 0.1814 mm
Pixel density	139.87 ppi
Viewable size, horizontal	69.9 cm
Viewable size, vertical	39.5 cm
Digital horizontal frequency	30 - 370 kHz
Digital vertical frequency	48 - 165 Hz
Display diagonal (metric)	80 cm
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	DisplayHDR 400 True Black
DDC/CI	Yes
Surface hardness	2H
Colour gamut standard	Adobe RGB, DCI-P3, sRGB
sRGB coverage (typical)	138%
Adobe RGB coverage	97.5%
DCI-P3 coverage	99%

Performance

Specification	Value
NVIDIA G-SYNC	Yes
AMD FreeSync	No
NVIDIA G-SYNC type	G-SYNC Compatible
AMD FreeSync refresh rate range	48 - 165 Hz
VESA Adaptive Sync support	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	16 W
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Frameless design	Yes
Front bezel colour	Black
Detachable stand	Yes

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
Number of downstream ports	3
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	3
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.1
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone out	Yes
Headphone connectivity	3.5 mm

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Swivelling	Yes
Swivel angle range	-15 - 15°
Tilt adjustment	Yes
Tilt angle range	-5 - 25°
Picture-in-Picture	Yes
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Number of OSD languages	19

Power

Specification	Value
Energy efficiency class (SDR)	G
Power consumption (typical)	123 W
Power consumption (standby)	0.5 W
Power consumption (max)	182 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	2.5 A
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	717.3 mm
Depth (with stand)	316.8 mm
Height (with stand)	635.9 mm
Weight (with stand)	10.2 kg
Width (without stand)	717.3 mm
Depth (without stand)	106.5 mm
Height (without stand)	420.8 mm
Weight (without stand)	7.4 kg

Packaging data

Specification	Value
Package width	900 mm
Package depth	188 mm
Package height	507 mm
Package weight	13.4 kg

Packaging content

Specification	Value
Cables included	AC, HDMI, DisplayPort, USB
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m

Sustainability

Specification	Value
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
Brand specific technologies	Crosshair
Low input lag	Yes
FPS counter	Yes
Dial point	Yes
Shadow control	Yes
Bezel thickness type	Frameless
Compliance certificates	CE
Certification	WEEE,REACH compliant,RoHs compliant,CB,TUV-Bauart-Mark,ISO 9241-307,EAC,FCC
Warranty period	3 year(s)
