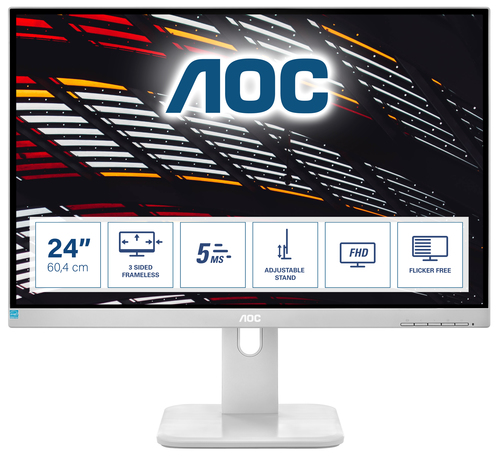

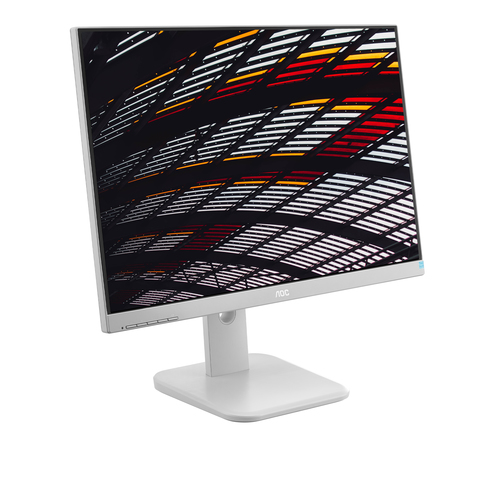

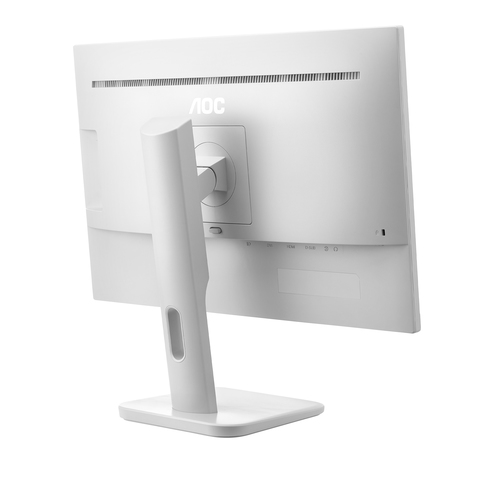

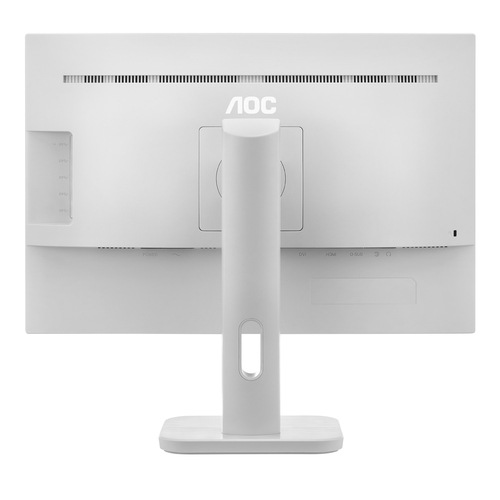

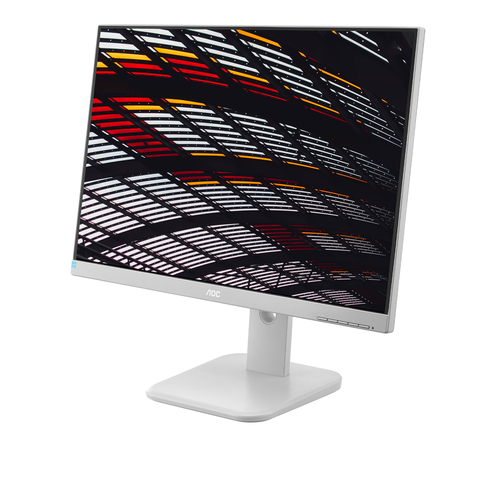

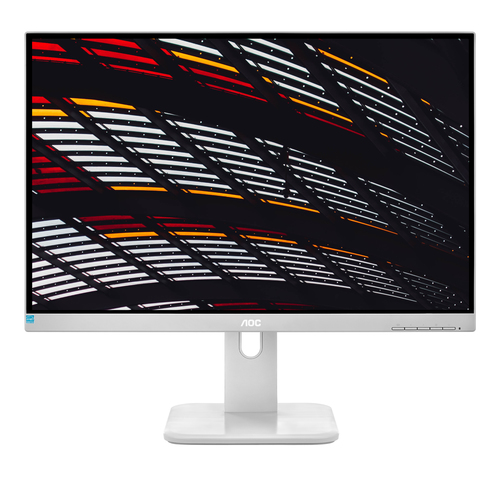

P1 24P1/GR computer monitor

60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Grey

Model 24P1/GREAN 4038986146524

132 specifications Checked today

Display60.5 cm (23.8")
Resolution1920 x 1080 pixels
Energy classE
ColourGrey
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 60.5 cm (23.8")
Resolution: 1920 x 1080 pixels
Energy class: E
Colour: Grey
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: AOC
Category: Monitor
Model: 24P1/GR
Part number: 24P1/GR
EAN / UPC: 4038986146524, 4038986146647
Also known as: AOC P1 24P1/GR computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Grey

Specifications

132 specifications in 16 groups

Display

Specification	Value
Display diagonal	60.5 cm (23.8")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Response time measurement type	GTG (Gray to Gray)
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	50000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.2745 x 0.2745 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	52.7 cm
Viewable size, vertical	29.6 cm
Digital horizontal frequency	30 - 83 kHz
Display diagonal (metric)	60.452 cm
Surface hardness	3H
Colour depth	6 bit
Colour gamut standard	Adobe RGB, sRGB
sRGB coverage (typical)	106%
Adobe RGB coverage	78%
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Fast charging	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Market positioning	Business
Product colour	Grey
Frameless design	Yes
Front bezel colour	Grey
Detachable stand	Yes
Feet colour	Grey

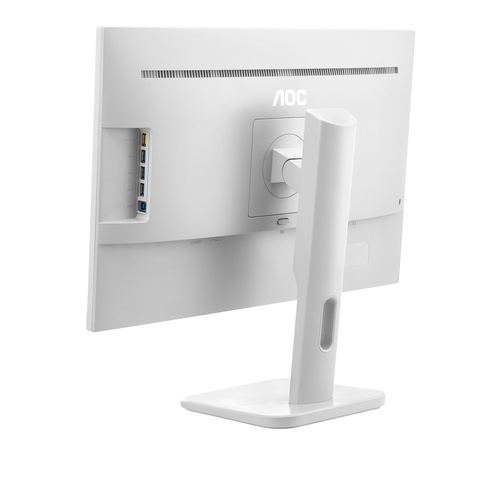

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Audio input	Yes
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
Microphone in	Yes

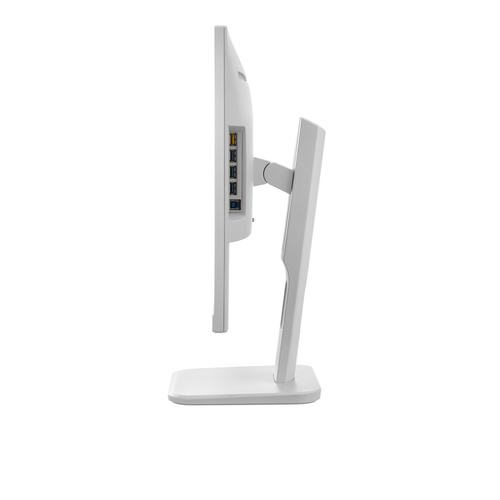

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	1 - 90°
Swivelling	Yes
Swivel angle range	-175 - 175°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Plug and Play	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	13.7 W
Power consumption (standby)	0.3 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	539.1 mm
Depth (with stand)	202.5 mm
Height (with stand)	518.9 mm
Weight (with stand)	4.6 kg

Packaging data

Specification	Value
Package width	752 mm
Package depth	59 mm
Package height	408 mm
Package weight	6.55 kg
Package type	Box
DVI cable length	1.8 m
USB cable length	1.8 m

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, HDMI, DisplayPort
Audio cable length	1.5 m
DisplayPort cable length	1.8 m
HDMI cable length	1.8 m
Power cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, TCO
Doesn't contain	Mercury, PVC/BFR

Other features

Specification	Value
Compatibility	VESA-P1
On/off switch	Yes
TV tuner integrated	No
Exterior finish type	Textured
Bezel thickness type	Frameless
Compliance certificates	CE
Heavy metals free	Hg (mercury)
Mean time between failures (MTBF)	50000 h
Anti-Blue-Light technology	Yes
Light effects	No
Certification	WEEE,REACH compliant,RoHs compliant,CB,TUV-GS-Mark,ISO 9241-307,EAC,FCC,Microsoft WHQL
Warranty period	3 year(s)

Recycling data

Specification	Value
Packaging recyclability rate	100%
Product post-consumer recycled plastic	85%

Technical details

Specification	Value
Native refresh rate	60 Hz

Logistics data

Specification	Value
Harmonized System (HS) code	85285210

Energy efficiency

ENERGY STAR certified

Displays · model 24E1 · certified Jan 7, 2020 · United States, Japan, Canada, Taiwan

Measurement	Value
On-mode power	13.68 W
Sleep-mode power	0.22 W
Off-mode power	0.14 W
