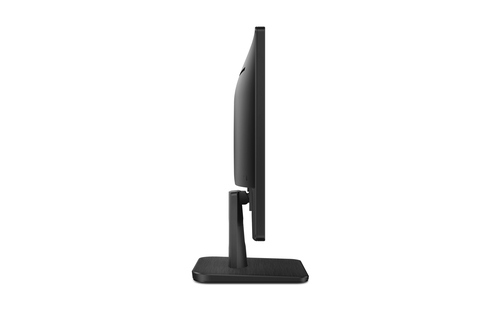

E1 24E1H computer monitor
60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Black
Model 24E1H
86 specifications Checked today
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningBusiness
- VESA mountingYes
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Business
- VESA mounting
- Yes
- Brand
- AOC
- Category
- Monitor
- Model
- 24E1H
- Part number
- 24E1H
- Also known as
- AOC E1 24E1H computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LCD Black
Specifications
86 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TN |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 2 ms |
| Display surface | Matt |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.24825 x 0.24825 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| sRGB coverage (typical) | 99% |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Detachable stand | Yes |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Audio input | No |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -3.5 - 21.5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| Number of OSD languages | 16 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 23 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 50 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 93% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 5000 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 539.1 mm |
| Depth (with stand) | 199.4 mm |
| Height (with stand) | 404.9 mm |
| Weight (with stand) | 2.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 609 mm |
| Package depth | 137 mm |
| Package height | 421 mm |
| Package weight | 4.32 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Power cable length | 1.8 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Heavy metals free | Hg (mercury), Pb (lead) |
| Mean time between failures (MTBF) | 50000 h |
