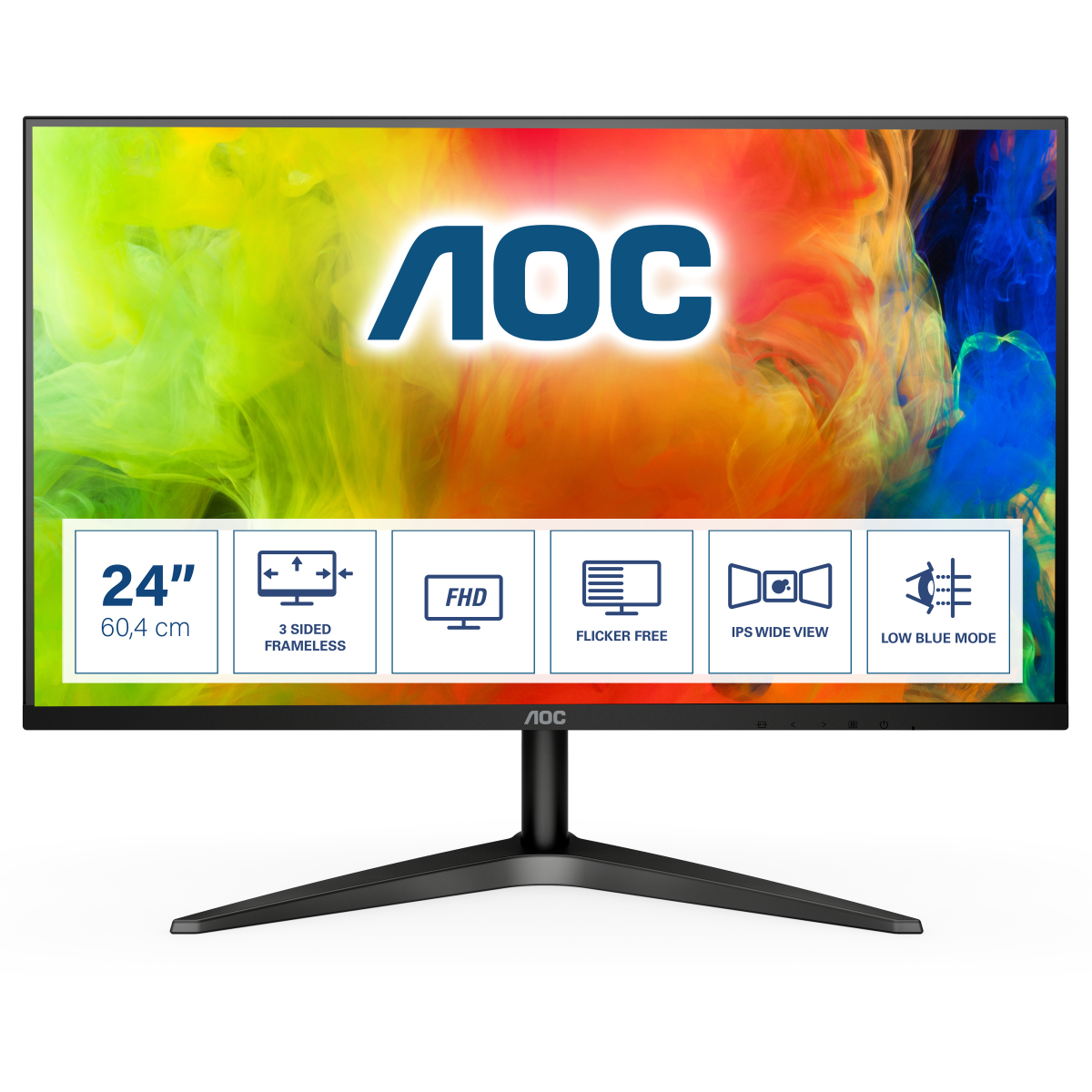

B1 24B1XH computer monitor
61 cm (24") 1920 x 1080 pixels Full HD LED Black
Model 24B1XHEAN 685417718184
90 specifications Checked today
- Display61 cm (24")
- Resolution1920 x 1080 pixels
- Energy classA
- ColourBlack
- NVIDIA G-SYNCNo
- Market positioningHome
Overview
- Display
- 61 cm (24")
- Resolution
- 1920 x 1080 pixels
- Energy class
- A
- Colour
- Black
- NVIDIA G-SYNC
- No
- Market positioning
- Home
- Brand
- AOC
- Category
- Monitor
- Model
- 24B1XH
- Part numbers
- 24B1XH, 24B1XH/00
- EAN / UPC
- 685417718184, 4038986146371
- Also known as
- AOC B1 24B1XH computer monitor 61 cm (24") 1920 x 1080 pixels Full HD LED Black
Specifications
90 specifications in 14 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | IPS |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 7 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2745 x 0.2745 mm |
| Viewable size, horizontal | 52.7 cm |
| Viewable size, vertical | 29.6 cm |
| sRGB coverage (typical) | 100% |
| Adobe RGB coverage | 75% |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | Black |
| Frameless design | Yes |
| Feet colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Ergonomics
| Specification | Value |
|---|---|
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 21.5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| Number of OSD languages | 16 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 25 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A+++ to D |
| Annual energy consumption | 37 kWh |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 93% |
| Operating altitude | 0 - 5000 m |
| Non-operating altitude | 5000 - 12192 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 540.1 mm |
| Depth (with stand) | 186.8 mm |
| Height (with stand) | 419.8 mm |
| Weight (with stand) | 2.48 kg |
| Width (without stand) | 320.6 mm |
| Depth (without stand) | 34 mm |
| Height (without stand) | 540.1 mm |
| Weight (without stand) | 2.18 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 614 mm |
| Package depth | 131 mm |
| Package height | 492 mm |
| Package weight | 4.1 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, HDMI |
| HDMI cable length | 1.5 m |
| Power cable length | 1.5 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Bezel thickness type | Frameless |
| Compliance certificates | RoHS |
| Energy efficiency class (legacy scale) | A |
| Heavy metals free | Hg (mercury) |
| Mean time between failures (MTBF) | 50000 h |
| Certification | GOST |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
Energy efficiency
ENERGY STAR certified
Displays · model 24B1 · certified Mar 10, 2020 · United States, Taiwan, Japan, Canada
| Measurement | Value |
|---|---|
| On-mode power | 12.9 W |
| Sleep-mode power | 0.18 W |
| Off-mode power | 0.12 W |
