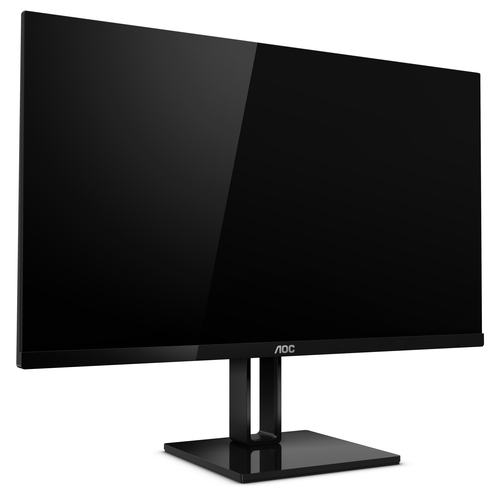

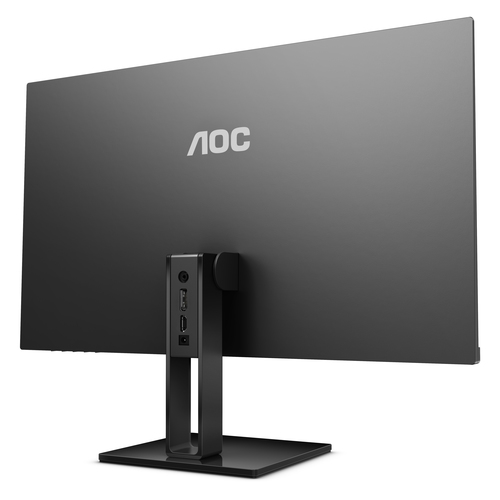

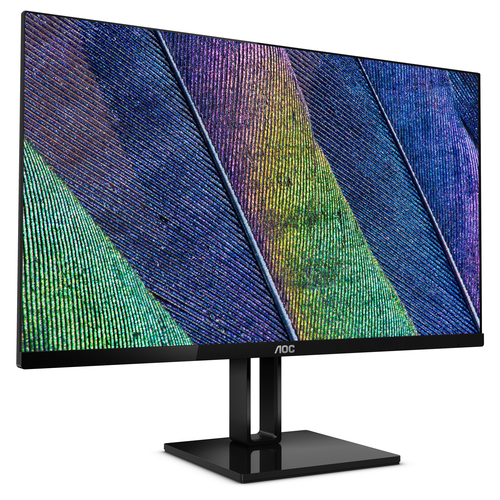

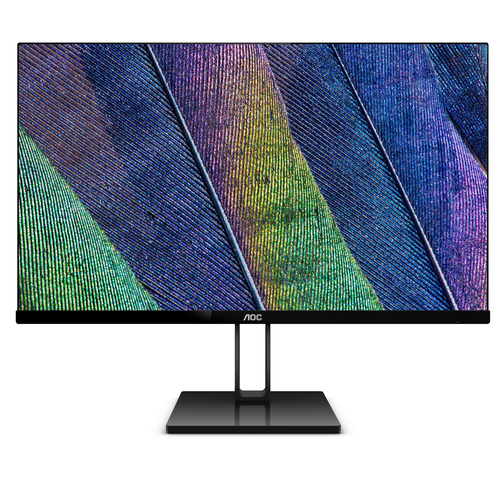

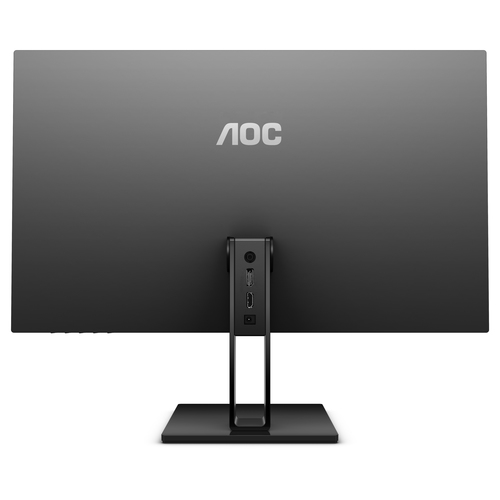

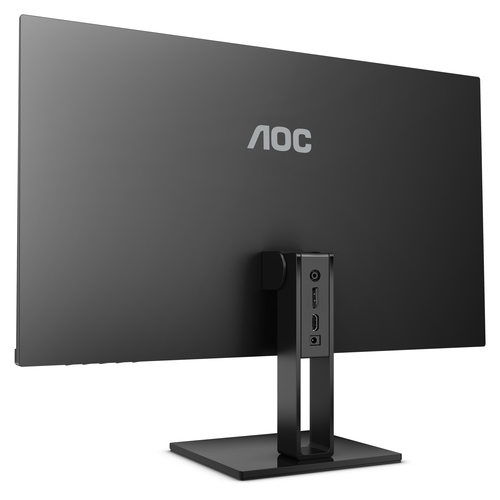

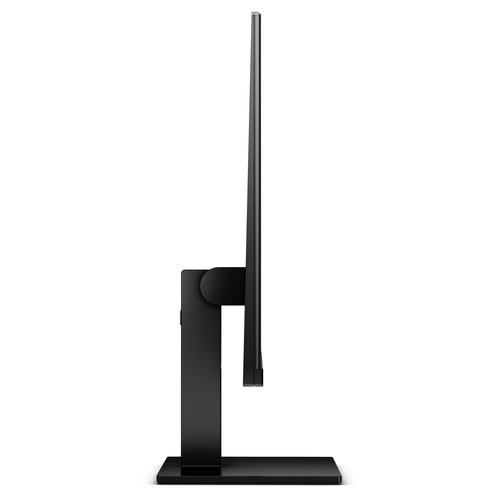

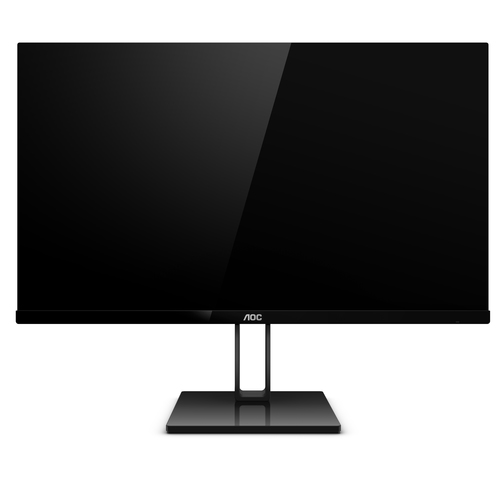

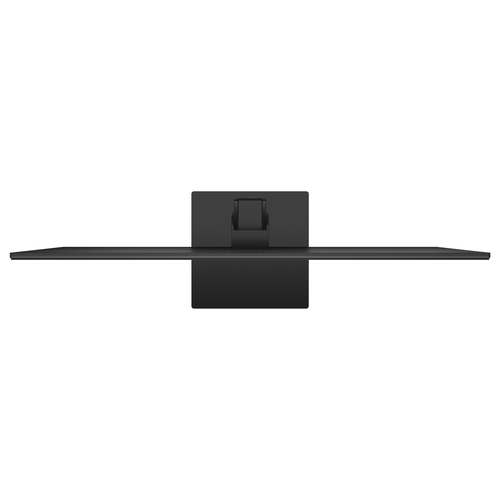

22V2H computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

Model 22V2HEAN 685417717682

71 specifications Checked today

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
ColourBlack
Low Blue Light technologyYes
Built-in cameraNo
Market positioningHome

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Colour: Black
Low Blue Light technology: Yes
Built-in camera: No
Market positioning: Home

Brand: AOC
Category: Monitor
Model: 22V2H
Part number: 22V2H
EAN / UPC: 685417717682
Also known as: AOC 22V2H computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

Specifications

71 specifications in 12 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	IPS
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.24795 x 0.24795 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	48 - 76 Hz
Viewable size, horizontal	47.6 cm
Viewable size, vertical	26.8 cm
Colour depth	6 bit
Separate H/V sync	Yes

Performance

Specification	Value
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in camera	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Frameless design	Yes
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Black

Ports & interfaces

Specification	Value
VGA (D-Sub) ports quantity	1
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	0
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm

Ergonomics

Specification	Value
Tilt adjustment	Yes
Tilt angle range	3.5 - 21.5°
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, English, Estonian, Finnish, French, Italian, Japanese, Korean, Norwegian, Polish, Russian, SER
Number of OSD languages	16
Plug and Play	Yes

Power

Specification	Value
Power consumption (typical)	17 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
External power adapter	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 55 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	486.7 mm
Depth (with stand)	180 mm
Height (with stand)	395.3 mm
Weight (with stand)	2.74 kg

Packaging data

Specification	Value
Package width	561 mm
Package depth	136 mm
Package height	470 mm
Package weight	4.24 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	DC

Other features

Specification	Value
On/off switch	Yes
Compliance certificates	RoHS
Mean time between failures (MTBF)	50000 h
Certification	ISO
