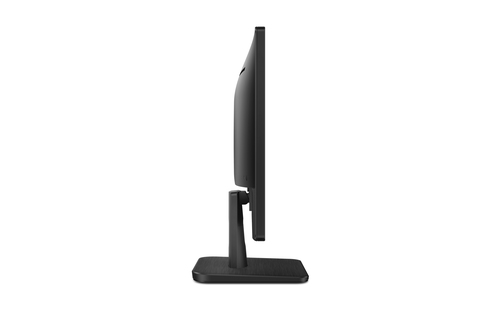

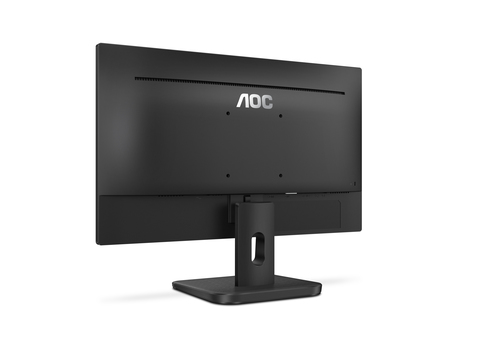

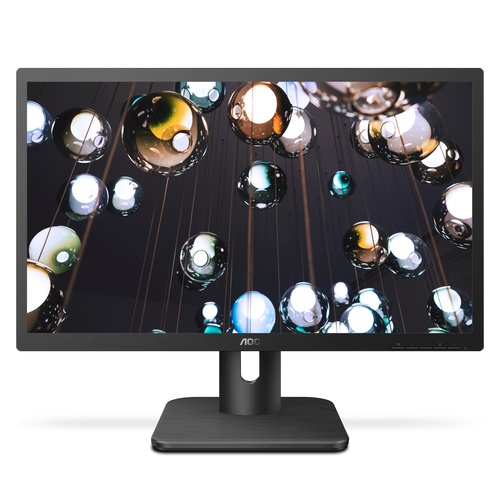

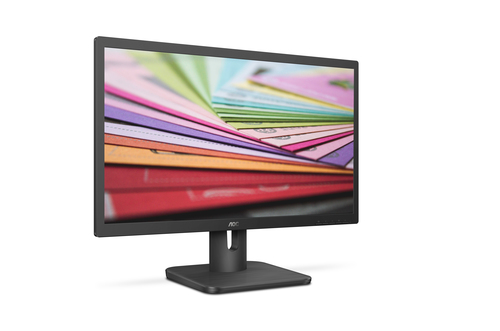

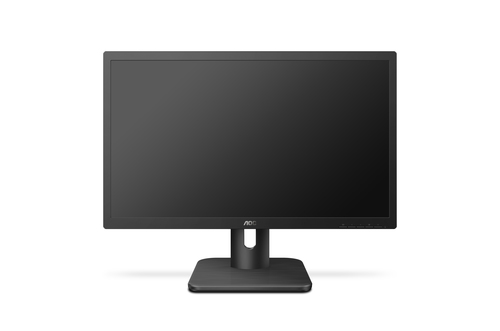

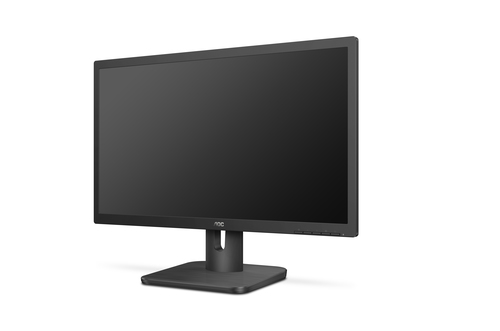

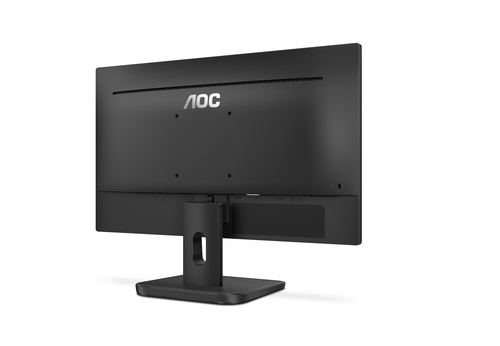

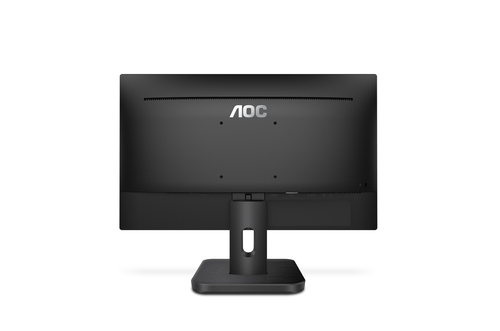

AOC E1 22E1H computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

Model 22E1HEAN 685417719488

97 specifications Checked 3 days ago

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
Energy classA
ColourBlack
NVIDIA G-SYNCNo
Market positioningBusiness

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Energy class: A
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Business

Brand: AOC
Category: Monitor
Model: 22E1H
Part number: 22E1H
EAN / UPC: 685417719488
Also known as: AOC E1 22E1H computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Black

Specifications

97 specifications in 14 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	TN
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	2 ms
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1920 x 1080 (HD 1080)
Supported video modes	1080p
Aspect ratio	16:9
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.24825 x 0.24825 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
Colour depth	8 bit
Colour gamut standard	sRGB
sRGB coverage (typical)	99%
Adobe RGB coverage	73%
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Business
Product colour	Black
Detachable stand	Yes
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	0
Audio input	No
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	No
Tilt adjustment	Yes
Tilt angle range	-3.5 - 21.5°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish
Number of OSD languages	16

Power

Specification	Value
Power consumption (typical)	18 W
Power consumption (standby)	0.5 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.5 A
Annual energy consumption	44 kWh
External power adapter	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 50 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	5 - 93%
Operating altitude	0 - 5000 m
Non-operating altitude	5000 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	504 mm
Depth (with stand)	199.4 mm
Height (with stand)	393 mm
Weight (with stand)	2.64 kg
Width (without stand)	504.4 mm

Packaging data

Specification	Value
Package width	564 mm
Package depth	137 mm
Package height	401 mm
Package weight	3.8 kg
Package type	Box
VGA cable length	1.8 m

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, VGA
Power cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Bezel thickness type	Normal
Compliance certificates	RoHS
Energy efficiency class (legacy scale)	A
Heavy metals free	Hg (mercury), Pb (lead)
Mean time between failures (MTBF)	50000 h
Certification	TCO 7

Recycling data

Specification	Value
Packaging recyclability rate	100%

Energy efficiency

ENERGY STAR certified

Displays · model 22E1 · certified Jan 7, 2020 · United States, Japan, Canada, Taiwan

Measurement	Value
On-mode power	13.12 W
Sleep-mode power	0.29 W
Off-mode power	0.13 W
