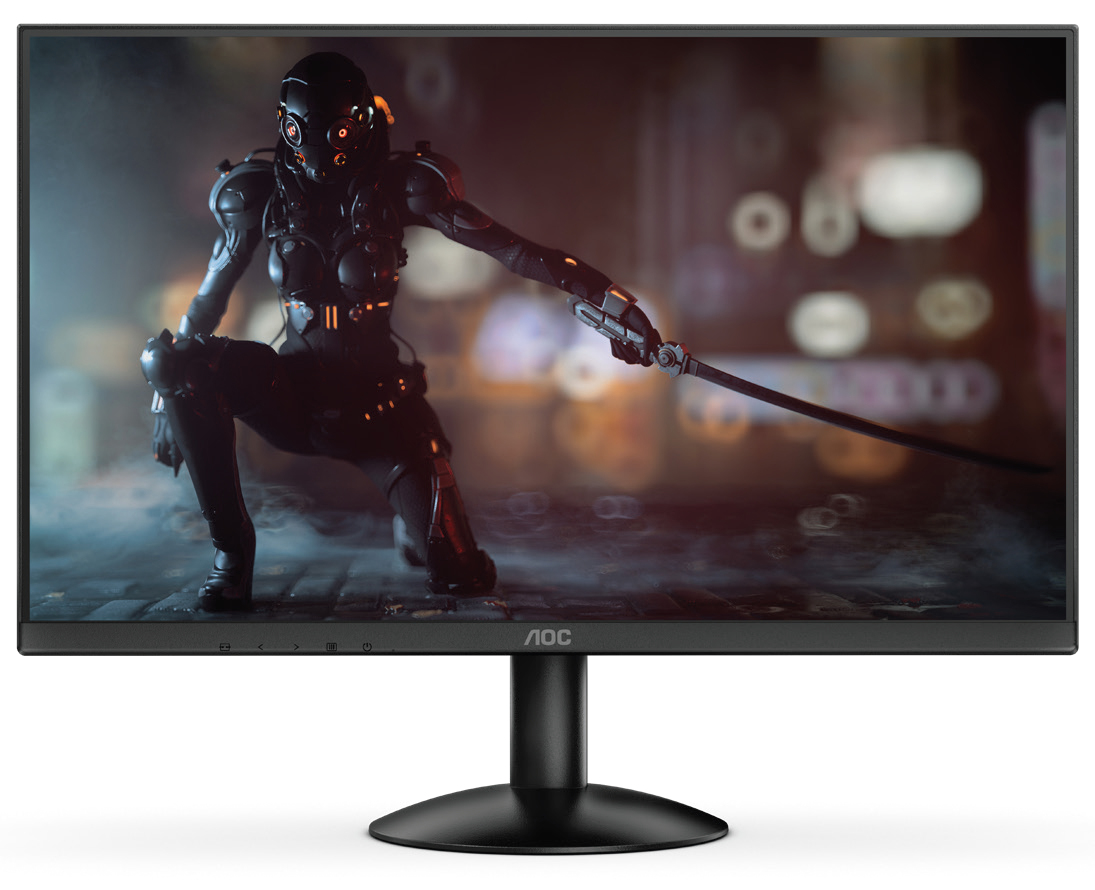

B3 22B30HM23 computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black
Model 22B30HM23Part no. 22B30HM23/57EAN 7898620272715
75 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classNot available
- ColourBlack
- VESA Adaptive Sync supportYes
- Built-in speaker(s)No
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- Not available
- Colour
- Black
- VESA Adaptive Sync support
- Yes
- Built-in speaker(s)
- No
- Brand
- AOC
- Category
- Monitor
- Model
- 22B30HM23
- Part number
- 22B30HM23/57
- EAN / UPC
- 7898620272715
- Also known as
- AOC B3 22B30HM23 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black
Specifications
75 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | VA |
| LED backlight | Yes |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time (MPRT) | 1 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 120 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.2493 x 0.241 mm |
| Pixel density | 102.6 ppi |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Digital horizontal frequency | 30 - 115 kHz |
| Digital vertical frequency | 48 - 120 Hz |
| Display diagonal (metric) | 54.6 cm |
| High Dynamic Range (HDR) supported | Yes |
| DDC/CI | Yes |
| sRGB coverage (typical) | 103.4% |
Performance
| Specification | Value |
|---|---|
| VESA Adaptive Sync support | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black |
| Frameless design | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | Not available |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (max) | 20 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 493.8 mm |
| Depth (with stand) | 169.9 mm |
| Height (with stand) | 379.1 mm |
| Weight (with stand) | 2.02 kg |
| Width (without stand) | 493.8 mm |
| Depth (without stand) | 35.8 mm |
| Height (without stand) | 284.8 mm |
| Weight (without stand) | 1.79 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 93 mm |
| Package height | 350 mm |
| Package weight | 3.49 kg |
Other features
| Specification | Value |
|---|---|
| Country of origin | Brazil |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, INMETRO |
| Certification | Windows |
| Warranty period | 1 year(s) |
