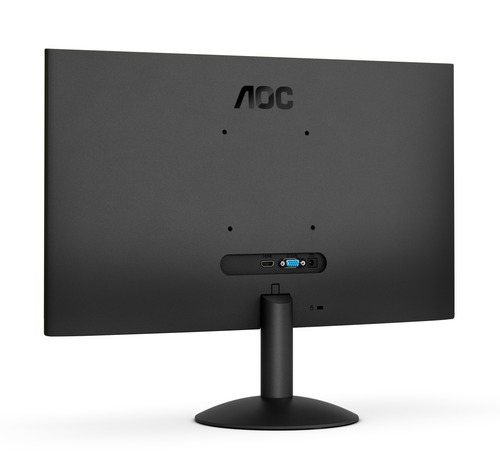

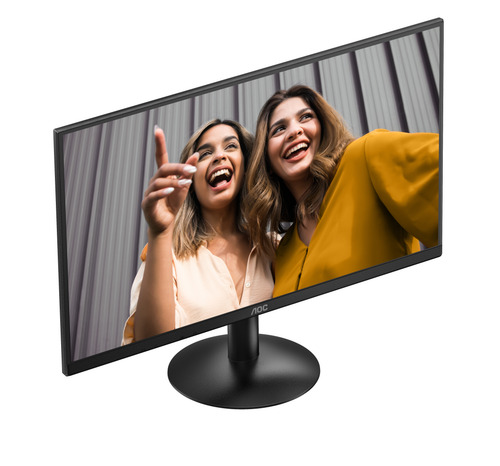

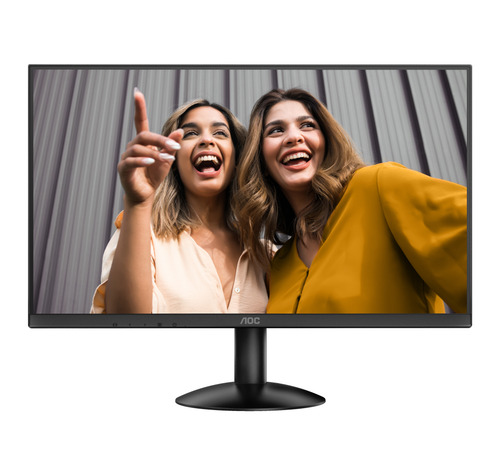

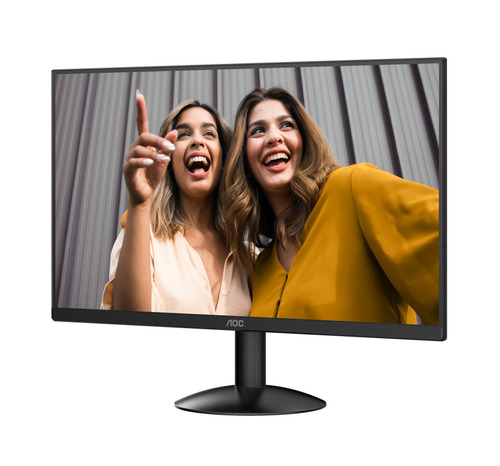

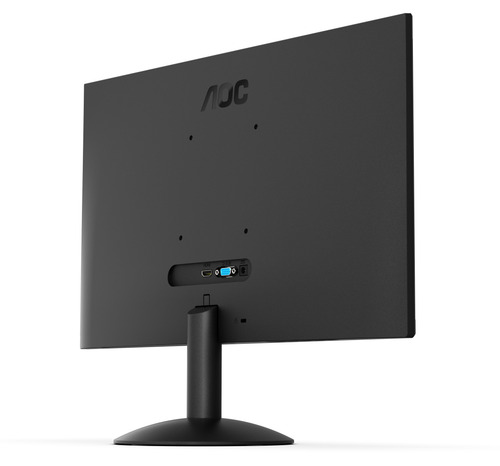

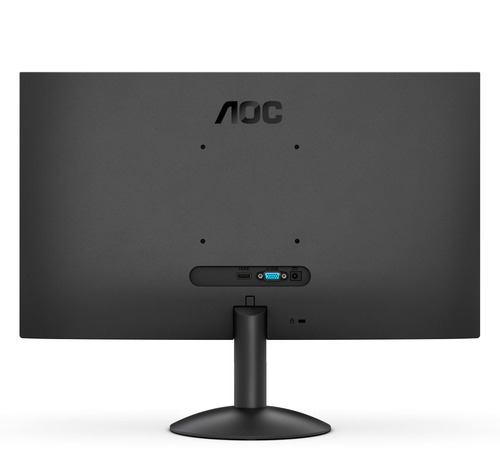

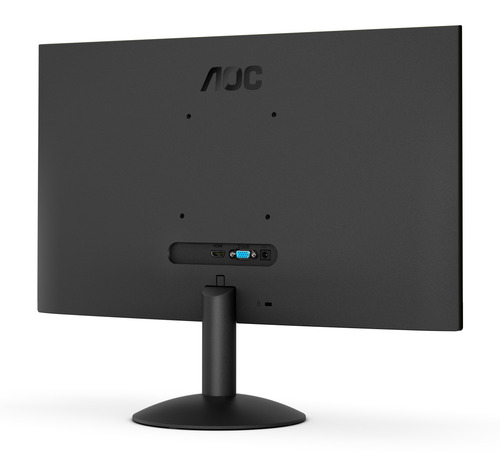

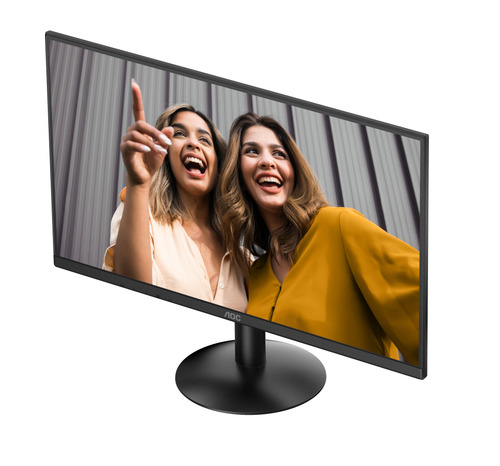

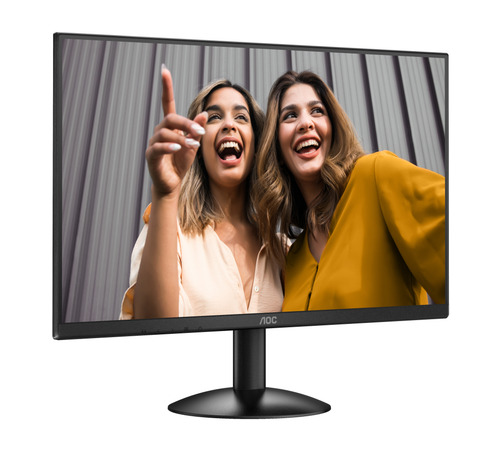

B3 22B30HM2 computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black
Model 22B30HM2EAN 6973985231629
104 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classNot available
- ColourBlack
- VESA Adaptive Sync supportYes
- Built-in speaker(s)No
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- Not available
- Colour
- Black
- VESA Adaptive Sync support
- Yes
- Built-in speaker(s)
- No
- Brand
- AOC
- Category
- Monitor
- Model
- 22B30HM2
- Part number
- 22B30HM2
- EAN / UPC
- 6973985231629, 7898620272296
- Also known as
- AOC B3 22B30HM2 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black
Specifications
104 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | VA |
| LED backlight | Yes |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 4 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Response time (MPRT) | 1 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 100 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.24825 x 0.24825 mm |
| Pixel density | 93 ppi |
| Horizontal scan range | 30 - 85 kHz |
| Vertical scan range | 48 - 75 Hz |
| Digital horizontal frequency | 30 - 115 kHz |
| Digital vertical frequency | 48 - 120 Hz |
| Display diagonal (metric) | 60.4 cm |
| High Dynamic Range (HDR) supported | Yes |
| DDC/CI | Yes |
| Surface hardness | 6H |
| Colour gamut standard | Adobe RGB, DCI-P3, NTSC, sRGB |
| sRGB coverage (typical) | 122% |
| NTSC coverage (typical) | 106% |
| Adobe RGB coverage | 104% |
| DCI-P3 coverage | 97% |
Performance
| Specification | Value |
|---|---|
| VESA Adaptive Sync support | Yes |
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Gaming |
| Product colour | Black |
| Frameless design | Yes |
| Front bezel colour | Black |
| Detachable stand | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Audio input | Yes |
| Headphone out | Yes |
| Headphone connectivity | 3.5 mm |
| Built-in KVM switch | No |
| HDCP | Yes |
| HDCP version | 1.4 |
| Mobile High-Definition Link (MHL) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Pivot | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | Not available |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (max) | 20 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 493.8 mm |
| Depth (with stand) | 169.9 mm |
| Height (with stand) | 379.1 mm |
| Weight (with stand) | 2.02 kg |
| Width (without stand) | 493.8 mm |
| Depth (without stand) | 35.8 mm |
| Height (without stand) | 284.8 mm |
| Weight (without stand) | 1.79 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 93 mm |
| Package height | 350 mm |
| Package weight | 3.49 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| HDMI cable length | 1.5 m |
Other features
| Specification | Value |
|---|---|
| Country of origin | Brazil |
| Low input lag | No |
| FPS counter | No |
| Shadow control | No |
| Motion blur reduction | No |
| Bezel thickness type | Frameless |
| Compliance certificates | CE |
| Mean time between failures (MTBF) | 50000 h |
| Certification | CB,TUV-GS-Mark,EAC |
| Warranty period | 3 year(s) |
