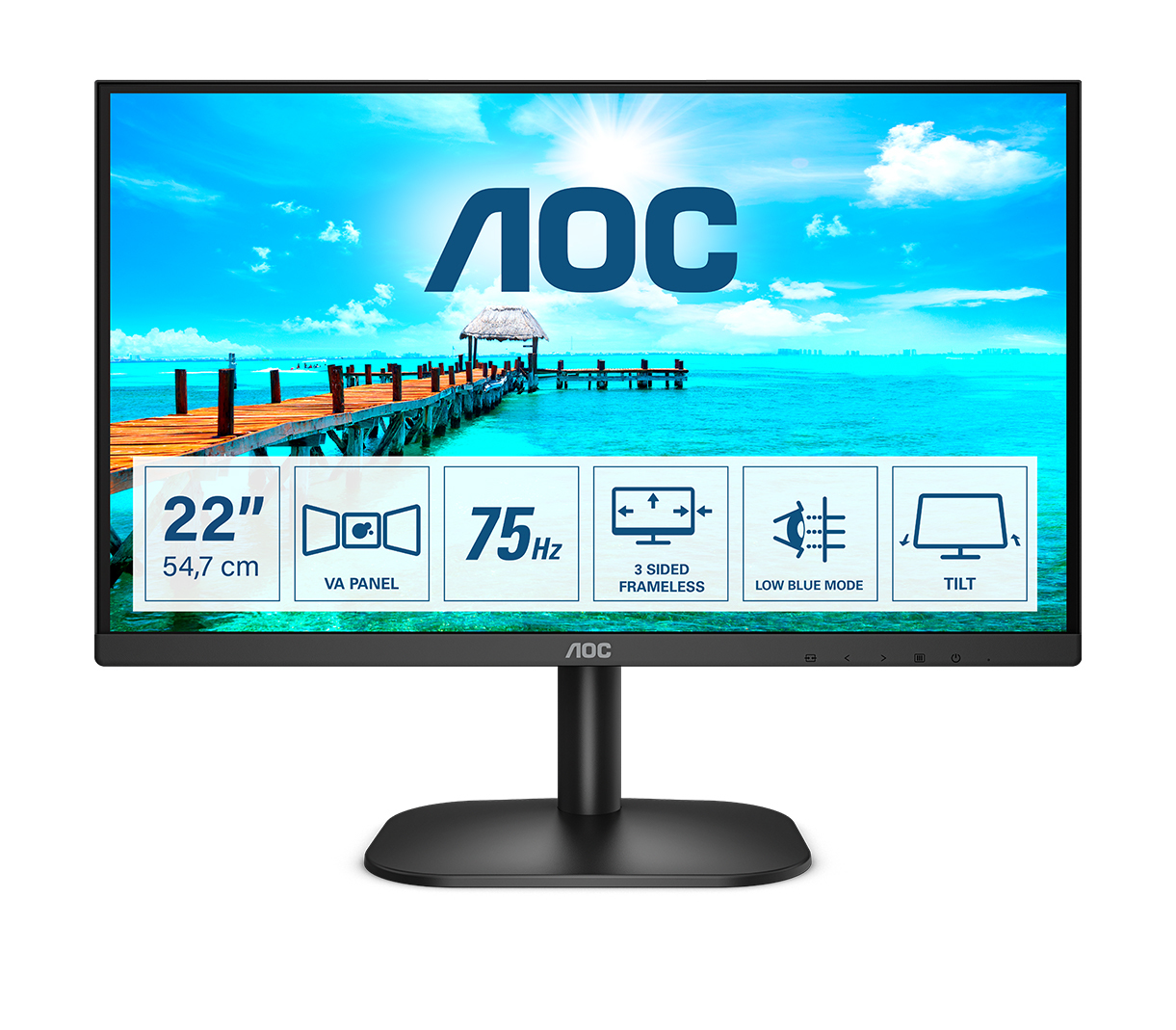

B2 22B2D computer monitor

54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black

Model 22B2DEAN 4038986128384

108 specifications Checked today

Display54.6 cm (21.5")
Resolution1920 x 1080 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Market positioningHome

See all specifications

Overview

Display: 54.6 cm (21.5")
Resolution: 1920 x 1080 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Home

Brand: AOC
Category: Monitor
Model: 22B2D
Part number: 22B2D
EAN / UPC: 4038986128384
Also known as: AOC B2 22B2D computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black

Specifications

108 specifications in 14 groups

Display

Specification	Value
Display diagonal	54.6 cm (21.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LED
Touchscreen	No
HD type	Full HD
Panel type	VA
LED backlight	Yes
Backlight type	W-LED
Display brightness (typical)	250 cd/m²
Response time	4 ms
Response time measurement type	GTG (Gray to Gray)
Display surface	Matt
Screen shape	Flat
Supported graphics resolutions	1280 x 720 (HD 720), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080)
Supported video modes	720p, 768p, 1080p
Aspect ratio	4:3, 16:9
Contrast ratio (typical)	3000:1
Contrast ratio (dynamic)	20000000:1
Maximum refresh rate	75 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.7 million colours
Pixel pitch	0.2482 x 0.2482 mm
Horizontal scan range	30 - 83 kHz
Vertical scan range	50 - 76 Hz
Viewable size, horizontal	47.7 cm
Viewable size, vertical	26.8 cm
Display diagonal (metric)	54.61 cm
Surface hardness	3H
Colour depth	8 bit
Colour gamut standard	Adobe RGB, NTSC, sRGB
sRGB coverage (typical)	98%
NTSC coverage (typical)	73%
Adobe RGB coverage	77%

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No
Fast charging	No
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No
Built-in microphone	No

Design

Specification	Value
Market positioning	Home
Product colour	Black
Frameless design	Yes
Front bezel colour	Black
Detachable stand	No
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	No
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	No
DisplayPorts quantity	0
Audio input	No
Headphone out	No
DC-in jack	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No
Pivot	No
Tilt adjustment	Yes
Tilt angle range	-5 - 21.5°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, Czech, Dutch, English, Finnish, French, German, Italian, Japanese, Korean, Croatian, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Ukrainian
Number of OSD languages	16
Plug and Play	Yes

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	Not available
Energy consumption (SDR) per 1000 hours	15.4 kWh
Power consumption (typical)	18 W
Power consumption (standby)	0.3 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power supply type	External
Energy efficiency scale	A to G

Weight & dimensions

Specification	Value
Width (with stand)	492.8 mm
Depth (with stand)	162.9 mm
Height (with stand)	388.1 mm
Weight (with stand)	2.1 kg
Width (without stand)	492.8 mm
Depth (without stand)	36.2 mm
Height (without stand)	292.7 mm

Packaging data

Specification	Value
Package width	550 mm
Package depth	120 mm
Package height	370 mm
Package weight	3.5 kg
Package type	Box
VGA cable length	1.8 m

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC
Power adapter included	Yes
Power cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Doesn't contain	Mercury

Other features

Specification	Value
Exterior finish type	Textured
Bezel thickness type	Frameless
Compliance certificates	CE
Heavy metals free	Hg (mercury)
Light effects	No
Certification	WEEE,REACH compliant,RoHs compliant,HF,CB,TUV-GS-Mark,ISO 9241-307,EAC,FCC,Microsoft WHQL
Warranty period	3 year(s)

Recycling data

Specification	Value
Packaging recyclability rate	100%

Technical details

Specification	Value
Native refresh rate	60 Hz
