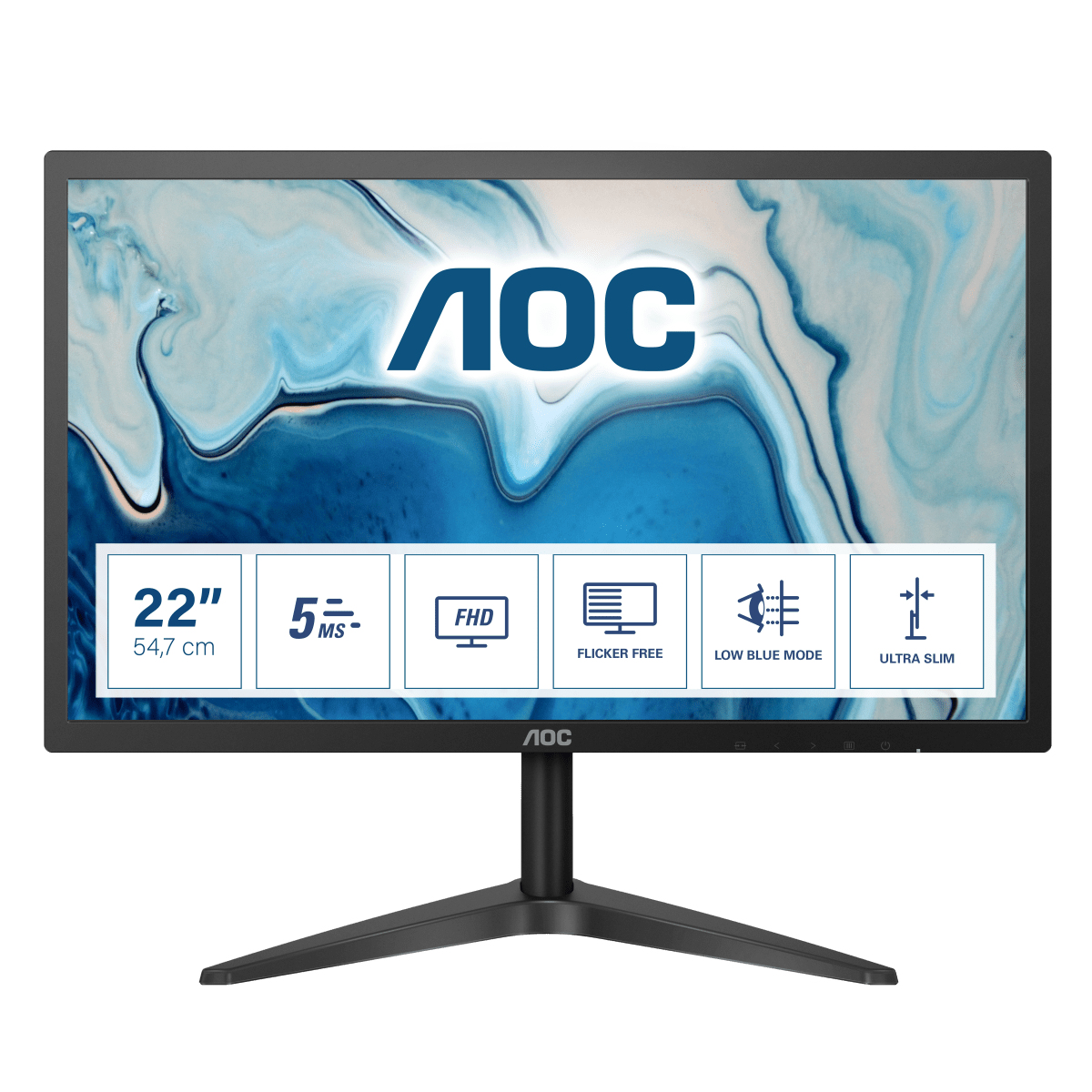

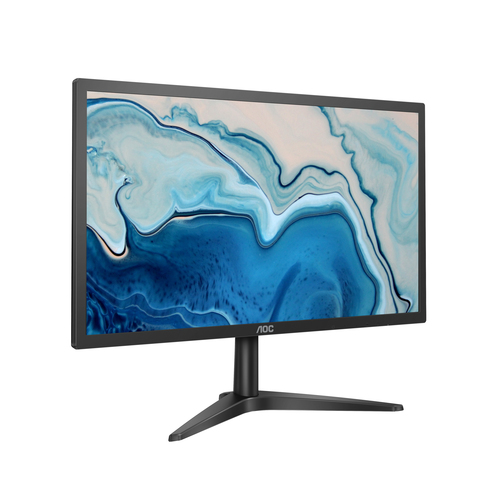

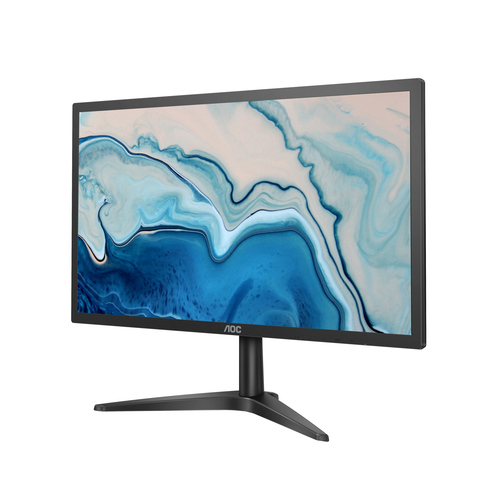

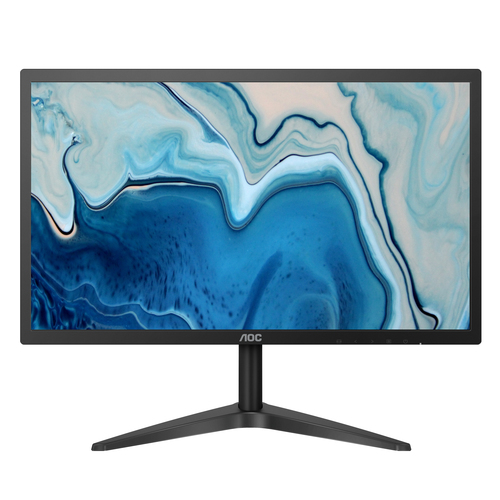

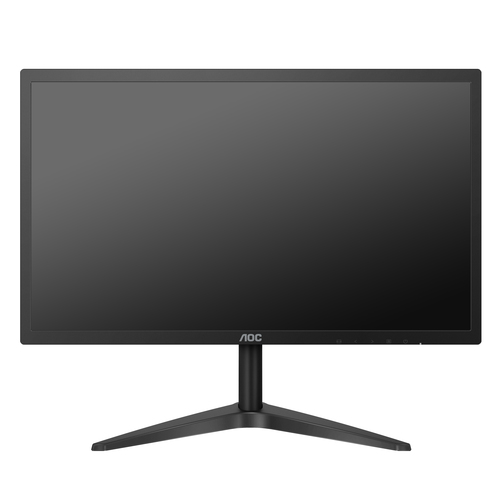

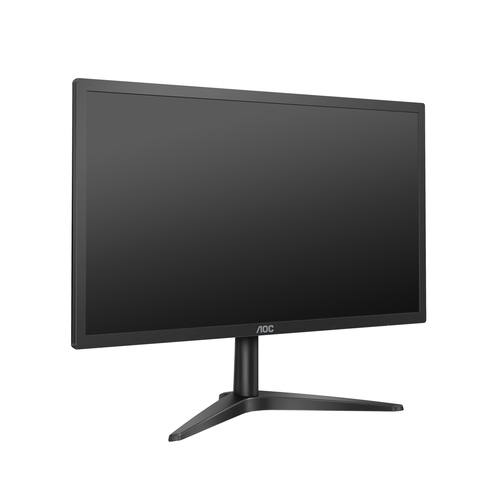

B1 22B1H computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black
Model 22B1HEAN 4038986126359
87 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classE
- ColourBlack
- Flicker-free technologyYes
- Built-in speaker(s)No
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Colour
- Black
- Flicker-free technology
- Yes
- Built-in speaker(s)
- No
- Brand
- AOC
- Category
- Monitor
- Model
- 22B1H
- Part number
- 22B1H
- EAN / UPC
- 4038986126359
- Also known as
- AOC B1 22B1H computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Black
Specifications
87 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TN |
| Backlight type | W-LED |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 600:1 |
| Contrast ratio (dynamic) | 20000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 90° |
| Viewing angle, vertical | 65° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.2482 x 0.2482 mm |
| Horizontal scan range | 30 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Viewable size, horizontal | 47.7 cm |
| Viewable size, vertical | 26.8 cm |
| sRGB coverage (typical) | 100% |
| Adobe RGB coverage | 75% |
| 3D | No |
Performance
| Specification | Value |
|---|---|
| Flicker-free technology | Yes |
| Low Blue Light technology | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Home |
| Product colour | Black |
| Feet colour | Black |

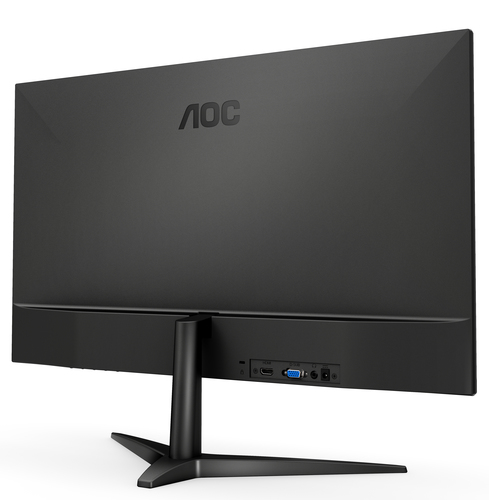

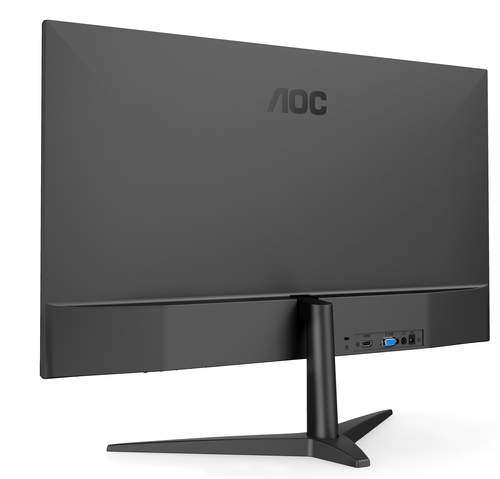

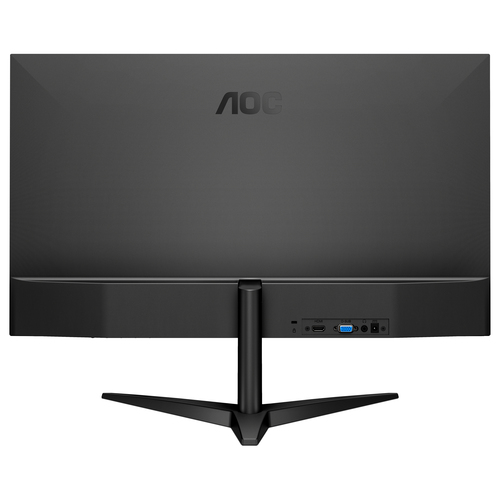

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | No |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 0 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | No |
| Cable lock slot | No |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 21.5° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish |
| Number of OSD languages | 16 |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 17 kWh |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Energy efficiency scale | A to G |
| External power adapter | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 503.6 mm |
| Depth (with stand) | 172 mm |
| Height (with stand) | 401 mm |
| Weight (with stand) | 2.6 kg |
| Width (without stand) | 503.6 mm |
| Depth (without stand) | 33.3 mm |
| Height (without stand) | 301.7 mm |
| Weight (without stand) | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 560 mm |
| Package depth | 125 mm |
| Package height | 464 mm |
| Package weight | 4.2 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, HDMI |
| HDMI cable length | 1.5 m |
| Power cable length | 1.5 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver |
Other features
| Specification | Value |
|---|---|
| On/off switch | Yes |
| TV tuner integrated | No |
| Bezel thickness type | Frameless |
| Compliance certificates | RoHS |
| Heavy metals free | Hg (mercury) |
| Mean time between failures (MTBF) | 50000 h |
| Certification | ISO |
Recycling data
| Specification | Value |
|---|---|
| Packaging recyclability rate | 100% |
