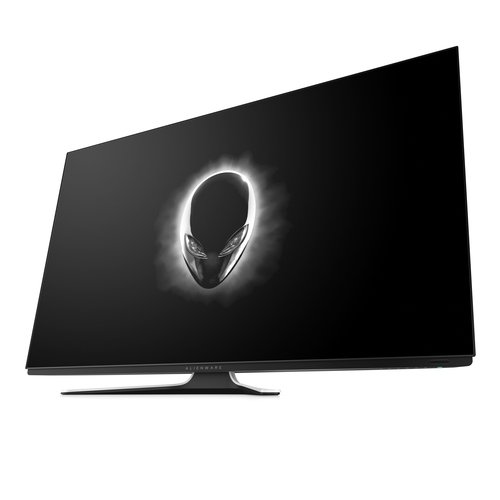

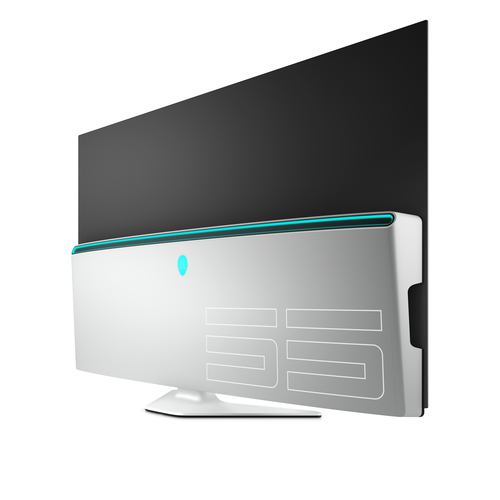

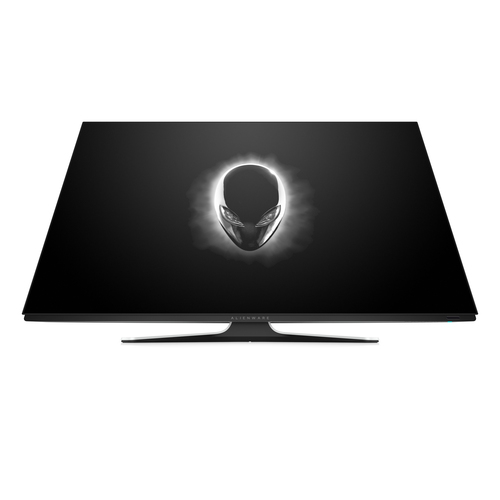

AW5520QF computer monitor

138.7 cm (54.6") 3840 x 2160 pixels 4K Ultra HD OLED Black, Silver

Model AW5520QFEAN 5704174213611

103 specifications Checked today

Display138.7 cm (54.6")
Resolution3840 x 2160 pixels
Energy classG
ColourBlack, Silver
NVIDIA G-SYNCNo
Built-in speaker(s)Yes

See all specifications

Overview

Display: 138.7 cm (54.6")
Resolution: 3840 x 2160 pixels
Energy class: G
Colour: Black, Silver
NVIDIA G-SYNC: No
Built-in speaker(s): Yes

Brand: Alienware
Category: Monitor
Model: AW5520QF
Part numbers: AW5520QF, 210-AUGQ, GAME-AW5520QF
EAN / UPC: 5704174213611, 5704174213628, 5397184200247, 7612392343592
Also known as: Alienware AW5520QF computer monitor 138.7 cm (54.6") 3840 x 2160 pixels 4K Ultra HD OLED Black, Silver

Specifications

103 specifications in 12 groups

Display

Specification	Value
Display diagonal	138.7 cm (54.6")
Display resolution	3840 x 2160 pixels
Native aspect ratio	16:9
Display technology	OLED
Touchscreen	No
HD type	4K Ultra HD
Display brightness (peak)	400 cd/m²
Display brightness (typical)	400 cd/m²
Response time	0.5 ms
Screen shape	Flat
Supported graphics resolutions	640 x 400, 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Contrast ratio (typical)	130000:1
Maximum refresh rate	120 Hz
Viewing angle, horizontal	120°
Viewing angle, vertical	120°
Display number of colours	1.073 billion colours
Pixel pitch	0.315 x 0.315 mm
Pixel density	81 ppi
Horizontal scan range	27 - 269 kHz
Vertical scan range	40 - 120 Hz
Viewable size, horizontal	121 cm
Viewable size, vertical	68 cm
Viewable size diagonal	138.8 cm
DDC/CI	Yes
Colour gamut	98.5%
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	Yes
VESA Adaptive Sync support	Yes
Flicker-free technology	Yes
Low Blue Light technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	28 W
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black, Silver
Colour name	Lunar Light

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	4
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	3
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Audio input	No
Audio output	Yes
Headphone out	Yes
Headphone outputs	1
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	200 x 200,200 x 300 mm
Height adjustment	No
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Power

Power

Specification	Value
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	E
Energy consumption (SDR) per 1000 hours	83 kWh
Energy consumption (HDR) per 1000 hours	62 kWh
Power consumption (typical)	100 W
Power consumption (standby)	0.3 W
Power consumption (max)	390 W
Power consumption (off)	0.3 W
Power consumption (PowerSave)	84.75 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	1225.9 mm
Depth (with stand)	263.9 mm
Height (with stand)	770.6 mm
Weight (with stand)	26.1 kg
Width (without stand)	1225.9 mm
Depth (without stand)	80.3 mm
Height (without stand)	717.2 mm
Weight (without stand)	25.5 kg
Bezel width (side)	8.2 mm
Bezel width (top)	8 mm
Bezel width (bottom)	1.19 cm

Packaging data

Specification	Value
Package width	310 mm
Package depth	1380 mm
Package height	1000 mm
Package weight	41.3 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, HDMI, USB
Remote control included	Yes
Manual	Yes

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
AlienFX lighting	Yes
Certification	TCO
