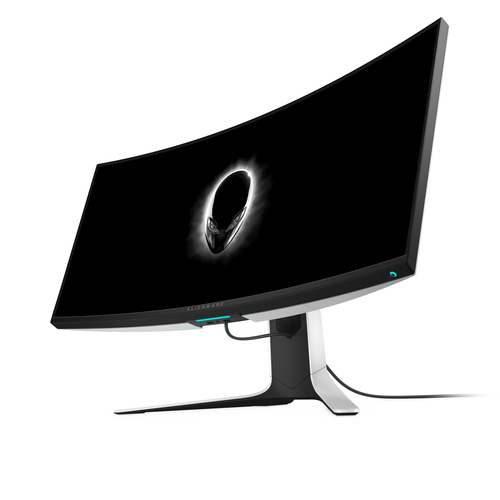

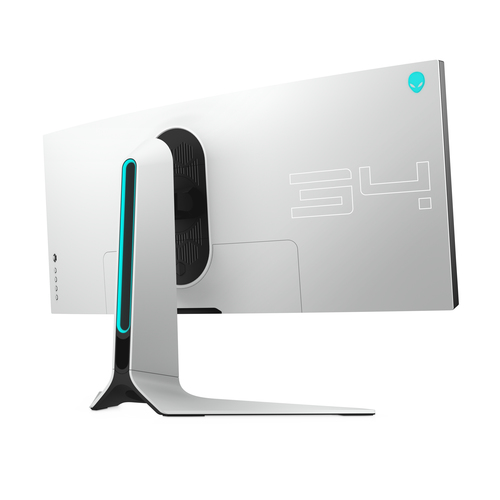

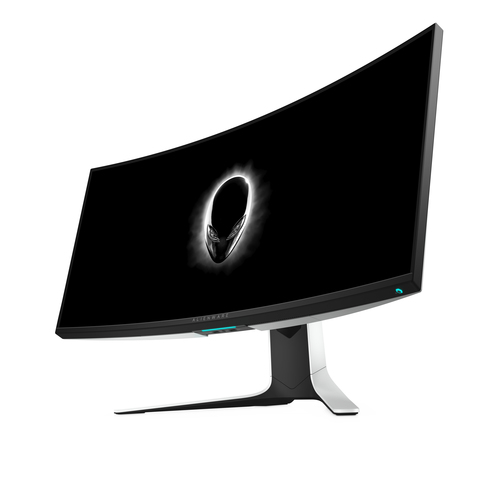

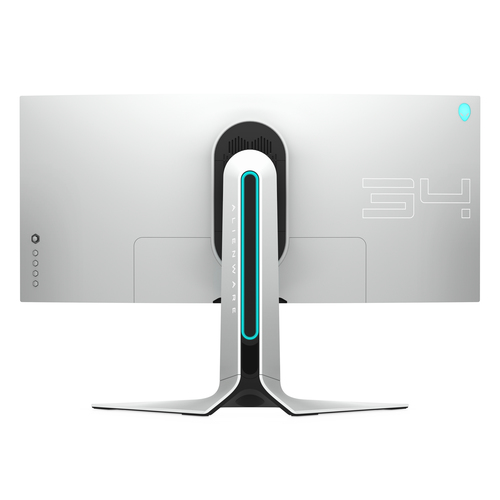

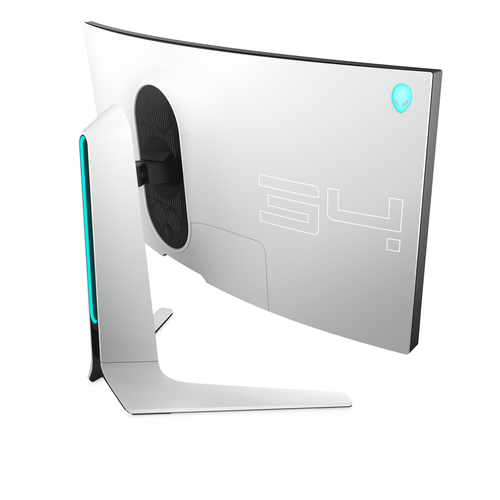

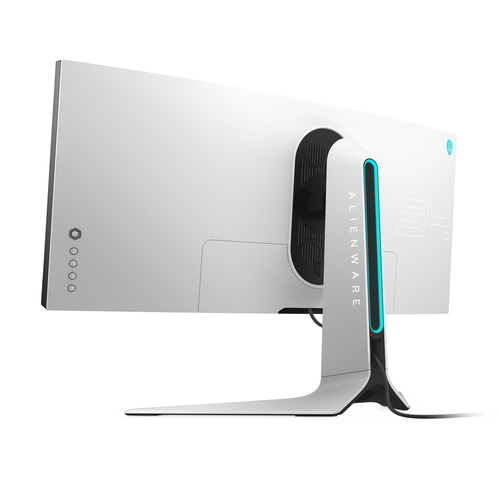

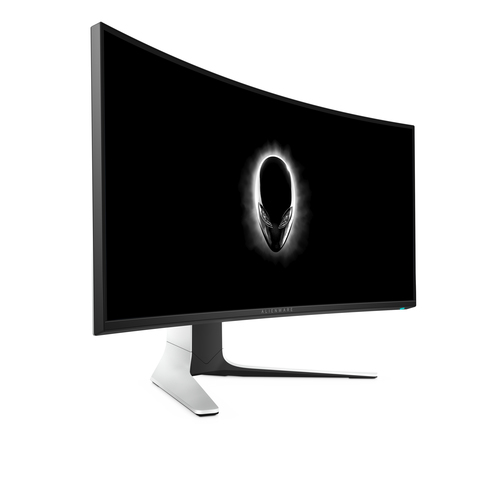

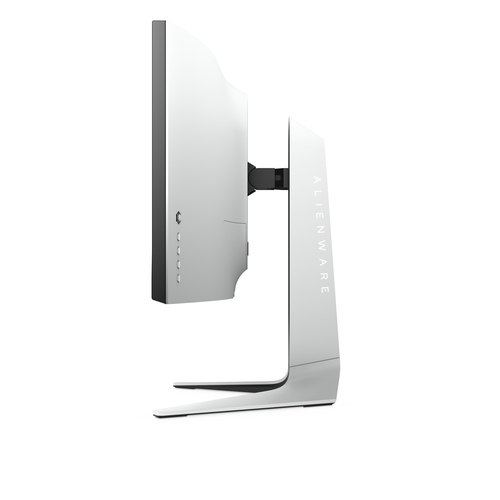

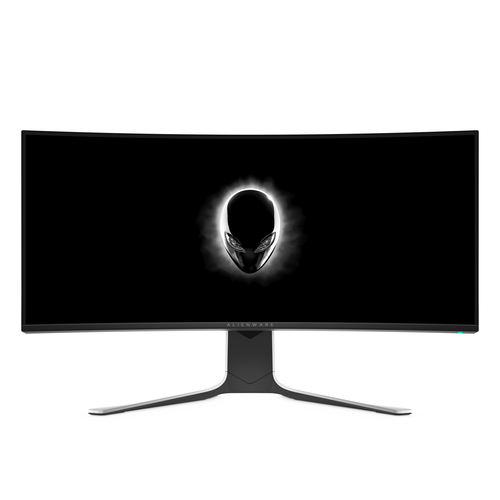

AW3420DW computer monitor

86.6 cm (34.1") 3440 x 1440 pixels Wide Quad HD LCD Black, White

Model AW3420DWPart no. 210-ATTP_5YEAN 2000001103234

103 specifications Checked today

Display86.6 cm (34.1")
Resolution3440 x 1440 pixels
ColourBlack, White
NVIDIA G-SYNCYes
Built-in speaker(s)No
Market positioningGaming

See all specifications

Overview

Display: 86.6 cm (34.1")
Resolution: 3440 x 1440 pixels
Colour: Black, White
NVIDIA G-SYNC: Yes
Built-in speaker(s): No
Market positioning: Gaming

Brand: Alienware
Category: Monitor
Model: AW3420DW
Part numbers: 210-ATTP_5Y, AW3420DW, GAME-AW3420DW
EAN / UPC: 2000001103234, 884116349648, 5704174210245, 5397184200223 +1 more
Also known as: Alienware AW3420DW computer monitor 86.6 cm (34.1") 3440 x 1440 pixels Wide Quad HD LCD Black, White

Specifications

103 specifications in 12 groups

Display

Specification	Value
Display diagonal	86.6 cm (34.1")
Display resolution	3440 x 1440 pixels
Native aspect ratio	21:9
Display technology	LCD
Touchscreen	No
HD type	Wide Quad HD
Panel type	IPS
Backlight type	LED
Display brightness (typical)	350 cd/m²
Response time	2 ms
Screen shape	Curved
Screen curvature rating	1900R
Supported graphics resolutions	640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3440 x 1440
Supported video modes	480p, 576p, 720p, 1080p
Contrast ratio (typical)	1000:1
Maximum refresh rate	120 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Response time (fast)	4 ms
Pixel pitch	0.2325 x 0.2325 mm
Pixel density	110 ppi
Horizontal scan range	30 - 140 kHz
Vertical scan range	24 - 60 Hz
Viewable size, horizontal	80 cm
Viewable size, vertical	33.5 cm
Viewable size diagonal	86.7 cm
DDC/CI	Yes
Colour gamut	134.5%
Screen curvature	190 cm
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	Yes
AMD FreeSync	No
Flicker-free technology	Yes

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black, White
Colour name	Lunar Light
Front bezel colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB hub version	3.2 Gen 1 (3.1 Gen 1)
USB upstream port type	USB Type-B
Number of upstream ports	1
USB Type-A downstream ports quantity	4
USB Power Delivery (USB PD)	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
HDMI	Yes
HDMI ports quantity	1
HDMI version	1.4
DisplayPorts quantity	1
DisplayPort version	1.2
Audio input	No
Audio output	Yes
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
AC (power) in	Yes

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Height adjustment	Yes
Adjustable height (max)	13 cm
Swivelling	Yes
Swivel angle range	-20 - 20°
Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Yes

Power

Specification	Value
Power consumption (typical)	58 W
Power consumption (standby)	0.5 W
Power consumption (max)	110 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	813 mm
Depth (with stand)	273.8 mm
Height (with stand)	559.4 mm
Weight (with stand)	11.1 kg
Width (without stand)	813 mm
Depth (without stand)	117.9 mm
Height (without stand)	364 mm
Weight (without stand)	6.8 kg
Bezel width (side)	9.9 mm
Bezel width (top)	1.06 cm
Bezel width (bottom)	1.91 cm

Packaging data

Specification	Value
Package width	305 mm
Package depth	955 mm
Package height	515 mm
Package weight	16.9 kg

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, DisplayPort to Mini DisplayPort, USB
Manual	Yes

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
AlienFX lighting	Yes
