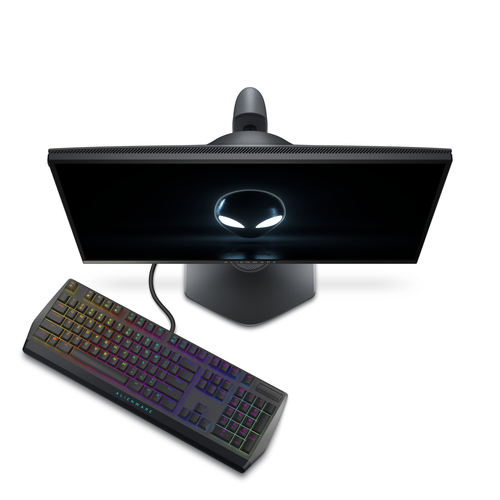

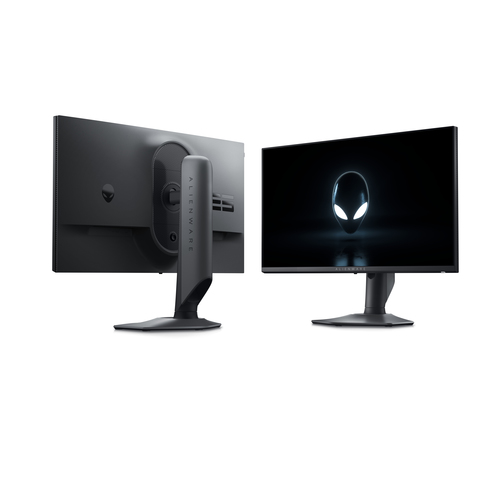

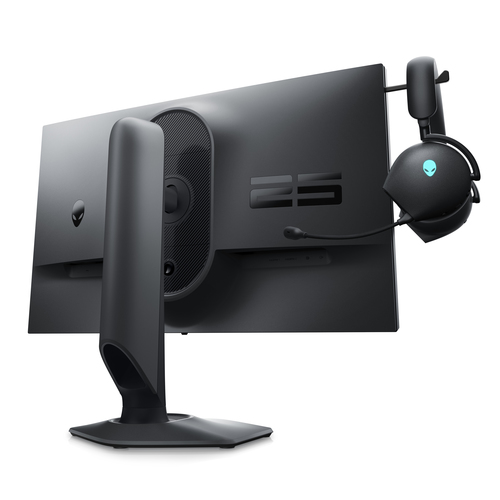

AW2523HF computer monitor

62.2 cm (24.5") 1920 x 1080 pixels Full HD LCD Black

Model AW2523HFEAN 5715063228289

123 specifications Checked today

Display62.2 cm (24.5")
Resolution1920 x 1080 pixels
Energy classE
ColourBlack
NVIDIA G-SYNCNo
Market positioningGaming

See all specifications

Overview

Display: 62.2 cm (24.5")
Resolution: 1920 x 1080 pixels
Energy class: E
Colour: Black
NVIDIA G-SYNC: No
Market positioning: Gaming

Brand: Alienware
Category: Monitor
Model: AW2523HF
Part numbers: AW2523HF, GAME-AW2523HF
EAN / UPC: 5715063228289, 884116431428, 5397184656938, 5715063801468
Also known as: Alienware AW2523HF computer monitor 62.2 cm (24.5") 1920 x 1080 pixels Full HD LCD Black

Specifications

123 specifications in 15 groups

Display

Specification	Value
Display diagonal	62.2 cm (24.5")
Display resolution	1920 x 1080 pixels
Native aspect ratio	16:9
Display technology	LCD
Touchscreen	No
HD type	Full HD
Panel type	Fast IPS
Backlight type	W-LED
Display brightness (typical)	400 cd/m²
Response time	0.5 ms
Anti-glare screen	Yes
Screen shape	Flat
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Supported video modes	480i, 480p, 576i, 576p, 720p, 1080p, 2160p
Contrast ratio (typical)	1000:1
Maximum refresh rate	360 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Response time (fast)	3 ms
Pixel pitch	0.2829 x 0.2829 mm
Pixel density	89.91 ppi
Viewable size, horizontal	54.3 cm
Viewable size, vertical	30.3 cm
Viewable size diagonal	6.22 cm
Display diagonal (metric)	62.18 cm
High Dynamic Range (HDR) supported	Yes
Surface hardness	3H
Colour depth	8 bit
sRGB coverage (typical)	99%
Dell ComfortView technology	Yes
Response time (extreme)	0.5 ms
Heat dissipation	254.37 BTU/h
Heat dissipation (typical)	55.69 BTU/h

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	Yes
AMD FreeSync type	FreeSync Premium
VESA Adaptive Sync support	Yes
Flicker-free technology	Yes
Smart modes	FPS, RPG, Sports

Multimedia

Specification	Value
Built-in speaker(s)	No
Built-in camera	No

Design

Specification	Value
Market positioning	Gaming
Product colour	Black
Front bezel colour	Black
Detachable stand	Yes
Feet colour	Black

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
Number of upstream ports	1
Number of USB Type-B upstream ports quantity	1
USB Type-A downstream ports quantity	4
HDMI	Yes
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	1
DisplayPort version	1.4
Headphone out	Yes
Headphone outputs	1
Headphone connectivity	3.5 mm
HDCP	Yes
HDCP version	2.2
Charging port type	DC-in jack
DC-in jack	Yes

Network

Specification	Value
Wi-Fi	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable management	Yes
Cable lock slot	Yes
Height adjustment	Yes
Adjustable height (max)	11 cm
Pivot	Yes
Pivot angle	-90 - 90°
Swivelling	Yes
Swivel angle range	-20 - 20°
Tilt adjustment	Yes
Tilt angle range	-5 - 21°
On Screen Display (OSD)	Yes
Plug and Play	Yes
LED indicators	Power, Stand-by

Power

Specification	Value
Energy efficiency class (SDR)	E
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	16 kWh
Power consumption (typical)	15.8 W
Power consumption (standby)	0.3 W
Power consumption (max)	74.5 W
Power consumption (off)	0.3 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Input current	1.5 A
Power supply type	Internal
Energy efficiency scale	A to G

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 80%
Storage relative humidity (H-H)	5 - 90%
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	555.2 mm
Depth (with stand)	243.7 mm
Height (with stand)	390.2 mm
Weight (with stand)	5.4 kg
Width (without stand)	555.2 mm
Depth (without stand)	66.7 mm
Height (without stand)	325.8 mm
Weight (without stand)	3.45 kg
Bezel width (side)	5.9 mm
Bezel width (top)	5.72 mm
Bezel width (bottom)	1.75 cm

Packaging data

Specification	Value
Package width	224 mm
Package depth	705.1 mm
Package height	460 mm
Package weight	9 kg
USB cable length	1.8 m

Packaging content

Specification	Value
Stand included	Yes
Cables included	AC, DisplayPort, DisplayPort to Mini DisplayPort, USB Type-A
Quick start guide	Yes
DisplayPort cable length	1.8 m

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Doesn't contain	PVC/BFR

Other features

Specification	Value
Heavy metals free	Hg (mercury)
Packaging content	1x USB 3.2 Gen1 (5 Gbps) upstream cable
Ethernet LAN (RJ-45) ports	0

Brand-specific features

Specification	Value
Dell Display Manager (DDM) compatibility	Yes
