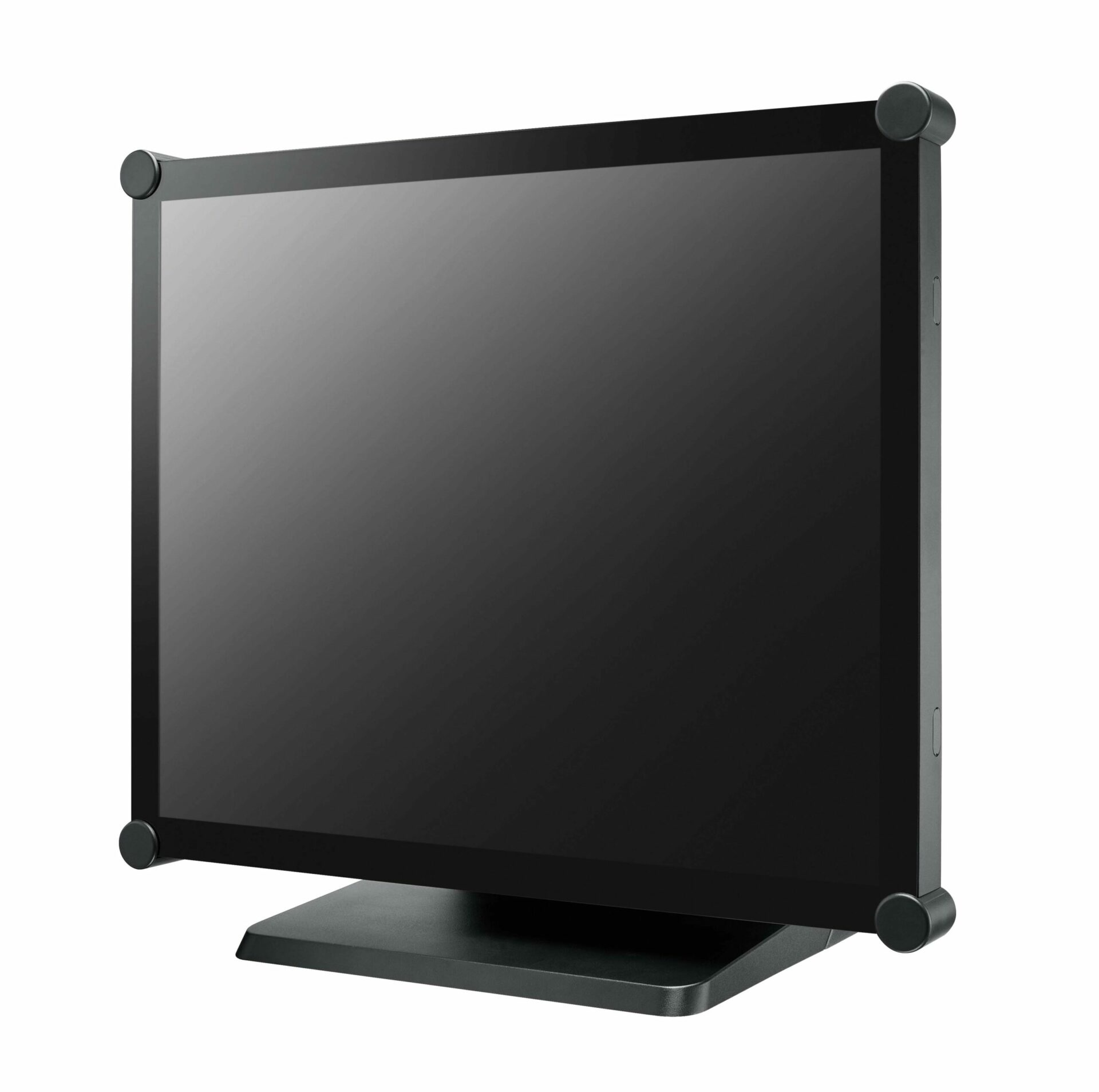

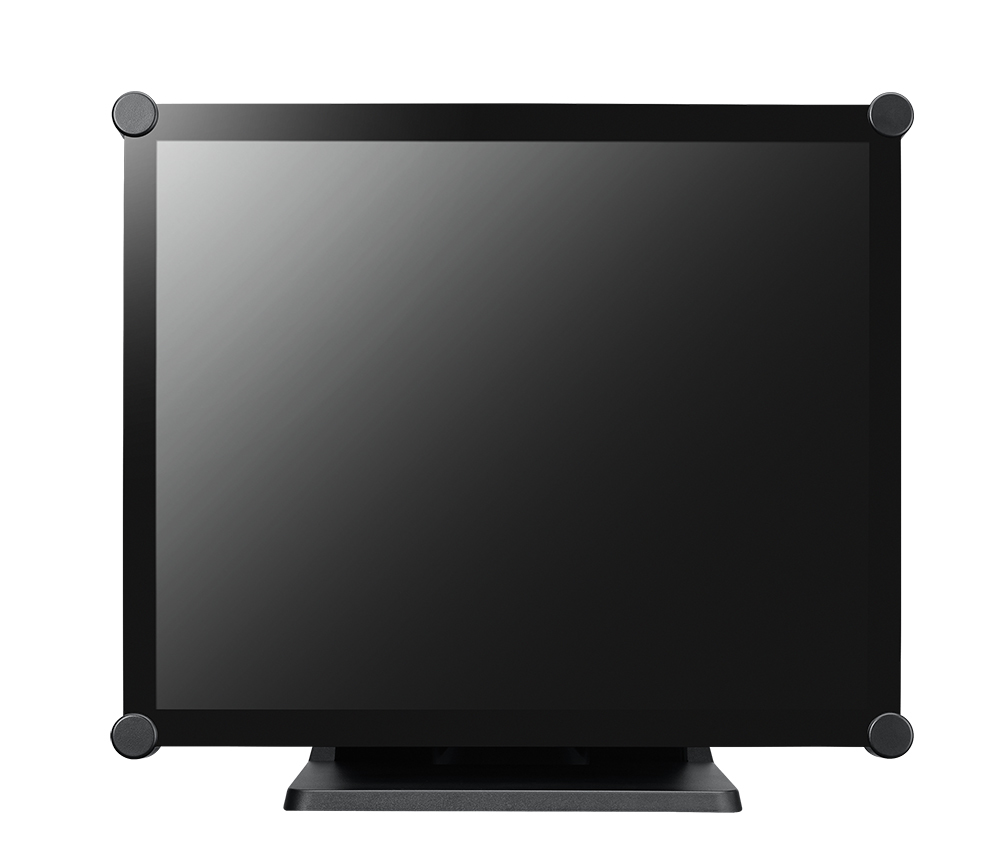

TX-1702 computer monitor
43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Tabletop Black
Model TX-1702EAN 4710739597264
91 specifications Checked today
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Energy classD
- OSWindows 10
- ColourBlack
- NVIDIA G-SYNCNo
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Energy class
- D
- OS
- Windows 10
- Colour
- Black
- NVIDIA G-SYNC
- No
- Brand
- AG Neovo
- Category
- Monitor
- Model
- TX-1702
- Part number
- TX-1702
- EAN / UPC
- 4710739597264
- Also known as
- AG Neovo TX-1702 computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Tabletop Black
Specifications
91 specifications in 15 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Backlight type | LED |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 250 cd/m² |
| Response time | 3 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Digital horizontal frequency | 31 - 80 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Display diagonal (metric) | 43.1 cm |
| Haze rate | 25% |
| Surface hardness | 7H |
| Colour gamut standard | NTSC |
| NTSC coverage (typical) | 72% |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Windows 10 |
| Windows operating systems supported | Windows 2000, Windows CE, Windows Vista, Windows XP |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
| Built-in microphone | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Housing material | Metal |
| Glass thickness | 3.1 mm |

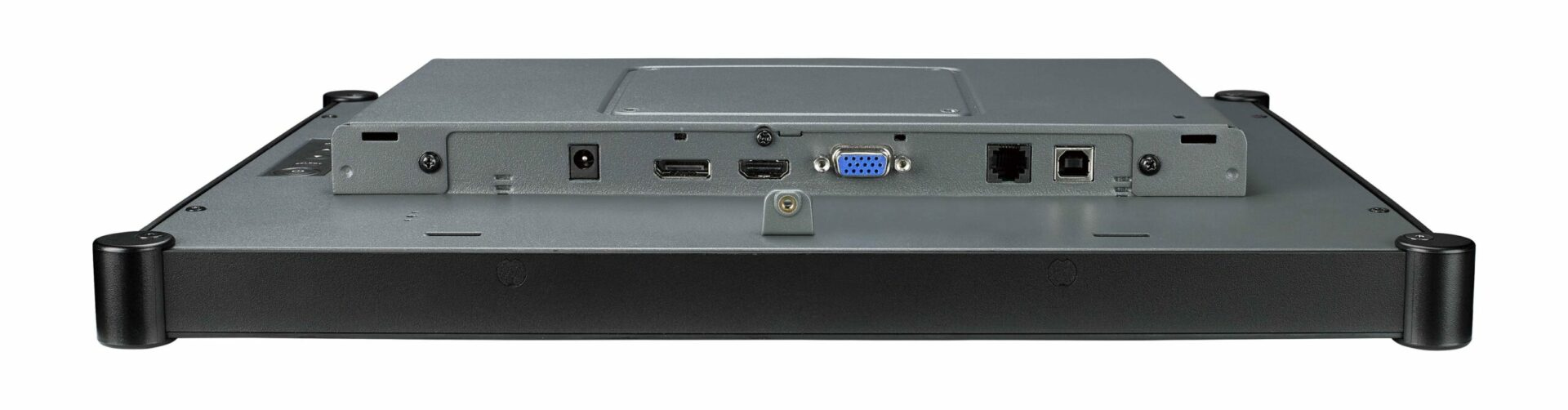

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Headphone out | No |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 90° |
| Plug and Play | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | D |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 10 W |
| Power consumption (standby) | 0.8 W |
| Power consumption (off) | 0.3 W |
| Power supply type | External |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 380 mm |
| Depth (with stand) | 343.4 mm |
| Height (with stand) | 214.2 mm |
| Weight (with stand) | 5.8 kg |
| Width (without stand) | 380 mm |
| Depth (without stand) | 318 mm |
| Height (without stand) | 49.5 mm |
| Weight (without stand) | 3.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 450 mm |
| Package depth | 418 mm |
| Package height | 277 mm |
| Package weight | 8 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | AC, HDMI, USB, VGA |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| Mobile operating systems supported | Android 2.3, Android 4.0 |
| Certification | CE, LVD, WEEE, RoHS, REACH, EAC |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85285210 |
