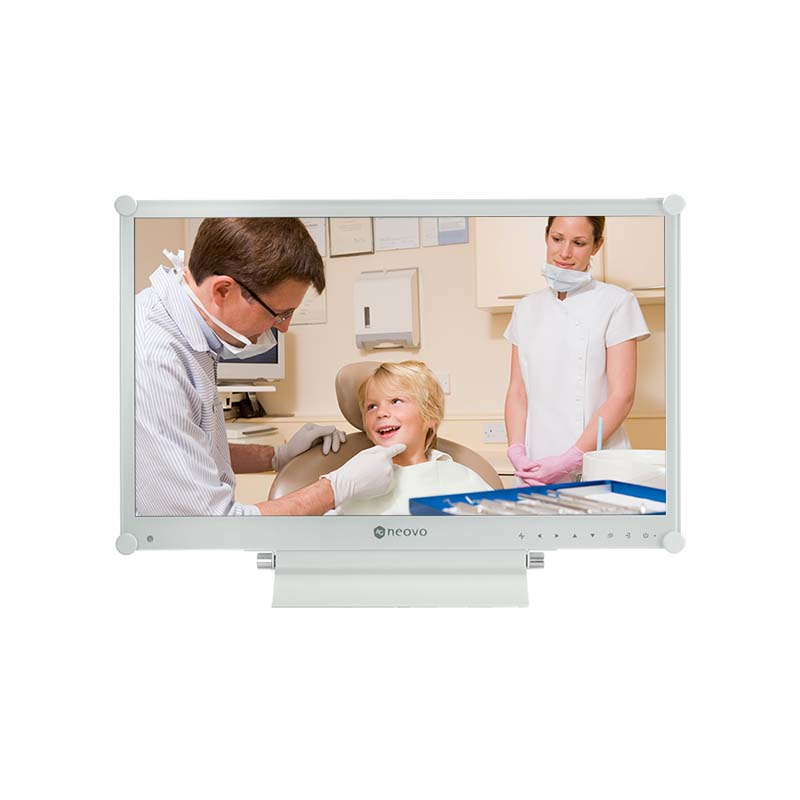

DR-22G computer monitor
54.6 cm (21.5") 1920 x 1080 pixels Full HD LED White
Model DR-22GPart no. DR2G00A1E0100EAN 190695002530
91 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classE
- ColourWhite
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Colour
- White
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Brand
- AG Neovo
- Category
- Monitor
- Model
- DR-22G
- Part numbers
- DR2G00A1E0100, DR2GA0A1E0100
- EAN / UPC
- 190695002530, 4710739595932
- Also known as
- AG Neovo DR-22G computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED White
Specifications
91 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TN |
| Display brightness (typical) | 250 cd/m² |
| Response time | 3 ms |
| Screen shape | Flat |
| Supported video modes | 1080p |
| Contrast ratio (typical) | 20000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Digital horizontal frequency | 24 - 83 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Surface hardness | 9H |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | White |
| Housing material | Metal |
| Glass thickness | 3 mm |

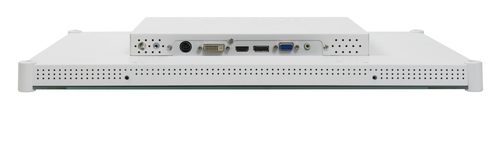

Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB 2.0 Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| DVI-D ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| PC Audio in | Yes |
| DC-in jack | Yes |
| Composite video in | 2 |
| Composite video out | 2 |
| RS-232 ports | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt adjustment | Yes |
| Tilt angle range | 0 - 17° |
| Picture-in-Picture | Yes |
| X-ray film viewing mode | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 16 kWh |
| Power consumption (typical) | 16 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Input current | 2.71 A |
| AC adapter output voltage | 24 V |
| Power supply type | External |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 513.2 mm |
| Depth (with stand) | 155 mm |
| Height (with stand) | 368.5 mm |
| Weight (with stand) | 6.8 kg |
| Width (without stand) | 513.2 mm |
| Depth (without stand) | 56.2 mm |
| Height (without stand) | 324.3 mm |
| Weight (without stand) | 6.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 614 mm |
| Package depth | 204 mm |
| Package height | 477 mm |
| Package weight | 9.3 kg |
| Warranty card | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, VGA |
| Power adapter included | Yes |
| Quick start guide | Yes |
| Power cable length | 5 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Other features
| Specification | Value |
|---|---|
| Protection features | Dust resistant, Waterproof |
| Picture-by-Picture (PbP) | Yes |
| Compliance certificates | CE, Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE |
| Transmission rate | 97% |
| Supplied AC adapter type | Y, 1 |
