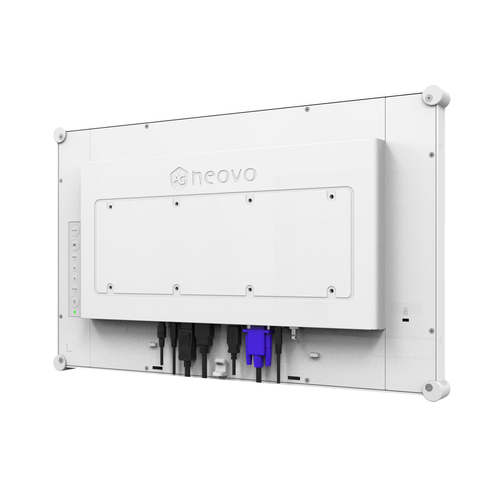

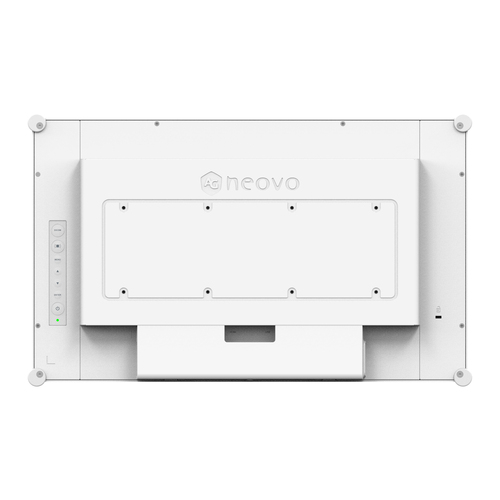

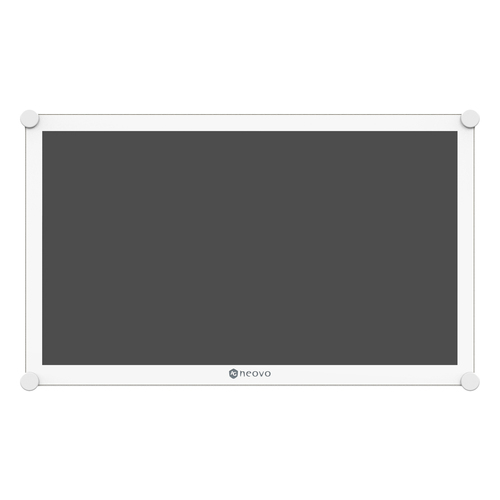

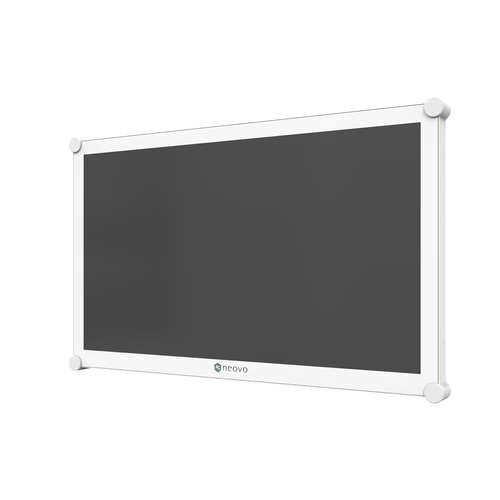

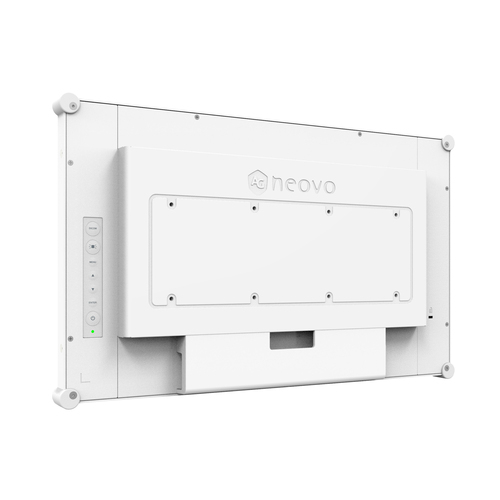

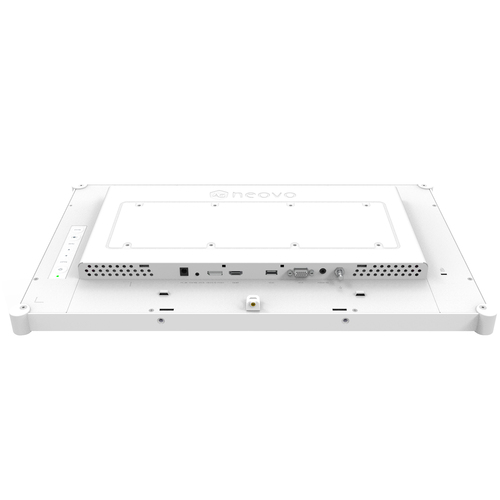

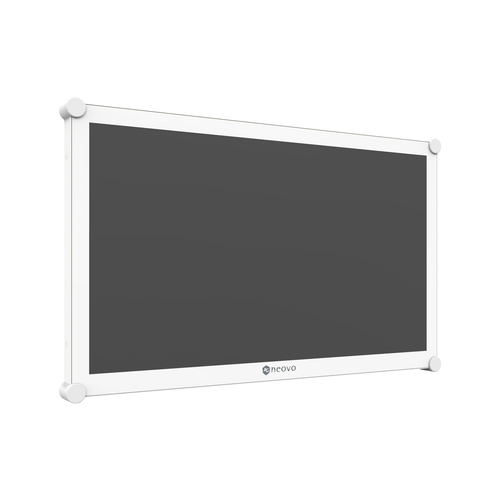

DR-2202 22" Dental LCD Monitor
Model DR-2202EAN 190695004671
85 specifications Checked today
- Display54.6 cm (21.5")
- Resolution1920 x 1080 pixels
- Energy classE
- ColourWhite
- NVIDIA G-SYNCNo
- Built-in speaker(s)Yes
Overview
- Display
- 54.6 cm (21.5")
- Resolution
- 1920 x 1080 pixels
- Energy class
- E
- Colour
- White
- NVIDIA G-SYNC
- No
- Built-in speaker(s)
- Yes
- Brand
- AG Neovo
- Category
- Monitor
- Model
- DR-2202
- Part number
- DR-2202
- EAN / UPC
- 190695004671, 4710739598063
- Also known as
- AG Neovo DR-2202 22" Dental LCD Monitor
Specifications
85 specifications in 13 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | No |
| HD type | Full HD |
| Panel type | TFT/IPS |
| LED backlight | Yes |
| Display brightness (peak) | 500 cd/m² |
| Display brightness (typical) | 500 cd/m² |
| Response time | 5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.248 x 0.248 mm |
| Horizontal scan range | 31 - 84 kHz |
| Vertical scan range | 56 - 75 Hz |
| Digital horizontal frequency | 31 - 84 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Haze rate | 25% |
| Surface hardness | 3H |
| Colour depth | 8 bit |
Performance
| Specification | Value |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 6 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Medical |
| Product colour | White |
| Glass thickness | 1.8 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| USB 2.0 Type-A ports quantity | 1 |
| Number of upstream ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| Audio input | Yes |
| Headphone out | No |
| DC-in jack | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,300 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| X-ray film viewing mode | Yes |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 15 kWh |
| Power consumption (typical) | 15 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 30 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Energy efficiency scale | A to G |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 528.4 mm |
| Depth (without stand) | 48.2 mm |
| Height (without stand) | 325.5 mm |
| Weight (without stand) | 4.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 610 mm |
| Package depth | 160 mm |
| Package height | 405 mm |
| Package weight | 6.45 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Power adapter included | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| International Protection (IP) code | IP65 |
| Protection features | Dust resistant, Waterproof |
| IK code | IK07 |
| Compliance certificates | CE, EAC, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, WEEE |
| DICOM | Yes |
| Delta E | 2 |
| Transmission rate | 97% |
Technical details
| Specification | Value |
|---|---|
| Native refresh rate | 60 Hz |
