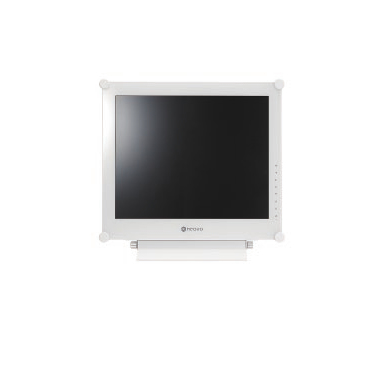

AG Neovo DR-17E computer monitor

DR-17E computer monitor

43.2 cm (17") 1280 x 1024 pixels SXGA LCD White

Model DR-17EEAN 4710739594911

82 specifications Checked today

Display43.2 cm (17")
Resolution1280 x 1024 pixels
ColourWhite
NVIDIA G-SYNCNo
Built-in speaker(s)Yes
Market positioningMedical

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1280 x 1024 pixels
Colour: White
NVIDIA G-SYNC: No
Built-in speaker(s): Yes
Market positioning: Medical

Brand: AG Neovo
Category: Monitor
Model: DR-17E
Part numbers: DR-17E, DR7E00A1E0100
EAN / UPC: 4710739594911
Also known as: AG Neovo DR-17E computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD White

Specifications

82 specifications in 15 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1280 x 1024 pixels
Display technology	LCD
Touchscreen	No
HD type	SXGA
Panel type	TFT
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	20000000:1
Viewing angle, horizontal	170°
Viewing angle, vertical	160°
Display number of colours	16.78 million colours
Pixel pitch	0.264 x 0.264 mm
Horizontal scan range	15 - 83 kHz
Vertical scan range	50 - 85 Hz
3D	No

Performance

Specification	Value
NVIDIA G-SYNC	No
AMD FreeSync	No

Multimedia

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	2
RMS rated power	4 W
Built-in camera	No

Design

Specification	Value
Market positioning	Medical
Product colour	White
Feet colour	White

Ports & interfaces

Specification	Value
Built-in USB hub	Yes
USB Type-A downstream ports quantity	1
VGA (D-Sub) ports quantity	1
DVI port	Yes
DVI-D ports quantity	1
HDMI	Yes
HDMI ports quantity	1
DisplayPorts quantity	1
PC Audio in	Yes
PC Audio out	Yes
BNC input ports	2
RS-232 ports	1
S-Video inputs quantity	1

Network

Specification	Value
Wi-Fi	No
Bluetooth	No
Ethernet LAN	No

Ergonomics

Specification	Value
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	No

Power

Specification	Value
Power consumption (typical)	19 W
Power consumption (standby)	0.5 W
Power consumption (off)	0.5 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 12192 m

Weight & dimensions

Specification	Value
Width (with stand)	409.4 mm
Depth (with stand)	172 mm
Height (with stand)	398.2 mm
Weight (with stand)	6.58 kg
Width (without stand)	409.4 mm
Depth (without stand)	61.5 mm
Height (without stand)	361.9 mm
Weight (without stand)	5.82 kg

Packaging data

Specification	Value
Package width	510 mm
Package depth	220 mm
Package height	490 mm
Package weight	8 kg

Packaging content

Specification	Value
Cables included	AC, Audio (3.5mm), VGA
Quick start guide	Yes

Other features

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Comb filter	3D
Compliance certificates	RoHS
No flickering	Yes
Noise filter	Yes
Certification	CE, EN60601-1, IEC60601-1, RoHs, WEEE, REACH
Supplied AC adapter type	LED

Thin Client

Specification	Value
Thin client installed	No

Logistics data

Specification	Value
Harmonized System (HS) code	85285210
