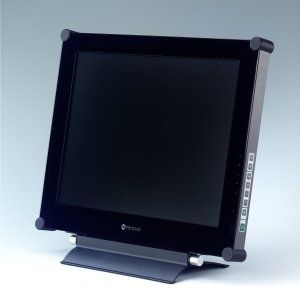

20" X-20B TFT Black
Model 20" X-20B TFT BlackPart no. X-20B
33 specifications Checked today
- Display51 cm (20.1")
- Resolution1600 x 1200 pixels
- ColourBlack
- VGA (D-Sub) ports quantity1
- Panel mounting interface100 x 100 mm
- Power consumption (typical)60 W
Overview
- Display
- 51 cm (20.1")
- Resolution
- 1600 x 1200 pixels
- Colour
- Black
- VGA (D-Sub) ports quantity
- 1
- Panel mounting interface
- 100 x 100 mm
- Power consumption (typical)
- 60 W
- Brand
- AG Neovo
- Category
- Monitor
- Model
- 20" X-20B TFT Black
- Part number
- X-20B
- Also known as
- AG Neovo 20" X-20B TFT Black computer monitor 51 cm (20.1") 1600 x 1200 pixels
Specifications
33 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 51 cm (20.1") |
| Display resolution | 1600 x 1200 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 8 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 170° |
| Pixel pitch | 0.255 |
| Horizontal scan range | 30 - 94 kHz |
| Vertical scan range | 30 - 80 Hz |
| Pixel frequency | 203 MHz |
| Surface treatment | Hard Coating (2H), Anti-glare Treatment |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Tilt angle range | 0 - 15° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 60 W |
| Power consumption (standby) | 4 W |
| Power consumption (off) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (without stand) | 499 mm |
| Depth (without stand) | 180 mm |
| Height (without stand) | 454 mm |
| Weight (without stand) | 8.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 594 x 570 x 261 mm |
| Package weight | 11 kg |
Other features
| Specification | Value |
|---|---|
| Power requirements | 100 - 240V, 50 - 60Hz |
| Mean time between failures (MTBF) | 50000 h |
| Certification | FCC, UL/CUL, TUV/BAURT, CE, BSMI, CB, ISO 13406-2, GOST, DDC 1/2B, DPMS, EPA |
| Supplied AC adapter type | LCD |
