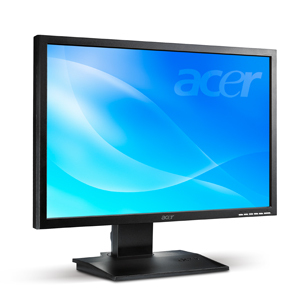

B223WB Notebook Upgrade Kit
Model B223WB Notebook Upgrade KitPart no. ET.EB3WE.B01EAN 4712842179320
30 specifications Checked today
- Display55.9 cm (22")
- Resolution1680 x 1050 pixels
- ColourBlack
- Built-in cameraNo
- USB hub version2.0
- Panel mounting interface100 x 100 mm
Overview
- Display
- 55.9 cm (22")
- Resolution
- 1680 x 1050 pixels
- Colour
- Black
- Built-in camera
- No
- USB hub version
- 2.0
- Panel mounting interface
- 100 x 100 mm
- Brand
- Acer
- Category
- Monitor
- Model
- B223WB Notebook Upgrade Kit
- Part number
- ET.EB3WE.B01
- EAN / UPC
- 4712842179320
- Also known as
- Acer B223WB Notebook Upgrade Kit computer monitor 55.9 cm (22") 1680 x 1050 pixels Black
Specifications
30 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 55.9 cm (22") |
| Display resolution | 1680 x 1050 pixels |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Viewing angle, horizontal | 176° |
| Viewing angle, vertical | 176° |
| Pixel pitch | 0.282 x 0.282 mm |
| Horizontal scan range | 30 - 80 kHz |
| Vertical scan range | 55 - 75 Hz |
| Viewable size, horizontal | 47.3 cm |
| Viewable size, vertical | 29.6 cm |
Multimedia
| Specification | Value |
|---|---|
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| USB hub version | 2.0 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
Ergonomics
| Specification | Value |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Swivel angle range | -35 - 35° |
| Tilt angle range | -5 - 15° |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 33.4 W |
| Power consumption (standby) | 0.9 W |
| Power consumption (off) | 0 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 467 mm |
| Depth (with stand) | 216 mm |
| Height (with stand) | 506 mm |
| Weight (without stand) | 7.5 kg |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | No |
| Power requirements | 100 - 240 VAC, 50 - 60 Hz |
| Certification | CE, TÜV GS, TCO 03, ISO 13406-2, FCC |
