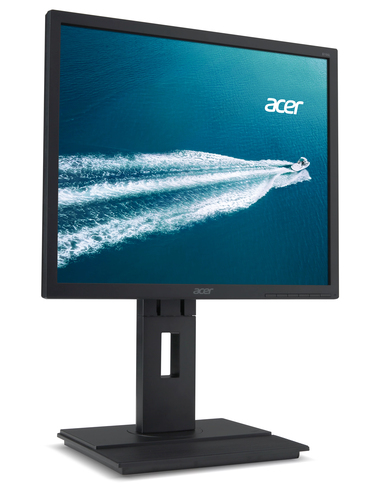

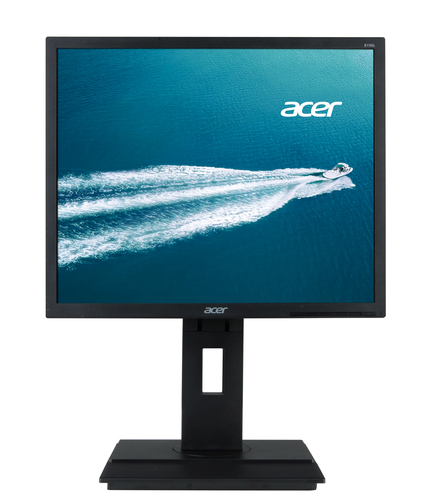

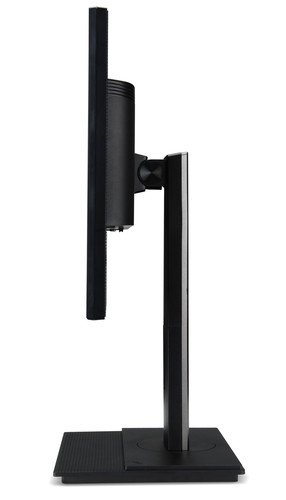

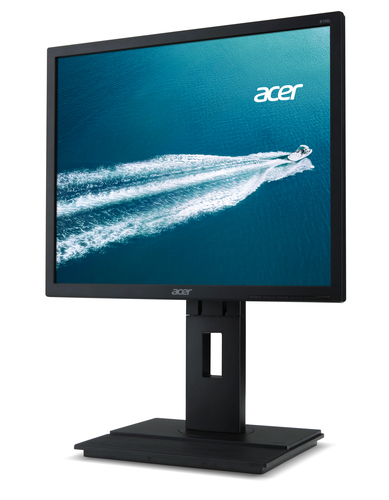

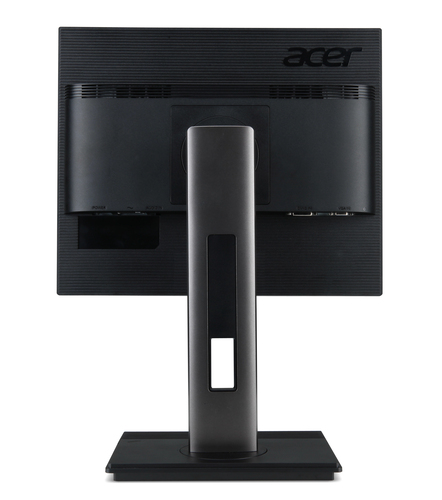

B6 B196LAymirx computer monitor
48.3 cm (19") 1280 x 1024 pixels HD LCD Grey
Model B196LAymirxPart no. UM.CB6EE.A18EAN 4711121906664
76 specifications Checked today
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Energy classE
- ColourGrey
- Built-in speaker(s)Yes
- Market positioningBusiness
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Energy class
- E
- Colour
- Grey
- Built-in speaker(s)
- Yes
- Market positioning
- Business
- Brand
- Acer
- Category
- Monitor
- Model
- B196LAymirx
- Part number
- UM.CB6EE.A18
- EAN / UPC
- 4711121906664
- Also known as
- Acer B6 B196LAymirx computer monitor 48.3 cm (19") 1280 x 1024 pixels HD LCD Grey
Specifications
76 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | No |
| HD type | HD |
| Panel type | IPS |
| LED backlight | Yes |
| Display brightness (typical) | 250 cd/m² |
| Response time | 5 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 100000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Pixel density | 86 ppi |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
| Digital horizontal frequency | 30 - 80 kHz |
| Digital vertical frequency | 55 - 75 Hz |
| Display diagonal (metric) | 48 cm |
| Surface hardness | 3H |
| Colour depth | 6 bit |
| NTSC coverage (typical) | 72% |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 2 W |
| Built-in camera | No |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | Grey |
Ports & interfaces
| Specification | Value |
|---|---|
| Built-in USB hub | No |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Headphone out | Yes |
Ergonomics
| Specification | Value |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 15 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -60 - 60° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 35° |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 14 kWh |
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
Weight & dimensions
| Specification | Value |
|---|---|
| Width (with stand) | 406.4 mm |
| Depth (with stand) | 221 mm |
| Height (with stand) | 534.2 mm |
| Weight (with stand) | 5.33 kg |
| Width (without stand) | 406.4 mm |
| Depth (without stand) | 52 mm |
| Height (without stand) | 337 mm |
| Weight (without stand) | 2.76 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 512 mm |
| Package depth | 190 mm |
| Package height | 420 mm |
| Package weight | 6.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Stand included | Yes |
| Cables included | HDMI, Power |
| Bundled software | VisionCare 1.0 |
