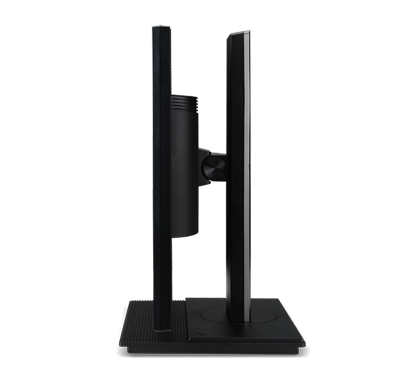

Acer B6 B196LAymdr computer monitor

48.3 cm (19") 1280 x 1024 pixels SXGA LED Grey

Model B196LAymdrPart no. UM.CB6EE.A01EAN 4058154153123

85 specifications Checked 3 days ago

Overview

Brand: Acer
Category: Monitor
Model: B196LAymdr
Part number: UM.CB6EE.A01
EAN / UPC: 4058154153123, 4713392844010, 5704174538004
Also known as: Acer B6 B196LAymdr computer monitor 48.3 cm (19") 1280 x 1024 pixels SXGA LED Grey

85 specifications in 14 groups

Specification	Value
Display diagonal	48.3 cm (19")
Display resolution	1280 x 1024 pixels
Native aspect ratio	5:4
Display technology	LED
Touchscreen	No
HD type	SXGA
Panel type	IPS
Display brightness (typical)	250 cd/m²
Response time	5 ms
Screen shape	Flat
Supported graphics resolutions	1280 x 1024 (SXGA)
Contrast ratio (typical)	1000:1
Contrast ratio (dynamic)	100000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	16.78 million colours
Pixel pitch	0.294 x 0.294 mm
Pixel density	86 ppi
Viewable size, horizontal	37.5 cm
Viewable size, vertical	30 cm
Digital horizontal frequency	30 - 80 kHz
Digital vertical frequency	55 - 75 Hz
Colour gamut	72%
3D	No

Specification	Value
Product colour	Grey
Feet colour	Grey

Specification	Value
VESA mounting	Yes
Panel mounting interface	100 x 100 mm
Cable lock slot	Yes
Cable lock slot type	Kensington
Height adjustment	Yes
Adjustable height (max)	15 cm
Pivot	Yes
Pivot angle	0 - 90°
Swivelling	Yes
Swivel angle range	-60 - 60°
Tilt adjustment	Yes
Tilt angle range	-5 - 35°
On Screen Display (OSD)	Yes
On Screen Display (OSD) languages	German, Dutch, English, Spanish, Finnish, French, Italian, Russian
Number of OSD languages	8

Specification	Value
Energy efficiency class (SDR)	F
Energy consumption (SDR) per 1000 hours	18 kWh
Power consumption (typical)	15.8 W
Power consumption (standby)	0.14 W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 65 °C
Operating relative humidity (H-H)	20 - 80%

Specification	Value
Cables included	AC, DVI, VGA
Quick start guide	Yes

Specification	Value
Sustainability certificates	ENERGY STAR

Specification	Value
On/off switch	Yes
TV tuner integrated	No
Heavy metals free	Hg (mercury)
Mercury content	0 mg
Mean time between failures (MTBF)	30000 h
Certification	CE, TÜV GS, ISO9241-307 class II, TCO7.0
Supplied AC adapter type	AC

Specification	Value
Thin client installed	No

Specification	Value
Harmonized System (HS) code	85285210
