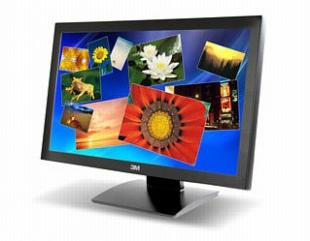

3M Multi-Touch Display M2467PW (24”)

3M Multi-Touch Display M2467PW (24”)

Model M2467PWPart no. 98000337869EAN 551119966560

51 specifications Checked 3 days ago
  • Display61 cm (24")
  • Resolution1920 x 1080 pixels
  • ColourBlack
  • NVIDIA G-SYNCNo
  • Built-in speaker(s)Yes
  • Panel mounting interface100 x 100,200 x 100 mm
See all specifications

Overview

Display
61 cm (24")
Resolution
1920 x 1080 pixels
Colour
Black
NVIDIA G-SYNC
No
Built-in speaker(s)
Yes
Panel mounting interface
100 x 100,200 x 100 mm
Brand
3M
Category
Monitor
Model
M2467PW
Part number
98000337869
EAN / UPC
551119966560, 5511199665604, 5711045517358
Also known as
3M Multi-Touch Display M2467PW (24”)

Specifications

51 specifications in 12 groups

Display

SpecificationValue
Display diagonal61 cm (24")
Display resolution1920 x 1080 pixels
Display technologyLED
TouchscreenYes
HD typeFull HD
LED backlightYes
Backlight typeLED
Touchscreen technologyCapacitive
Display brightness250 cd/m²
Response time16 ms
Screen shapeFlat
Aspect ratio16:9
Contrast ratio (typical)5000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Display number of colours16.78 million colours
Pixel pitch0.277 x 0.277 mm

Performance

SpecificationValue
NVIDIA G-SYNCNo
AMD FreeSyncNo
Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win
Number of simultaneous touchpoints (Windows 7)20

Multimedia

SpecificationValue
Built-in speaker(s)Yes
Number of speakers1
RMS rated power3 W

Design

SpecificationValue
Product colourBlack

Ports & interfaces

SpecificationValue
USB requiredYes
USB upstream port typeUSB Type-B
Number of upstream ports1
VGA (D-Sub) ports quantity1
HDMIYes
HDMI ports quantity1
DisplayPorts quantity1
SCART ports quantity0

Ergonomics

SpecificationValue
Panel mounting interface100 x 100,200 x 100 mm
Wall mountableYes
On Screen Display (OSD)Yes

Power

SpecificationValue
AC input voltage110 - 220 V
Power supply typeAC

Operational conditions

SpecificationValue
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C

Weight & dimensions

SpecificationValue
Width (without stand)576 mm
Depth (without stand)250 mm
Height (without stand)432 mm
Weight (without stand)6.6 kg

Packaging data

SpecificationValue
Package dimensions (WxDxH)632 x 291 x 538 mm
Package weight8.4 kg

Packaging content

SpecificationValue
Cables includedAC, USB, VGA
Camera includedNo

Other features

SpecificationValue
Display viewable area (HxV)531.36 x 298.89 mm
CertificationRoHS, FCC-B, CE, TUV, C-Tick
Supplied AC adapter typeMVA, Y
