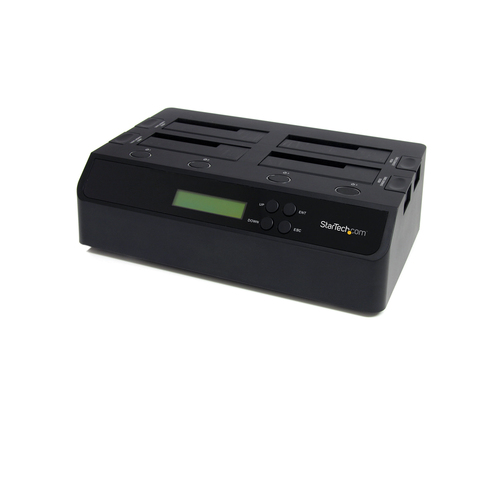

4-Bay Hard Drive Duplicator and Eraser, Standalone 1:3 SATA HDD/SSD Cloner/Copier, USB 3.0 / eSATA to SATA Docking Station, Hard Drive Duplicator a
Model SATDOCK4U3REEAN 999996648641
41 specifications
- ConnectivityUSB/eSATA
- TypeHDD duplicator
- Weight1.1 kg
- ColourBlack
- Supported HDD interfacesSerial ATA, Serial ATA II
- Power consumption (typical)78 W
Overview
- Connectivity
- USB/eSATA
- Type
- HDD duplicator
- Weight
- 1.1 kg
- Colour
- Black
- Supported HDD interfaces
- Serial ATA, Serial ATA II
- Power consumption (typical)
- 78 W
- Brand
- StarTech.com
- Category
- Media Duplicator
- Model
- SATDOCK4U3RE
- Part number
- SATDOCK4U3RE
- EAN / UPC
- 999996648641, 029126821733, 065030843881, 132017581842 +10 more
- Also known as
- StarTech.com 4-Bay Hard Drive Duplicator and Eraser, Standalone 1:3 SATA HDD/SSD Cloner/Copier, USB 3.0 / eSATA to SATA Docking Station, Hard Drive Duplicator a
Specifications
41 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| Product type | HDD duplicator |
| Product colour | Black |
| Housing material | Plastic |
| Number of simultaneous copies | 3 copies |
| Interface | USB/eSATA |
| USB connector type | USB Type-B |
| Duplicator operating modes | Copy |
| Maximum supported storage capacity | 16 TB |
| Plug and Play | Yes |
| Chipset | JMicron - JMB394 + JMS539 |
| Display | LCD |
| Fan diameter | 6 cm |
| LED indicators | Activity, Power |
| Number of fans | 2 fan(s) |
| Port multiplier | Yes |
| Certification | CE |
Hard drive
| Specification | Value |
|---|---|
| Supported HDD interfaces | Serial ATA, Serial ATA II |
| Supported HDD sizes | 2.5,3.5" |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000/ XP(32/64-bit)/ Server 2003(32/64-bit)/ Vista(32/64-bit)/ 7(32/64-bit)/ Server 2008 R2, Mac OS X, Linux |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 78 W |
| AC input voltage | 110-240 V |
| Output current | 6.5 A |
| Output voltage | 12 V |
| Included power plug types | EU, NA, UK |
Weight & dimensions
| Specification | Value |
|---|---|

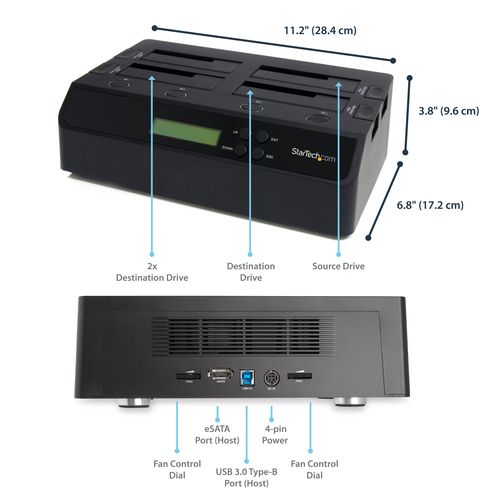

| Dimensions (WxDxH) | 285 x 170 x 94 mm |
| Weight | 1.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 223 mm |
| Package depth | 344 mm |
| Package height | 181 mm |
| Package weight | 2.73 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | SATA, USB, eSATA |
| Manual | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 90% |
| Operating temperature (T-T) | 5 - 80 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case height | 481 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case width | 377 mm |
| Products per master (outer) case | 4 pc(s) |
