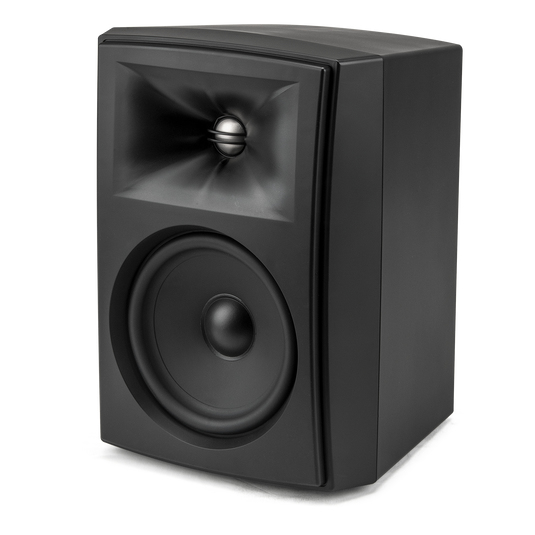

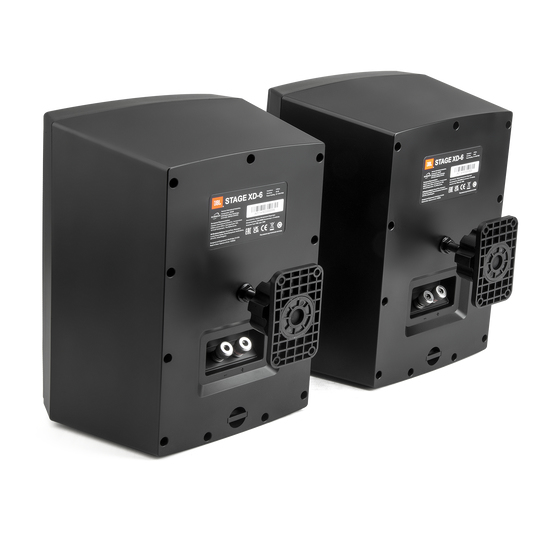

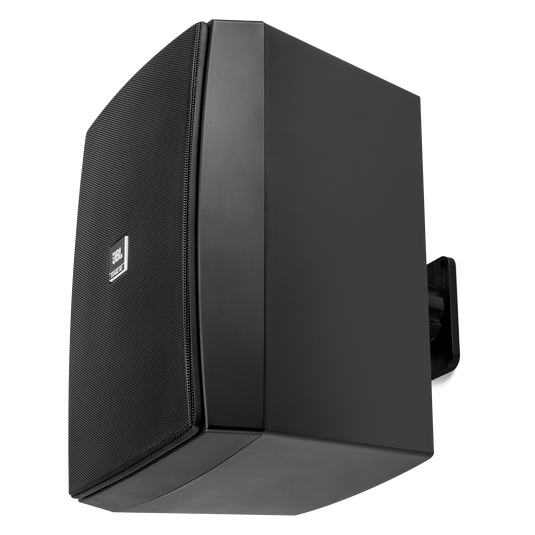

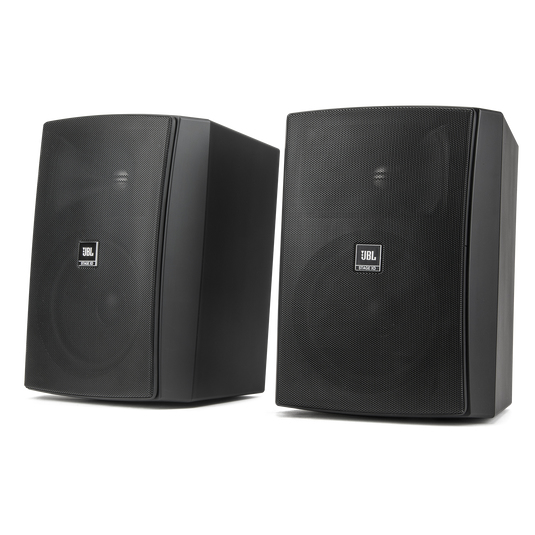

Stage XD-6
Model Stage XD-6Part no. JBLXD6BLKEAN 6925281925290
35 specifications
- Weight6.5 kg
- ColourBlack
- Speaker type2-way
- Frequency range55 - 25000 Hz
- Recommended amplifier power (max)100 W
- Width221.8 mm
Overview
- Weight
- 6.5 kg
- Colour
- Black
- Speaker type
- 2-way
- Frequency range
- 55 - 25000 Hz
- Recommended amplifier power (max)
- 100 W
- Width
- 221.8 mm
- Brand
- JBL
- Category
- Loudspeaker
- Model
- Stage XD-6
- Part numbers
- JBLXD6BLK, JBLXD6WHT
- EAN / UPC
- 6925281925290, 6925281925207
- Also known as
- JBL Stage XD-6 2-way Black
Specifications
35 specifications in 8 groups
Loudspeakers
| Specification | Value |
|---|---|
| Speaker type | 2-way |
| Speaker placement | Wall-mountable |
| Number of drivers | 2 |
| Tweeter | Yes |
| Number of tweeter drivers | 1 |
| Tweeter diameter | 2.5 cm |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Woofer | Yes |
| Number of woofer drivers | 1 |
| Woofer diameter | 16.5 cm |
| Woofer diameter (imperial) | 16.5 cm (6.5") |
Audio
| Specification | Value |
|---|---|
| Frequency range | 55 - 25000 Hz |
| Impedance | 6 Ω |
| Sensitivity | 88 dB |
| Crossover frequency | 2500 Hz |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Recommended usage | Universal |
| Housing material | Polypropylene (PP) |
| International Protection (IP) code | IP67 |
| Suitable for outdoor use | Yes |
| Water-resistant | Yes |
Amplifier
| Specification | Value |
|---|---|
| Recommended amplifier power (max) | 100 W |
| Recommended amplifier power (min) | 20 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 221.8 mm |
| Depth | 194 mm |
| Height | 299 mm |
| Weight | 6.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 496 mm |
| Package depth | 276 mm |
| Package height | 373 mm |
| Package weight | 7 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Manual | Yes |
| Mounting brackets included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -35 - 75 °C |
