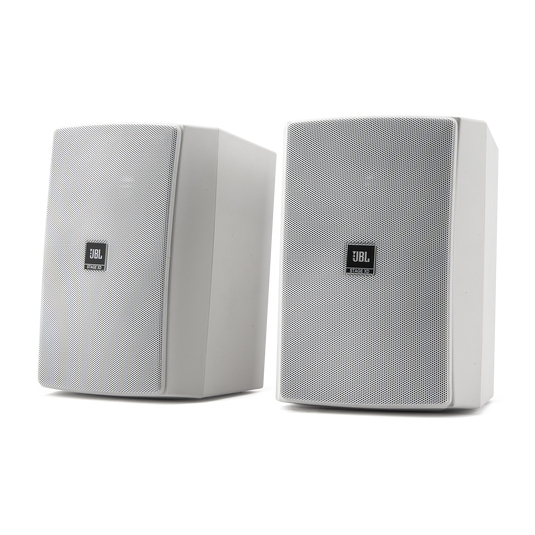

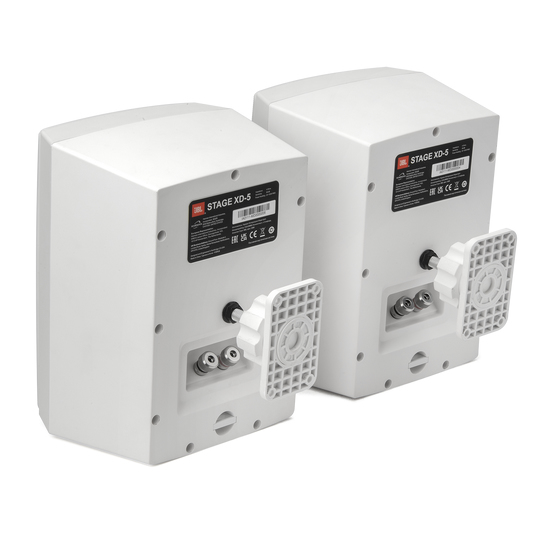

Stage XD-5
Model Stage XD-5Part no. JBLXD5WHTEAN 6925281918827
35 specifications
- Weight5 kg
- ColourWhite
- Speaker type2-way
- Frequency range75 - 25000 Hz
- Recommended amplifier power (max)100 W
- Width179 mm
Overview
- Weight
- 5 kg
- Colour
- White
- Speaker type
- 2-way
- Frequency range
- 75 - 25000 Hz
- Recommended amplifier power (max)
- 100 W
- Width
- 179 mm
- Brand
- JBL
- Category
- Loudspeaker
- Model
- Stage XD-5
- Part numbers
- JBLXD5WHT, JBLXD5BLK
- EAN / UPC
- 6925281918827, 6925281922718
- Also known as
- JBL Stage XD-5 2-way White
Specifications
35 specifications in 8 groups

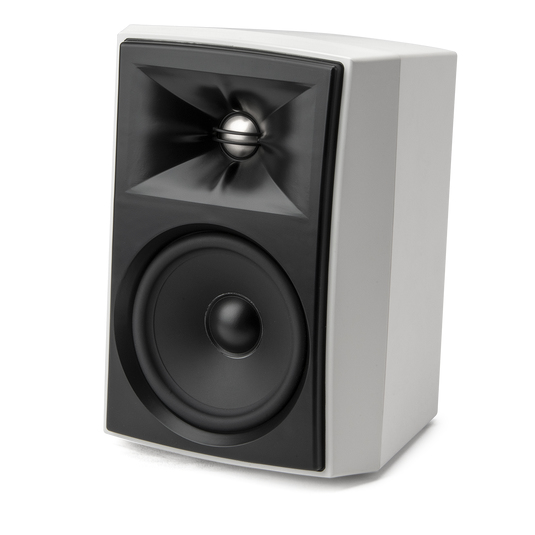

Loudspeakers
| Specification | Value |
|---|---|
| Speaker type | 2-way |
| Speaker placement | Wall-mountable |
| Number of drivers | 2 |
| Tweeter | Yes |
| Number of tweeter drivers | 1 |
| Tweeter diameter | 2.5 cm |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Woofer | Yes |
| Number of woofer drivers | 1 |
| Woofer diameter | 13 cm |
| Woofer diameter (imperial) | 13.3 cm (5.25") |
Audio
| Specification | Value |
|---|---|
| Frequency range | 75 - 25000 Hz |
| Impedance | 6 Ω |
| Sensitivity | 86 dB |
| Crossover frequency | 2500 Hz |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Recommended usage | Universal |
| Housing material | Polypropylene (PP) |
| International Protection (IP) code | IP67 |
| Suitable for outdoor use | Yes |
| Water-resistant | Yes |
Amplifier
| Specification | Value |
|---|---|
| Recommended amplifier power (max) | 100 W |
| Recommended amplifier power (min) | 20 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179 mm |
| Depth | 162 mm |
| Height | 250 mm |
| Weight | 5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 416 mm |
| Package depth | 256 mm |
| Package height | 320 mm |
| Package weight | 5.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Manual | Yes |

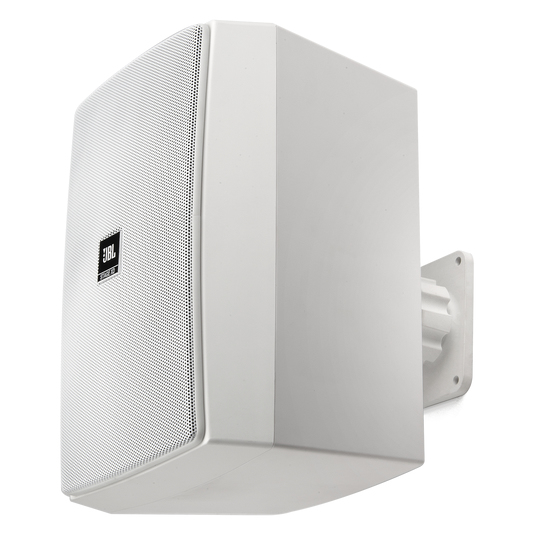

| Mounting brackets included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -35 - 75 °C |
