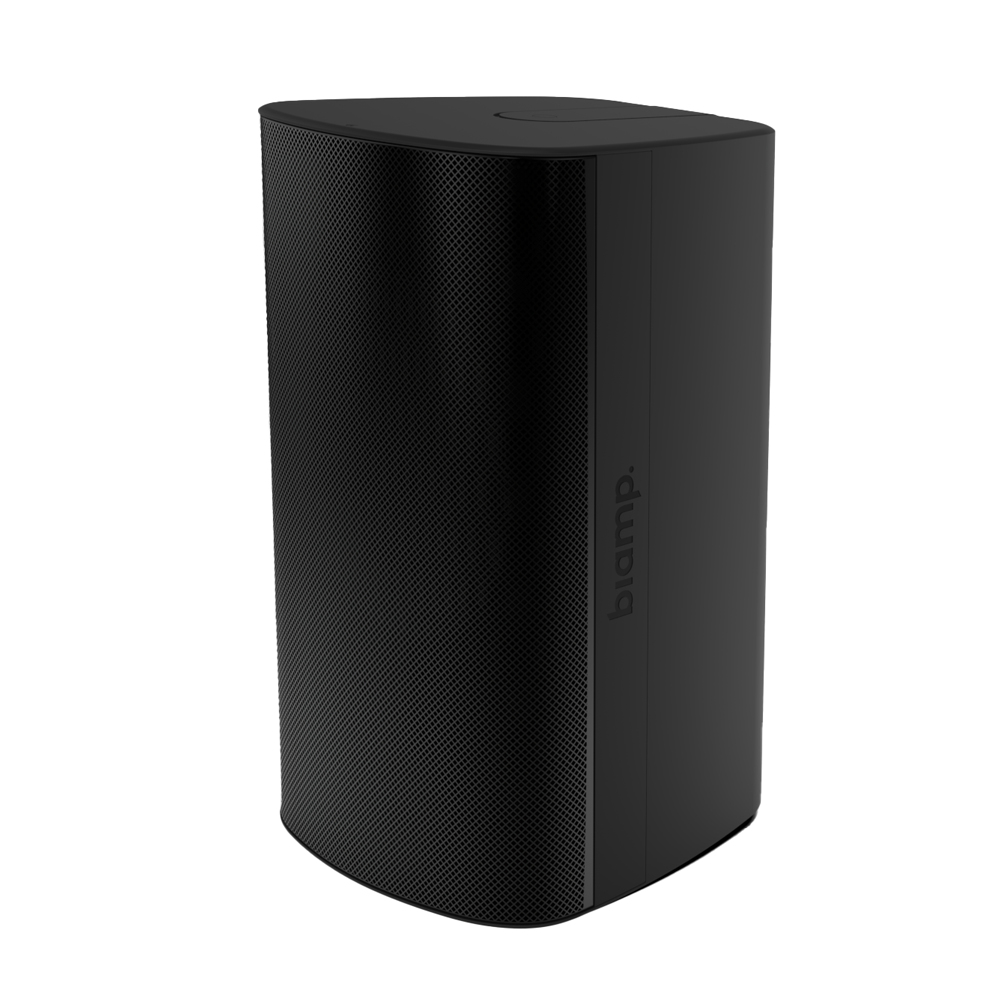

Desono EX-S10 Two-Way Coaxial 10-inch Surface Mount Loudspeaker U-Bracket Black
Model EX-S10-UB-BPart no. 920-01819-10000EAN 810039102855
37 specifications
- ConnectivityWired
- Weight15.2 kg
- ColourBlack
- Speaker type2-way
- RMS rated power300 W
- AmplifierNo
Overview
- Connectivity
- Wired
- Weight
- 15.2 kg
- Colour
- Black
- Speaker type
- 2-way
- RMS rated power
- 300 W
- Amplifier
- No
- Brand
- Biamp
- Category
- Loudspeaker
- Model
- EX-S10-UB-B
- Part number
- 920-01819-10000
- EAN / UPC
- 810039102855
- Also known as
- Biamp Desono EX-S10 Two-Way Coaxial 10-inch Surface Mount Loudspeaker U-Bracket Black
Specifications
37 specifications in 10 groups
Loudspeakers
| Specification | Value |
|---|---|
| Speaker type | 2-way |
| Speaker placement | Surface-mountable |
| Tweeter | Yes |
| Number of tweeter drivers | 1 |
| Tweeter diameter | 3.5 cm |
| Tweeter diameter (imperial) | 3.56 cm (1.4") |
| Woofer | Yes |
| Number of woofer drivers | 1 |
| Woofer diameter | 25 cm |
| Woofer diameter (imperial) | 25.4 cm (10") |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 300 W |
| Frequency range | 48 - 20000 Hz |
| Impedance | 8 Ω |
| Sensitivity | 89 dB |
| Crossover frequency | 1480 Hz |
| Sound pressure level (max) | 124 dB |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Recommended usage | Universal |
| International Protection (IP) code | IP54 |
| Suitable for outdoor use | Yes |
Amplifier
| Specification | Value |
|---|---|
| Amplifier | No |
| Recommended amplifier power (max) | 600 W |
| Recommended amplifier power (min) | 300 W |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Bluetooth | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 310 mm |
| Depth | 312 mm |
| Height | 529 mm |
| Weight | 15.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 393.7 mm |
| Package depth | 609.6 mm |
| Package height | 520.7 mm |
| Package weight | 19.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518220000 |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
