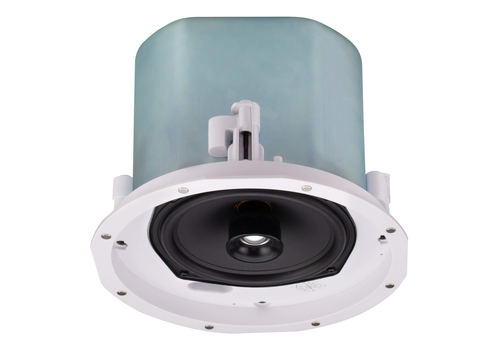

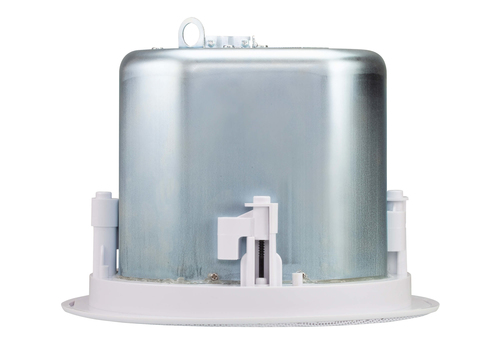

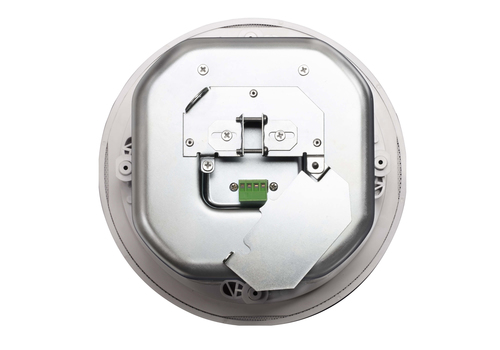

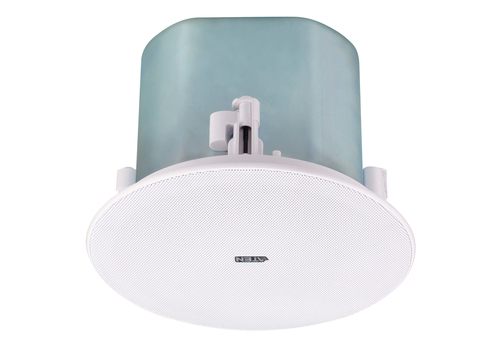

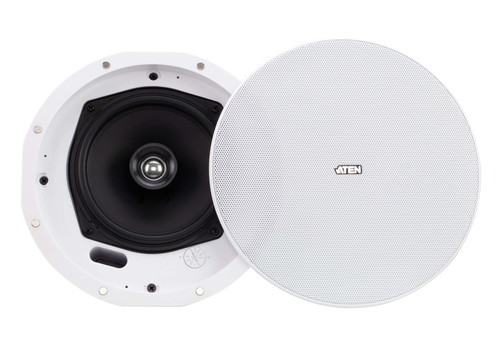

6.5" Coaxial Ceiling Loudspeaker
Model AS106-ATEAN 4710469341700
44 specifications
- ConnectivityWired
- Weight3.7 kg
- ColourWhite
- Speaker type2-way
- RMS rated power60 W
- AmplifierNo
Overview
- Connectivity
- Wired
- Weight
- 3.7 kg
- Colour
- White
- Speaker type
- 2-way
- RMS rated power
- 60 W
- Amplifier
- No
- Brand
- ATEN
- Category
- Loudspeaker
- Model
- AS106-AT
- Part number
- AS106-AT
- EAN / UPC
- 4710469341700
- Also known as
- ATEN 6.5" Coaxial Ceiling Loudspeaker
Specifications
44 specifications in 14 groups
Loudspeakers
| Specification | Value |
|---|---|
| Speaker type | 2-way |
| Speaker placement | Ceiling-mountable |
| Number of drivers | 2 |
| Tweeter | Yes |
| Number of tweeter drivers | 1 |
| Tweeter diameter | 2 cm |
| Woofer | Yes |
| Number of woofer drivers | 1 |
| Woofer diameter | 16.5 cm |
Audio
| Specification | Value |
|---|---|
| RMS rated power | 60 W |
| Peak Music Power Output (PMPO) | 120 W |
| Frequency range | 80 - 20000 Hz |
| Impedance | 8 Ω |
| Sensitivity | 90 dB |
| Total Harmonic Distortion (THD) | 5% |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Recommended usage | Universal |
| Housing material | Plastic, Rubber, Steel |
Amplifier
| Specification | Value |
|---|---|
| Amplifier | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Bluetooth | No |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Transformer taps | 7.5,15,30,60 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 257.2 mm |
| Depth | 257.2 mm |
| Height | 197.5 mm |
| Weight | 3.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 13.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| Mounting brackets included | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, WEEE |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 390 mm |
| Master (outer) case length | 750 mm |
| Master (outer) case height | 267 mm |
| Master (outer) case gross weight | 13.7 kg |
| Master (outer) case net weight | 9.8 kg |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case volume | 78154.5 cm³ |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Package volume | 78154.5 cm³ |
