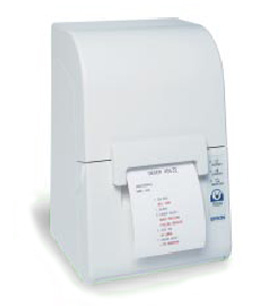

TM-U230 line matrix printer
Model TM-U230Part no. C31C391A87
10 specifications
- Weight2.8 kg
- Printing width1.6 characters
- Paper dimensions76.0±0.5 x dia. 83mm
- Fonts included7 x 9/9 x 9
- Power requirements24V DC
- Ribbon life18 million characters
Overview
- Weight
- 2.8 kg
- Printing width
- 1.6 characters
- Paper dimensions
- 76.0±0.5 x dia. 83mm
- Fonts included
- 7 x 9/9 x 9
- Power requirements
- 24V DC
- Ribbon life
- 18 million characters
- Brand
- Epson
- Category
- Line Matrix Printer
- Model
- TM-U230
- Part number
- C31C391A87
- Also known as
- Epson TM-U230 line matrix printer
Specifications
10 specifications in 9 groups
Print quality
| Specification | Value |
|---|---|
| Printing width | 1.6 characters |
Paper handling
| Specification | Value |
|---|---|
| Paper dimensions | 76.0±0.5 x dia. 83mm |
Technical details
| Specification | Value |
|---|---|
| Fonts included | 7 x 9/9 x 9 |
Power
| Specification | Value |
|---|---|
| Power requirements | 24V DC |
| Power consumption (typical) | 38 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 166 x 168 x 259.5 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | VCCI, FCC, CE, CSA, TÜV |
Endurance
| Specification | Value |
|---|---|
| Ribbon life | 18 million characters |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Parallel |
