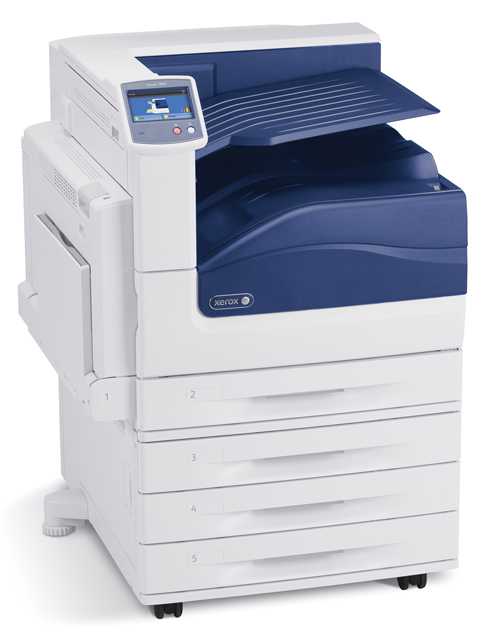

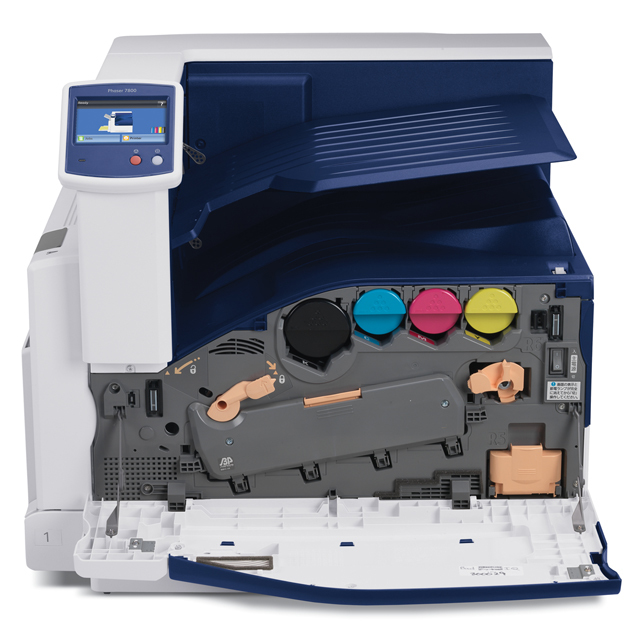

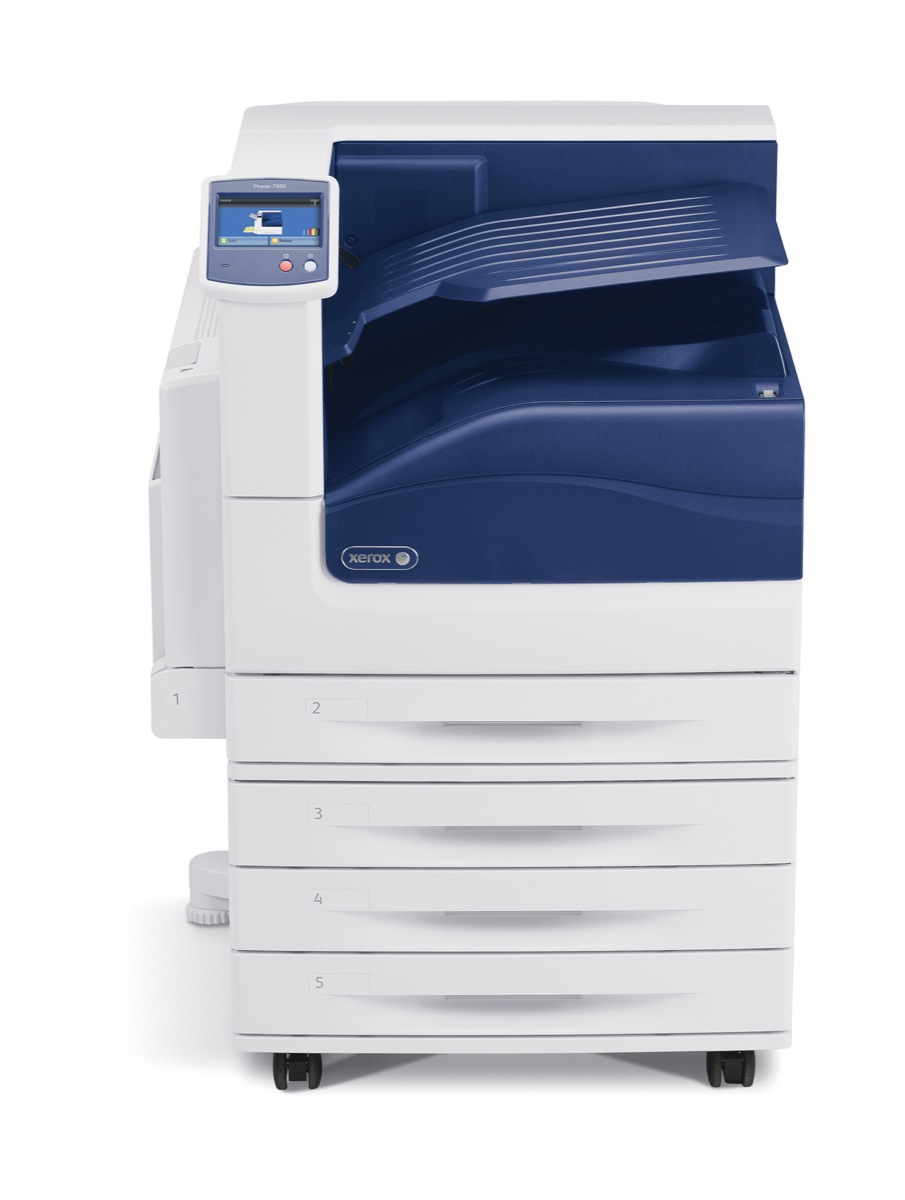

Xerox Phaser 7800GX Colour
1200 x 2400 DPI A3
Model 7800GXPart no. 7800_GXEAN 095205850406
69 specifications
- Memory2048 MB
- Storage160 GB
- Weight116 kg
- ColourYes
- Maximum duty cycle225000 pages per month
- Total number of input trays4
Overview
- Memory
- 2048 MB
- Storage
- 160 GB
- Weight
- 116 kg
- Colour
- Yes
- Maximum duty cycle
- 225000 pages per month
- Total number of input trays
- 4
- Brand
- Xerox
- Category
- Laser Printer
- Model
- 7800GX
- Part number
- 7800_GX
- EAN / UPC
- 095205850406
- Also known as
- Xerox Phaser 7800GX Colour 1200 x 2400 DPI A3
Specifications
69 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | LED |
| Duplex printing | Yes |
| Maximum resolution | 1200 x 2400 DPI |
| Print speed (black, normal quality, A4/US Letter) | 45 ppm |
| Print speed (black, draft quality, A4/US Letter) | 45 ppm |
| Print speed (black, normal quality, A3) | 22 ppm |
| Print speed (colour, normal quality, A3) | 22 ppm |
| Warm-up time | 180 s |
| Time to first page (black, normal) | 9 s |
| Time to first page (colour, normal) | 9 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 225000 pages per month |
| Recommended duty cycle | 0 - 30000 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | PCL 5c, PCL 6, PDF 1.6, PostScript 3 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 4 |
| Total input capacity | 2180 sheets |
| Total output capacity | 250 sheets |
| Maximum input capacity | 2180 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Maximum print size | 297 x 420 mm |
| Paper tray media types | Card stock, Envelopes, Glossy paper, Labels, Plain paper, Pre-printed, Recycled paper, Transparencies |
| ISO A-series sizes (A0...A9) | A3, A4 |
| Custom media width | 88 - 320 mm |
| Custom media length | 99 - 1219 mm |
| Paper tray media weight | 75 - 350 g/m² |
| Paper tray media weight (imperial) | 9.07 - 59 kg (20 - 130 lbs) |
| Duplex media weight | 75 - 256 g/m² |
| Duplex media weight (imperial) | 20 - 98 lbs |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | USB 2.0 |
| Direct printing | No |
| USB port | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Management protocols | SNMPv3 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2048 MB |
| Maximum internal memory | 2048 MB |
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Processor frequency | 1330 MHz |
| Sound pressure level (printing) | 52 dB |
| Sound power level (standby) | 21 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Home & office |
| Product colour | Blue, White |

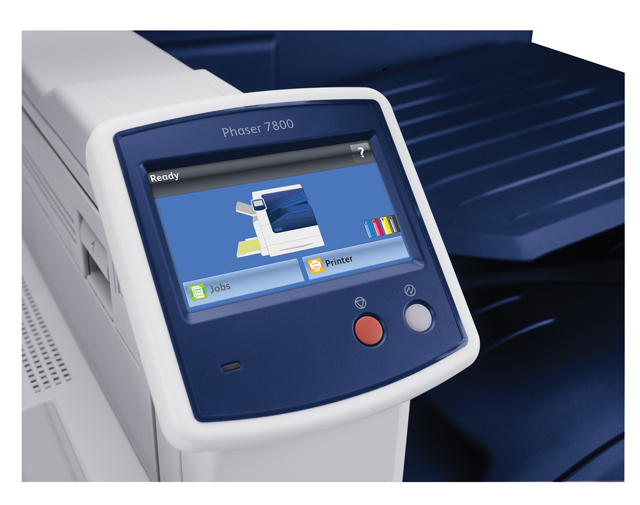

| Display | LCD |
| Certification | UL, EMC, FCC, RoHS |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 844 W |
| Power consumption (standby) | 86 W |
| Power consumption (PowerSave) | 53 W |
| Power consumption (off) | 5.3 W |
| AC input voltage | 110 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 32 °C |
| Operating relative humidity (H-H) | 15 - 85% |
| Operating altitude | 0 - 2500 m |
| Operating temperature (T-T) | 50 - 90 °F |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 116 kg |
| Dimensions (WxDxH) | 641 x 699 x 953 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 147 kg |
Other features
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Mac OS v10.5+ Windows 2003 Server Windows 2008 Server Windows 7 Windows Vista Windows XP SP3+ Oracle Solaris 9, 10 Fedora Core 12-15 HP-UX 11iv2 IBM AIX 5 SUSE 11.x |
| Networking features | Gigabit Ethernet |
| Networking standards | IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Package dimensions (WxDxH) | 770 x 848 x 1143 mm |
What people say
Reviews & ratings
Xerox Phaser 7800GX Colour
No reviews yet
Be the first to tell others how Xerox Phaser 7800GX Colour works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Xerox Phaser 7800GX Colour
All laser printer comparisons- Xerox Phaser 7800GX Colour vsXerox Stampante laser Phaser 5550NS, 50ppm, collegamento in rete Stampante laserCompare specs
- Xerox Phaser 7800GX Colour vsXerox Phaser 3610/DNCompare specs

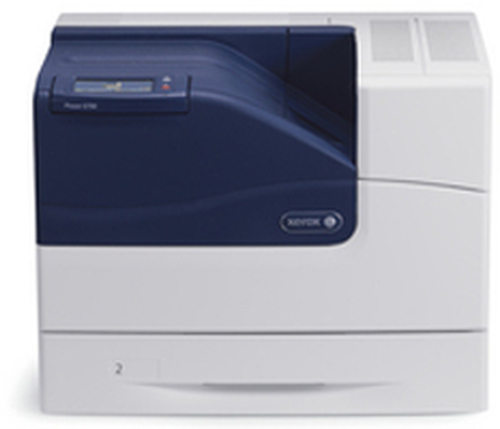

- Xerox Phaser 7800GX Colour vsXerox Phaser 6700NCompare specs
- Xerox Phaser 7800GX Colour vsXerox Phaser 6700DN 110v: A4 Size Colour PrinterCompare specs

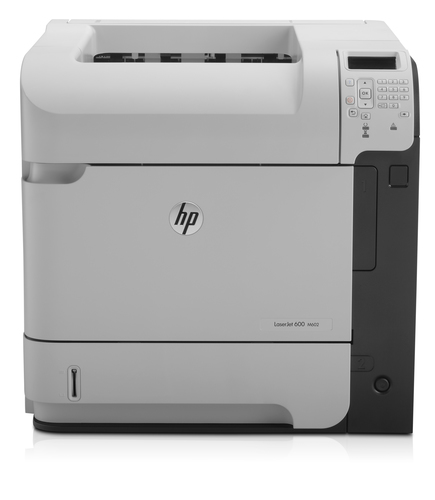

- Xerox Phaser 7800GX Colour vsHP Enterprise 600 M602nCompare specs

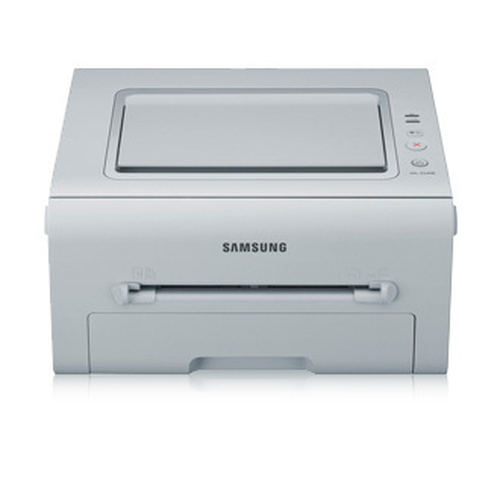

- Xerox Phaser 7800GX Colour vsSamsung ML-2540R laser printerCompare specs

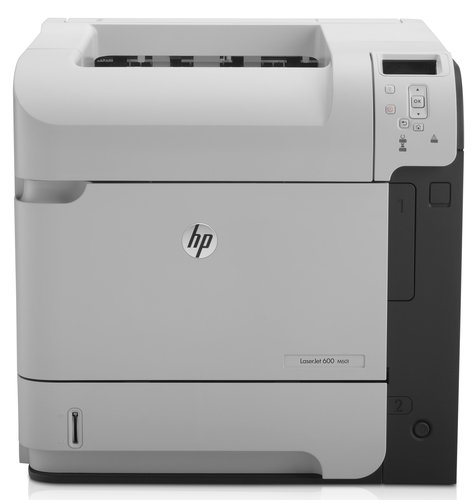

- Xerox Phaser 7800GX Colour vsHP Enterprise 600 M601nCompare specs

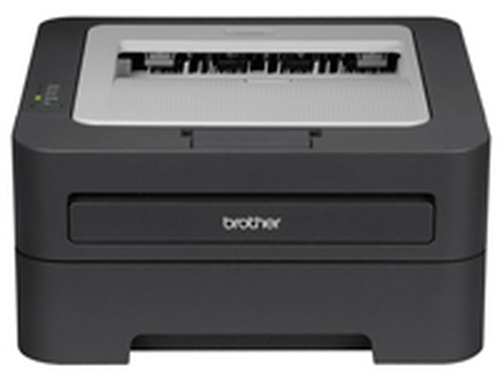

- Xerox Phaser 7800GX Colour vsBrother HL-2230 laser printerCompare specs
