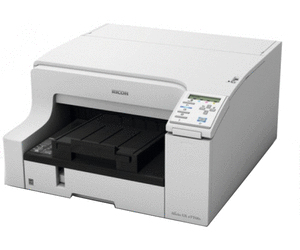

Ricoh Aficio GX e7700N
Model Aficio GX e7700NPart no. 974222
61 specifications
- ProcessorR8A02022BGV
- Memory16 MB
- Weight19.1 kg
- ColourYes
- Maximum duty cycle10000 pages per month
- Total number of input trays1
Overview
- Processor
- R8A02022BGV
- Memory
- 16 MB
- Weight
- 19.1 kg
- Colour
- Yes
- Maximum duty cycle
- 10000 pages per month
- Total number of input trays
- 1
- Brand
- Ricoh
- Category
- Laser Printer
- Model
- Aficio GX e7700N
- Part numbers
- 974222, 981499
- Also known as
- Ricoh Aficio GX e7700N Colour 3600 x 1200 DPI A3
Specifications
61 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Print technology | Laser |
| Duplex printing | Yes |
| Maximum resolution | 3600 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 29 ppm |
| Print speed (colour, normal quality, A4/US Letter) | 29 ppm |
| Warm-up time | 35 s |
| Time to first page (black, normal) | 6.5 s |
| Time to first page (colour, normal) | 9 s |
| Secure printing | No |
| Economical printing | Yes |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 10000 pages per month |
| Recommended duty cycle | 1000 - 2500 pages per month |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Number of print cartridges | 4 |
| Page description languages | RPCS |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 250 sheets |
| Total output capacity | 100 sheets |
| Maximum number of input trays | 3 |
| Maximum input capacity | 600 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A3 |
| Maximum print size | 297 x 420 mm |
| Paper tray media types | Envelopes, Glossy paper, Plain paper, Recycled paper, Thin paper |
| ISO A-series sizes (A0...A9) | A3, A4, A5, A6 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | Executive, Folio, Letter, Legal |
| Envelopes sizes | 10, C5, C6, DL |
| Custom media width | 53.3 - 215.9 mm |
| Custom media length | 127 - 1295.4 mm |
| Paper tray media weight | 60 - 157 g/m² |
| Auto Document Feeder (ADF) media weight | 60 - 256 g/m² |
| Duplex media weight | 60 - 163 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | Ethernet, USB 1.1, USB 2.0 |
| USB 2.0 ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Supported network protocols (IPv4) | TCP/IP |
Performance
| Specification | Value |
|---|---|
| Internal memory | 16 MB |
| Maximum internal memory | 16 MB |
| Processor model | R8A02022BGV |
| Processor frequency | 192 MHz |
Design
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Display | LCD |
| Certification | UL/CSA60950, FCC Class B |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 35 W |
| Power consumption (PowerSave) | 2.7 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi |
| Mac operating systems supported | Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard |
| Server operating systems supported | Windows Server 2003, Windows Server 2008, Windows Server 2008 R2 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 540 mm |
| Depth | 552 mm |
| Height | 259 mm |
| Weight | 19.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Bundled software | SmartDeviceMonitor |
Other features
| Specification | Value |
|---|---|
| Copy function | No |
| Scanner integrated | No |
