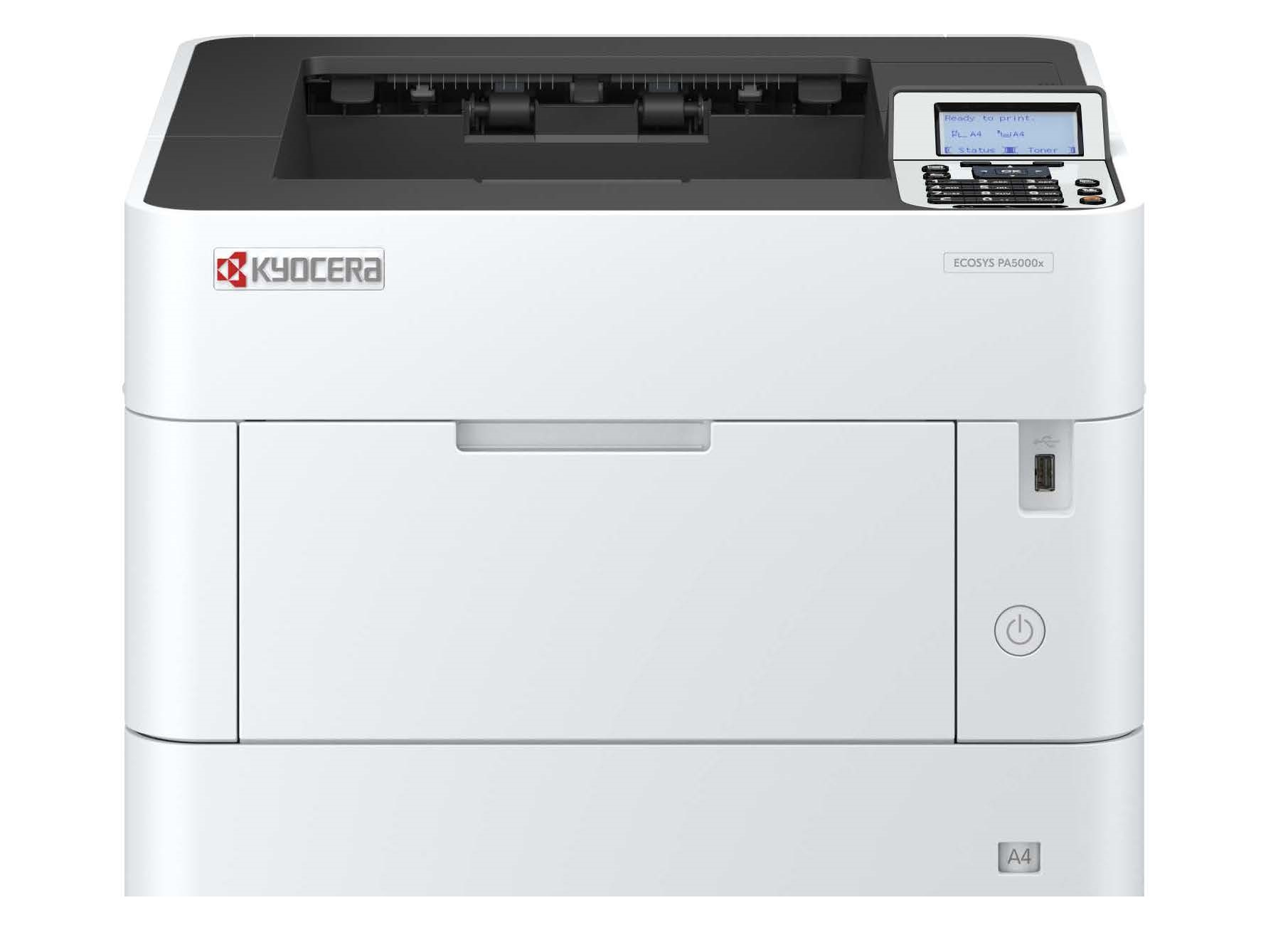

PA5000x 1200 x 1200 DPI A4
Model PA5000xPart no. 110C0X2US0EAN 632983937006
95 specifications
- ProcessorARM Cortex
- Memory512 MB
- Weight16.1 kg
- ColourNo
- Maximum duty cycle150000 pages per month
- Total number of input trays1
Overview
- Processor
- ARM Cortex
- Memory
- 512 MB
- Weight
- 16.1 kg
- Colour
- No
- Maximum duty cycle
- 150000 pages per month
- Total number of input trays
- 1
- Brand
- Kyocera
- Category
- Laser Printer
- Model
- PA5000x
- Part numbers
- 110C0X2US0, 110C0X3NL0, 870B6110C0X3NL3, 110C0X3AU0
- EAN / UPC
- 632983937006, 632983080009, 5715063645444, 6329830800098
- Also known as
- KYOCERA PA5000x 1200 x 1200 DPI A4
Specifications
95 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Print technology | Laser |
| Duplex printing | Yes |
| Duplex printing mode | Auto |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution black | 1200 x 1200 DPI |
| Print speed (black, normal quality, A4/US Letter) | 50 ppm |
| Duplex print speed (black, normal quality, A4/US Letter) | 35.5 ppm |
| Warm-up time | 20 s |
| Time to first page (black, normal) | 5.4 s |
Features
| Specification | Value |
|---|---|
| Maximum duty cycle | 150000 pages per month |
| Recommended duty cycle | 10000 - 20000 pages per month |
| Printing colours | Black |
| Number of print cartridges | 1 |
| Page description languages | Epson LQ, IBM ProPrinter, JPEG, OpenXPS, PCL 5e, PCL 6, PCL XL, PCLm, PDF, PWG, PostScript 3, TIFF, URF, XPS |
| Printer fonts | Barcode, Bitmap, PCL |
| Number of printer fonts | 93 |
| Replacement cartridges | TK-3410 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Total input capacity | 500 sheets |
| Total output capacity | 500 sheets |
| Paper tray 1 input capacity | 500 sheets |
| Paper input type | Cassette, Paper tray |
| Multi-Purpose tray | Yes |
| Multi-Purpose tray input capacity | 100 sheets |
| Maximum number of input trays | 5 |
| Maximum input capacity | 2600 sheets |
| Maximum output capacity | 500 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum ISO A-series paper size | A4 |
| Maximum print size | 216 x 356 mm |
| Paper tray media types | Plain paper |
| Multi-purpose tray media types | Legal, Letter |
| ISO A-series sizes (A0...A9) | A4, A5 |
| ISO B-series sizes (B0...B9) | B5 |
| Non-ISO print media sizes | Legal, Letter |
| Custom media width | 140 - 216 mm |
| Custom media length | 210 - 356 mm |
| Paper tray media weight | 60 - 120 g/m² |
| Multi-Purpose Tray media weight | 60 - 220 g/m² |
| Duplex media weight | 60 - 120 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Standard interfaces | RJ-45, USB 2.0 |
| Direct printing | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| USB connector | USB Type-A / USB Type-B |
| Optional connectivity | Ethernet, Parallel, Wireless LAN |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Network ready | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | No |
| Near Field Communication (NFC) | No |
| Security algorithms | HTTPS, IPPS, IPSec, SNMPv3 |
| Mobile printing technologies | Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service |
Performance
| Specification | Value |
|---|---|
| Internal memory | 512 MB |
| Maximum internal memory | 2500 MB |
| Compatible memory cards | SD, SDHC |
| Built-in processor | Yes |
| Processor family | ARM Cortex |
| Processor model | Cortex-A53 |
| Processor frequency | 1400 MHz |
| Processor cores | 2 |
| Sound pressure level (printing) | 55 dB |
| Sound power level (standby) | 30 dB |
Design
| Specification | Value |
|---|---|
| Market positioning | Business |
| Product colour | White |
| Built-in display | Yes |
| Display | LCD |
| Colour display | No |
| Touchscreen | No |
| Control type | Buttons |
| Display number of lines | 5 lines |
| Certification | GS, TÜV, CE |
Power
| Specification | Value |
|---|---|
| Power consumption (printing) | 625 W |
| Power consumption (standby) | 9 W |
| Power consumption (PowerSave) | 0.5 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | Blue Angel, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 390 mm |
| Depth | 416 mm |
| Height | 343 mm |
| Weight | 16.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 549 mm |
| Package depth | 494 mm |
| Package height | 438 mm |
| Package weight | 20 kg |
Packaging content
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
| Included cartridge capacity (black) | 6000 pages |
| Cables included | AC |
